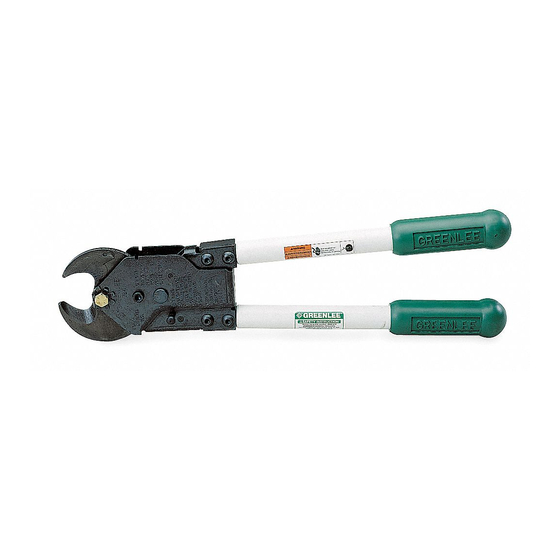

Ratchet cable cutter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION, SERVICE AND PARTS
INSTRUCTION MANUAL
764
RATCHET CABLE CUTTER
Read and understand this material before
operating or servicing this equipment. Failure
to understand how to safely operate this tool
could result in an accident causing serious
injury or death. This device should only be
operated by qualified personnel.
999 9803.3
© 1997 Greenlee Textron Inc.
IM 1078 REV 5 5/97

Advertisement

Table of Contents
loading

Related Manuals for Greenlee 764

Summary of Contents for Greenlee 764

  • Page 1 Failure to understand how to safely operate this tool could result in an accident causing serious injury or death. This device should only be operated by qualified personnel. 999 9803.3 © 1997 Greenlee Textron Inc. IM 1078 REV 5 5/97...

  • Page 2: Table Of Contents

    Exploded View ....................12 Parts List ......................13 Description The 764 Cable Cutter is intended to cut up to 750 MCM standard copper or 795 MCM standard aluminum electrical cable only. Purpose of this Manual This instruction manual is intended to familiarize operating and maintenance personnel with the safe operation and maintenance procedures associated with the Greenlee 764 Cable Cutter.

  • Page 3: Important Safety Instructions

    Safety is a critical factor in the design of Greenlee equipment. The best program starts with a safety-conscious operator. The information highlighted in this bulletin describes operating practices for the benefit of the workers who will use our equipment in their daily jobs.
  • Page 4 Failure to observe these precautions could result in injury or property damage. SAVE THESE INSTRUCTIONS Additional copies of this manual are available upon request at no charge. Greenlee Textron Inc. / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...

  • Page 5: Specifications

    750 MCM (400 mm 500 MCM (240 mm Aluminum 600 V 795 MCM (400 mm 750 MCM (400 mm Communications cable O.D. 1-3/16" (30 mm) Greenlee Textron Inc. / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...

  • Page 6: Operation

    Maintain a firm grip on both handles when using this tool. • Inspect before use. Replace any worn or damaged parts. Failure to observe these precautions could result in injury or property damage. Greenlee Textron Inc. / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...

  • Page 7: Maintenance

    (14 and 22). Open and close the cutter to spread the oil. Disassemble, clean and lubricate the tool if it does not operate smoothly. Greenlee Textron Inc. / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...

  • Page 8: Disassembly

    10. Remove two housing screws (11). Lift housing from tool. 11. Remove two screws (11) to disassemble operating lever assembly and remove pawl (15), pawl spring (12) and pawl shaft (19). Greenlee Textron Inc. / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...

  • Page 9: Assembly

    2 & 8 BOOT XXX OPERATING ADHESIVE LEVER ® USE LOCTITE #416 INSTANT ADHESIVE 6 & 25 JAW HOLDING MECHANISM 9 & 26 TIGHTEN TO INCH LBS. Greenlee Textron Inc. / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...
  • Page 10 (11). The long leg of the spring goes against the bottom handle adapter (28) and the short leg goes under the pawl (see Figure 3). Figure 3 Greenlee Textron Inc. / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...
  • Page 11 17. Bend tab (5) on nut retainer (24) to secure nut (6). ® 18. Apply adhesive Loctite #416 sparingly to assemble two bumpers (10) and to attach boot to housing (see Figure 1). Figure 5 Greenlee Textron Inc. / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...

  • Page 12: Exploded View

    764 Ratchet Cable Cutter Exploded View Greenlee Textron Inc. / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...

  • Page 13: Parts List

    (includes keys 1, 2, 3, 4, 5, 6, 7, 8, 21, 24, 25) ..1 503 5885.5 Handle assembly (includes keys 28, 29, 30, 31, 32) ......1 Greenlee Textron Inc. / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...
  • Page 14 Greenlee Textron Inc. / Subsidiary of Textron Inc. 4455 Boeing Drive, Rockford, IL 61109-2988 USA General Offices: 815/397-7070 Customer Center and Field Service: 800/435-0786 International Customer Service: 815/397-7070 Fax (24 Hour) Customer Center: 800/451-2632 • 815/397-1865 Canada Fax (24 Hour) Customer Center: 800/524-2853 Fax (24 Hour) International Customer Service: 815/397-1391 Printed in the U.S.A.
