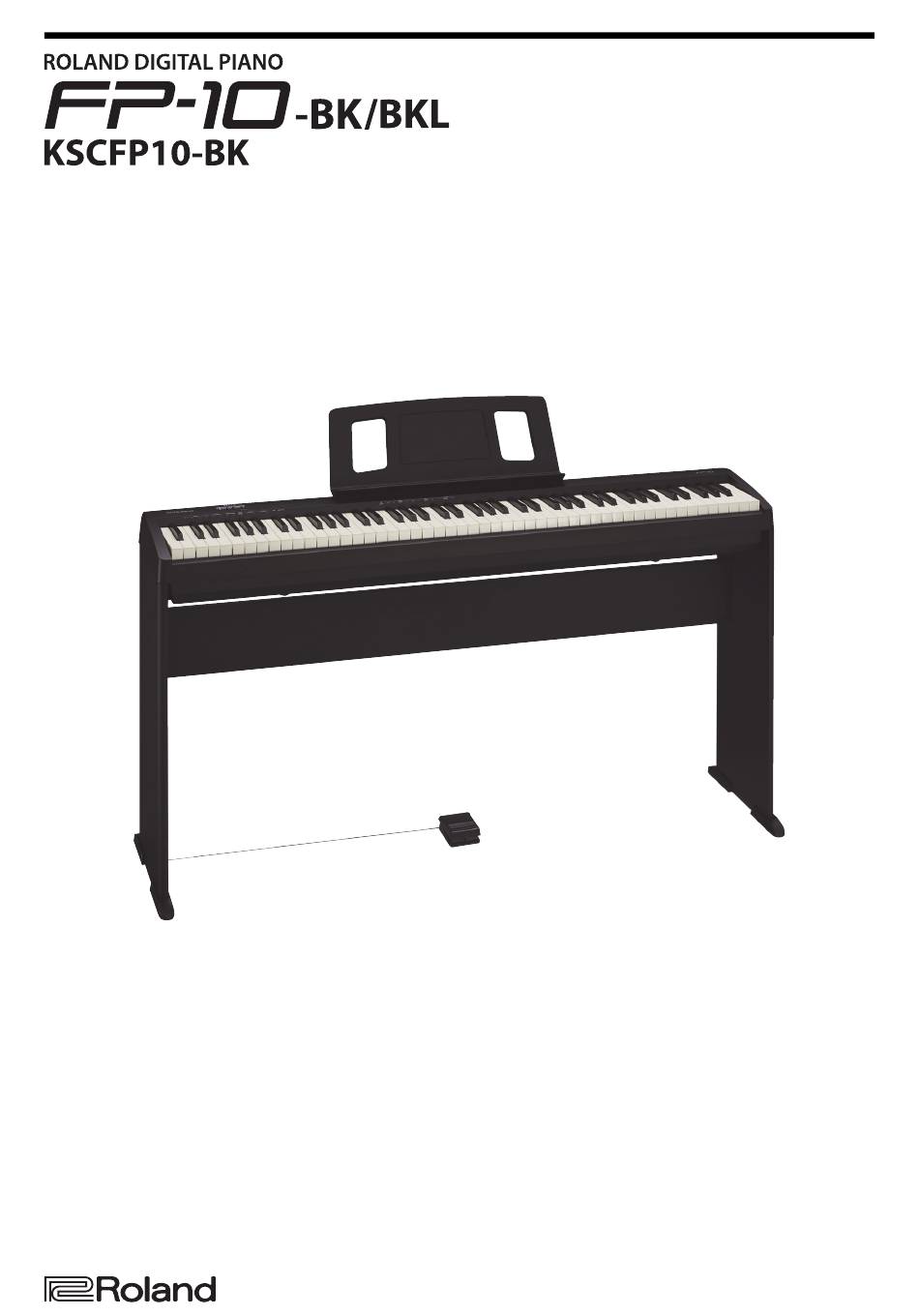

Feb. 2019
FP-10-BK/BKL, KSCFP10-BK
SERVICE NOTES
Issued by RJA
Copyright © 2019 Roland Corporation
All rights reserved. No part of this publication may be reproduced in any form without the written permission
of Roland Corporation.
17057209E0
CC-KWS

Advertisement

Table of Contents
loading

Related Manuals for Roland FP-10-BK

Summary of Contents for Roland FP-10-BK

  • Page 1 Feb. 2019 FP-10-BK/BKL, KSCFP10-BK SERVICE NOTES Issued by RJA Copyright © 2019 Roland Corporation All rights reserved. No part of this publication may be reproduced in any form without the written permission of Roland Corporation. 17057209E0 CC-KWS...

  • Page 2: Table Of Contents

    • Because the part is made to order (at current market price). Test Mode .................23 • Because it is carried in electronic data on the Roland web site. Circuit Board (Jack Board) ..........27 • Because it is a package or an accessory irrelevant to the function Circuit Diagram (Jack Board) ........28...

  • Page 3: Specification

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Specification Roland FP-10: Digital piano Keyboard Metronome Keyboard Tempo 88 keys (PHA-4 Standard Keyboard: with Escapement and Ivory Feel) Quarter note = 10–500 Touch Sensitivity Beat Key Touch: 5 types, fixed touch 0/4, 2/2, 3/2, 2/4, 3/4, 4/4, 5/4, 6/4, 7/4, 3/8, 6/8, 8/8, 9/8, 12/8...

  • Page 4: Contents Of Kscfp10

    Headphones * Printed matters will not be supplied after the end of the production. Then, download the electronic file from the Roland web site. * In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
  • Page 5 Feb. 2019 FP-10-BK/BKL, KSCFP10-BK...

  • Page 6: Location Of Controls

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Location of Controls fig.heimenzu.eps Part Code Part Name Description Q’ty 5100061709 LED INDICATOR 5100047917 KEYTOP MX4H CLR 01458501 TACT SWITCH SKQMATE010 02900312 DC JACK HEC0470-01-640 04459190 USB CONNECTOR A TYPE FEMALE YKF45-0033N 5100009531 USB CONNECTOR B TYPE FEMALE...

  • Page 7: Exploded View

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Exploded View fig.bunkai-total-assy.eps Refer to Fig. A Refer to Fig. B Refer to Fig. Part Code Part Name Description Q’ty 5100061706 MUSIC REST 40679101 SCREW M5X20 TRUSS MACHINE FE BZC...

  • Page 8: Exploded View (Fig.a)

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Exploded View (Fig.A) fig.bunkai-piano.eps...

  • Page 9: Exploded View (Fig.a) Parts List

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Exploded View (Fig.A) Parts List Part Code Part Name Description Q’ty 5100061705 TOP CASE 5100061709 LED INDICATOR 5100047917 KEYTOP MX4H CLR 5100061710 TACT SW CUSHION 5100061169 PANEL BOARD ASSY 5100063190 CENTER HOLDER 5100061707 KEY FELT 5100066077...

  • Page 10: Plain View (Fig.a) (1)

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Plain View (Fig.A) (1) fig.bunkai-piano-A1,A2,A3.eps View A1 View A2 View A3 View 1 Part Code Part Name Description Q’ty 5100065041 SCREW 4X10 BINDING TAPTITE P ZC View 2 Part Code Part Name Description Q’ty 40011312 SCREW 3X8...

  • Page 11: Plain View (Fig.a) (2)

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Plain View (Fig.A) (2) fig.bunkai-piano-A4,A5.eps View A4 View A5 View 4 Part Code Part Name Description Q’ty 40012345 SCREW 4X10 BINDING TAPTITE B BZC View 5 Part Code Part Name Description Q’ty 5100065041 SCREW 4X10 BINDING TAPTITE P ZC...

  • Page 12: Exploded View (Fig.b)

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Exploded View (Fig.B) fig.bunkai-stand.eps Part Code Part Name Description Q’ty 5100061723 CENTER BOARD 5100046679 CENTER BOARD HOLDER 5100061721 SIDE BOARD L 5100061722 SIDE BOARD R 5100047929 ANGLE 5100063645 TOE BLOCK 5100063800 TOE BLOCK 5100047118 FOOT...
  • Page 13 Feb. 2019 FP-10-BK/BKL, KSCFP10-BK...

  • Page 14: Plain View (Fig.b)

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Plain View (Fig.B) fig.bunkai-stand-all.eps View B1 View B2 View B3 View B4...

  • Page 15: Plain View (Fig.b) Parts List

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Plain View (Fig.B) Parts List View B1, View B2, View B3 Part Code Part Name Description Q’ty 40012145 SCREW 4X14 TRUSS TAPPING A FE BZC 40238145 SCREW M5X12 TRUSS MACHINE BZC View B4 Part Code Part Name Description Q’ty...

  • Page 16: Keyboard Parts List (Px-7D)

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Keyboard Parts List (PX-7D) fig.key-PX-7D.eps Part Code Part Name Description Q’ty 5100066077 KEYBOARD ASSY PX-7D SV SERVICE ASSY 5100046363 N-KEY C PX-7C 5100046364 N-KEY D PX-7C 5100046365 N-KEY E PX-7C 5100046366 N-KEY F PX-7C 5100046367 N-KEY G...
  • Page 17 Feb. 2019 FP-10-BK/BKL, KSCFP10-BK...

  • Page 18: Block Diagram/Wiring Diagram

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Block Diagram/Wiring Diagram fig.d-block-wiring.eps@L PSB-5U Speaker P+11.5V ADP+11.5V DC IN DC/DC TPS6525 PWR-SW JACK BOARD Ripple AUDIO-MUTE PHONES-SNS PHONES CN12 PH L/R-SIG CN10 SP L/R-SIG 2ch D class AM TDA7492P CN11 PEDAL CN13 D+5V D+3.3V D+5V 5V<->3.3V...
  • Page 19 Feb. 2019 FP-10-BK/BKL, KSCFP10-BK fig.d-block-wiring.eps@R D+5V D+5V SYS*-XRST D+5V A+5V MAIN BOARD D+3.3V RESET IC D+3.3V A+3.3V D+1.2V D+5V USBH0+5V BLE Module HiSide A+10V PWR-SW PWSW-SNS ProgramROM Work ProgramROM Effect Wave AUDIO-MUTE QSPI SDRAM QSPI SDRAM FlashROM Discreate AMP-XMUTE 128Mbit...

  • Page 20: Parts List (Fp-10-Bk/Bkl)

    • Reissuance is restricted. only listed parts for replacement. • It is carried in electronic data on the Roland web site. • It is supplied as an assembled part • The part is made to order (at current market price).

  • Page 21: Parts List (Kscfp10-Bk)

    • Reissuance is restricted. only listed parts for replacement. • It is carried in electronic data on the Roland web site. • It is supplied as an assembled part • The part is made to order (at current market price).

  • Page 22: Notation Of Buttons And Leds

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Notation of Buttons and LEDs Press Vol +. Vol 1 goes dark. Vol 2–5 light up or go dark to display the Keyboard version as shown In this service notes, names of buttons and LEDs are described as belows.

  • Page 23: Performing A Factory Reset

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Restore Operation Hold down FUNCTION and turn on the power. The update starts. While the update is in progress, Vol 5–1 flash and go Connect the USB memory device containing the backed-up user data to dark repeatedly in sequence. The time required to update is the Memory for Update connector.
  • Page 24 “ichi” in Japanese. Vol 1 and Vol 2 flash. To set that Bluetooth function is enable (FP-10-BK), press Vol +. To set that Bluetooth function is not enable (FP-10-BKL), press Vol -. Press Vol + several times to verify that the unit says in the sequence shown below.
  • Page 25 Feb. 2019 FP-10-BK/BKL, KSCFP10-BK 6. Sound Test 8. Pedal Test This item tests the outputs of speakers and the PHONES jack. This item tests the operation of pedals. When the unit enters this test item, Vol 1 and Vol 3 flash momentarily.
  • Page 26 Feb. 2019 FP-10-BK/BKL, KSCFP10-BK 11. Device Test 14. Bluetooth Test This item tests the operation of each device automatically. This item tests the Bluetooth function. When the unit enters this test item, Vol 2 and Vol 4 flash momentarily. * For explanation in this section, we will use iPhone as an example of the mobile device equipped with Bluetooth function and GarageBand as an example for Bluetooth MIDI application.

  • Page 27: Circuit Board (Jack Board)

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Circuit Board (Jack Board) fig.kibanzu.jack.eps...

  • Page 28: Circuit Diagram (Jack Board)

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Circuit Diagram (Jack Board) fig.d-jack.eps@L 3.5mm Stereo To/From 5025 WF20P330JTL MAIN WF20P330JTL CN12 5025 YKB21-5344N BLM18BD601SN1D AGND BLM18BD601SN1D PHONES_L-SIG EZJZ1V800AA AGND PHONES_R-SIG AGND AGND AGND AGND PHONES_SENSE EZJZ1V800AA 0.1uF DGND 0.1uF B5B-PH-K-S (LF)(SN) AGND DGND AGND 0.1uF...
  • Page 29 Feb. 2019 FP-10-BK/BKL, KSCFP10-BK fig.d-jack.eps@R ONES UnPop BOARDIN-WIR1R8 DGND 0.1uF DGND AGND DGND 0.1uF DGND AGND DGND To/From PANEL SCAN=1kHz D+5V XPWR-SW SWD0 XUPD-SW LEDD2 LEDD1 LEDD0 SCAN B11B-PH-K-S (LF)(SN) DGND...

  • Page 30: Circuit Board (Panel Board)

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Circuit Board (Panel Board) fig.kibanzu.panel.eps...
  • Page 31 Feb. 2019 FP-10-BK/BKL, KSCFP10-BK...

  • Page 32: Circuit Diagram (Panel Board)

    Feb. 2019 FP-10-BK/BKL, KSCFP10-BK Circuit Diagram (Panel Board) fig.d-panel.eps@L LED+5V LED1 WHITE UnPop (VOLU FP-90 WIRING W09 (GND) DTA014EUBTL LED+5V DGND DGND DTA014EUBTL DTC043EUBTL DGND DTC043EUBTL DGND To/From DTC043EUBTL JACK DGND LED+5V DTC043EUBTL DGND XPWR-SW SWD0 XUPD-SW SWD0 LEDD2 DGND...
  • Page 33 Feb. 2019 FP-10-BK/BKL, KSCFP10-BK fig.d-panel.eps@R -LED5 UME INDICATOR) LED7 LED6 WHITE WHITE (POWER INDICATOR) (FUNCTION INDICATOR) LED+5V 1SS361FV DGND SWD0 TC043EUBTL DGND DGND DTC043EUBTL DGND...
