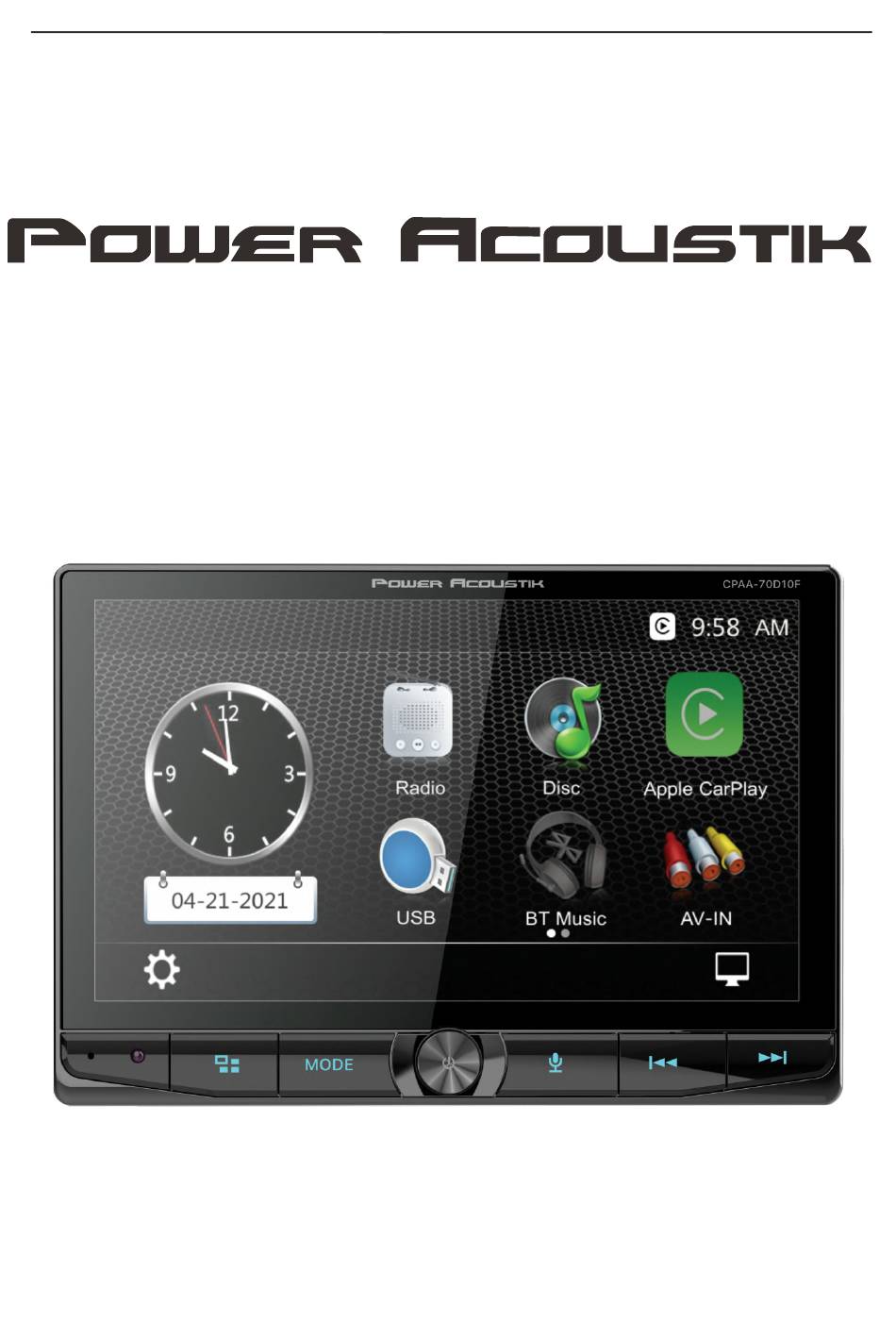

- Page 1 Operation Instruction Manual CPAA-70D10F Operation Instruction Manual CPAA-70D10F...
-
Page 2: Table Of Contents
Content 1. Appearance --------------------------------------------- 3 2. Accessories and Installation --------------------------------- 3. Wiring Connection --------------------------------- 4. Front panel Description --------------------------------- 5. Remoto Control --------------------------------- 6. Main Menu --------------------------------- 7. Settings --------------------------------- 8. Apple CarPlay & Android auto --------------------------------- 9. Radio --------------------------------- 10. -
Page 3: Appearance
Mounting bracket Screw Carplay Menu CP/AA Radio DISC Remote EJECT Trim Ring Android Auto Menu Operation Instruction Manual CPAA-70D10F Operation Instruction Manual CPAA-70D10F User Manual Page 1 of 31 Warranty Card ISO Cable (10) Harness cable (11) USB cable... - Page 4 Accessories & Installation Installation 4. Consult with your nearest dealer if installation requires the drilling of holes or other modification of the vehicle. Dashboard 5. Install the car receiver in the dashboard. 6. Connect the wire harness & antenna to the car receiver being carefully not to pinch any wires or cables.
-
Page 5: Wiring Connection
Accessories & Installation Wiring Parking wire 3. Swivel Note: The parking wire is connected with brake signal; for safety, the programs can be seen on the monitor after braking the car.. Note: To watch video the parking wire should be connected to brake signal. Parking brake lead Brown wire battery... - Page 6 Wiring Extraposition MIC jack Line Out (FR) Line Out (RR) Yellow Video Output1 Audio In (R) Radio antenna Yellow Video Input White ISO A ISO B Audio In (L) Yellow Video Output2 Yellow Back camera input white Line Out (RL) Green Subwoofer Out White...
-
Page 7: Front Panel Description
Front panel Press and hold to tune the radio frequency to the upward or downward station for broadcasting. CPAA-70D10F [Disc/USB/SD Music] Press repeatedly to shift track previous or next for playback. Press and hold to active various fast rewind or fast forward speeds for playback. -
Page 8: Remoto Control
5.REMOTE CONTROL Press it to increase or decrease the volume level. CP/AA Radio DISC It is UP /Down/Left/Right Arrow, use this button to select the menu item, ENTER the title track or to show next frame. EJECT Press it to confirm selection. ENTER [DVD/USB/SD]: short press it to skip to the next track or previous... -
Page 9: Main Menu
7.Settings 6.MAIN MENU CPAA-70D10F is a 2-DIN car audio with Touch the icon to enter the Setup menu. following functions: The Setup menu is included Time Settings, Apple CarPlay, Google Android Auto, Audio Setting s, Disc settings, General Radio, Disc, Bluetooth, USB, SD. - Page 10 7.Settings 10-Band Equalizer: 10 band of EQ tuning, slide the EQ bar to tune each band frequency level according to user preference. Touch Reset to set all Band to０. Steering Wheel Control Settings Disc settings: General settings: ① Touch SWC for steering wheel control setting.
-
Page 11: Apple Carplay & Android Auto
7.Settings 8.CarPlay & Android Auto 8.1 Apple Carplay Touch Save to confirm the setting Plug the iPhone (iPhone 5 or latter models, Touch Reset to erase and reset and IOS 7.1 or above) through the lightening the setting cable to the USB port of the source unit. The iPhone will be shown the “CarPlay”. -
Page 12: Radio
9.Radio mode 8.CarPlay & Android Auto 8.2 Android auto Operations Android Auto enables you to use functions of your Androd device convenient for driving. You can easily access route guidance, make calls, listen to music, etc. For details about Android Auto, visit https://www.android.com/auto https://support.google.com/androidauto., Radio mode... -
Page 13: Usb
10.USB 11.DISC Store a Station File List browsing 1 . Tune radio to desired station. 2. Touch and hold the one of the preset Touch to browse the folder and file list station for more than 3 seconds, then of the USB device. the preset button will be highlighted on You can select the multi-media type. -
Page 14: Bt Audio
12.Bluetooth Audio Press to skip previous track Play or pause button. Press to skip next track. Press to switch Random is On or Off. Touch to select audio language. Press to select Repeat All > Repeat 1> Repeat folder> Repeat Off. Touch to select subtitle language. -
Page 15: Bt Phone
BT Setup, tap t set auto answer and load phonebook. Search the available devices. Turn On the Bluetooth of the mobile phone or Bluetotth device, you can see the CPAA-70D10F, select the CPAA-70D10F Manage the connected device. for pairing and connection. Bluetooth Phone Make a Call Touch the Phone icon in main menu to go to Phone mode. - Page 16 To make a call from the phonebook, simply touch the contact name. 12:07 AM Phone CPAA-70D10F Receive an incoming call If the Phone is connected with the source unit via Bluetooth, when an incoming call, below screen will be shown:...
-
Page 17: Specification
14. Specification General Power Supply ………………………….………………………………….……..…………. DC10~16Volts Grounding System …………………………………..……..……….………..…….. Negative Ground Current Drain ………………………………….…………………………...……..….……..……. 15A(Max.) Max Power Output …………………………………………….………………..……. ..4×75W/channel RMS Power Output ……………………………………………………………………..4x25w/channel Speaker Impedance ……………………………………..…..…………….. 4~8ohms per channel Frequency Response……………………………………..……….………………………. 20Hz~20KHz Operating Temperature …………………………………..………………....-20~+60℃ Dimensions ……………………………………..… 255mm(W)x250mm(D)x175.1mm(H) TFT Display TFT Screen size…………………………………………..……………………….………………….10.6inch... -
Page 18: Av In
15.AV IN The Audio/Video source with RCA cable can through the source unit to play the Audio/ Video. Plug the RCA to the corresponding A/Vsocket. Touch the icon to view the playing Audio /Video. The Audi and Video will via the RCA cable to the source unit. -
Page 19: Fcc Notes
FCC Notes WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the userʼs authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
