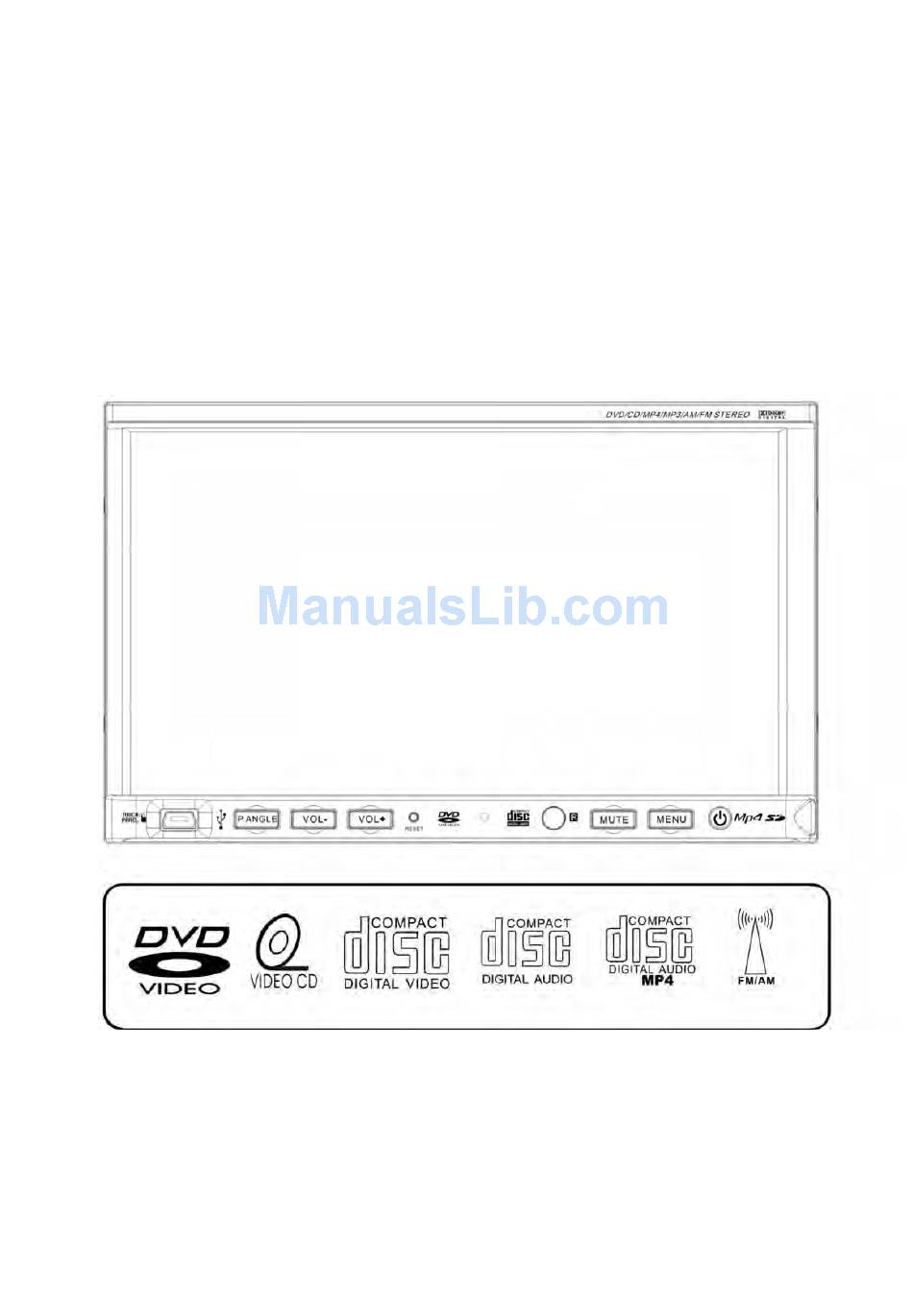

- Page 1 7” Wide Touch Screen 1-Din Oversized Fully Motorized TFT Monitor/DVD/AM/FM Operating Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ….…………………………………………………………………….2 Features …………………………………………………………………………………...3 Accessories………………………………………………………………………………..4 Unit Installation………… ………………………………………………………………….5 Unit Removal …………… ………………………………………………………………….7 Wire Connection …………………………………………………………………………...8 Front Panel …………………………………………………………………………………10 Rear Panel ……………………………………………………………………………..11 Remote Control …………………………………………………………………………12 Touch Screen Operations. …..................16 Touch Screen Calibrate ………………………………………………………………16 Main Menu ……………………………………………………………………………..17 Radio Operations ………………………………………………..……………....18 DVD Operations ………………………………………………………….……………21 USB Operations ………………………………………………….…………………….23... -
Page 3: Safety Information
SAFETY INFORMATION Please read the manual carefully before operating this unit and keep it for future reference. CAUTION: This unit is a class 1 laser product. To prevent direct exposure to the laser system, do not open the unit. The laser beam may hurt your eyes. If the unit requires adjustments, contact an authorized service centre. -
Page 4: Features
FEATURES - Fully Motorized 4 Position Drop Screen With Last Angle Memory - (Optional) Navigation Black Box Module With Navteq Maps Of North America - Electronic Touch Screen Functions Include DVD, Radio, USB, & MP-3/4 - DVD/DVD-RW/VCD/CD/CD-R/CD-RW/MP-3/MP-4/Divx - All Functions Are Displayed On Screen Via OSD (Fourteen Languages) - 30-Second Electronic Anti-shock Mechanism - Accessory iPod Input Connection (Cable Not Included) - USB Mini Input For MP-3 Music, Divx, Xvid &... -
Page 5: Accessories
ACCESSORIES Bolt Steel Bar x 1 M5X5 Screws x 4 Connecter Wire x 1 Remote Control x 1 Operational Manual x 1 Mounting Sleeve x 1 Keys x 2 Trim Bezel x 1 USB Cable x 1 SD Card Adapter x 1 Nut M5 x 1 - 4 -... -
Page 6: Unit Installation
UNIT INSTALLATION Install the Mounting sleeve into the dashboard. Install the unit into the Mounting sleeve. - 5 -... - Page 7 Install the trim bezel to the unit. (Before install the trim bezel, the panel should be slipped down). - 6 -...
-
Page 8: Unit Removal
UNIT REMOVAL Uninstall the trim bezel out from the unit. (Before uninstall the trim bezel, the panel should be slipped down). Insert the keys supplied with the unit on both sides (as illustrated) as this will release the internal locks so you can slide the unit out. - 7 -... -
Page 9: Wire Connection
WIRE CONNECTION - 8 -... - Page 10 NOTE: Brake Control It is necessary to connect the Brake Control wire to the Hand-brake switch of the car. While driving, the TFT monitor will display the alarm picture (see as follows) in order to ensure the safety. Under the Rear View Mode, the Brake Control function is no effective. Auto Antenna Control Connect the auto antenna control wire AUTO_ANT (see Wiring Diagram);...
-
Page 11: Front Panel
FRONT PANEL 1. MINI USB 5. RESET 9. MENU 2. P.ANGLE / EJECT 6. MIC 10. POWER / SOURCE 3. VOLUME - 7. REMOTE 11. AV IN 2 4. VOLUME + 8. MUTE NOTE： MIC is not effective for this unit, it is a common panel for Bluetooth function models. 1. -
Page 12: Rear Panel
TFT Viewing Angle Calibrate When “Power Off”, press the buttons 1, 2, 3, [BAND/ENTER] of remote control; Then the monitor should display ‘TFT ANGLE CALIBRATE”; The motor and gear drives are now back to their factory positions. 3. [VOLUME-] / 4. [VOLUME+] Press to increase / decrease the volume. -
Page 13: Remote Control
REMOTE CONTROL 1. POWER / SOURCE 13. F.FWD 25. SUBTITLE 2. MUTE 14. SLOW 26. PREVIOUS 3. NUMBER BUTTONS 15. RANDOM 27. RIGHT 4. MENU 16. ZOOM 28. NEXT 5. AUDIO 17. SYSTEM 29. D.ANGLE 6. DISPLAY 18. P.ANGLE / EJECT 30. - Page 14 1. [POWER/SOURCE] Same functions as key on front panel. 2. [MUTE] Press the [MUTE] button to switch off the sound; press it again to resume to the previous volume level. 3. [NUMBERS 0~9] For 1~6, press these buttons to store the current radio station or recall the stored station under the Radio Mode.
- Page 15 14. [SLOW] Press to activate slow motion playback. (DVD Mode only) 15. [RANDOM] Press to turn RAMDOM function on / off when playing CD / VCD disc (PBC OFF). 16. [ZOOM] Press to magnify the picture display when play DVD, VCD disc. 17.
- Page 16 Press to select the chapter / title / disc to repeat playing. 34. [P/N] Press the button to switch the video output (PAL/NTSC) when playing DVD disc. 35. [STEREO] Press to turn the stereo on / off under Radio Mode. REPLACING THE BATTERIES If the remote control has no function or if the operating range reduced, replace the old battery with new one.
-
Page 17: Touch Screen Operations
TOUCH SCREEN OPERATIONS TOUCH SCREEN CALIBRATE When “Power Off”, press the buttons 1, 2, 3, 4, 5, [BAND] of remote control to enter the CALIBRATE page: To touch the points from 1 to 5 until the points change to brighter by using a ballpoint pen or pencil. -
Page 18: Main Menu
MAIN MENU Touch the icon “MORE” to enter the 2 page of main menu: - 17 -... -
Page 19: Radio Operations
RADIO OPERATIONS Touch the icon “RADIO” to enter the 1st operation page of RADIO Mode: 1~6. STORED CHANNEL Manual Store Radio Station Hold on touching the icon, you can store current radio frequency to the stored channel. For example, the current frequency is 98.5MHZ, by hold on touching the icon 1, you can store the radio station of 98.5MHZ to the channel 1. - Page 20 11. NEXT PAGE Touch the icon to enter the 2 page of RADIO Mode: 1. DOWN / 2. UP Touch the icons to adjust the frequency downward / upward by step decreasing / increasing. Hold on touching the icons has same function with [SEEK-] / [SEEK+]. To press the [∨] / [∧] buttons of remote control performs same operation.
- Page 21 1. ASM Seeking and store the stations 1. Hold on touching the icon to seek stations with the strongest signal from the lowest frequency point in the entire wave bands; press any button to stop seeking. After seeking, the former stored stations will be instead. 2.
-
Page 22: Dvd Operations
DVD OPERATIONS Touch the icon “DVD” to enter the DVD Mode if disc inside. The unit will switch to DVD Mode automatically if loading disc. The unit will switch to RADIO Mode automatically if ejecting disc. 1. PREV / 2. NEXT Touch the icon to go to the pervious / next chapter, track or song. - Page 23 8. NEXT PAGE Touch the icon to enter the 2 page of DVD Mode: 1~4. DOWN / UP / LEFT / RIGHT Touch the direction icons (UP / DOWN / LEFT / RIGHT) to move the cursor to the selected item. To press the direction buttons (UP / DOWN / LEFT / RIGHT arrow) of remote control performs same operation.
-
Page 24: Usb Operations
USB OPERATIONS Touch the icon “USB” to enter the USB Mode if USB connected. The unit will switch to USB Mode automatically if connecting USB. When disconnecting USB, the unit will switch to RADIO Mode automatically if there is no disc in the unit; and the unit will switch to DVD Mode automatically if there is a disc inside. -
Page 25: Ipod Operations
IPOD OPERATIONS Touch the icon “IPOD” to enter the IPOD Mode if iPod connected. The unit will switch to IPOD Mode automatically if connecting iPod. The unit will switch to RADIO Mode automatically if disconnecting iPod. NOTE: It is available for iPod operations with an additional iPod cable which is optional accessory. - Page 26 12. VIDEO Touch the icon to switch to the VIDEO operation. 13. MENU Touch the icon to return the main menu. 14. EXIT Touch the icon to exit the TOUCH ICONS display. Video Operation 1. MUTE Touch the icon to switch off the sound; touch it again to resume to the previous volume level.
-
Page 27: Av In Operations
AV IN 1 OPERATIONS Touch the icon “AV IN 1” to enter the AV IN 1 Mode: 1. MUTE Touch the icon to switch off the sound; touch it again to resume to the previous volume level. 2. EQ The user can set to adjust the audio output to your preference: USER –... -
Page 28: Av In Operations
AV IN 2 OPERATIONS Touch the icon “AV IN 2” to enter the AV IN 2 Mode: 1. MUTE Touch the icon to switch off the sound; touch it again to resume to the previous volume level. 2. EQ The user can set to adjust the audio output to your preference: USER –... -
Page 29: Cdc Operations
CDC OPERATIONS Touch the icon “CDC” to enter the CDC Mode if CD/DVD changer connected: 1. The playing DISC number 2. D-DOWN / 3. D-UP Touch the icon to change the next / previous disc to play. 4. PREV / 5. NEXT Touch the icon to go to the pervious / next chapter, track or song. - Page 30 NOTE: Touch the “CDC” icon to enter the following page if the CD/DVD changer not connected. 1, INFORMATION It indicates that the unit does not connect the CD/DVD changer. 2, MENU Touch the icon to return the main menu. - 29 -...
-
Page 31: System Setup
SYSTEM SETUP Touch the icon “SETUP” or press the [SYSTEM] button of panel to enter the SETUP of system parameters: 1. SYSTEM SETUP 2. VIDEO SETUP 3. AUDIO SETUP 4. MORE AUDIO SETUP 5. CLOCK SETUP Touch the icon 1~5to select the main menus directly. 6. - Page 32 SYSTEM SETUP RADIO AREA: USA – JAPAN – OIRT – EUROPE – ASIA – USA TV AREA: US – CCIR – IT – AUS – NZ – US DEFAULT: the unit will restore all default settings of Sound Parameter, Picture Parameter &...
- Page 33 AUDIO SETUP BASS: - 15 ~ + 15 TREBLE: - 15 ~ + 15 BALANCE: L 15 ~ R 15 FADER: F 15 ~ R 15 MORE AUDIO SETUP SUB-WOOFER FRQ: 80HZ – 120HZ – 160HZ – OFF – 80HZ SUB-WOOFER VOL: 0 ~ 15 - 32 -...
- Page 34 CLOCK SETUP CLOCK: 12H / 24H DISPLAY: ON / OFF HOUR: 00 ~ 23 MINUTE: 00 ~ 59 - 33 -...
-
Page 35: Dvd Setup Menu
DVD SETUP MENU SETUP MENU OPERATION Press the [SETUP] button of remote control to enter the DVD SETUP Menu. Press the [<] / [>] buttons to switch the main menus as following: SYSTEM – LANGUAGE – AUDIO – VIDEO – SPEAKER – DIGITAL Press the [∧] / [∨] buttons to enter the submenus from main menus. - Page 36 VIDEO Following options are available for the TV Display: INTERLACE-YUV TV-RGB P-SCAN YPBPR S-VIDEO TV TYPE Following options are available for the TV Display: 4 : 3 PS 4 : 3 LB 16 : 9 PASSWORD Setup the password for Parental Ratings change. The default password is 0000. RATING Following options are available for the Parental Ratings: 1 KID SAFE...
- Page 37 SUBTITLE LANGUAGE Following options are available for the SUBTITLE LANGUAGE: ENGLISH GERMAN SPANISH FRENCH PORTUGUESE ITALIAN RUSSIAN DUTCH SWEDISH KOREAN DANISH NORWEGIAN POLISH HUNGARIAN MENU LANGUAGE Following options are available for the MENU LANGUAGE: ENGLISH GERMAN SPANISH FRENCH PORTUGUESE ITALIAN RUSSIAN DUTCH SWEDISH...
- Page 38 VIDEO SETUP BRIGHTNESS Following options are available for the BRIGHTNESS: CONTRAST Following options are available for the CONTRAST: Following options are available for the HUE: SATURATION Following options are available for the SATURATION: SPEAKER SETUP - 37 -...
- Page 39 DOWNMIX Following options are available for the DOWNMIX: LT / RT Stereo BASS MODE Following options are available for the BASS MODE: ALL LG SPK ALL SM SPK MIXED SPK DIGITAL SETUP OP MODE Following options are available for the OP MODE: LINE OUT RF REMOD DYNAMIC RANGE...
-
Page 40: Trouble Shooting
TROUBLE SHOOTING If any of problem persists after checking the below list, Please consult your nearest service dealer. Never attempt to disassemble and repair unit personally. Problem Cause Corrective Action GENERAL Install new fuse with correct rating ACC Fuse blown Install new fuse with correct rating Unit will not power Car battery fuse blown... - Page 41 Corrective Action Problem Cause Cannot insert disc Disc already inside unit Eject current disc and insert new one Use disc in good condition Disc is warped or scratched Clean disc with soft cloth Disc is dirty or wet Use compatible disc Change parental Incompatible disc is used Lock settings to lower restriction Disc rating exceeds Parental...
-
Page 42: Specifications
SPECIFICATIONS GENERAL Supply Voltage : 14.4 V DC (10.8-16 V DC Allowable) : 4 Ω Load Impedance Max Power Output : 50 W x 4 : ≥ 10dB Bass 100Hz : ≥ 10dB Treble 10KHz Dimension (approx) : 187.9 x 196.4 x 105.7 mm (d/w/h) Mounting (approx) : 172 x 178 x 50 mm (d/w/h) FM TUNER... -
Page 43: Disc Notes
DISC NOTES ■ Disc formats supported by this player Handling and Cleaning ● Dirty, dusty, scratched or warped discs will cause misoperation. ● Do not place stickers or make scratches on discs. ● Do not warp discs. ● A disc should always be kept in its case when not in use to prevent from damage. ●...
