Reference Manual
(Hardware)

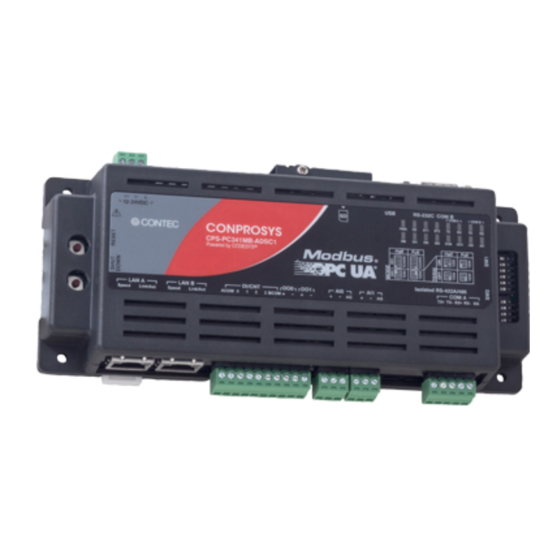

CODESYS Modbus Master
CPS-PC341MB-ADSC1-9201
CONTENTS
Introduction .................................................................. 4
Safety Precautions .................................................... 12
Product Nomenclature and Function ............... 21
Setup ............................................................................. 36
Installation ................................................................... 43
Appendix ...................................................................... 67
Optional Products .................................................... 78
Customer Support and Inquiry ............................ 80
Index .............................................................................. 82

Advertisement

Table of Contents
loading

Related Manuals for Contec CONPROSYS CPS-PC341MB-ADSC1-9201

Summary of Contents for Contec CONPROSYS CPS-PC341MB-ADSC1-9201

  • Page 1 Reference Manual (Hardware) CODESYS Modbus Master CPS-PC341MB-ADSC1-9201 CONTENTS Introduction ..............4 Safety Precautions ............ 12 Product Nomenclature and Function ....21 Setup ................36 Installation ..............43 Appendix ..............67 Optional Products ............ 78 Customer Support and Inquiry ......80 Index ................

  • Page 2: Table Of Contents

    Table of Contents Introduction ............... 4 1. Related Manuals ..............................5 2. Check the Firmware Version ..........................6 3. About the Product ..............................7 4. Interface Within ............................... 8 5. Features ..................................9 1. Hardware features ............................9 2. Software Features ............................10 6.
  • Page 3 Table of Contents Installation ................ 43 1. Install the Product ............................... 44 1. Installation Conditions ..........................44 2. Mounting on/Removing from a DIN Rail .................... 46 3. Mounting on the Wall ..........................48 2. Connecting to an External Device ......................... 49 3.

  • Page 4: Introduction

    Introduction This section provides necessary information of the product such as the outline, bundled items and manuals before actual use. — 4 —...

  • Page 5: Related Manuals

    (Printed matter) package. and describes the precautions. Setup Manual Download from Read this when setting up the This describes the required items for the Contec product. setup and configuration procedure. website (PDF) Reference Manual Download from Read this when operating the...

  • Page 6: Check The Firmware Version

    Before start using the product, visit our website to check the firmware version and update to the latest one if necessary. Updating firmware to the latest version will resolve troubles and stabilize the operation. https://www.contec.com/download/ Download Refer to the "Reference Manual (Software)" for the details of the firmware updating.

  • Page 7: About The Product

    — — Introduction CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 3. About the Product This product is a Modbus Master controller with isolated RS-422A/485, isolated digital input/output, isolated counter input, inter-channel isolated analog input, RS232C, and LAN interface. This product contains the CODESYS* Soft PLC. You can create your own PLC program and run with the CODESYS software.

  • Page 8: Interface Within

    — — Introduction CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 4. Interface Within This product is a M2M controller with the following interfaces. SD Card Analog Output Analog Input Digital Input Digital Output Slot ［Current］ ［Current］ Analog Output 3GSIM Analog Input Counter RS-422A/485 RS-232C （Standard SIM）...

  • Page 9: Features

    — — Introduction CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 5. Features 1. Hardware features  Max. 115,200bps RS-422A/485 Serial Communication and RS-232C Serial Communication The Product has one RS-422A/485-standard serial port and one RS-232C-standard serial port. Baud rates from 300 to 115,200 bps can be set. ...

  • Page 10: Software Features

    The product has LED for an operation check, which helps you visually confirm the communication status of each interface.  Choice of a battery with a longer life With a choice of a long-life battery, the Contec is creating longer lasting products. 2. Software Features ...

  • Page 11: Product Configuration List

    *This product is verified in conformity with our recommended power supply. In case you use other power supplies, thus, it may not be able to fulfil certification requirements. Please see the Contec website regarding power supply recommendation (https://www.contec.com/).

  • Page 12: Safety Precautions

    Safety Precautions Understand the following definitions and precautions to use the product safely. Never fail to read them before using the product. — 12 —...

  • Page 13: Safety Information

    — — Safety Precautions CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 1. Safety Information This document provides safety information using the following symbols to prevent accidents resulting in injury or death and the destruction of equipment and resources. Understand the meanings of these labels to operate the equipment safely. DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 14: Handling Precautions

    — — Safety Precautions CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 2. Handling Precautions DANGER Do not use the product in locations exposed to a flammable or corrosive gas. It may cause  explosion, fire, electrical shock, or malfunction. Do not allow the device to come into contact with foreign substances (metal particles, ...
  • Page 15 When removing connectors or cables, always unplug the power cables and confirm the LEDs  are turned off. Do not modify the product. CONTEC will bear no responsibility for any problems, etc.,  resulting from modifying the product. In the event of failure or abnormality (foul smells or excessive heat generation), unplug the ...
  • Page 16 Regardless of the foregoing statements, CONTEC is not liable for any damages whatsoever  (Including damages for loss of business profits) arising out of the use or inability to use this CONTEC product or the information contained herein.
  • Page 17 Lors du dépôt de connecteurs ou de câbles, toujours débrancher les câbles d’alimentation de  l’unité centrale et confirmer la mise hors tension des DEL. Ne pas modifier le produit. CONTEC ne pourra être tenue responsable de tout problème, etc.,  issu de la modification du produit.
  • Page 18 Lors d’un fonctionnement du produit sans interruption, s’assurer de lire le manuel du site Web CONTEC et d’assimiler le contenu. Lorsque le produit est utilisé à un endroit influencé par une surintensité ou une surtension ...

  • Page 19: Fcc Part15 Subpart B Class A

    — — Safety Precautions CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 1. FCC PART15 Subpart B Class A NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 20: Battery Handling And The Storage In Eu Signatory

    — — Safety Precautions CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 3. Battery handling and the storage in EU signatory This symbol mark is for EU countries only. This symbol mark is according to the directive 2006/66/EC Article 20 Information for end-users and Annex II.

  • Page 21: Product Nomenclature And Function

    Product Nomenclature and Function This section describes product component names and their functions, pin assignment of each connector. — 21 —...

  • Page 22: Nomenclature Of Product Components

    — — Product Nomenclature and Function CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 1. Nomenclature of Product Components Component names of the product are shown in the figure below. RS - 232 C C OM B 12-24VDC Iso late d R S - 42 2A /48 5 LAN A LAN B DI/CNT...

  • Page 23: Description Of Product Components

    To check the supplied connector type, refer to “Appendix – Connector Check”. Pin Assignment Pin No. Signal Name V-(GND) V+(12-24VDC) 2. Debug Connector Do not use this. 3. SD Card Slot Insert the SD card to store such as data. *Use the Contec SD card "SD-4GB-A (4GB)". — 23 —...

  • Page 24: Usb Port

    — — Product Nomenclature and Function CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 4. USB Port The product has 1 port of USB interface of TYPE-A. Pin Assignment Pin No. Signal Name USB_VCC DATA- DATA+ USB_GND CAUTION If you use the USB device with bus power, the ambient temperature should be 55 °C or lower. ATTENTION Si vous utilisez le dispositif USB avec alimentation par bus, la température ambiante devrait être de 55 °C ou moins.

  • Page 25: Rs-232C Serial Port

    — — Product Nomenclature and Function CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 5. RS-232C Serial Port This product has 1port of RS-232C compliant serial interface. The baud rate is 115,200bp (Max) 9-pin D-SUB (Male) No.4-40UNC inch nut Pin Assignment Pin No. Signal Name Direction Description Input...

  • Page 26: Led Indicator

    — — Product Nomenclature and Function CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 6. LED Indicator Status of the product is indicated by of LED ON/OFF and flashing. The meaning of each LED is described below. Color and Description Color Display Description Green ON Power has been supplied.

  • Page 27: Shutdown Switch

    — — Product Nomenclature and Function CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 8. Shutdown switch This shuts down OS of the product. 9. DIP switch SW1, SW2 DIP switch for system setup and RS-422A/485 setup of COM A. The factory default of all switches are set to “OFF”. R S-232 C C O M B 2 3 4...

  • Page 28: Lan Port

    — — Product Nomenclature and Function CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 10. LAN Port This product has 2 ports of Ethernet LAN Port. Network type: 100BASE-TX/10BASE-T Transmission speed: 100M/10Mbps Maximum network path length: 100m/segment Speed Link /Act Pin Assignment Pin No. Signal Name Description Transmission data (+) output...
  • Page 29 — — Product Nomenclature and Function CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) CAUTION HUB mode of this product might be slower than other standard switching HUB products.  If a large amount of data or high-speed response is requested, an external switching HUB will ...

  • Page 30: Digital Input / Counter Input / Digital Output Connecter

    — — Product Nomenclature and Function CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 11. Digital Input / Counter Input / Digital Output Connecter This product has 4 channels of digital Input and 2 channels of digital output. You can switch DI2 and DI3 to counter input and operate them. Use the 10-pin connector included in the package.

  • Page 31: Analog Input Connecter

    — — Product Nomenclature and Function CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 12. Analog Input Connecter This product has 2 channels of analog input that supports isolated inter-channel. Use the 3-pin connector included in the package to connect to external power. Connector type: DEGSON 15EDGK-3.5-03P-14-1000AH (or equivalent) *The type of connectors in the package differs depending on the period of manufacturing.

  • Page 32: Rs-422A/485 Connector

    — — Product Nomenclature and Function CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 13. RS-422A/485 Connector This product has 1 port (COM A) of RS-422A/485 communication. Use the 5-pin connector included in the package to connect to external power. Connector type: DEGSON 15EDGK-3.5-05P-14-1000AH (or equivalent) *The type of connectors in the package differs depending on the period of manufacturing.

  • Page 33: Other Functions

    — — Product Nomenclature and Function CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 3. Other Functions 1. Counter Function When a pulse is input, the product performs incremental counting at the falling edges of input pulse. Input pulse Internal data Count value  Compare Register Compare the count value of a corresponding channel with the compare register value.
  • Page 34 — — Product Nomenclature and Function CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) The signal level remains the same over the digital filter setting time, the digital filter recognizes that signals as normal and changes the filter output signal level. Digital Filter Setting Time Set the digital filter time to 0 –...
  • Page 35 — — Product Nomenclature and Function CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) ATTENTION Le filtre numérique s’applique à tous les canaux d’entrée; il ne peut pas se limiter uniquement  à des broches d’entrée spécifiques. Pour transmettre correctement un signal d’entrée, la largeur de l’impulsion doit être le double ...

  • Page 36: Setup

    Setup This section describes how to set switches and an antenna that are necessary to operate the product. — 36 —...

  • Page 37: Set Data Transfer Mode

    — — Setup CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 1. Set Data Transfer Mode With the DIP switch (SW1, SW2), data transfer mode can be changed (half-duplex or full-duplex). Set the data transfer mode in accordance with a device which you are connecting to. 1.
  • Page 38 — — Setup CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) DIP Switch Bit No. ON/OFF Description Enable the TX Terminator Disable the TX Terminator Enable the RX Terminator Disable the RX Terminator Internal connection state of TX+ and RX+: Short (Half Duplex) Internal connection state of TX+ and RX+: Open (Full Duplex) Internal connection state of TX- and RX-: Short (Half Duplex) Internal connection state of TX- and RX-: Open (Full Duplex) RTS Communication Mode: Half Duplex...
  • Page 39 — — Setup CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware)  Full-Duplex Switch Setup Data transfer mode Setup method Full-duplex [Full] Activating RTS signal of this product activates CTS signal. R S-232 C C O M B 2 3 4 1 2 3 4 5 6 Terminator Setup Set the terminators on or off in accordance with the device which you are communicating with.
  • Page 40 — — Setup CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) DIP Switch Bit No. ON/OFF Description Enable the TX Terminator Disable the TX Terminator Enable the RX Terminator Disable the RX Terminator Internal connection state of TX+ and RX+: Short (Half Duplex) Internal connection state of TX+ and RX+: Open (Full Duplex) Internal connection state of TX- and RX-: Short (Half Duplex) Internal connection state of TX- and RX-: Open (Full Duplex) RTS Communication Mode: Half Duplex...

  • Page 41: Insert Sd Card

    — — Setup CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 2. Insert SD Card Unfasten the screw of the cover. (Card cover is attached to the product upon shipping). Slide the card cover to remove it. With the chipped edge of the SD card is in the position shown below, insert the card all the way into the slot.
  • Page 42 — — Setup CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) Fasten with a screw. *Reverse the procedure described in the "Insert SD card "to remove the card. — 42 —...

  • Page 43: Installation

    Installation This section describes how to mount the product on a DIN rail or on the wall, and to connect to an external device with a cable. — 43 —...

  • Page 44: Install The Product

    — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 1. Install the Product 1. Installation Conditions  Installation Orientation Install the product in the orientations shown below (0 °C). Other orientations may cause problems such as malfunctions due to inadequate heat dissipation. DIN rail Mounting Wall Mounting Operating ambient temperature should be between -20 °C and +55 °C when the product is installed...
  • Page 45 — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware)  Ambient Temperature The ambient temperature is decided from the multiple measurement points which are a 50mm- distance from the product. During the operation, adjust the air current to make certain that the temperatures measured in the points stay within the specified temperature.

  • Page 46: Mounting On/Removing From A Din Rail

    — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) ATTENTION Remarquez que même si la température ambiante se situe dans la plage de température  spécifiée, une défaillance opérationnelle peut survenir si un autre appareil à proximité émet beaucoup de chaleur. Le rayonnement influence la hausse de température du produit. N’installez pas le produit dans un espace entièrement scellé...
  • Page 47 — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) Push the hooks up to lock the product on the DIN rail.  How to Remove Pull down the hooks to unlock. If the hooks are stuck, use a slotted screwdriver to unlock. Fixed hooks (1).

  • Page 48: Mounting On The Wall

    — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 3. Mounting on the Wall Appropriate screws (fit into φ3.5 hole) are required to install the product on the wall. The commercial screws can be purchased individually. Get the screws fit into φ3.5 hole and set the product.

  • Page 49: Connecting To An External Device

    — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 2. Connecting to an External Device Use the supplied connector plug to connect the product to an external device. The following example describes how to make the connecting cable with a 3-pin connector. Connection Cable The supplied connector...
  • Page 50 — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) ATTENTION Ne tirez pas sur le câble de la fiche du connecteur pour retirer la fiche, vous risquez de briser  le fil. Saisissez toujours le connecteur pour le retirer. Le couple de serrage pour le connecteur fourni est indiqué ci-dessous. ...

  • Page 51: Cable Connection

    — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 3. Cable Connection 1. Power  Power Cable Use the power cable described below. Cable Twisted pair cable (when using a single wire, twist V+ wire and V- wire) Cable Diameter AWG24 - 16 (0.2mm - 1.25mm Cable Length Within 3 meters...

  • Page 52: Lan

    — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) About a caution mark on the product: Please use copper wires that tolerate the  temperature of 75 °C and higher. ATTENTION Ne tirez pas sur le câble de la fiche du connecteur pour retirer la fiche, vous risquez de briser ...

  • Page 53: Rs-422A/485

    — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 3. RS-422A/485  RS-422A/485 Cable Use the RS-422A/485 cable described below. Cable Twisted pair cable with the shield Cable AWG28 - 16 (0.08mm - 1.25mm Diameter Cable Length Affected by the communication speed (baud rate) between the product and the external device.
  • Page 54 — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware)  Baud Rate See the table below for the baud rate that can be set with the product. Error rate differs depending on the set baud rate. Baud Rate (bps) Error (%) 0.00 0.00 0.00 1,200...
  • Page 55 — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) Connecting to an external device Connect the product in accordance with the specification of the external device. RS-422A/485 5-pin connector TX+ TX－ RX+ RX－ SG External device －  Full Duplex Full duplex needs three or more sets of twisted-pair. Two sets are for a signal line, other free line(s) is (are) for the signal ground (SG).
  • Page 56 — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) Connecting to an external device Connect the product in accordance with the specification of the external device. RS-422A/485 5pin-connector TX+ TX－ RX+ RX－ SG External device RX+ RX－ TX+ TX－  Notes on the Shield Connection Ground the shield to the frame ground (FG) of the external device.
  • Page 57 — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) ATTENTION Ne tirez pas sur le câble de la fiche du connecteur pour retirer la fiche, vous risquez de briser  le fil. Saisissez toujours le connecteur pour le retirer. Le couple de serrage pour le connecteur fourni est indiqué ci-dessous. ...

  • Page 58: Rs-232C

    — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 4. RS-232C  RS-232C Cable When using an RS-232C interface, different cables are required depending on the type of device to which you are connecting (computer or modem, etc.). Check the requirements of the external device and select either a straight-through or crossed (null modem) cable as appropriate.
  • Page 59 — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) Example Connection to a Device External device  Baud Rate See the table below for the baud rate that can be set with the product. Error rate differs depending on the set baud rate. Baud Rate (bps) Error (%) 0.00...

  • Page 60: Analog Input

    — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 5. Analog Input  Analog Input Cable Use the Analog Input cable described below Cable Use copper wires that tolerate the temperature of 75 °C and higher. Cable Diameter AWG28 - 16 Cable Length Within 20 meters.
  • Page 61 — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) Connect both the [+] input and the [-] input terminals that are not connected to signal source  to the analog ground. About a caution mark on the product : Please use copper wires that tolerate the ...

  • Page 62: Digital Input/Counter Input

    — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 6. Digital Input/Counter Input  Digital Input/Counter Input Cable Use the Digital Input/Counter Input cable described below. Cable Use copper wires that tolerate the temperature of 75 °C and higher. Cable Diameter AWG28 - 16 Cable Length The length differs depending on the actual use environment.
  • Page 63 — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) Input equivalent circuit Corresponded to current sink output Connecting Switch External device This Product +12V Input Switch Opto-coupler Input Switch Opto-coupler B_COM Connecting the Input to the sink type output (Connecting to an external device) This Product +12V Input pin...

  • Page 64: Digital Output

    — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 7. Digital Output  Digital Output Cable Use the Digital Output cable described below. Cable Use copper wires that tolerate the temperature of 75 °C and higher. Cable Diameter AWG28 - 16 Cable Length The length differs depending on the actual use environment.
  • Page 65 — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) Example of connecting to the LED The corresponding LED lights up when you output "1" into the appropriate bit. The corresponding LED turns off when you output "0" into the appropriate bit. Output pin (+) External power 5.1kΩ...
  • Page 66 — — Installation CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) ATTENTION Ne tirez pas sur le câble de la fiche du connecteur pour retirer la fiche, vous risquez de briser  le fil. Saisissez toujours le connecteur pour le retirer. Le couple de serrage pour le connecteur fourni est indiqué ci-dessous. ...

  • Page 67: Appendix

    Appendix This section lists the specifications and the physical dimensions of the product, and the details of model name. — 67 —...

  • Page 68: Specifications

    — — Appendix CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 1. Specifications 1. Specifications Function Specifications Item CPS-PC341MB-ADSC1-9201 CODESYS compatible Version V3.5 SP7 Patch2 or any later version function Language LD, SFC, FBD, ST, IL, CFC (IEC61131-3 compliant) Field bus Modbus TCP Master / Slave, Modbus RTU Master / Slave Communication OPC UA Server protocol...
  • Page 69 — — Appendix CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) Item CPS-PC341MB-ADSC1-9201 Transmission (Yellow), Reception (Yellow) DIP Switch (Full Duplex /Half Duplex, Terminator (ON/OFF)) Switch Surge protection element Interactive TVS diode each signal - SG Stand off voltage : ±13V, Peak pulse power : 400W(1msec) Surge protection element Gas discharge tube arrester SG - FG...
  • Page 70 — — Appendix CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) Item CPS-PC341MB-ADSC1-9201 Digital output Output type Semiconductor relay output Isolation/Resistance Semiconductor relay isolation/1000V Maximum output voltage / 26.4VAC/VDC/100mA current Response time Within 2msec ON resistance 8Ω or less (at 25℃) OFF leakage current 4μA or less (at 25℃) The number of channels DO0 - DO1 (Yellow)
  • Page 71 — — Appendix CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) Item CPS-PC341MB-ADSC1-9201 V+ - V-, V- - FG Stand off voltage : ±30V, Peak pulse power : 400W(1msec) Physical dimensions (mm) 188.0(W)×78.0(D)×30.5(H) (No projection included) Weight 250g Installation method Quick mounting on the 35mm DIN rail, Mounting on the wall using the screws *6 Linux kernel 3.2 *1 Data 0 corresponds to High level and Data 1 corresponds to Low level.

  • Page 72: Power Requirements

    Quand vous remettez le courant, laissez le produit hors tension pendant au moins une  seconde (ou plus) du délai hors tension. Lorsque vous utilisez le produit avec CPS-PWD-15AW12-01 (de CONTEC), le délai permis de  chute instantanée de tension sera de 20 millisecondes ou moins.

  • Page 73: Physical Dimensions

    — — Appendix CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 2. Physical Dimensions  CPS-PC341MB-ADSC1-9201 R S-232C COM B 12-24VDC Half F ull Half F ull Isolated R S-422A/485 LAN A LAN B DI/CNT DO0 DO1 COM A (154) 4-φ3.5 [mm] — 73 —...

  • Page 74: The Details Of Model Name

    — — Appendix CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 3. The Details of Model Name Details of the model name are described below. CPS - PC 3 4 1 MB - ADSC 1 - 9 2 0 1 CONPROSYS Series Soft PLC Type Item Description ARM Cortex A8...

  • Page 75: Battery Disposal

    — — Appendix CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 4. Battery Disposal 1. Battery Specification The battery details are as follows: Item Description Type Lithium primary battery Model BR2330A/HD Maker Panasonic Nominal Voltage Nominal Volume 255mAh 2. How to remove the battery When disposing of the product, follow the instruction below and remove the battery.

  • Page 76: Connector Check

    — — Appendix CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 5. Connector Check The maker of connectors in the package or embedded in the product differs depending on the period of manufacturing. The maker and types of the connectors can be checked by the color. Maker, Type CAUTION See the table below for maker, type, and tightening torque value of the connectors to check and...
  • Page 77 — — Appendix CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) Vérification du connecteur Selon la période de fabrication, le fabricant des connecteurs de l’emballage ou intégré au produit varie. Il est possible de confirmer le fabricant et les types de connecteur par la couleur. le nom du fabricant et le type ATTENTION Consultez le tableau ci-dessous pour connaître le fabricant, le type de connecteur et le couple de...

  • Page 78: Optional Products

    Optional Products This section lists optional items that can be used along with the product. — 78 —...

  • Page 79: Optional Products

    DIN rail fitting power CPS-PWD-15AW12-01 Fitting power supply 15W supply (Input: 100-240VDC, Output: 12VDC 1.3A) SD Card SD-4GB-A SD card (4GB) Magnet CPS-MAG01-4 Magnet (Four Piece Set) Visit the Contec website for the latest optional products. https://www.contec.com/ Website — 79 —...

  • Page 80: Customer Support And Inquiry

    Customer Support and Inquiry CONTEC provides the following support services for you to use CONTEC products more efficiently and comfortably. — 80 —...

  • Page 81: Services

    — — Customer Support and Inquiry CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) 1. Services CONTEC offers the useful information including product manuals that can be downloaded through the CONTEC website. Download https://www.contec.com/download/ You can download updated driver software, firmware, and differential manuals in several languages.

  • Page 82: Index

    Index — 82 —...
  • Page 83 — — Index CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) Revision History MONTH YEAR Summary of Changes April 2016 The First Edition April 2018 Changed the layout of the manual. September 2018 Additional information was listed due to some parts change. — 83 —...
  • Page 84 CONTEC CO., LTD. 3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan https://www.contec.com/ No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CPS-PC341MB-ADSC1-9201 Reference Manual (Hardware) NA04998 (LYTY338) 08302019_rev8 [04252016]...
