Step

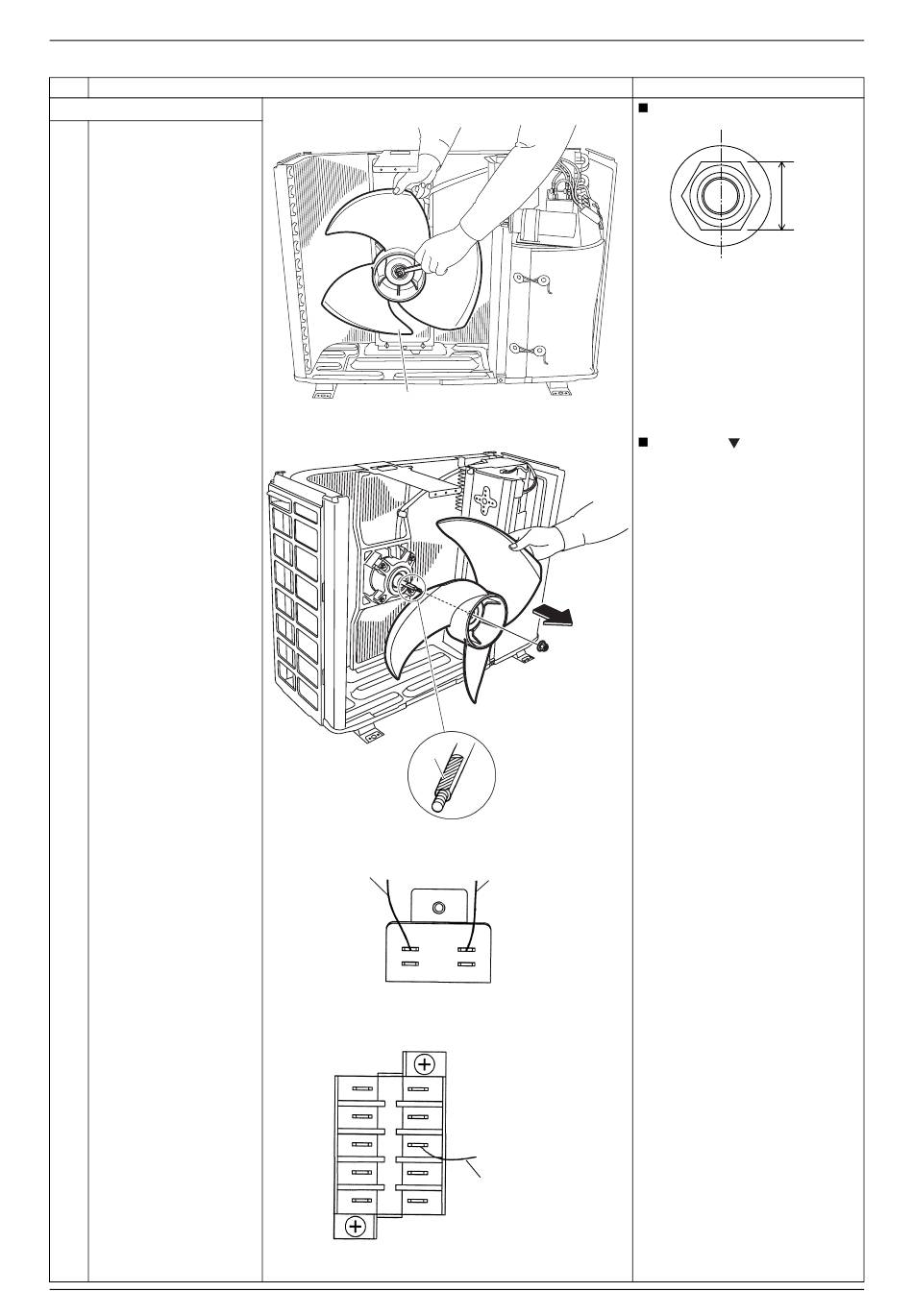

3. Remove the fan motor.
1
Remove the nut of the
outdoor fan.
Remove the outdoor
2
fan.
3
Pull out the 2 terminals
(red, white) from the fan
capacitor (C2R).
Pull out the terminal
4
(black) from K1M (5).
5
Release the fan motor
lead wire from the hook.
Removal Procedure
Procedure
Outdoor fan
D-cut
to fan motor:
to fan motor:
red
white
C2R
(R17457)
2
1
4
3
6
5
14
13
to fan motor:
A2
A1
black
K1M
(R16562)
Removal of Outer Panels / Fan Motor (Pattern 1)
Nut size: M6
(R15230)
Align the
outdoor fan with the D-cut
section of the motor shaft
when reassembling.
(R7197)
Points
10 mm
(R17447)
mark of the
5
