Si001161
Step

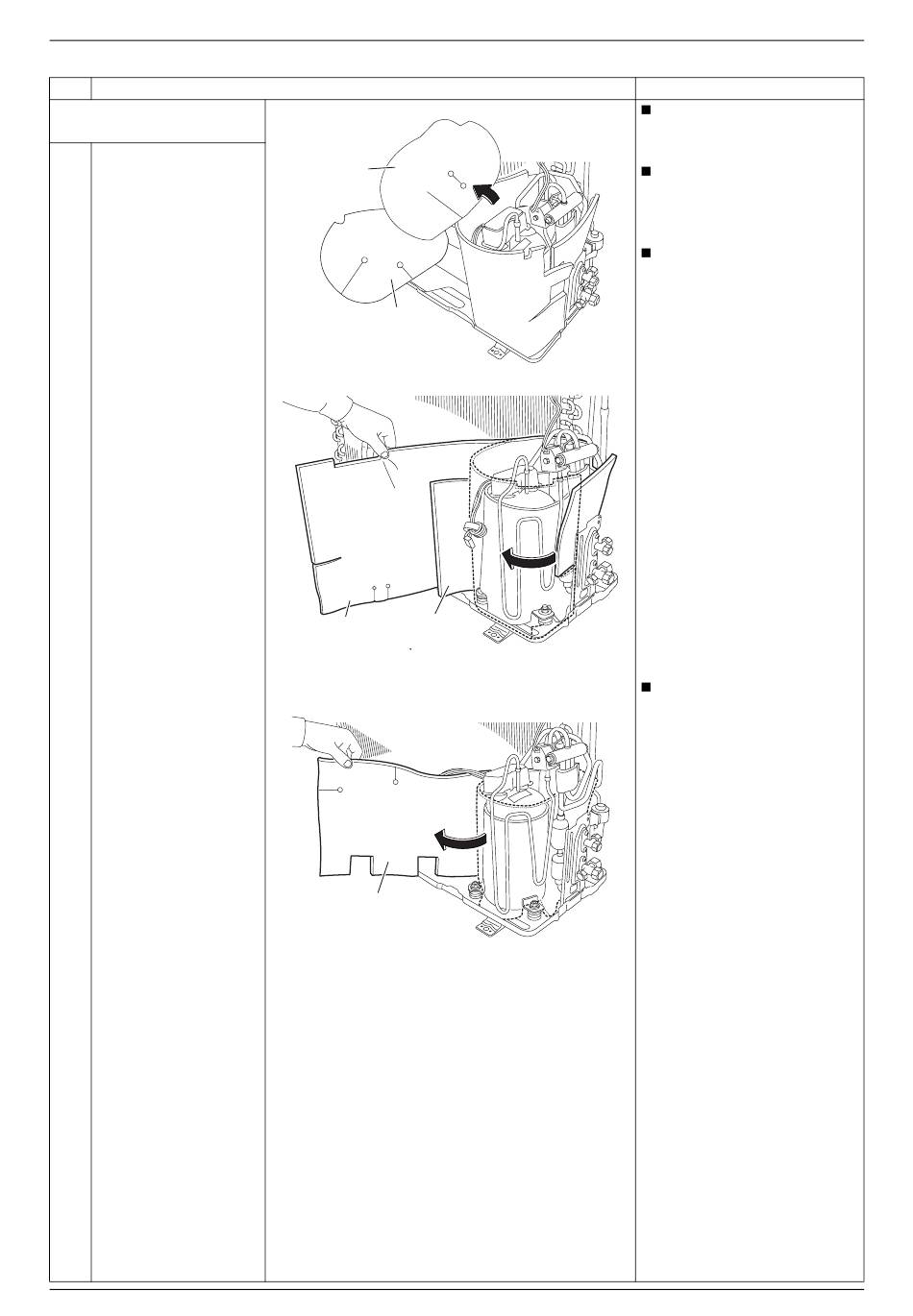

2. Remove the sound
blankets.
1 Lift and remove the
sound blankets (top
upper, top lower).
Pull the sound blankets
2
(outer and inner 2) out.
Pull the sound blanket
3
(inner) out.
Removal Procedure
Procedure
Sound blanket
(top upper)
Sound blanket
(top lower)
Sound blanket
Sound blanket
(inner 2)
(outer)
Sound blanket (inner)
Removal of Sound Blankets
Points
The design of sound
blankets is different
depending on the model.
Since the piping ports on the
sound blanket are torn
easily, remove the blanket
carefully.
Some models have only one
sound blanket (top).
(R15851)
(R15886)
Since the piping ports on the
sound blanket are torn
easily, remove the blanket
carefully.
(R15873)
