Daikin RXN25KEV1B Service Manual page 14

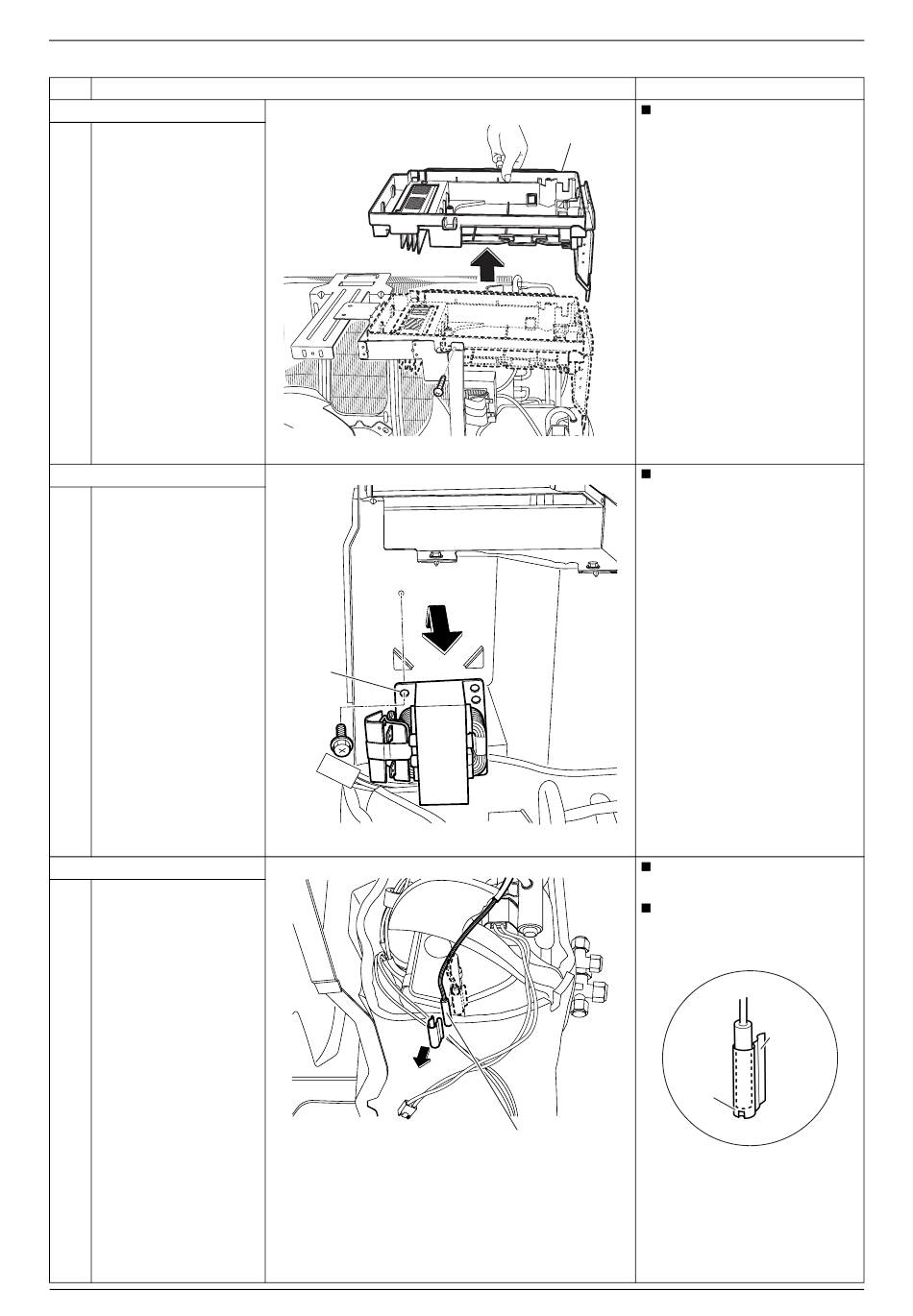

Removal of Electrical Box / PCB
Step
2. Remove the electrical box.
Remove the screw and
1
remove the electrical
box.
3. Remove the reactor.
Remove the screw and
1
remove the reactor.
4. Remove the thermistors.
1 Release the discharge
pipe thermistor.
12
Procedure
Reactor
Electrical box
(R15879)
(R15885)
Discharge pipe
thermistor
(R14518)
Si001161
Points
Some models have no
screw.
Some models have more
screws.
Pay attention so as not to
lose the fixture.
When reassembling, do not
insert the thermistor up to
the dent of fixture.
Fixture
Dent
(R11740)
Removal Procedure
