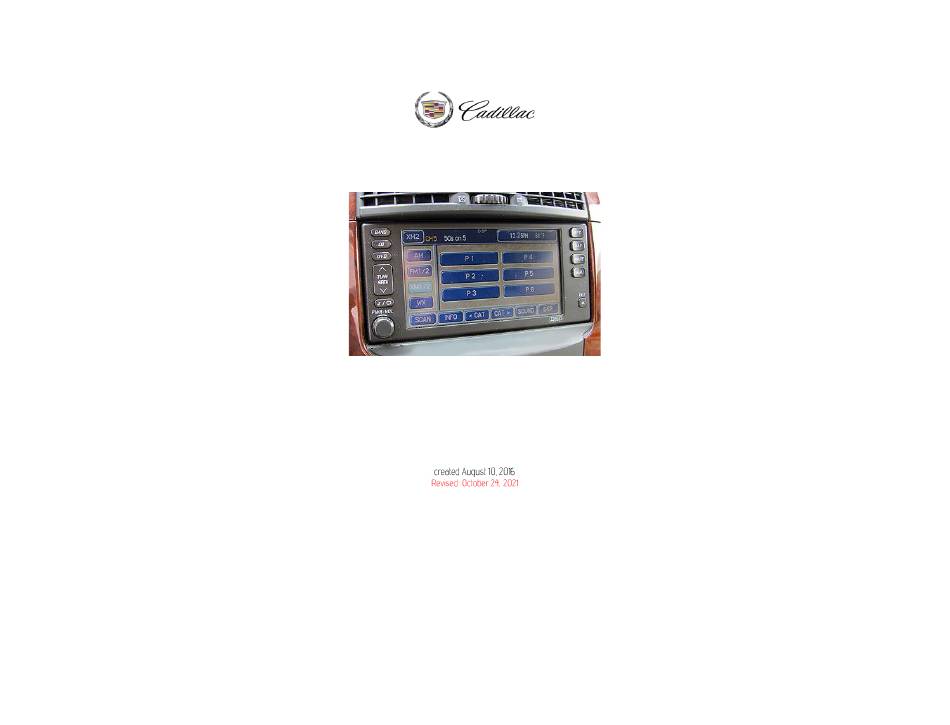

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 AUX-SRX QUICK START INSTALLATION GUIDE FOR 2004-06 SRX WITH NAVIGATION RADIO & XM TUNER MODULE...
-
Page 2: Installation
See Frequent Asked question at the end of this guide for more details. Installation Fig. 2 This cable is exclusive to 2004-06 SRX with Navigation radios and XM tuner module. (SRX without Navigation requires our AUX-CTS) Remove (4) 10mm bolts securing radio to dash (See Fig. 3) Using a panel removal tool, unclip and remove the top A/C vents panel (See Fig. - Page 3 Fig.5 Connect harness 16-pin plug (See Fig. 6) to 16-pin connector on radio Fig. 3 vacated in step 6 (See Fig. 4) Pull radio forward to reveal the connectors (See Fig. 4) Fig. 4 Radio connectors Fig. 6 Disconnect 16-pin plug from radio Carefully route audio jack (See Fig.
-
Page 4: Operation
Operation Turn-on Navigation radio Press “BAND” button until XM1/2 is displayed. XM subscribers Most recent XM channel or preview channel will play, otherwise there will be silence. Active XM Expired XM Connect audio device to 3.5mm jack using the included 3 ft. Audio cable Fig. - Page 5 8. What is the difference between “Subscribed” and “Expired” XM Disclaimer • This product has no affiliation with Cadillac options? • We’re not liable for misuse of this product.
