- Page 1 Cadillac Manual - Escalade 2016~ - CTS 2014~ - MODEL : ML-PAS-190402 - DATE : 2021.08.30...
- Page 2 Index 1. Main Spec 2. Block Diagram 3. Dimension 4. External Appearance 5. Connector Pin Assignment 6. Product Composition 7. DIP S/W Setting 8. Mode Change 9. Touch Control 10. OSD(On Screen Display) Control 11. Install Manual 12. Q & A...

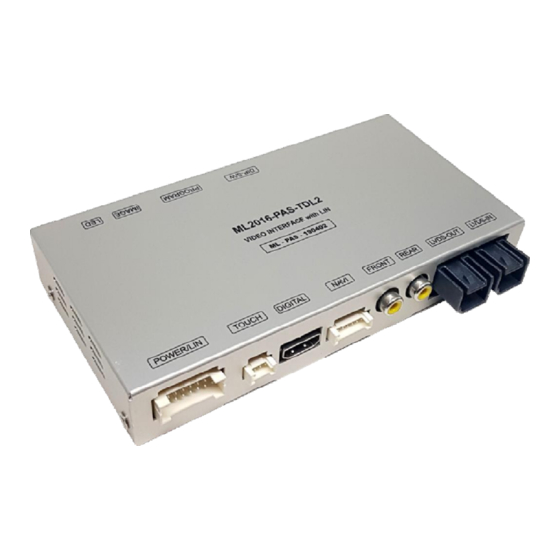

- Page 3 1. Main Spec. 1. Input Spec. (MULTI VIDEO INTERFACE) - 1 x Digital RGB Input (Navigation System output) - 1 x Analog RGB Input (Navigation System output) - 1 x CVBS(REAR CAMERA) Input. (Rear camera source) - 1 x CVBS(FRONT CAMERA) Input. (Front camera source) - 1 x LVDS Input.
-
Page 4: Block Diagram
2. Block Diagram INTERFACE EEPROM NAVIGATION SYSTEM Scaler DIGITAL RGB LVDS LVDS FRONT CAMERA RELAY TFT-LCD REAR CAMERA COMMAND SYSTEM LVDS... - Page 5 3. Dimension 161mm * 83mm * 26mm 161 mm 26mm 83mm * This can change under manufacturer’s circumstance...
-
Page 6: External Appearance
4. External Appearance IMAGE DIP S/W PROGRAM Analog TOUCH Rear LVDS POWER/CAN Digital Front LVDS... - Page 7 4. External Appearance IMAGE DIP S/W PROGRAM Analog TOUCH Rear LVDS POWER/CAN Digital Front LVDS...
-
Page 8: Connector Pin Assignment
5. Connector Pin Assignment *POWER Connect *Touch Connect *NAVI Connect ① ② ③ ④ ⑤ ⑥ ⑦ ① ② ③ ④ ① R DATA (Red) ① Y- 1. Battery (Yellow) 9. LIN (Purple) ② G DATA (Green) ② X- 2. Battery (Yellow) 10. -
Page 9: Product Composition
6. Product Composition OSD Board 1 EA Interface 1 EA LVDS Cable 1 EA Touch convertor Cable(KD-900) 1 EA Power Cable 1 EA RGB NAVI Cable(7pin) 1 EA... - Page 10 6. Product Composition Option * CarPlay Set Sales(option) AUX Cable 1 EA Interface 1 EA HDMI Cable 1 EA Power Cable (500mm) 1 EA ACC Board 1 EA Microphone 1 EA...
-
Page 11: Dip S/W Setting
ON : Not Used NAVI OEM navigation OFF : Used ON : Skipping Video AV1 (DVB-T) OFF : Display MALIBU2016_8.0” Vehicles with OEM ON : Skipping Video navigation AV2 (DVD) OFF : Display Cadillac XT5 2017~ CAR type SEL Right Picture... - Page 12 7. DIP S/W Setting MALIBU2016_8.0” Vehicles with OEM MALIBU2016_8.0” Vehicles without navigation OEM navigation...
-
Page 13: Mode Change
8. Mode Change * Screen switching method DIP-SW 1 must be OFF in order to install Navigation * You can select between two methods when changing the screen by pressing HOME icon. - Double: Press Home icon twice quickly. - Long: Press and hold Home icon. -
Page 14: Touch Control
9. Touch Control Touch control - Calibration Press and hold for more than 11 seconds on NAVI, DVB-T, DVD screen. (Note that it only works the first time after switching screens) + Touch according to the shape coordinates. OSD menu -> Utility -> Calibration... - Page 15 9. Touch Control DVB-T/DVD Control DVB-T Press Touch(Anywhere) Press Icon...
- Page 16 10. OSD(On Screen Display) Control OSD Control Board MENU When there is no OSD screen, pressing OSD ON When OSD screen is displayed, press OSD EXITT Item Selection, Value Selection MENU DOWN Item up Increase selected value DOWN Item down Decrease selected value Mode State First Menu...
- Page 17 10. OSD(On Screen Display) Control OSD Option First Third Second Menu Description Menu Menu Set up manufacturer of FINE woodworking device for NAVI COM UART Touch use Disable feature Original Camera RearCam-Type Equipped with external ExtDevice camera + 12V continuous supply + 12V supply only in Rear RearCam-Power AUTO...
- Page 18 10. OSD(On Screen Display) Control OSD Option First Third Second Menu Description Menu Menu + 12V continuous supply + 12V supply only in Front FrontCam-Power AUTO camera mode + 12V off Detected by CAN FrontCam-Det WIRE Detected by Front-Det Wire After RearCam shows FrontCam and returns to FrontCam-RcvOpt...
- Page 19 10. OSD(On Screen Display) Control OSD Option First Third Second Menu Description Menu Menu Switch to OEM screen when key off Key_Off Option Disable feature Reset Execute Option Menu all Reset...
- Page 20 8. OSD(On Screen Display) Control * Bluetooth Screen switching method Disable Bluetooth Phone Bluetooth Phone Usage NAVI NAVI AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) Call Ending...
- Page 21 10. OSD(On Screen Display) Control OSD Option -> FrontCam-RcvOpt Front Camera Auto Mode 0 second = FrontCam-RcvOpt menu OFF 1~30 second = FrontCam-RcvOpt menu ON & time control NAVI NAVI REAR FRONT AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) Select time of display 1~30 second...
- Page 22 10. OSD(On Screen Display) Control * Channel button * Press the Up button to switch to the OEM screen for 3 seconds and return. NAVI NAVI AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) 3 second - To use this function, turn it ON. - Press the "BACK"...
- Page 23 10. OSD(On Screen Display) Control NAVI-RGB menu DVD,DVB-T(DMB),NAVI-AV,REAR,FRONT menu First Menu Second Menu Third Menu Action First Menu Second Menu Third Menu Action Brightness Adjust the value of brightness Brightness Adjust the value of brightness Contrast Adjust the value of contrast Contrast Adjust the value of contrast Color-RED...
- Page 24 10. OSD(On Screen Display) Control OSD – Screen Menu First Third Second Menu Description Menu Menu Output screen horizontal Horizontal movement Output screen vertical Vertical movement Scale X Up Reduce / increase output screen width Screen Scale X Down Scale Y Up Reduce / Increase Output Screen Height Scale Y Down...
- Page 25 10. OSD(On Screen Display) Control OSD – Parking Menu First Third Second Menu Description Menu Menu Show OPS OPS Display Do not show OPS Warnings Lang Set warning text language Moving a parking line Horizontal Parking horizontally Moving a parking line Vertical vertically Transparency...
- Page 26 9. OSD(On Screen Display) Control OSD Parking – OPS Display On / Off OPS-PDC ON Screen OPS-PDC OFF Screen * Even if you do not have a sensor, you can not see the parking sensor in the above figure even if you control the OSD board.
- Page 27 10. OSD(On Screen Display) Control OSD Parking – Guide line On / Off Parking Line ON Screen Parking Line OFF Screen...
- Page 28 10. OSD(On Screen Display) Control OSD Parking – Change warning language...
- Page 29 10. OSD(On Screen Display) Control OSD Parking – Adjust position of parking guide line Possible to adjust the position of parking guide line by Keypad in Horizontal / Vertical menu ※ Pressing this Horizontal / Vertical menu, The OSD screen automatically disappears. Please adjust from the parking line Screen.
- Page 30 10. OSD(On Screen Display) Control OSD – OSD Menu First Third Second Menu Description Menu Menu Horizontal value OSD Menu Horizontal Shift Vertical value OSD menu vertical Shift OSD Menu Display Time (in Display Time value seconds) value Transparency OSD menu transparency Language OSD menu display language Reset...
- Page 31 10. OSD(On Screen Display) Control * IR learning function * In order to work with the IR learning function, a separate IR cable is required. 1. In DVB-T / DVD menu, select User in Sys (OSD list) or User (learned contents). 2.
- Page 32 10. OSD(On Screen Display) Control OSD Utility First Third Second Menu Description Menu Menu Factory Reset Execute Initialize all settings Calibration Execute Run Calibration mode Utility FDS302KRX-171004 Version (Check for future upgrades) Last Source : FDS302KRX-171004 Software Version Software Month Software Year Special Version National : CN=CHINA, KR=KOREA, JP=JAPAN, US=United States...
- Page 33 11. Install Manual 1. Installation LVDS connection without OEM Navigation Navigation Monitor Head Unit(commander)
- Page 34 11. Install Manual 2. Installation LVDS connection with OEM Navigation Navigation Monitor Head Unit(commander)
- Page 35 11. Install Manual 3. Installation CarPlay * When installing CarPlay, set it to 3.5pie aux cable OSD MENU-OPTION-NAV COM-NV17. Iphone Screen Screen Microphone Screen...
- Page 36 12. Q & A 1. Check the LED status first when interface failure.. - If there is no abnormality after the power is applied, the green LED flashes in units of 1 second. - If the red LED flashes for 1 second, there is no. - If the red LED is on continuously, the interface itself is bad.
