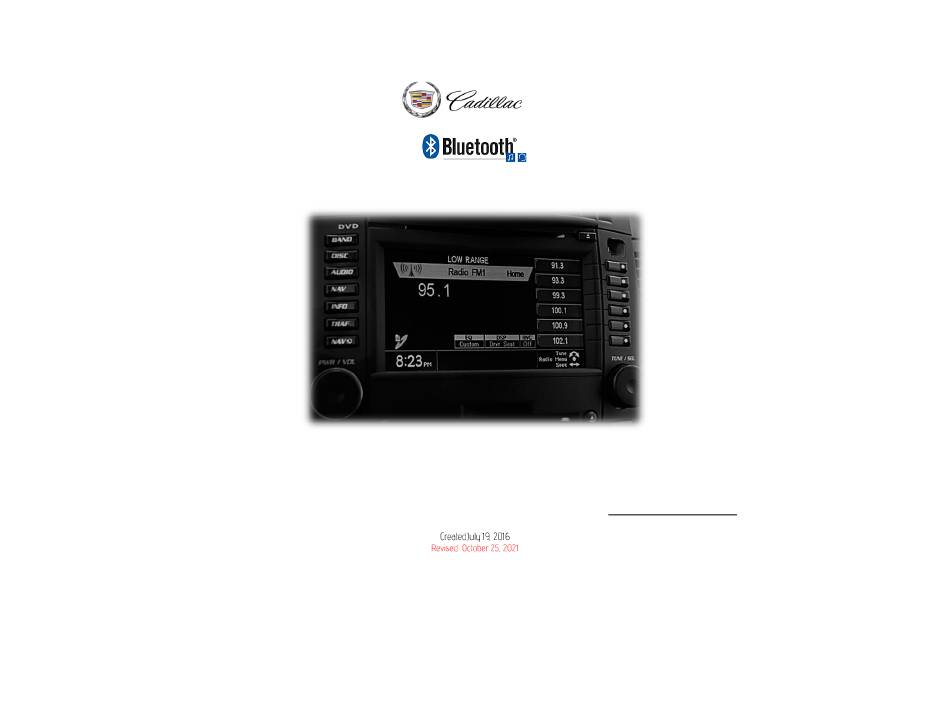

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2DIY-CTSx QUICK START INSTALLATION GUIDE FOR SELECT 2003-07 CADILLAC CTS/SRX WITH XM TUNER MODULE...
-
Page 2: Installation
If your state has enforced hands-free laws and you own a 1 Generation CTS or SRX with an XM tuner module (with or without subscription), the A2DIY-CTSx is for you! This kit supports Hands-free calls, music streaming and option to retain Open ash tray and remove tray. - Page 3 Remove the (4) 10mm screws securing radio to the dash (See Fig. 3) Fig. 5 Connect harness 8-pin BLACK plug (See Fig. 6) to radio chamber vacated in step 6. Warning: Module is wired to receive 12V from radio amplifier turn on lead (PIN 2-gray plug);...
- Page 4 Warning: The A2DIY-CTSx will not operate in RAP (Retaine Accessory Power) mode. Ignition must be turned ON in order to hold phone calls, stream applications or listen to XM (if subscribed) Fig. 9a Fig. 9 Non-XM subscribers: Connect included 3.5mm male to male audio cable...
- Page 5 Insert supplied USB male terminal (See Fig. 11) through hole created in step 1 Optional charging kit (not for thumb drives etc.) and connect to module female port (See Fig. 12) Fig. 11 Optional charging kit is not a regular charger. It supports BC1.2, QC2.0, QC3.0, PE1.1, PE2.0, FCP, SFCP fast charge protocols (Samsung, Huawei etc.).
-
Page 6: Bracket Mount
Bracket Mount Connect BLACK wire to ground (radio chassis, radio ground wire etc.), and (No drilling) RED or YELLOW to accessory or battery supply. Your choice! Tuck away any extra wires and verify BLUE LED is lit. Locate a flat surface at location of choice within 3.2 ft. of module and mount USB support bracket (See Fig. - Page 7 Operation: Module pairing: Once paired with smartphone/Tablet, users may perform the following functions Pairing varies among devices but basic steps are the same. This process is done on iOS devices with Bluetooth 3.0 and later or Android 4.0 or later. upon initial install and will not have to be repeated.
-
Page 8: Test Operation
Operation: Frequent ask questions & troubleshooting: Test Operation: My XM subscription has expired. Will the A2DIY-CTSx work without subscription? YES. If subscription has expired (no plans to renew in the future), an AUX Turn ignition and radio “ON” input jack is provided through which users can connect and play portable 2. - Page 9 NO. The USB port is for charging only. 10. What are the major differences between the A2DIY-CTSx and A2DIY- CTS? The A2DIY-CTSx works in vehicles with XM tuner module with or without subscription. A2DIY-CTS (discontinued) applies to vehicles without XM Tuner module.
