TRANSMISSION JACK
ASSEMBLY and OPERATING INSTRUCTIONS
2000
rev 02/00

Advertisement

Table of Contents
loading

Related Manuals for Central Hydraulics 33610

Summary of Contents for Central Hydraulics 33610

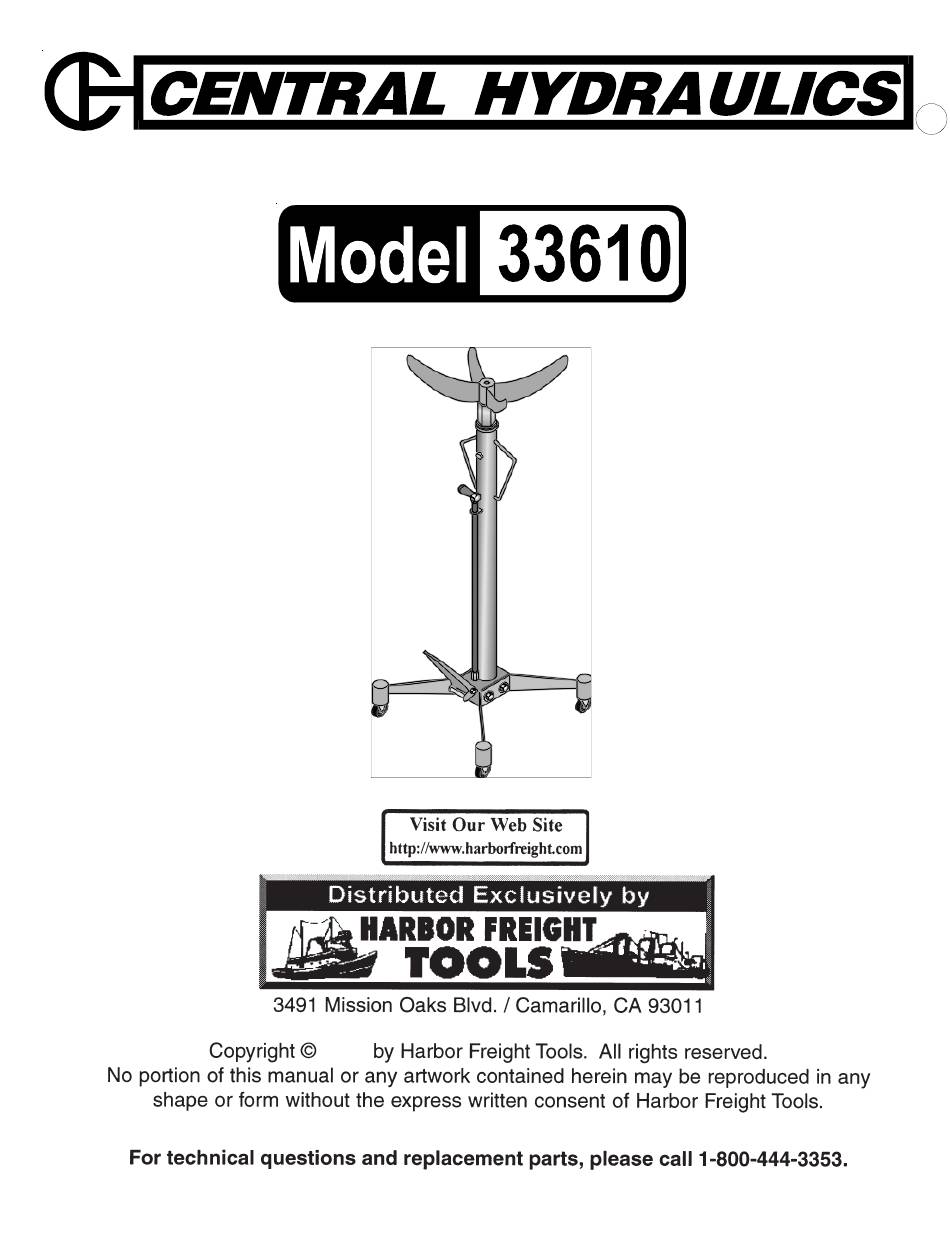

  • Page 1 TRANSMISSION JACK ASSEMBLY and OPERATING INSTRUCTIONS 2000 rev 02/00...

  • Page 2: Specifications

    12. AVOID UNINTENTIONAL STARTING. Do not carry any tool with your finger on the trigger. 13.STAY ALERT. Watch what you are doing, use common sense. Do not operate any tool when you are tired. #33610 Page 2...
  • Page 3 IF IN DOUBT ABOUT THE SAFETY OF YOUR PROJECT, WE ADVISE YOU TO HAVE THE WORK DONE BY A PROFESSIONAL FAMILIAR WITH APPLICABLE SAFE PRACTICES. #33610 REV 09/02 REV 03/04...
  • Page 4 NUTS, Washers, and BOLTS as shown in Figure 2. For Differential Service Your Transmission Jack comes with two different Saddles. SADDLE A (#38) is used to remove and install Differentials. Figure 2-Installing the Stationary Plates #33610 REV 09/02 Page 4...

  • Page 5: Operation

    You will not be able to use your Transmission Jack by raising the vehicle with a standard floor jack and jack stands. Make sure the Transmission or Differential you will be removing or intstalling does not exceed the 600 lbs. weight capacity of your Transmission Jack. #33610 Page 5...
  • Page 6 Step 8: To lower the differential, turn the RELEASE VALVE counterclockwise slowly as shown in Figure 6. Do not lower the differential in one quick drop as you may upset the balance of the differential within the SADDLE A. #33610 Page 6...
  • Page 7 Step 6: Inspect the vehicle to insure the differential has been properly installed. Transmission Removal Step 1: Roll the Transmission Jack underneath the transmission of your vehicle. Step 2: Make sure the RELEASE VALVE (#31) is turned fully clockwise to close the BODY RE- LEASE VALVE (#27). #33610 Page 7...
  • Page 8 Figure 8. Figure 8--Placing the Stationary Plates Step 5: If necessary, loosen the NUTS (#44) to adjust the positions of the STATIONARY PLATES to best cradle the transmission. Tighten the NUTS before continuing. #33610 Page 8...
  • Page 9 (as viewed from below) to lower that portion of the SADDLE. Thread the ADJUSTABLE SCREWS Figure 9--Adjusting the Angle and Attitude counterclockwise (as viewed from below) to lower that portion of the SADDLE as shown in Figure 9. #33610 Page 9...

  • Page 10: Maintenance

    Step 3: Turn the RELEASE VALVE (#31) counterclockwise to open the BODY RELEASE VALVE (#27). Quickly press the RAM (#25) down into the RESERVOIR. Step 4: Insert the AIR VENT VALVE back into the RESERVOIR. Tighten. Your Transmission Jack has been bled. #33610 Page 10...
  • Page 11 O-RINGS and SEALS. The Transmission Jack cannot be user serviced. Lubrication Lubricate the following points before first use and at least twice per month (more often during heavy use) as shown in Figure 11. Figure 11--Lubrication Points #33610 Page 11...

  • Page 12: Parts List

    TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. #33610 Page 12...

  • Page 13: Assembly Diagram

    ASSEMBLY DIAGRAM #33610 Page 13...
