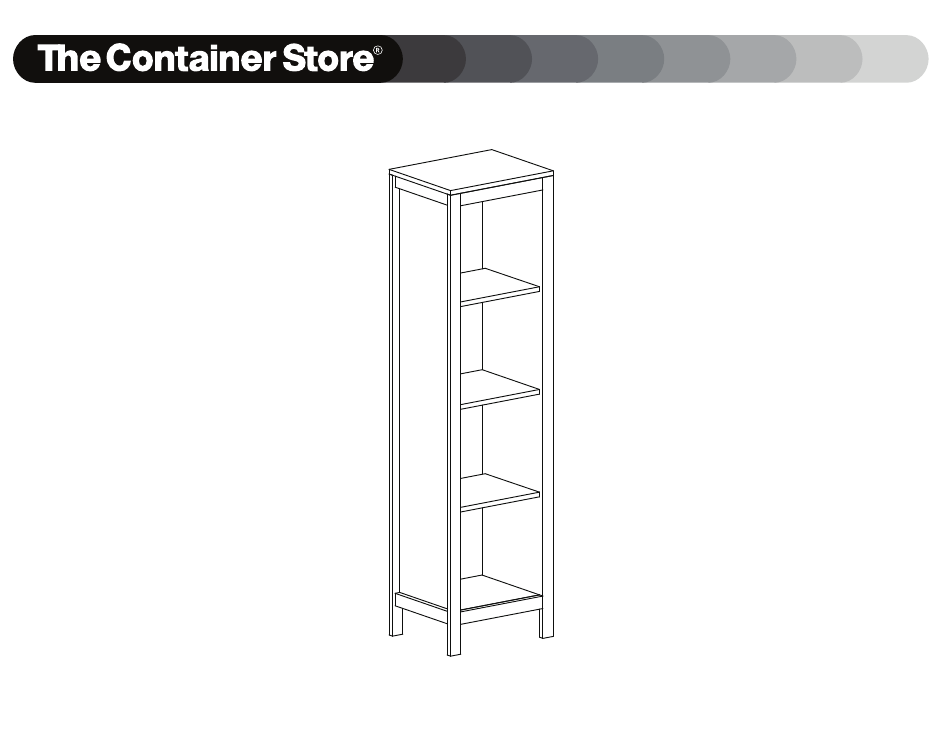

- Page 1 The Original Storage and Organization Store ® Assembly Instructions Clybourn 4 Cube Cubby Tall PRODUCT INFO PAGE 1 OF 8...
-
Page 2: Parts List
Top Panel Side Panel Center Fixed Shelf Bottom Panel Fixed Shelf Back Panel Please review the hardware listed on the next page as well as individual components of this product. As you unpack and prepare for assembly, place the contents on a carpeted PARTS LIST or padded area to protect them from damage. -
Page 3: Hardware & Tools
H1 x 12 H2 x 4 H3 x 8 H4 x 16 H5 x 2 CAM BOLT THIN CAM THICK CAM TRUSS HEAD WALL ANCHOR SCREW H6 x 2 H7 x 2 H8 x 4 H9 x 2 H10 x 12 PAN HEAD WALL STRAP WASHER... - Page 4 180º HOW TO USE CAM LOCK SYSTEM PAGE 4 OF 8...
- Page 5 STEP 1 STEP 2 front edge H1 x 4 H3 x 4 H10 x 4 H13 x 8 H1 x 4 H3 x 4 H13 x 8 H10 x 4 CAM BOLT THICK CAM DOWEL CAM BOLT THICK CAM DOWEL COVER COVER ASSEMBLY...
- Page 6 STEP 3 STEP 4 (H12) H1 x 4 H2 x 4 H13 x 4 H10 x 4 H4 x 16 H11 x 2 H12 x 4 CAM BOLT THIN CAM DOWEL TRUSS HEAD CORNER FLAT HEAD COVER SCREW BRACKET SCREW ASSEMBLY PAGE 6 OF 8...
- Page 7 STEP 5 (H7) (H6) (H8) Position against wall Mark position of strap hole on wall Drill 1/4’’ hole tap in wall anchor Fasten anti-tip strap with wall screw provided H5 x 2 H6 x 2 H7 x 2 H8 x 4 H9 x 2 WALL PAN HEAD...
- Page 8 15 lbs 15 lbs 15 lbs 15 lbs 15 lbs WARNING: Do not exceed the recommended weight limits on the designated panels. Exceeding these limits could cause sagging, possibly resulting in failure of product or bodily injury. Severe injury may occur if furniture tips over.
