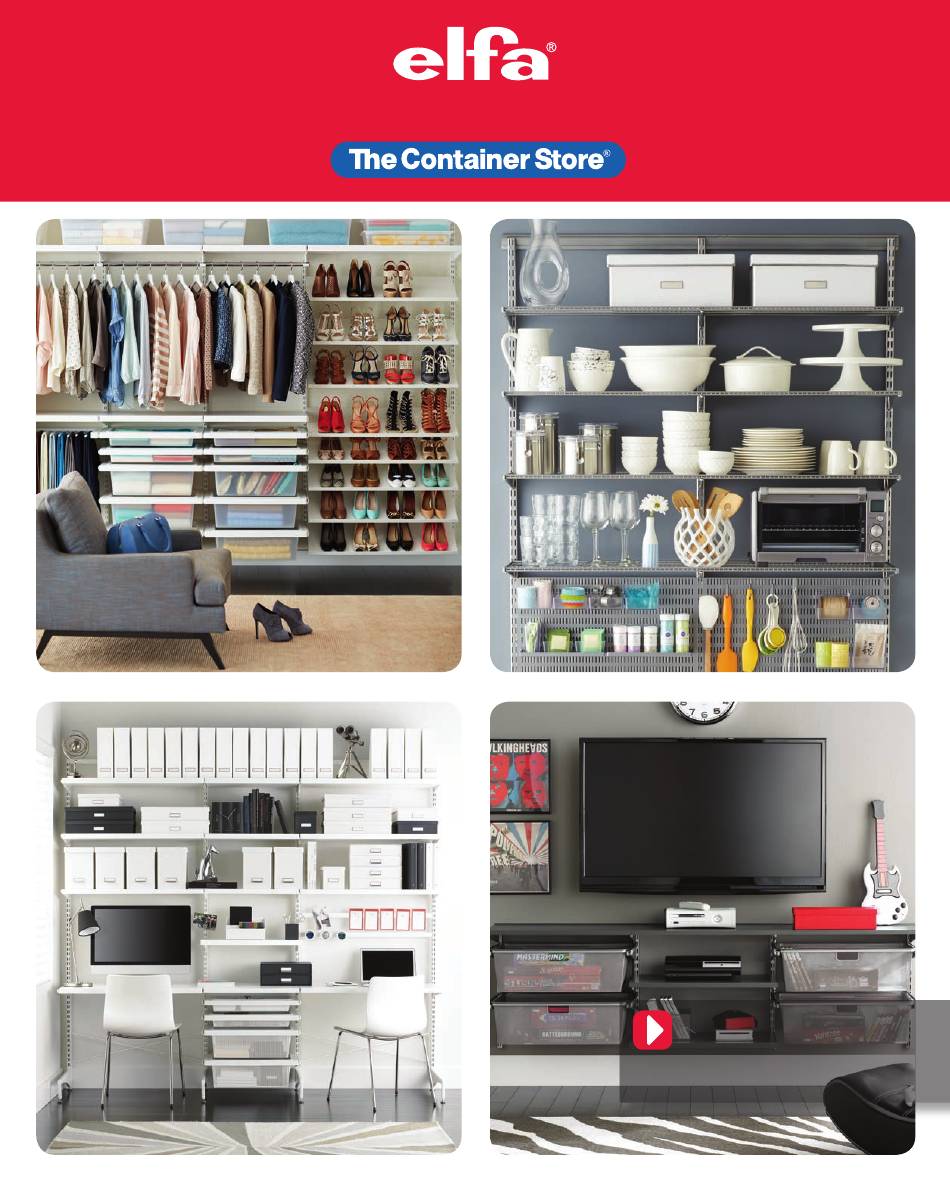

- Page 1 Instructions for Easy Installation & Assembly Watch Our Video Instructions Visit containerstore.com/installation...
-
Page 2: Tips For Getting Started
Gliding Accessory Racks pages 8–9 corresponding wall. • décor Shelves page • Refer to your design for placement of your elfa. Lay out all the products by type, size and wall. • Ventilated Shelves page Hardware, Top Track • décor Fascia... -
Page 3: Installation Service
Notches • Top Tracks have a top and a bottom. The TOP is designated on the label and has two notches to allow Hanging Standards to be inserted properly. (Figure A) Level the Top Track STEP – Place the Top Track at desired height (refer to your design). Place the level at the bottom of the Top Track to ensure it is straight. - Page 4 – Hanging Standards should be a minimum of 1/2" from the ends of the Top Track. You are now ready to install other elfa components. Please refer to your design and the Quick Reference Guide on page 2 for component-specific instructions.
- Page 5 Tools needed: plastic mallet, ladder or step stool for 62" and 83" tall solutions TIPS for getting started • It’s best to have two people to assemble a 62" or 83" tall solution. • Please note that any solution used away from the wall requires feet on both sides of the solution.
- Page 6 – Add End Caps and Center Cap(s) (included) at the top of the Upright for a finished appearance. (Figure B, Figure C) Refer to your design for placement of the elfa Brackets on the freestanding Uprights. Once you’ve added all elfa components, adjust levelers as needed with the wrench included with the Feet.
- Page 7 Assemble a 2' or 3' Double - Sided Solution Tools needed: plastic mallet, ladder or step stool for 62" and 83" tall solutions TIPS for getting started • It’s best to have two people to assemble a 62" or 83" tall solution.
- Page 8 – If your design calls for two Shelves to share one Foot, begin by attaching the clips at the joined Shelves first, then clip the opposite ends of both Shelves. Refer to your design for placement of the elfa Brackets on the freestanding Uprights. Once you’ve added all elfa components, adjust levelers as needed with the wrench included with the Feet.
- Page 9 Install the U-Shaped STEP Metal Glides • Gliding Accessory Racks, elfa Classic Hanging Drawers and décor Drawers are all installed with the same U-Shaped Metal Glide. • If you would like more space between the gliding components, simply move them to the desired position.
- Page 10 décor Shelves – Insert Ventilated Shelf Brackets into the Hanging Standards at the desired height. – Place the décor Shelf over the Brackets (Figure A) and press down (Figure B) to snap into place. Ventilated Shelves Install the Ventilated Shelves STEP •...
- Page 11 décor Fascia • Add Shelf Liners before installing Fascia. • Position ALL pieces of Fascia before installing clips. – Position the Fascia with the opening facing the Ventilated Shelf. (Figure A) The notch in the Fascia that hooks onto the front support wires of the Ventilated Shelf should be at the top.
- Page 12 Solid Shelving • There are pre-drilled holes on the bottom of the Shelf for ease of installation. • The row of Shelving closest to the middle should be installed first. (Figure A) • Group Shelves by color: 30" Shelves have a blue sticker; 25" End Shelves have a green sticker;...
- Page 13 Install Independent Shelves with Connected Shelves (Figure A) – Flip the Shelf upside down to expose the holes, with the back STEP of the Shelf toward you. – Insert Independent Shelf Pins with the arrow to the outside STEP Independent edge of the Shelf.
- Page 14 Install a Single Section of Shelving (Figure A) • There are drilled holes on the bottom of the Shelf for ease of installation. • The row of shelving closest to the middle should be installed first. (Figure A) – Flip the Shelf upside down to expose the holes with the back of the STEP Shelf toward you.
- Page 15 Wall-Mounted Standards Tools needed: level, power drill, drill bits, #2 Phillips head bit for a power drill, hammer, plastic mallet, ladder or step stool • Mounting Standards in a Corner: Install the Standard approximately 2" from the corner to allow enough room for the drill or screwdriver.
- Page 16 (Figure B) Insert Drawers STEP Insert the remaining Back Stop Pins. STEP Slide in the Drawers. STEP If you have other elfa Frame and Drawer accessories, add them now. Visit containerstore.com/installation to view video instructions. containerstore.com | 800-733-3532...
