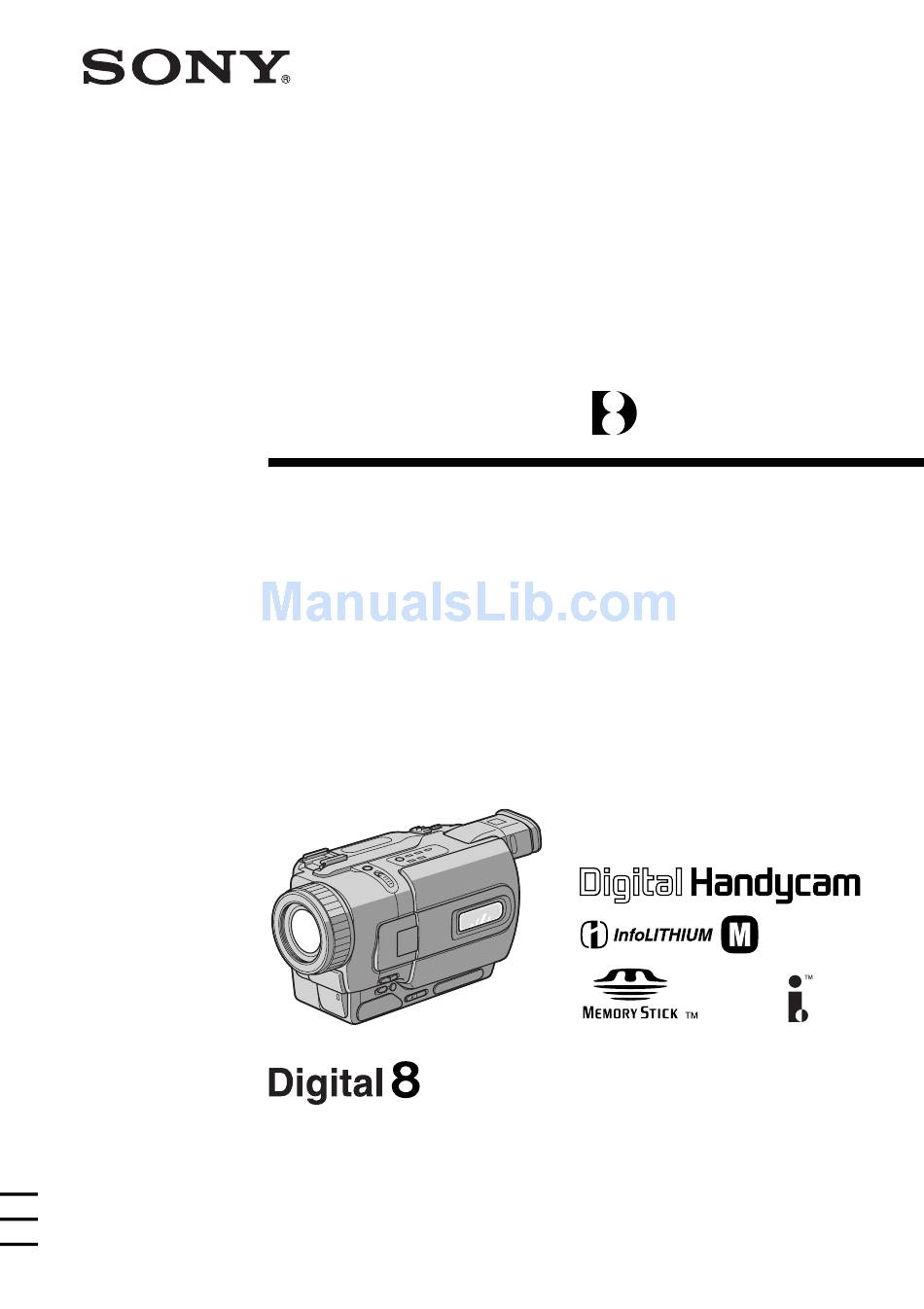

Page 1: Digital Video Camera
Before operating the unit, please read this manual thoroughly, and retain it for future reference. Gebruiksaanwijzing Lees, alvorens het apparaat in gebruik te nemen, de gebruiksaanwijzing aandachtig door en bewaar deze voor eventuele naslag. SERIES DCR-TRV530E DCR-TRV230E/TRV235E/TRV325E/ TRV330E/TRV430E/TRV530E ©2001 Sony Corporation...
Page 2 English Welcome! Congratulations on your purchase of this Sony Digital Handycam camcorder. With your Digital Handycam, you can capture life’s precious moments with superior picture and sound quality. Your Digital Handycam is loaded with advanced features, but at the same time it is very easy to use.
Page 3: Weergeven Iets Misgaat Door Een Storing In De Camcorder, De Opnamemedia E.d
Checking supplied accessories Make sure that the following accessories are supplied with your camcorder. 1 Wireless Remote Commander (1) (p. 210) 2 AC-L10A/L10B/L10C AC power adaptor (1), Mains lead (1) (p. 16) 3 NP-FM30 battery pack (1) (p. 15, 16) DCR-TRV230E/TRV325E/TRV330E/ TRV530E NP-FM50 battery pack (1) (p.
Page 4: Main Features
English Main Features Taking moving or still images, and playing them back •Recording a picture (p. 26) •Recording a still image on a tape (p. 48) •Playing back a tape (p. 39) •Recording still images on “Memory Stick” (p. 129) (DCR-TRV325E/TRV330E/TRV430E/TRV530E only) •Viewing a still image recorded on “Memory Stick”...
Page 5: Super Laser Link Afspelen Zonder Snoeren (Zie Blz. 46)
Nederlands Functie-overzicht Bewegende of stilstaande beelden opnemen of weergeven •Beelden opnemen (zie blz. 26) •Stilstaande beelden op de band opnemen (zie blz. 48) •Videocassettes afspelen (zie blz. 39) •Stilstaande beelden vastleggen op een “Memory Stick” (zie blz. 129) (alleen voor de DCR-TRV325E/ TRV330E/TRV430E/TRV530E) •Een stilstaand beeld op een “Memory Stick”...
Page 6: Table Of Contents
English Table of contents Checking supplied accessories ... 3 Main Features ... 4 Quick Start Guide Getting started Using this manual ... 12 Step 1 Preparing the power supply ... 15 Installing the battery pack ... 15 Charging the battery pack ... 16 Connecting to a wall socket ...
Page 7 Nederlands Inhoudsopgave Controleren van het bijgeleverd toebehoren ... 3 Functie-overzicht ... 5 Snelle startgids ... 10 Voorbereidingen Omtrent deze handleiding ... 12 Stap 1 Voorbereiden van de stroomvoorziening ... 15 Aanbrengen van een batterijpak ... 15 Opladen van het batterijpak ... 16 Gebruik op stroom van het lichtnet ...
Page 8: Quick Start Guide
English Quick Start Guide Connecting the mains lead Use the battery pack when using your camcorder outdoors (p. 15) Inserting a cassette Slide OPEN/EJECT in the direction of the arrow and open the lid. This chapter introduces you to the basic features of your camcorder.
Page 9 Recording a picture Remove the lens cap. Open the LCD panel while pressing OPEN. The picture appears on the LCD screen. When you purchase your camcorder, the clock setting is set to off. If you want to record the date and time for a picture, set the clock setting before recording (p.
Page 10: Snelle Startgids
Nederlands Snelle startgids Aansluiten van het netsnoer Voor gebruik buitenshuis dient u een batterijpak aan te brengen (zie blz. 15). Inleggen van een videocassette Schuif de OPEN/EJECT knop in de richting van de pijl en open het deksel van de cassettehouder.
Page 11 Maken van een video-opname Verwijder de lensdop. Houd de OPEN toets ingedrukt en klap het LCD scherm open. Het beeld dat u kunt opnemen verschijnt op het LCD scherm. Bij aankoop van uw camcorder is de tijd nog niet ingesteld. Als u de opnamedatum en -tijd voor beelden wilt vastleggen, zult u voor de opname eerst de klok op de juiste tijd gelijk moeten zetten (zie blz.
Page 12: Getting Started
— Getting started — Using this manual The instructions in this manual are for the six models listed in the table below. Before you start reading this manual and operating your camcorder, check the model number by looking at the bottom of your camcorder. The DCR- TRV530E is the model used for illustration purposes.
Page 13 Using this manual * The models with MEMORY marked on the POWER switch is provided with memory functions. See page 124 for details. ** The models with VCR marked on the POWER switch can record pictures from other equipment such as VCR. The other models have PLAYER mark on the POWER switch.
Page 14: Precautions On Camcorder Care
Using this manual Precautions on camcorder care Lens and LCD screen/finder (on mounted models only) •The LCD screen and the finder are manufactured using extremely high- precision technology so over 99.99% of the pixels are operational for effective use. However, there may be some tiny black points and/or bright points (white, red, blue or green in colour) that constantly appear on the LCD screen and the finder.
Page 15: Step 1 Preparing The Power Supply
Step 1 Preparing the power supply Installing the battery pack We recommend using the battery pack when you use your camcorder outdoors. (1) Lift up the viewfinder. (2) Slide the battery pack down until it clicks. To remove the battery pack (1) Lift up the viewfinder.
Page 16: Charging The Battery Pack
Step 1 Preparing the power supply Charging the battery pack Use the battery pack after charging it for your camcorder. Your camcorder operates only with the “InfoLITHIUM” battery pack (M series). See page 188 for details of “InfoLITHIUM” battery pack. (1) Open the DC IN jack cover and connect the AC power adaptor supplied with your camcorder to the DC IN jack with the plug’s v...
Page 17 Step 1 Preparing the power supply After charging the battery pack Disconnect the AC power adaptor from the DC IN jack on your camcorder. Notes •Prevent metallic objects from coming into contact with the metal parts of the DC plug of the AC power adaptor.
Page 18 This unit is compatible with the “InfoLITHIUM” battery pack (M series). Your camcorder operates only with the “InfoLITHIUM” battery. “InfoLITHIUM” M series battery packs have the “InfoLITHIUM” is a trademark of Sony Corporation. Charging time/Vereiste oplaadtijd Battery pack/ Batterijpak...
Page 19 Step 1 Preparing the power supply DCR-TRV430E Battery pack/ Batterijpak NP-FM30 NP-FM50 NP-FM70 NP-FM90 NP-FM91 DCR-TRV530E Battery pack/ Batterijpak NP-FM30 NP-FM50 NP-FM70 NP-FM90 NP-FM91 Approximate number of minutes when you use a fully charged battery Supplied with DCR-TRV230E/TRV325E/ TRV330E/TRV530E Supplied with DCR-TRV235E/TRV430E Approximate continuous recording time at 25°C (77°F).
Page 20 Step 1 Preparing the power supply Playing time/Beschikbare speelduur DCR-TRV230E/TRV235E/TRV325E/TRV330E Battery pack/ Batterijpak NP-FM30 NP-FM50 NP-FM70 NP-FM90 NP-FM91 DCR-TRV430E/TRV530E Battery pack/ Batterijpak NP-FM30 NP-FM50 NP-FM70 NP-FM90 NP-FM91 Approximate number of minutes when you use a fully charged battery Supplied with DCR-TRV230E/TRV325E/ TRV330E/TRV530E Supplied with DCR-TRV235E/TRV430E Approximate continuous playing time at 25 °C...
Page 21: Connecting To A Wall Socket
DC IN aansluiting, ook al zit de stekker van de netspanningsadapter niet in het stopcontact. Gebruik op stroom van een auto-accu Gebruik in de auto een Sony gelijkstroomadapter/batterijlader (los verkrijgbaar).
Page 22: Step 2 Setting The Date And Time
Step 2 Setting the date and time Set the date and time settings when you use your camcorder for the first time. “CLOCK SET” will be displayed each time that you set the POWER switch to CAMERA or MEMORY (DCR-TRV325E/TRV330E/TRV430E/ TRV530E only) unless you set the date and time settings.
Page 23 Step 2 Setting the date and time MENU 2 0 0 1 2 0 0 1 0 0 0 0 0 0 The year changes as follows: 1995 T · · · · t 2001 T · · · · t 2079 If you do not set the date and time “-- -- ----”...
Page 24: Step 3 Inserting A Cassette
Step 3 Inserting a cassette We recommend using Hi8 cassettes. (1) Prepare the power supply (p. 15). (2) Slide OPEN/EJECT in the direction of the arrow and open the lid. The cassette compartment automatically lifts up and opens. (3) Insert the cassette in a straight line deeply into the cassette compartment with the window facing out.
Page 25: Trv530E
Step 3 Inserting a cassette Notes •Do not press the cassette compartment down. Doing so may cause malfunction. •Your camcorder records pictures in the Digital8 system. • The recording time when you use your camcorder is 2/3 of indicated time on Hi8 tape.
Page 26: Recording - Basics
Recording a picture Your camcorder automatically focuses for you. (1) Remove the lens cap by pressing both knobs on its sides and attach the lens cap to the grip strap. (2) Install the power source and insert a cassette. See “Step 1” to “Step 3” for more information (p.
Page 27 Recording a picture Notes •Fasten the grip strap firmly. •Do not touch the built-in microphone during recording. Note on Recording mode Your camcorder records and plays back in the SP (standard play) mode and in the LP (long play) mode. Select SP or LP in the menu settings (p.
Page 28: Adjusting The Lcd Screen
Recording a picture Adjusting the LCD screen The LCD panel moves about 90 degrees to the viewfinder side and about 180 degrees to the lens side. If you turn the LCD panel over so that it faces the other way, the indicator appears on the LCD screen and in the viewfinder (Mirror mode).
Page 29: Using The Zoom Feature
Recording a picture Brightness of the LCD screen You can adjust the brightness of the LCD screen. Select LCD B.L. or LCD BRIGHT in the menu settings (p. 107). Even if you adjust the LCD B.L. or LCD BRIGHT, the recorded picture will not be affected.
Page 30 Recording a picture Notes on digital zoom •Digital zoom starts to function when zoom exceeds 25 . •The picture quality deteriorates as you go toward the “T” side. When you shoot close to a subject If you cannot get a sharp focus, move the power zoom lever to the “W”...
Page 31 Recording a picture Indicators displayed in the recording mode The indicators are not recorded on tape. Remaining battery time indicator/Resterende batterijspanning- aanduiding Format indicator/Opnamesysteem-aanduiding Recording mode indicator/Opnamesnelheid-aanduiding STBY/REC indicator/STBY/REC pauze/opname-aanduiding 0:00:01 Time code/Tape counter indicator/Bandteller/tijdcode-aanduiding Remaining tape indicator/Resterende bandlengte-aanduiding This appears after the POWER switch is set to CAMERA for a while./ Deze aanduiding verschijnt even nadat u de POWER schakelaar in de “CAMERA”...
Page 32: Shooting Backlit Subjects - Back Light
Recording a picture Shooting backlit subjects – BACK LIGHT When you shoot a subject with the light source behind the subject or a subject with a light background, use the backlight function. Press BACK LIGHT in CAMERA or MEMORY (DCR-TRV325E/TRV330E/TRV430E/TRV530E only) mode.
Page 33: Shooting In The Dark - Nightshot/Super Nightshot
Recording a picture Shooting in the dark – NightShot/Super NightShot The NightShot function enables you to shoot a subject in a dark place. For example, you can satisfactorily record the environment of nocturnal animals for observation when you use this function. While your camcorder is in CAMERA or MEMORY (DCR-TRV325E/TRV330E/TRV430E/ TRV530E only) mode, slide NIGHTSHOT to ON.
Page 34 Recording a picture Notes •Do not use the NightShot function in bright places (ex. outdoors in the daytime). This may cause your camcorder to malfunction. •When you keep NIGHTSHOT set to ON in normal recording, the picture may be recorded in incorrect or unnatural colours.
Page 35: Self-Timer Recording (Dcr-Trv325E/ Trv330E/Trv430E/Trv530E Only)
Recording a picture Self-timer recording – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only Recording with the self-timer starts in 10 seconds automatically. You can also use the Remote Commander for this operation. (1) Press MENU to display the menu settings in the standby mode. (2) Turn the SEL/PUSH EXEC dial to select then press the dial.
Page 36 Recording a picture To stop the countdown Press START/STOP. To restart the countdown, press START/STOP again. To record still images using the self- timer Press PHOTO in step 6. (p. 50) To cancel self-timer recording Set SELFTIMER to OFF in the menu settings in the standby mode.
Page 37: Checking The Recording - End Search/ Editsearch/Rec Review
Checking the recording – END SEARCH/EDITSEARCH/Rec Review You can use these buttons to check the recorded picture or shoot so that the transition between the last recorded scene and the next scene you record is smooth. END SEARCH You can go to the end of the recorded section after you record.
Page 38 Checking the recording – END SEARCH/EDITSEARCH/Rec Review Rec Review You can check the section which you have stopped most recently. Press the – (7) side of EDITSEARCH momentarily in the standby mode. The section you have stopped most recently will be played back for a few seconds, and then your camcorder will return to the standby mode.
Page 39: Playback - Basics
— Playback – Basics — Playing back a tape You can monitor the playback picture on the LCD screen. If you close the LCD panel, you can monitor the playback picture in the viewfinder. You can control playback using the Remote Commander supplied with your camcorder.
Page 40 Playing back a tape When monitoring on the LCD screen You can turn the LCD panel over and move it back to the camcorder body with the LCD screen facing out. To display the screen indicators – Display function Press DISPLAY on your camcorder or the Remote Commander supplied with your camcorder.
Page 41 Playing back a tape Date/time/ Datum/tijd 4 7 2001 12:05:56 [a] SteadyShot off indicator [b] Exposure mode indicator [c] White balance indicator [d] Gain indicator [e] Shutter speed indicator [f] Aperture value Not to display various settings Set DATA CODE to DATE in the menu settings (p.
Page 42: Various Playback Modes
Playing back a tape Remaining battery time indicator during playback The indicator indicates the approximate continuous playback time. The indicator may not be correct, depending on the conditions in which you are recording. When you close the LCD panel and open it again, it takes about 1 minute for the correct remaining battery time to be displayed.
Page 43 Playing back a tape To view the picture at slow speed (slow playback) Press y on the Remote Commander during playback. For slow playback in the reverse direction, press , then press y on the Remote Commander. To resume normal playback, press To view the picture at double speed Press 2 on the Remote Commander during playback.
Page 44: Viewing The Recording On Tv
Viewing the recording on TV Connect your camcorder to your TV with the A/V connecting cable supplied with your camcorder to watch the playback picture on the TV screen. You can operate the playback control buttons in the same way as when you monitor playback pictures on the LCD screen.
Page 45: If Your Tv Or Vcr Is A Monaural Type
Viewing the recording on TV If your TV or VCR is a monaural type Connect the yellow plug of the A/V connecting cable to the video input jack and the white or the red plug to the audio input jack on the VCR or the TV.
Page 46 Viewing the recording on TV Using the AV cordless IR receiver Once you connect the AV cordless IR receiver (optional) to your TV or VCR, you can easily view the picture on your TV. For details, refer to the operating instructions of the AV cordless IR receiver.
Page 47 LASER LINK button is lit) Your camcorder consumes power. Press SUPER LASER LINK to turn off the super laser link function when it is not needed. is a trademark of Sony Corporation. Aansluitingen voor videoweergave op TV Uitschakelen van de SUPER LASER LINK signaaloverdracht Druk weer op de SUPER LASER LINK toets.
Page 48: Advanced Recording Operations
Recording a still image on a tape – Tape Photo recording You can record a still image like a photograph. This mode is useful when you want to record an image such as a photograph or when you print a picture using a video printer (optional).
Page 49 Recording a still image on a tape – Tape Photo recording Notes •During the tape photo recording, you cannot change the mode or setting. •The PHOTO button does not work: – while the digital effect function is set or in use. –...
Page 50 Recording a still image on a tape – Tape Photo recording Self-timer recording – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only You can record still images on tapes with the self- timer. You can also use the Remote Commander for this operation. (1) In the standby mode, press MENU to display the menu settings.
Page 51: Printing The Still Image
Recording a still image on a tape – Tape Photo recording Note The self-timer recording mode is automatically cancelled when: – Self-timer recording is finished. – The POWER switch is set to OFF (CHG), PLAYER or VCR (DCR-TRV330E only). Printing the still image You can print a still image by using the video printer (optional).
Page 52: Using The Wide Mode
Using the wide mode You can record a 16:9 wide picture to watch on the 16:9 wide-screen TV (16:9WIDE). Black bands appear on the LCD screen or in the viewfinder during recording in 16:9 WIDE mode [a]. The picture during playing back on a normal TV [b] or a wide-screen TV [c] are compressed in the widthwise direction.
Page 53: Using The Fader Function
Using the fader function You can fade the picture in or out to give your recording a professional appearance. FADER (gewoon in- en uit-faden) M.FADER (mosaic)/(mozaïekbeeld) 1) 2) BOUNCE (stuitereffect) OVERLAP (overvloeiend) WIPE (gordijnen open) (ramdom dot)/ (gestippeld) MONOTONE When fading in, the picture gradually changes from black-and-white to colour.
Page 54 Using the fader function (1) When fading in [a] In the standby mode, press FADER until the desired fader indicator flashes. When fading out [b] In the recording mode, press FADER until the desired fader indicator flashes. The indicator changes as follows: FADER t M.FADER t BOUNCE t MONOTONE t OVERLAP t WIPE t DOT...
Page 55 Using the fader function Before operating the overlap, wipe, or dot function Your camcorder stores the image on the tape. As the image is being stored, the indicator flashes quickly, and the image you are shooting disappears from the screen. Depending on the tape condition, the image may not be recorded clearly.
Page 56: Using Special Effects - Picture Effect
Using special effects – Picture effect You can digitally process images to obtain special effects like those in films or on the TV. NEG. ART [a] : The colour and brightness of the image is reversed. SEPIA : The image is sepia. B&W : The image is monochrome (black-and-white).
Page 57 Using special effects – Picture effect (1) Press MENU to display the menu settings in CAMERA mode. (2) Turn SEL/PUSH EXEC dial to select press the dial. (3) Turn SEL/PUSH EXEC dial to select P EFFECT, then press the dial. (4) Turn the SEL/PUSH EXEC dial to select the desired picture effect mode, then press the dial.
Page 58: Using Special Effects - Digital Effect
Using special effects – Digital effect You can add special effects to recorded image using the various digital functions. The sound is recorded normally. STILL You can record a still image so that it is superimposed on a moving image. FLASH (FLASH MOTION) You can record still images successively at constant intervals.
Page 59 Using special effects – Digital effect (1) Press MENU to display the menu settings in CAMERA mode. (2) Turn SEL/PUSH EXEC dial to select press the dial. (3) Turn SEL/PUSH EXEC dial to select D EFFECT, then press the dial. (4) Turn the SEL/PUSH EXEC dial to select the desired digital effect mode.
Page 60 Using special effects – Digital effect To cancel the digital effect Set D EFFECT to OFF in the menu settings. Notes •The following functions do not work during digital effect: – Fader – Low lux mode of PROGRAM AE – Tape photo recording –...
Page 61: Using The Program Ae Function
Using the PROGRAM AE function You can select PROGRAM AE (Auto Exposure) mode to suit your specific shooting requirements. Spotlight This mode prevents people’s faces, for example, from appearing excessively white when shooting subjects lit by strong light in the theatre. Soft portrait This mode brings out the subject while creating a soft background for subjects such as people or...
Page 62 Using the PROGRAM AE function (1) Press MENU to display menu settings in CAMERA or MEMORY (DCR-TRV325E/ TRV330E/TRV430E/TRV530E only) mode. (2) Turn SEL/PUSH EXEC dial to select press the dial. (3) Turn SEL/PUSH EXEC dial to select PROGRAM AE, then press the dial. (4) Turn the SEL/PUSH EXEC dial to select the desired mode.
Page 63 Using the PROGRAM AE function If you are recording under a discharge tube such as a fluorescent lamp, sodium lamp or mercury lamp Flickering or changes in colour may occur in the following modes. If this happens, turn the PROGRAM AE function off. –...
Page 64: Adjusting The Exposure Manually
Adjusting the exposure manually You can manually adjust and set the exposure. Adjust the exposure manually in the following cases: – The subject is backlit – Bright subject and dark background – To record dark pictures (e.g. night scenes) faithfully (1) Press EXPOSURE in CAMERA or MEMORY (DCR-TRV325E/TRV330E/TRV430E/ TRV530E only) mode.
Page 65: Focusing Manually
Focusing manually You can gain better results by manually adjusting the focus in the following cases: •The autofocus mode is not effective when shooting: – subjects through glass coated with water droplets. – horizontal stripes. – subjects with little contrast with backgrounds such as walls and sky.
Page 66 Focusing manually To focus precisely Adjust the zoom by first focusing at the “T” (telephoto) position and then shooting at the “W” (wide-angle) position. This makes focusing easier. When you shoot close to the subject Focus at the end of the “W” (wide-angle) position.
Page 67: Superimposing A Title
Superimposing a title You can select one of eight preset titles and two custom titles (p. 69). You can also select the language, colour, size and position of titles. (1) Press TITLE to display the title menu in the standby mode. The title menu display appears on the screen.
Page 68 Superimposing a title To superimpose the title while you are recording Press TITLE while you are recording, and carry out steps 2 to 5. When you press the SEL/PUSH EXEC dial at step 5, the title is recorded. To select the language of a preset title If you want to change the language, select before step 2.
Page 69: Making Your Own Titles
Making your own titles You can make up to two titles and store them in your camcorder. Each title can have up to 20 characters. (1) Press TITLE in the standby, PLAYER or VCR (DCR-TRV330E only) mode. (2) Turn the SEL/PUSH EXEC dial to select then press the dial.
Page 70 Making your own titles To change a title you have stored In step 3, select CUSTOM1 SET or CUSTOM2 SET, depending on which title you want to change, then press the SEL/PUSH EXEC dial. Turn the SEL/PUSH EXEC dial to select [C], then press the dial to delete the title.
Page 71: Inserting A Scene
Inserting a scene You can insert a scene in the middle of a recorded tape by setting the start and end points. The previously recorded frames between these start and end points will be erased. Use the Remote Commander for this operation. (1) While your camcorder is in the standby mode, keep pressing EDITSEARCH, and release the button at the insert end point [b].
Page 72: Advanced Playback Operations
— Advanced Playback Operations — Playing back a tape with picture effects During playback, you can process a scene using the picture effect functions: NEG.ART, SEPIA, B&W and SOLARIZE. (1) Press MENU to display the menu settings in the playback or playback pause mode. (2) Turn SEL/PUSH EXEC dial to select press the dial.
Page 73: Playing Back A Tape With Digital Effects
Playing back a tape with digital effects During playback, you can process a scene using the digital effect functions: STILL, FLASH, LUMI. and TRAIL. (1) Press MENU to display the menu settings in the playback mode. (2) Turn SEL/PUSH EXEC dial to select press the dial.
Page 74 Playing back a tape with digital effects Notes •The digital effect function works only for tapes recorded in the Digital8 •You cannot process externally input scenes using the digital effect function. •You cannot record images that you have processed using the digital effect function with this camcorder.
Page 75: Enlarging Recorded Images - Tape Pb Zoom
Enlarging recorded images – Tape PB ZOOM You can enlarge moving and still images recorded on tapes. You can also dub the enlarged images to tapes or copy to “Memory Stick”s (DCR-TRV325E/TRV330E/TRV430E/TRV530E only). Besides the operation described here, your camcorder can enlarge still images recorded on “Memory Stick”s (DCR-TRV325E/TRV330E/ TRV430E/TRV530E only).
Page 76: Tape Pb Zoom
Enlarging recorded images – Tape PB ZOOM Notes •PB ZOOM works only for tapes recorded in the Digital8 system. •You cannot process externally input scenes using PB ZOOM function. •You cannot record pictures that you have processed using PB ZOOM function with this camcorder.
Page 77: Quickly Locating A Scene Using The Zero Set Memory Function
Quickly locating a scene using the zero set memory function Your camcorder goes forward or backward to automatically stop at a desired scene having a counter value of “0:00:00”. Use the Remote Commander for this operation. Use this function, for example, to view a desired scene later on during playback.
Page 78: Searching A Recording By Date - Date Search
Searching a recording by date – Date search You can automatically search for the point where the recording date changes and start playback from that point (Date search). Use the Remote Commander for this operation. Use this function to check where recording dates change or to edit the tape at each recording date.
Page 79 Searching a recording by date – Date search To stop searching Press x. Notes •The date search works only for tapes recorded in the Digital8 system. •If one day’s recording is less than two minutes, your camcorder may not accurately find the point where the recording date changes.
Page 80: Searching For A Photo - Photo Search/Photo Scan
Searching for a photo – Photo search/Photo scan You can search for the recorded still image recorded on tape (photo search). You can also search for still images one after another and display each image for five seconds automatically (photo scan). Use the Remote Commander for these operations.
Page 81: Scanning Photo
Searching for a photo – Photo search/Photo scan Scanning photo (1) Set the POWER switch to PLAYER or VCR (DCR-TRV330E only). (2) Press SEARCH MODE on the Remote Commander repeatedly, until the photo scan indicator appears on the screen. The indicator changes as follows: DATE SEARCH t PHOTO SEARCH (no indicator) PHOTO SCAN...
Page 82: Editing
— Editing — Dubbing a tape Using the A/V connecting cable You can dub or edit on the VCR connected to your camcorder using your camcorder as a player. Connect your camcorder to the VCR using the A/V connecting cable supplied with your camcorder.
Page 83 Dubbing a tape When you have finished dubbing a tape Press x on both your camcorder and the VCR. You can edit on VCRs that support the following systems: 8 mm, Hi8, VHS, VHSC, S-VHSC, Betamax, DV or Digital8 If your VCR is a monaural type Connect the yellow plug of the A/V connecting cable to the video input jack and the white or the red plug to the audio input jack on the VCR or...
Page 84 Dubbing a tape Using the i.LINK cable (DV connecting cable) Simply connect the i.LINK cable (DV connecting cable) (optional) to DV OUT or DV IN/OUT and to DV IN/OUT of the DV products. With digital- to-digital connection, video and audio signals are transmitted in digital form for high-quality editing.
Page 85 Dubbing a tape Note on tapes that are not recorded in the Digital8 system The picture may fluctuate. This is not a malfunction. During playback of tapes recorded in the Hi8/ standard 8 system Digital signals are output as the image signals from the DV OUT or DV IN/OUT jack.
Page 86: Dubbing Only Desired Scenes - Digital Program Editing
Dubbing only desired scenes – Digital program editing You can duplicate selected scenes (programmes) for editing onto a tape without operating the VCR. Scenes can be selected by frame. You can set up to 20 programmes. Unwanted scene/ Ongewenst beeld Before operating the Digital program editing function Step 1 Connecting the VCR (p.
Page 87 Dubbing only desired scenes – Digital program editing Step 1: Connecting the VCR You can connect both an A/V connecting cable and an i.LINK cable (DV connecting cable). When you use the A/V connecting cable, connect the devices as illustrated in page 82. When you use an i.LINK cable (DV connecting cable), connect the devices as illustrated in page 84.
Page 88 Dubbing only desired scenes – Digital program editing (1) Set the IR SETUP code 1 Set the POWER switch to PLAYER or VCR (DCR-TRV330E only) on your camcorder. 2 Turn the power of the connected VCR on, then set the input selector to LINE. When you connect a video camera recorder, set its power switch to VCR/VTR.
Page 89 Be sure to set the correct code depending on your VCR. Default setting is code number 3. IR SETUP code/ Brand/Merk Afstandsbedieningscode (IR SETUP) Sony 1, 2, 3, 4, 5, 6 Aiwa 47, 53, 54 Akai 62, 50, 74 Alba...
Page 90 Dubbing only desired scenes – Digital program editing (2) Setting the modes to cancel recording pause on the VCR 1 Turn the SEL/PUSH EXEC dial to select PAUSEMODE, then press the dial. 2 Turn the SEL/PUSH EXEC dial to select the mode to cancel recording pause on the VCR, then press the dial.
Page 91 Dubbing only desired scenes – Digital program editing (4) Confirming VCR operation 1 Insert a recordable tape into the VCR, then set to recording pause. 2 Turn the SEL/PUSH EXEC dial to select IR TEST, then press the dial. 3 Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
Page 92: Dv Connecting Cable
Dubbing only desired scenes – Digital program editing Step 2: Setting the VCR to operate with the i.LINK cable (DV connecting cable) When you connect using an i.LINK cable (DV connecting cable) (optional), follow the procedure below. (1) Set the POWER switch to PLAYER or VCR (DCR-TRV330E only) on your camcorder .
Page 93 Dubbing only desired scenes – Digital program editing Step 3: Adjusting the synchronicity of the VCR You can adjust the synchronicity of your camcorder and the VCR. Have a pen and paper ready for notes. Before operation, eject the cassette from your camcorder. (1) Set the POWER swtich to PLAYER or VCR (DCR-TRV330E only) on your camcorder.
Page 94 Dubbing only desired scenes – Digital program editing O T H E R S E D I T S E T CON T RO L A D J T E S T ” CU T - I N ” ” CU T -OU T ” I R S E T U P P A U S EMOD E I R T E S T...
Page 95 Dubbing only desired scenes – Digital program editing Operation 1: Making the programme (1) Insert the tape for playback into your camcorder, and insert a tape for recording into the VCR. (2) Press MENU to display the menu. (3) Turn the SEL/PUSH EXEC dial to select then press the dial.
Page 96 Dubbing only desired scenes – Digital program editing Erasing the programme you have set Erase OUT first and then IN from the last set programme. (1) Turn the SEL/PUSH EXEC dial to select UNDO, then press the dial. (2) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
Page 97 Dubbing only desired scenes – Digital program editing Operation 2: Performing Digital program editing (Dubbing a tape) Make sure that your camcorder and VCR are connected, and that the VCR is set to recording pause. This procedure is not necessary when you use an i.LINK cable (DV connecting cable).
Page 98: Using With Analog Video Unit And Your Computer - Signal Convert Function (Dcr- Trv330E Only)
Using with analog video unit and your computer – Signal convert function – DCR-TRV330E only You can capture images and sound from an analog video unit connected to your computer which has the i.LINK (DV) jack to your camcorder. Before operation Set DISPLAY to LCD in the menu settings.
Page 99 Using with analog video unit and your computer – Signal convert function Notes •You need to install software which can exchange video signals. •Depending on the condition of the analog video signals, the computer may not be able to output the images correctly when you convert analog video signals into digital video signals via your camcorder.
Page 100: Recording Video Or Tv Programmes (Dcr- Trv330E Only)
Recording video or TV programmes – DCR-TRV330E only Using the A/V connecting cable You can record a tape from another VCR or a TV programme from a TV that has video/audio outputs. Use your camcorder as a recorder. Before operation Set DISPLAY to LCD in the menu settings.
Page 101 Recording video or TV programmes When you have finished dubbing a tape Press x on both your camcorder and the VCR. Notes •To enable smooth transition, we recommend that you do not mix pictures recorded in the Hi8/standard 8 with the Digital8 tape.
Page 102 Recording video or TV programmes Using the i.LINK cable (DV connecting cable) Simply connect the i.LINK cable (DV connecting cable) (optional) to DV IN/OUT and to DV IN/ OUT of the DV products. With digital-to-digital connection, video and audio signals are transmitted in digital form for high-quality editing.
Page 103 Recording video or TV programmes You can connect one VCR only using the i.LINK cable (DV connecting cable). During digital editing The colour of the display may be uneven. However this does not affect the dubbed picture. If you record playback pause picture with the DV IN/OUT jack The recorded picture becomes rough.
Page 104: Inserting A Scene From A Vcr - Insert Editing (Dcr-Trv330E Only)
Inserting a scene from a VCR – Insert Editing – DCR-TRV330E only You can insert a new scene from a VCR onto your originally recorded tape by specifying the insert start and end points. Use the Remote Commander for this operation. Connections are the same as in “Recording video or TV programmes”...
Page 105: Inserting A Scene From A Vcr – Insert Editing
Inserting a scene from a VCR – Insert Editing (1) Set the POWER switch to VCR. (2) On the VCR, locate just before the insert start point [a], then press X to set the VCR to the playback pause mode. (3) On your camcorder, locate the insert end point [c] by pressing m or M.
Page 106 Inserting a scene from a VCR – Insert Editing To change the insert end point Press ZERO SET MEMORY again after step 5 to erase the ZERO SET MEMORY indicator and begin from step 3. Notes •The zero set memory function works only for tapes recorded in the Digital8 •The picture and sound recorded on the section between the insert start and end points will be...
Page 107: Customizing Your Camcorder
— Customizing Your Camcorder — Changing the menu settings To change the mode settings in the menu settings, select the menu items with the SEL/ PUSH EXEC dial. The default settings can be partially changed. First, select the icon, then the menu item and then the mode.
Page 108: Selecting The Mode Setting Of Each Item
Changing the menu settings To make the menu display disappear Press MENU. Menu items are displayed as the following icons: MANUAL SET CAMERA SET PLAYER SET (DCR-TRV230E/ TRV235E/TRV325E/TRV430E/ TRV530E) VCR SET (DCR-TRV330E) LCD/VF SET MEMORY SET (DCR-TRV325E/ TRV330E/TRV430E/TRV530E only) PRINT SET (DCR-TRV325E/ TRV330E/TRV430E/TRV530E only) TAPE SET SETUP MENU...
Page 109 Changing the menu settings Icon/item Mode z OFF SELFTIMER D ZOOM z OFF z OFF 16:9WIDE STEADYSHOT z ON N.S. LIGHT z ON FLASH MODE z ON AUTO AUTO HIGH FLASH LVL z NORMAL DCR-TRV325E/TRV330E/TRV430E/TRV530E only 800 (DCR-TRV235E/TRV430E only) Notes on the SteadyShot function •The SteadyShot function will not correct excessive camera-shake.
Page 110 Changing the menu settings Icon/item Mode z STEREO HiFi SOUND z ON TBC* TBC stands for “Time Base Corrector”. z ON DNR* DNR stands for “Digital Noise Reduction”. AUDIO MIX z ON PAL TV NTSC PB z AUTO PB MODE z OFF A/VtDV OUT (DCR-...
Page 111 Changing the menu settings Icon/item Mode — LCD BRIGHT z BRT NORMAL LCD B. L. BRIGHT — LCD COLOUR VF B.L. z BRT NORMAL BRIGHT * STILL SET PIC MODE z SINGLE MULTI SCRN z FINE QUALITY STANDARD z FIELD FLD/FRAME FRAME PRINT MARK...
Page 112 Changing the menu settings Icon/item Mode *SLIDE SHOW DELETE ALL FORMAT z RETURN PHOTO SAVE * 9PIC PRINT z RETURN DATE/TIME z OFF Notes on formatting* •Supplied or optional “Memory Stick”s have been formatted at factory. Formatting with this camcorder is not required. •Do not turn the POWER switch or press any button while the display shows “FORMATTING”.
Page 113 Changing the menu settings Icon/item Mode z SP REC MODE z 12BIT AUDIO MODE 16BIT z AUTO q REMAIN DATA CODE z DATE/CAM DATE Note on REC MODE When you record on the standard 8 select the LP mode in the menu settings. In this case, the indicator “8mm TAPE t SP REC, Hi8 TAPE t LP/SP REC”...
Page 114 Changing the menu settings Icon/item Mode CLOCK SET LTR SIZE z NORMAL DEMO MODE z ON Notes on DEMO MODE •You cannot select DEMO MODE when a cassette is inserted in your camcorder. •DEMO MODE is set to STBY (Standby) at the factory and the demonstration starts about 10 minutes after you have set the POWER switch to CAMERA without a cassette inserted.
Page 115 Changing the menu settings Icon/item Mode — WORLD TIME z MELODY BEEP NORMAL COMMANDER z ON z LCD DISPLAY V-OUT/LCD REC LAMP z ON VIDEO EDIT — — EDIT SET INDICATOR z BL OFF BL ON Note If you press DISPLAY with DISPLAY set to V-OUT/LCD in the menu settings, the picture from a TV or VCR will not appear on the screen even when your camcorder is connected to outputs on the TV or VCR.
Page 116 Wijzigen van de oorspronkelijke menu-instellingen Nederlands Overzicht van de instellingen voor elk menu-onderdeel z geeft de fabrieksinstelling aan. Welke menu-onderdelen worden aangegeven, hangt af van de stand van de POWER schakelaar. Het scherm toont alleen de instellingen die u op dat moment kunt aanpassen. Pictogram/ onderdeel Instelling...
Page 117 Wijzigen van de oorspronkelijke menu-instellingen Pictogram/ onderdeel Instelling z OFF SELFTIMER z OFF D ZOOM z OFF 16:9WIDE z ON STEADYSHOT z ON N.S. LIGHT z ON FLASH MODE AUTO AUTO HIGH FLASH LVL z NORMAL alleen voor de DCR-TRV325E/TRV330E/TRV430E/TRV530E. 800 (alleen voor de DCR-TRV235E/TRV430E).
Page 118 Wijzigen van de oorspronkelijke menu-instellingen Pictogram/ onderdeel Instelling z STEREO HiFi SOUND TBC* z ON De afkorting TBC staat voor “Time Base Corrector”. z ON DNR* De afkorting DNR staat voor “Digital Noise Reduction”. AUDIO MIX z ON PAL TV NTSC PB z AUTO PB MODE...
Page 119 Wijzigen van de oorspronkelijke menu-instellingen Pictogram/ onderdeel Instelling — LCD BRIGHT z BRT NORMAL LCD B. L. BRIGHT — LCD COLOUR VF B.L. z BRT NORMAL BRIGHT * STILL SET PIC MODE z SINGLE MULTI SCRN QUALITY z FINE STANDARD z FIELD FLD/FRAME FRAME...
Page 120 Wijzigen van de oorspronkelijke menu-instellingen Pictogram/ onderdeel Instelling *SLIDE SHOW DELETE ALL FORMAT z RETURN PHOTO SAVE * 9PIC PRINT z RETURN DATE/TIME z OFF Opmerkingen over het formatteren* • Bijgeleverde en los verkrijgbare “Memory Stick”s zijn bij aflevering al geformatteerd. Als ze nieuw zijn, hoeft u ze voor het gebruik met deze camcorder niet te formatteren.
Page 121 Wijzigen van de oorspronkelijke menu-instellingen Pictogram/ onderdeel Instelling z SP REC MODE AUDIO MODE z 12BIT 16BIT q REMAIN z AUTO DATA CODE z DATE/CAM DATE Betreffende de REC MODE opnamesnelheid Bij opnemen op een standaard 8-mm aanhouden, ook al hebt u in het instelmenu gekozen voor de LP langspeelsnelheid. In dit geval verschijnt de aanduiding “8 mm TAPE t SP REC, Hi8 TAPE tLP/SP REC”...
Page 122 Wijzigen van de oorspronkelijke menu-instellingen Pictogram/ onderdeel Instelling CLOCK SET LTR SIZE z NORMAL z ON DEMO MODE Betreffende de demonstratiefunctie •De DEMO MODE demonstratie kan niet worden ingeschakeld wanneer er een cassette in de camcorder aanwezig is. •De DEMO MODE demonstratiefunctie is in de fabriek op de “STBY” paraatstand ingesteld. Dit houdt in dat de demonstratie automatisch begint, zo’n 10 minuten nadat u de POWER schakelaar op “CAMERA”...
Page 123 Wijzigen van de oorspronkelijke menu-instellingen Pictogram/ onderdeel Instelling — WORLD TIME z MELODY BEEP NORMAL COMMANDER z ON DISPLAY z LCD V-OUT/LCD REC LAMP z ON — VIDEO EDIT — EDIT SET z BL OFF INDICATOR BL ON Opmerking Als u op de DISPLAY toets drukt terwijl het menu-onderdeel DISPLAY op “V-OUT/LCD” is ingesteld, zullen op het scherm geen beelden van een aangesloten TV of videorecorder verschijnen (behalve wanneer de camcorder op het betreffende apparaat is aangesloten via de i.LINK kabel).
Page 124: Memory Stick" Operations
— “Memory Stick” operations — Using “Memory Stick”– introduction – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only You can record and play back still images on the “Memory Stick” supplied with your camcorder. You can easily play back, record or delete still images. You can exchange image data with other equipment such as your computer etc., using the USB cable for “Memory Stick”...
Page 125 120. Houd er wel rekening mee dat bij het formatteren alle beeldbestanden van de “Memory Stick” zullen verdwijnen. “Memory Stick” en het handelsmerken van Sony Corporation. •Microsoft gedeponeerde handelsmerken van Microsoft Corporation in de Verenigde Staten en/of andere landen.
Page 126 Using “Memory Stick” – introduction Inserting “Memory Stick” Insert a “Memory Stick” in the “Memory Stick” slot as far as it can go with the v mark facing toward the “Memory Stick” slot as illustrated below. To eject the “Memory Stick” Press the “Memory Stick”...
Page 127: Selecting Image Quality Mode
Using “Memory Stick” – introduction Selecting image quality mode You can select image quality mode in still image recording. The default setting is FINE. (1) Set the POWER switch to PLAYER, VCR (DCR-TRV330E only) or MEMORY. Make sure that the LOCK is set to the left (unlock) position.
Page 128 Using “Memory Stick” – introduction Note In some cases, changing the image quality mode may not affect the image quality, depending on the types of images you are shooting. Image quality settings Setting Meaning FINE (FINE) Use this mode when you want to record high quality images.
Page 129: Recording Still Images On "Memory Stick" - Memory Photo Recording
Recording still images on “Memory Stick” – Memory Photo recording – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only You can select the FIELD or FRAME mode in still image recording. Your camcorder compensates for camera-shake when recording moving subjects in the FIELD mode. Your camcorder records still images in high quality in the FRAME mode.
Page 130: Recording Images Continuously
Recording still images on “Memory Stick” – Memory Photo recording Notes •When recording fast-moving subjects in the FRAME mode, the recorded image blurry. •When recording in the FRAME mode, your camcorder may not correct camera-shake. We recommend that you shoot objects with a tripod.
Page 131: Memory Photo Recording
Recording still images on “Memory Stick” – Memory Photo recording (1) Set the POWER switch to MEMORY. Make sure that the LOCK is set to the left (unlock) position. (2) Press MENU to make the menu display appear. (3) Turn the SEL/PUSH EXEC dial to select then press the dial.
Page 132 Recording still images on “Memory Stick” – Memory Photo recording Continuous shooting settings Setting Meaning (indicator on the screen) SINGLE Your camcorder shoots one image at a time. (no indicator) MULTI SCRN Your camcorder shoots 9 still images at about 0.5 sec intervals and displays the images on a single page divided into 9 boxes.
Page 133 Recording still images on “Memory Stick” – Memory Photo recording Self-timer memory photo recording You can record still images on “Memory Stick”s with the self-timer. You can use the Remote Commander for this operation. (1) Set the POWER switch to MEMORY. Make sure that the LOCK is set to the left (unlock) position.
Page 134 Recording still images on “Memory Stick” – Memory Photo recording To cancel self-timer recording Set SELFTIMER to OFF in the menu settings while your camcorder is in the standby mode. You cannot cancel self-timer recording with Remote Commander. Note The self-timer recording mode is automatically cancelled when: –...
Page 135: Superimposing A Still Image In The "Memory Stick" On An Image - Memory Mix
Superimposing a still image in the “Memory Stick” on an image – MEMORY MIX – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only You can superimpose a still image you have recorded on the “Memory Stick” on top of the moving image you are recording. You can record the superimposed images on a tape or a “Memory Stick”.
Page 136: Memory Mix
Superimposing a still image in the “Memory Stick” on an image – MEMORY MIX M. CHROM M. LUMI C. CHROM M. OVERLAP* * The superimposed image using Memory overlap function can be recorded on tapes only. Recording superimposed images on a tape Before operation •Insert a Hi8 /Digital8...
Page 137 Superimposing a still image in the “Memory Stick” on an image – MEMORY MIX (5) Press the SEL/PUSH EXEC dial. The still image is superimposed on the moving image. (6) Turn the SEL/PUSH EXEC dial to adjust the effect. M. CHROM –...
Page 138: Bewegende Beelden
Superimposing a still image in the “Memory Stick” on an image – MEMORY MIX To change the still image to superimpose Do either of the following: – Press MEMORY+/– before step 7. – Press the SEL/PUSH EXEC dial before step 7, and repeat the procedure from step 4.
Page 139 Superimposing a still image in the “Memory Stick” on an image – MEMORY MIX (4) Turn the SEL/PUSH EXEC dial to select the desired mode. The mode changes as follows: M. CHROM y M. LUMI y C. CHROM (5) Press the SEL/PUSH EXEC dial. The still image is superimposed on the moving image.
Page 140 Superimposing a still image in the “Memory Stick” on an image – MEMORY MIX To change the still image to superimpose Do either of the following: – Press MEMORY+/– before step 7. – Press the SEL/PUSH EXEC dial before step 7, and repeat the procedure from step 4.
Page 141: Recording An Image From A Tape As A Still Image
Recording an image from a tape as a still image – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only Your camcorder can read moving image data recorded on a tape in the Digital8 record it as a still image on a “Memory Stick.” Your camcorder can also take in moving image data through the input connector and record it as a still image on a “Memory Stick.”...
Page 142: Recording An Image From A Tape As A Still Image
Recording an image from a tape as a still image Note You cannot record the image played back using NTSC PB function. When the acccess lamp is lit or flashing Do not shake or strike the unit. Also do not turn the power off , eject the “Memory Stick”...
Page 143 Recording an image from a tape as a still image Using the A/V connecting cable S VIDEO VIDEO : Signal flow/Signaalstroom Connect the yellow plug of the A/V connecting cable to the video jack on the VCR or the TV. If your TV or VCR has an S video jack Connect using an S video cable (optional) to obtain high-quality pictures.
Page 144: Copying Still Images From A Tape - Photo Save
Copying still images from a tape – Photo save – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only Using the search function, you can automatically take in only still images from tapes recorded in the Digital8 system and record them on a “Memory Stick” in sequence. Before operation •Insert a tape recorded in the Digital8 and rewind the tape.
Page 145 Copying still images from a tape – Photo save To stop copying Press MENU to stop copying. When the memory of the “Memory Stick” is full “MEMORY FULL” appears on the screen, and the copying stops. Insert another “Memory Stick” and repeat the procedure from step 2.
Page 146: Viewing A Still Image - Memory Photo Playback
Viewing a still image – Memory Photo playback – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only You can play back still images recorded on a “Memory Stick”. You can also play back 6 images at a time by selecting the index screen. Before operation Insert a “Memory Stick”...
Page 147 Viewing a still image – Memory Photo playback Notes on the file name •The directory is not displayed if the structure of the directory does not conform to the DCF98 standard. •“ DIRECTORY ERROR” may appear on the screen if the structure of the directory does not conform to the DCF98 standard.
Page 148 Viewing a still image – Memory Photo playback Playing back 6 recorded images at a time (index screen) You can play back 6 recorded images at a time. This function is especially useful when searching for a particular image. (1) Set the POWER switch to MEMORY, PLAYER or VCR (DCR-TRV330E only).
Page 149 Viewing a still image – Memory Photo playback To return to the normal playback screen (single screen) Press MEMORY +/– to move the B mark to the image you want to display on full screen, then press MEMORY PLAY. Note When displaying the index screen, the number appears above each image.
Page 150: Viewing Images Using Your Computer
Viewing images using your computer – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only You can view data recorded on the “Memory Stick” using your computer. On file format Data recorded on the “Memory Stick” is stored in the JPEG format. Make sure that an application that supports JPEG file format is installed on your computer.
Page 151: Installing The Usb Driver
Viewing images using your computer Installing the USB driver Before connecting your camcorder to your computer, install the USB driver to the computer. The USB driver is contained together with application software for viewing images on a CD-ROM which is supplied with your camcorder.
Page 152: Viewing Images
(5) Move the following 2 files from the window opened in step 3 to the System Folder icon in the window opened in step 4 (drag and drop). •Sony Camcorder USB Driver •Sony Camcorder USB Shim (6) When “Put these items into the Extensions folder?”...
Page 153 Viewing images using your computer Push in until the connector clicks into place/ Indrukken tot de stekker vastklikt. Unplug the USB cable/Eject the “Memory Stick” To unplug the USB cable or eject the “Memory Stick”, follow the procedure below. For Windows 2000 users (1) Move the cursor to the “Unplug or Eject Hardware”...
Page 154 Viewing images using your computer Software •Depending on your application software, the file size may increase when you open a still image file. •When you load an image modified using a retouch software from your computer to the camcorder or when you directly modify the image on the camcorder, the image format will differ so a file error indicator may appear and you may be unable to open the file.
Page 155: Copying The Image Recorded On "Memory Stick" To Tapes (Dcr-Trv330E Only)
Copying the image recorded on “Memory Stick” to tapes – DCR-TRV330E only You can copy still images or titles recorded on “Memory Stick”s and record them to /Digital8 tapes. Before operation Insert a Hi8 /Digital8 tape for recording and a “Memory Stick” into your camcorder. (1) Set the POWER switch to VCR.
Page 156 Copying the image recorded on “Memory Stick” to tapes During copying You cannot operate the following buttons: – MEMORY PLAY – MEMORY INDEX – MEMORY DELETE – MEMORY +/– – MEMORY MIX Note on the index screen You cannot record the index screen. If you press EDITSEARCH during pause mode Memory playback stops.
Page 157: Enlarging Still Images Recorded On "Memory Stick"S - Memory Pb Zoom
Enlarging still images recorded on “Memory Stick”s – Memory PB ZOOM – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only You can enlarge still images recorded on a “Memory Stick.” Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY, PLAYER or VCR (DCR-TRV330E only).
Page 158 Enlarging still images recorded on “Memory Stick”s – Memory PB ZOOM To cancel memory PB ZOOM function Press PB ZOOM. Note You cannot record the images enlarged by the PB ZOOM mode on “Memory Stick”s. In the PB ZOOM mode The digital effect function does not work.
Page 159: Playing Back Images In A Continuous Loop - Slide Show
Playing back images in a continuous loop – SLIDE SHOW – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only You can automatically play back images in sequence. This function is useful especially when checking recorded images or during a presentation. Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY.
Page 160 Playing back images in a continuous loop – SLIDE SHOW To stop the slide show Press MENU. To pause during a slide show Press MEMORY PLAY. To start the slide show from a particular image Select the desired image using MEMORY +/– buttons before step 2.
Page 161: Preventing Accidental Erasure - Image Protection
Preventing accidental erasure – Image protection – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only To prevent accidental erasure of important images, you can protect selected images. Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY, PLAYER or VCR (DCR-TRV330E only). Make sure that the LOCK is set to the left (unlock) position.
Page 162 Preventing accidental erasure – Image protection To cancel image protection Select OFF in step 6, then press the SEL/PUSH EXEC dial. Note Formatting erases all information on the “Memory Stick”, including the protected image data. Check the contents of the “Memory Stick” before formatting.
Page 163: Deleting Images
Deleting images – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only You can delete images stored in a “Memory Stick.” Before operation Insert a “Memory Stick” into your camcorder. Deleting selected images (1) Set the POWER switch to MEMORY, PLAYER or VCR (DCR-TRV330E only). Make sure that the LOCK is set to the left (unlock) position.
Page 164: Deleting All The Images
Deleting images Deleting all the images You can delete all the unprotected images in the “Memory Stick”. (1) Set the POWER switch to MEMORY. Make sure that the LOCK is set to the left (unlock) position. (2) Press MENU to make the menu display appear.
Page 165 Deleting images To cancel deleting all the images in the “Memory Stick” Select RETURN in step 5, then press the SEL/ PUSH EXEC. While DELETING appears Do not turn the POWER switch or press any buttons. If the write-protect tab on the “Memory Stick” is set to LOCK You cannot delete images.
Page 166: Writing A Print Mark - Print Mark
Writing a print mark – PRINT MARK – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only You can specify the recorded still image to print out. This function is useful for printing out still images later. Your camcorder conforms with the DPOF (Digital Print Order Format) standard for specifying the still images to print out.
Page 167: Writing A Print Mark
Writing a print mark – PRINT MARK To cancel writing print marks Select OFF in step 6, then press the SEL/PUSH EXEC dial. If the write-protect tab on the “Memory Stick” is set to LOCK You cannot write print marks on still images. Markeren van af te drukken beelden –...
Page 168: Using The Printer (Optional)
Using the printer (optional) – DCR-TRV325E/TRV330E/TRV430E/ TRV530E only You can use the printer (optional) on your camcorder to print images on the print paper. For details, refer to the operating instructions of the printer. There are various ways of printing still images. The folowing, however, describes how to print by selecting in the menu on your camcorder.
Page 169: Troubleshooting
If you run into any problem using your camcorder, use the following table to troubleshoot the problem. If the problem persists, disconnect the power source and contact your Sony dealer or local authorized Sony service facility. If “C:ss:ss” appears on the screen or the display window, the self-diagnosis display function has worked.
Page 170 • The tape has run out. c Rewind the tape. (p. 39) • The video head may be dirty. c Clean the heads using the Sony V8-25CLD cleaning cassette (optional). (p. 194) • The stereo tape is played back with HiFi SOUND set to 2 in the menu settings.
Page 171 Types of trouble and their solutions In the recording and playback modes Symptom The power does not turn on. The end search function does not work. The end search function does not work correctly. The battery pack is quickly discharged. The battery remaining indicator does not indicate the correct time.
Page 172 Types of trouble and their solutions When operating using the “Memory Stick” – DCR-TRV325E/TRV330E/TRV430E/TRV530E only Symptom The “Memory Stick” does not function. Recording does not function. The image cannot be deleted. You cannot format the “Memory Stick”. Deleting all the images cannot be carried out.
Page 173 • The battery pack is not properly installed. c Install it properly. • Something is wrong with the battery pack. c Contact your Sony dealer or local authorized Sony service facility. • Disconnect the power cord of the AC power adaptor or remove the battery, then reconnect it in about one minute.
Page 174: Self-Diagnosis Display
Remove the cassette and leave your camcorder for at least 1 hour to acclimatize. (p. 193) • The video heads are dirty. c Clean the heads using the Sony V8-25CLD cleaning cassette (optional). (p. 194) • A malfunction other than the above that you can service has occurred.
Page 175: Warning Indicators And Messages
English Warning indicators and messages If indicators and messages appear on the screen or in the display window, check the following. See the page in parentheses “( )” for more information. Warning indicators 100-0001 Warning indicator as to file Slow flashing: •The file is corrupted.
Page 176 Warning indicators and messages Warning messages •CLOCK SET •FOR “InfoLITHIUM” BATTERY ONLY •8mm TAPE t SP REC Hi8 TAPE t LP/SP REC •Q Z TAPE END •Q NO TAPE • CLEANING CASSETTE** •COPY INHIBIT • FULL • • NO FILE •...
Page 177: Verhelpen Van Storingen
Als het probleem aan de hand hiervan niet te verhelpen is, neemt u dan a.u.b. contact op met uw Sony handelaar of een plaatselijke erkende Sony onderhoudsdienst. Als er een code van vijf letters en cijfers zoals “C:ss:ss” op het scherm of in het uitleesvenster verschijnt, dan is de zelfdiagnosefunctie in werking getreden.
Page 178 Spoel de band terug of gebruik een nieuwe cassette. (zie blz. 39) • Wellicht zijn de videokoppen vuil. c Reinig de koppen met een Sony V8-25CLD videokoppen- reinigingscassette (niet bijgeleverd). (zie blz. 194) • Er wordt een stereo-cassette weergegeven, maar in het instelmenu is het onderdeel HiFi SOUND ingesteld op geluidsspoor 2.
Page 179 Problemen oplossen Probleem De datum-zoekfunctie werkt niet goed. De beelden die zijn opgenomen met het Digital8 systeem worden niet weergegeven. De beelden die zijn opgenomen met het Hi8/standaard 8-mm systeem worden niet weergegeven. Tijdens opnemen en afspelen Probleem De camcorder kan niet ingeschakeld worden.
Page 180 Problemen oplossen Bij gebruik van de “Memory Stick” - alleen voor de DCR-TRV325E/TRV330E/TRV430E/TRV530E Probleem De “Memory Stick” werkt niet. Het opnemen op de “Memory Stick” lukt niet. Het gekozen beeld kan niet gewist worden. Het formatteren van de “Memory Stick” lukt niet. Het wissen van alle beelden lukt niet.
Page 181 • Het batterijpak is niet goed aangesloten. c Sluit het batterijpak opnieuw aan. • Er is iets mis met het batterijpak. c Raadpleeg uw Sony handelaar of een plaatselijke erkende Sony onderhoudsdienst. • Maak het batterijpak of het snoer van de netspanningsadapter los en sluit het ongeveer een minuut later weer aan.
Page 182: Zelfdiagnose-Aanduidingen
C:21:ss C:22:ss C:31:ss C:32:ss E:61:ss E:62:ss Als het niet lukt een bepaald probleem te verhelpen, raadpleegt u dan uw Sony handelaar of een plaatselijke erkende Sony onderhoudsdienst. LCD scherm, beeldzoeker of uitleesvenster Zelfdiagnose-aanduiding •C:ss:ss Dit probleem kunt u eenvoudig zelf verhelpen.
Page 183: Waarschuwingsaanduidingen En Mededelingen
Nederlands Waarschuwingsaanduidingen en mededelingen Als de onderstaande waarschuwingsaanduidingen en indicators oplichten of gaan knipperen op het scherm of in het uitleesvenster, controleert u dan de onderstaande punten. Zie voor nadere bijzonderheden de bladzijden die tussen haakjes “( )” staan vermeld. Waarschuwingsindicators 100-0001 Waarschuwing betreffende een bestand...
Page 184 Waarschuwingsaanduidingen en mededelingen Waarschuwingsmededelingen •CLOCK SET •FOR “InfoLITHIUM” BATTERY ONLY •8mm TAPE t SP REC Hi8 TAPE t LP/SP REC •Q Z TAPE END •Q NO TAPE • CLEANING CASSETTE** •COPY INHIBIT • FULL • • NO FILE • NO MEMORY STICK •...
Page 185: Additional Information
— Additional Information — Digital8 system, recording and playback What is the “Digital8 This video system has been developed to enable digital recording to Hi8 /Digital8 cassette. Usable cassette tapes We recommend using Hi8 cassette. * The recording time when you use your Digital8 system camcorder on Hi8 tape is 2/3 the recording time when using the conventional Hi8...
Page 186 Digital8 system, recording and playback When you play back Playing back an NTSC-recorded tape You can play back tapes recorded in the NTSC video system on the LCD screen, if the tape is recorded in the SP mode. Copyright signal When you play back Using any other video camera recorder, you cannnot record on a tape that has recorded...
Page 187 Digital8 system, recording and playback When you use a tape recorded in the Hi8/standard 8 system When you play back a dual sound track tape recorded in an AFM HiFi stereo system, set HiFi SOUND to the desired mode in the menu settings (p.
Page 188: About The "Infolithium" Battery Pack
About the “InfoLITHIUM” battery pack What is the “InfoLITHIUM” battery pack? The “InfoLITHIUM” battery pack is a lithium-ion battery pack that has functions for communicating information related to operating conditions between your camcorder and an AC power adaptor. The “InfoLITHIUM” battery pack calculates the power consumption according to the operating conditions of your camcorder, and displays the remaining battery time in minutes.
Page 189 About the “InfoLITHIUM” battery pack Remaining battery time indicator •If the power may go off although the remaining battery time indicator indicates that the battery pack has enough power to operate, charge the battery pack fully again so that the indication on the remaining battery time indicator is correct.
Page 190: About I.link
About the Name “i.LINK” i.LINK is a more familiar term for IEEE 1394 data transport bus proposed by SONY, and is a trademark approved by many corporations. IEEE 1394 is an international standard standardized by the Institute of Electrical and Electronic Engineers.
Page 191 Zie voor nadere details en voorzorgsmaatregelen bij het aansluiten van dit apparaat tevens de gebruiksaanwijzing van de aan te sluiten apparatuur. Vereiste i.LINK aansluitkabel Gebruik de Sony i.LINK 4-pins naar 4-pins kabel (voor het DV kopiëren). i.LINK en het teken zijn handelsmerken.
Page 192: Using Your Camcorder Abroad
Using your camcorder abroad Using your camcorder abroad You can use your camcorder in any country or area with the AC power adaptor supplied with your camcorder within 100 V to 240 V AC, 50/60 Your camcorder is a PAL system based camcorder.
Page 193: Maintenance Information And Precautions
Maintenance information and precautions Moisture condensation If your camcorder is brought directly from a cold place to a warm place, moisture may condense inside your camcorder, on the surface of the tape, or on the lens. In this condition, the tape may stick to the head drum and be damaged or your camcorder may not operate correctly.
Page 194 – er helemaal geen beeld meer verschijnt. or/of Als de bovenstaande problemen zich voordoen, maakt u de videokoppen schoon met een Sony V8-25CLD videokoppen-reinigingscassette (los verkrijgbaar). Controleer de beelden en als er nog steeds storing is, reinig de koppen dan nogmaals.
Page 195 •If any solid object or liquid get inside the casing, unplug your camcorder and have it checked by a Sony dealer before operating it any further. •Avoid rough handling or mechanical shock. Be particularly careful of the lens.
Page 196 Digital8 first, and then input it into your computer. When inputting the image recorded by Hi8/ standard 8 system into Sony VAIO The Program Capture function of DVgate motion doesn’t work. To use this function, dub the image...
Page 197 Maintenance information and precautions AC power adaptor •Unplug the unit from a wall socket when you are not using the unit for a long time. To disconnect the mains lead, pull it out by the plug. Never pull the mains lead itself. •Do not operate the unit with a damaged cord or if the unit has been dropped or damaged.
Page 198: Battery Pack
•If you touch the liquid, wash it off with water. •If the liquid get into your eyes, wash your eyes with a lot of water and then consult a doctor. If any problem occurs, unplug your camcorder and contact your nearest Sony dealer. Onderhoud en voorzorgsmaatregelen Batterijpak •Gebruik uitsluitend het voorgeschreven...
Page 199: Specifications
English Specifications Video camera recorder System Video recording system 2 rotary heads Helical scaning system Audio recording system Rotary heads, PCM system Quantization: 12 bits (Fs 32 kHz, stereo 1, stereo 2), 16 bits (Fs 48 kHz, stereo) Video signal PAL colour, CCIR standards Recommended cassette Hi8/Digital8 video cassette...
Page 200 Specifications AC power adaptor Power requirements 100 - 240 V AC, 50/60 Hz Power consumption 23 W Output voltage DC OUT: 8.4 V, 1.5 A in the operating mode Operating temperature 0 °C to 40 °C (32 °F to 104 °F) Storage temperature –20 °C to +60 °C (–4 °F to +140 °F) Dimensions (approx.)
Page 201: Technische Gegevens
Nederlands Technische gegevens Videocamera/ recorder Systeem Video-opnamesysteem Twee roterende koppen Schuinspoorregistratie Audio-opnamesysteem Roterende koppen, pulscode- modulatie Quantisering: 12 bits (Fs 32 kHz, stereo 1, stereo 2), 16 bits (Fs 48 kHz, stereo) Videosignaal PAL kleursysteem, CCIR norm Aanbevolen cassettes Hi8/Digital8 videocassettes Opname/weergave-speelduur (met 90-minuten Hi8 videocassette)
Page 202 Technische gegevens Netspanningsadapter Spanningsvereiste 100 - 240 V wisselstroom, 50/60 Hz Stroomverbruik 23 watt Uitgangsspanning Gelijkstroomuitgang (DC OUT): 8,4 V, 1,5 A met camcorder in werking Bedrijfstemperatuur 0°C tot +40°C Opslagtemperatuur –20°C tot +60°C Afmetingen (ca.) 125 39 62 mm (b/h/d) exclusief uitstekende onderdelen Gewicht (ca.) 280 g (gram)
Page 203: Quick Reference
0 Gelijkstroomingang (DC IN) (blz. 16) Deze aanduiding kenmerkt dit product als een originele accessoire voor Sony video- apparatuur. Het is aanbevolen voor Sony video-apparatuur uitsluitend de originele accessoires aan te schaffen, die zijn voorzien van ditzelfde “GENUINE VIDEO ACCESSORIES” beeldmerk.
Page 204 Identifying the parts and controls qa Video control buttons (p. 39, 42) x STOP (stop) m REW (rewind) N PLAY (playback) M FF (fastforward) X PAUSE (pause) z REC (recording) (DCR-TRV330E only) qs SUPER LASER LINK button (p. 46) qd SUPER NIGHTSHOT button (p. 33) qf Focus ring (p.
Page 205 Identifying the parts and controls wg EDITSEARCH buttons (p. 37) wh MEMORY PLAY button* (p. 146) wj Speaker wk MEMORY – button* (p. 137, 146) wl RESET button (p. 173) e; MEMORY INDEX button* (p. 148) ea MEMORY DELETE button* (p. 163) es EXPOSURE button (p.
Page 206 Identifying the parts and controls eg Intelligent accessory shoe eh END SEARCH button (p. 37) ej DISPLAY button (p. 40) ek TITLE button (p. 67) el PB ZOOM button (p. 75, 157) r; Power zoom lever (p. 29) ra PHOTO button (p. 48, 129) rs “Memory Stick”...
Page 207 Identifying the parts and controls rj Viewfinder (p. 30) rk LOCK knob (p. 26) (DCR-TRV325E/TRV330E/TRV430E/ TRV530E only) rl Grip strap t; i (headphones) jack ta MIC (PLUG IN POWER) jack Connect an external microphone (optional). This jack also accepts a “plug-in-power” microphone. Fastening the grip strap Fasten the grip strap firmly.
Page 208 Identifying the parts and controls ts Eyecup td Viewfinder lens adjustment lever (p. 30) tf OPEN/EJECT switch (p. 24) tg Tripod receptacle (base) Make sure that the length of the tripod screw is less than 6.5 mm (9/32 inch). Otherwise, you cannot attach the tripod securely and the screw may damage your camcorder.
Page 209 Identifying the parts and controls tj A/V OUT jack (p. 44, 82) (DCR-TRV230E/TRV235E/TRV325E/ TRV430E/TRV530E) AUDIO/VIDEO jack (p. 44, 82, 143) (DCR-TRV330E) tk S VIDEO OUT jack (p. 44) (DCR-TRV230E/TRV235E/TRV325E/ TRV430E/TRV530E) S VIDEO jack (p. 44) (DCR-TRV330E) tl DV OUT jack (p. 84) (DCR-TRV230E/TRV235E/TRV325E/ TRV430E/TRV530E) DV IN/OUT jack (p.
Page 210: Remote Commander
Identifying the parts and controls Remote Commander The buttons that have the same name on the Remote Commander as on your camcorder function identically to the buttons on your camcorder. 1 PHOTO button (p. 48, 129) 2 DISPLAY button (p. 40) 3 SEARCH MODE button (p.
Page 211 1, 2 and 3 are used to distinguish your camcorder from other Sony VCRs to avoid remote control misoperation. If you use another Sony VCR in the Commander mode VTR 2, we recommend changing the Commander mode or covering the sensor of the VCR with black paper.
Page 212: Operation Indicators
Identifying the parts and controls Operation indicators LCD screen and Viewfinder/ LCD scherm en beeldzoeker M.FADER 16:9WIDE SEPIA 1 Recording mode indicator (p. 26) /Mirror mode indicator (p. 28) 2 Format indicator (p. 185) indicator appears. 3 Remaining battery time indicator (p.
Page 213 Identifying the parts and controls qf STBY/REC indicator (p. 26)/Video control mode (p. 42) qg Tape counter indicator (p. 31)/Time code indicator (p. 31)/Self-diagnosis display indicator (p. 174)/Tape photo recording indicator (p. 48) qh Remaining tape indicator (p. 31) qj ZERO SET MEMORY indicator (p.
Page 214: Index
English Index A, B AC power adaptor ... 16 Adjusting viewfinder ... 30 AFM HiFi Sound ... 186 AUDIO MIX ... 110 AUDIO MODE ... 113 A/V connecting cable ... 44, 82, 143 BACK LIGHT ... 32 Battery pack ... 15 BEEP ...
Page 215: Index
Nederlands Index A, B Aanduidingen op het TV-scherm (DISPLAY toets) ... 40 Afdrukmarkering ... 166 AFM HiFi SOUND ... 186 Afstandsbediening ... 210 Afstandsbedieningaansluiting (LANC ) ... 209 Afstandsbedieningssensor ... 204 AUDIO MIX balansregeling ... 118 AUDIO MODE ... 121 Audio/video-aansluitsnoer ...
