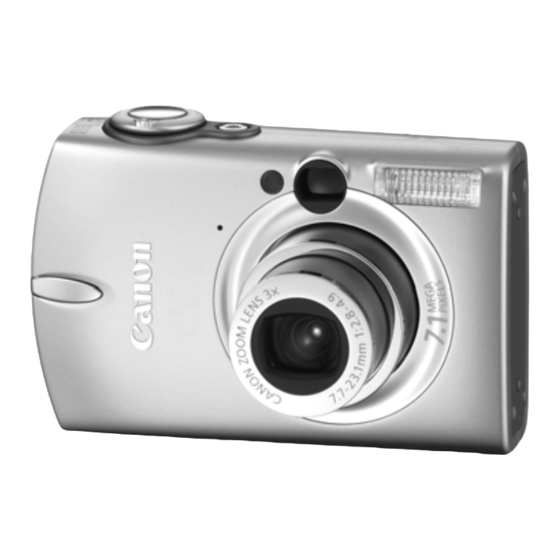

Canon PowerShot SD500 Digital ELPH User Manual

CDI-E173-010 XXXXXXX
The following manuals are supplied with your
camera. Please refer to them as need be.
Contents
Reference Guides
of This Guide
Included accessories and
separately sold
equipment information.
System Map
1. Install the battery This Guide
pack and the SD
card.
Quick Start Guide
2. Shoot images
with the camera.
3. Play back the
Camera User Guide
images.
4. Erase any
unwanted
Direct Print
images.
User Guide
Learn the names
Supplied with a
of camera
printer
components.
5. Print the images.
Printer User Guide
6. Install the
software.
• Camera User
Connect the
Guide
camera to a
• Software
computer.
Starter Guide
• ZoomBrowser
7. Download the
EX Software
images to a
User Guide
computer.
• ImageBrowser
Software User
Guide
These PDF format
manuals are
available on the
What you can do
Canon website.
with the software
Please download
them from the
The various ways
following URL:
of using the
http://web.canon.jp/
software
Imaging/
information-e.html
Quick Reference ➜
Camera User Guide
Shooting/Playback Modes
Shooting Modes
Auto
Shoots with settings selected by the
camera.
The shooting modes available to each mode dial
position, can be set using the FUNC. menu.
Manual
You select the exposure compensation,
white balance or photo effect settings.
You can also access My Colors modes
and Digital Macro mode.
Special Scene
Select from 9 scene modes to shoot with
the most appropriate settings for the
scene.
Movie
For shooting movies.
Playback Mode
Playback
View images you have taken.
Macro/Infinity Mode
Press the / button to display the or on the LCD
monitor.
Displayed
Use this mode to shoot close-ups of flowers or small objects.
Recordable Area at Minimum Shooting Range
<Shooting Distance>
Max. wide angle setting: approx. 56 x 42 mm (2.2 x 1.7 in.)
<From the front of lens: 5 cm (2.0 in.)>
Max. telephoto setting: approx. 105 x 79 mm (4.1 x 3.1 in.)
<From the front of lens: 30 cm (1.0 ft.)>
Displayed
Use this mode to shoot scenery or distant subjects.
5

Printing with a Direct Print Compatible Printer

A.
Connect the camera to the printer and turn on the printer's power.
Set the camera to Playback mode and turn the power on.
Camera
Interface Cable
© 2005 CANON INC.
1

Preparing the Camera

➜
Camera User Guide
A.
Charge the battery pack.
Place the battery pack in the battery charger and plug the
charger into a power outlet or attach the power cord to the
battery charger and plug the other end into a power outlet.
The charge indicator lights red while charging and changes to
green when the battery pack is charged.
Charging the battery pack takes approximately 95 minutes.
Charge
Indicator
• Battery charger model names and types
vary by region.
B.
Install the battery pack.
Slide the SD card slot/battery cover open. Push the battery
lock in the direction of the arrow and hold it while aligning
the on the battery pack and battery chamber to insert the
battery pack.
Symbol Battery Lock
C.
Install the SD card.
Insert the SD card all the way until it clicks.
Slide the SD card slot/battery cover closed.
Back
To remove the SD card
Push the SD card until the card clicks and then release it.
Changing the Displayed Information
Press the DISP. button to switch the displayed
information as follows.
Shooting Mode:
LCD monitor - On (No Information)
LCD monitor - On (Information View)
LCD monitor - Off
Playback Mode:
Standard Information View
Detailed Information View
No Information
➜
B.
,
monitor, indicating that the printer is ready to print.
* The displayed icon may vary depending on the printer model.
Printers
2
Shooting
A.
Turn the mode dial to
B.
Press the ON/OFF button to turn the camera on.
Set the date and time (first time the camera is
powered on).
PRINTED IN JAPAN
Use the or
to set, and the
Check that the date and time shown are correct,
then press the FUNC./SET button.
C.
Aim the camera at the subject and adjust the zoom to achieve the desired composition (see
"Zoom" in the "Quick Reference" section).
D.
Focus and shoot.
Press the shutter button
halfway to focus.
• The camera focuses and
beeps twice.
3
Playback
A.
Turn the mode dial to
4

Erasing an Image

A.
In Playback mode, use the
button to select an image to erase
( ) and press the
Quick-bright LCD
Pressing the DISP. button for at least
1 second switches the brightness to
the highest setting.*
* If the monitor is already set to its
maximum brightness in the Set up
menu, this function is not available.
Continuous Shooting, Self-timer
Press the button to cycle through the
drive modes as shown below.
Single Shot
Continuous
Shooting
Self-timer
In addition, there are functions that can be set in each shooting mode. For details, see "Functions Available in Each
Shooting Mode" at the end of the Camera User Guide.
Direct Print User Guide
, appears* in the upper left corner of the camera's LCD
➜
Camera User Guide
(Auto).
Power Lamp
button to select the items you wish
or button to change the value.
Press the shutter button
all the way to shoot.
➜
Camera User Guide
B.
(Playback). Play back the images.
Use the or
see.
➜
Camera User Guide
B.
or When the confirmation screen appears, check that
[Erase] is selected and press the FUNC./SET button.
button ( ).
Select [Cancel] using the
erasing.
Zoom
The zoom can be adjusted from 37 to 111 mm (35mm film equivalent)
Flash
The flash setting changes with each push of the
*The flash cannot be set in some shooting modes.
Auto
Auto with red-eye reduction
Flash on with red-eye reduction
Flash on
Flash off
Slow Synchro
Flash range: 50 cm – 5.0 m (1.6 – 16.4 ft.) (wide-angle)
50 cm – 3.0 m (1.6 – 9.8 ft.) (telephoto)
Red-eye reduction: This feature reduces the effect of light reflecting
back from the eyes and making them appear red.
Slow Synchro: The flash timing is adjusted to a slow shutter speed,
allowing you to shoot night scenes.
C.
Display an image for printing and press the
The button will flash blue and the printing will start.
button to display the image you wish to
or button to cancel without
Wide Angle:
Zoom out from the subject.
Telephoto:
Zoom in on the subject.
button.
button.
Please turn over
