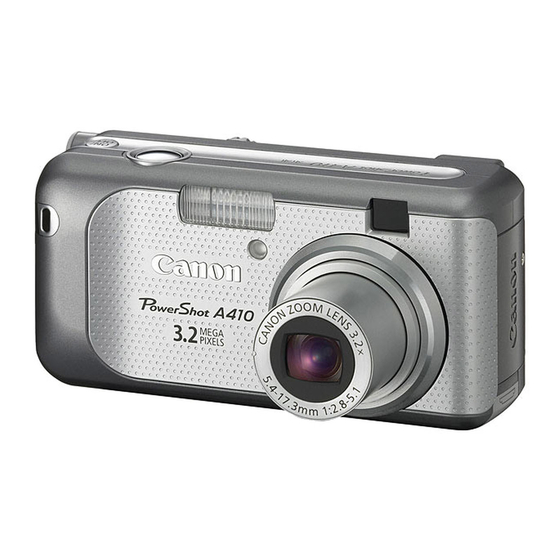

Canon PowerShot A410 User Manual
Direct print user guide
Hide thumbs
Also See for PowerShot A410:
- Advanced user's manual (115 pages) ,
- Software starter manual (106 pages) ,
- User manual (24 pages)
Related Manuals for Canon PowerShot A410
Summary of Contents for Canon PowerShot A410
- Page 1 ダイレクトプリントユーザーガイド Direct Print User Guide パソコンがなくても大丈夫！ カメラとプリンターを接続してかんたんに印刷 You don’t even need a computer ! Just connect your camera to your printer and print CDI-M206-010 © 2005 CANON INC. PRINTED IN CHINA DPUG9...
- Page 2 ENGLISH Introduction —Confirm Your Printer Model and the Section that Applies to You Operations differ according to your printer model. According to the procedure below, confirm the section and page you should read in this user guide. Connect the camera to the printer with an appropriate cable and confirm the icon displayed in the camera's LCD monitor.
- Page 3 " Printing with Non-Canon, printers* PictBridge Compliant Printers" Page 51 SELPHY CP " Printing with SELPHY CP series Series Printers using Canon Direct Print" Page 68 Bubble Jet " Printing with Bubble Jet printers Printers using Bubble Jet Direct" * Please also refer to the user guide that came with your printer.
-
Page 4: Trademark Acknowledgements
Canon. • Canon reserves the right to change the specifications of the hardware described herein at any time without prior notice. -
Page 5: Table Of Contents
Table of Contents Direct Print ........6 Allows for Printing without the Use of a Computer . - Page 6 Printing with SELPHY CP Series Printers using Canon Direct Print....... . . 51 Printing .
- Page 7 PictBridge....... 72 SELPHY CP Series Printers using Canon Direct Print...
-
Page 8: Direct Print
Or, prints with a border. Adds the date. 08/08/2005 Specifies which portion of the image to print. (Trimming) Multiple pictures can be printed at once. (DPOF print setting) * Some settings may not be selectable for Non-Canon printers. -
Page 9: You Can Also Perform The Following Printing Operations
• Capable printers: Printers using PictBridge (Including non-Canon Printers) (This function is not available on some printers.) ID Photo Print An image can be trimmed, laid out and printed as ID photos (p. -
Page 10: Connecting The Camera To The Printer
Connecting the Camera to the Printer Connect the camera to the printer. For instructions on printer and camera operation methods, refer to their respective user guides. Set one of the following into the camera. • Compact power adapter (sold separately or supplied with the camera) •... -
Page 11: Disconnecting The Camera And The Printer
Disconnecting the Camera and the Printer Detach the cable from the printer. Pull out the cable while holding the connector plug. Do not pull out by the cable. Turn the camera’s power off. Detach the cable from the camera. Pull out the cable while holding the connector plug. Do not pull out by the cable. -
Page 12: Printing With Selphy Cp Series Printers Using Pictbridge
Printing with SELPHY CP Series Printers using PictBridge Printing Easy Print You can print images by pressing only one button after connecting the camera to the printer. Make sure that displays in the upper left corner of the LCD monitor. Display the images you wish to print and press the button. -
Page 13: Print After Changing The Print Settings
LCD monitor. displays on the LCD monitor, please refer to Printing with SELPHY CP Series Printers using Canon Direct Print (p. 51). Display the images you wish to print and press the SET Sets the print button. effect (p. 14) The print order screen appears. -
Page 14: Printing Errors
• You cannot print the RAW images. • It may not be possible to play back or print images shot with a different camera. • You may not be able to print if the memory card holds a large number of images (about 1000). Cancel Printing •... -
Page 15: Selecting Print Settings
Selecting Print Settings Depending on the camera model, the screens that will be displayed will vary. Please also refer to the user guide that came with your printer. Default Setting • The Default option is a fixed setting of the printer. •... -
Page 16: Setting The Print Effect
Setting the Print Effect This function uses the camera’s shooting information to optimize the image data, yielding high quality prints. You can select the following print effects. Uses the camera’s shooting information to deliver optimum prints. Prints without any effects. Default Print settings differ according to your printer model. -
Page 17: Setting The Printing Area (Trimming)
Setting the Printing Area (Trimming) You can specify a portion of the image for printing. Please set [Paper Settings] (p. 19) before setting the trimming settings. If [Paper Settings] is changed after having made the trimming settings, you must select the settings again. Select [Trimming] and press the SET button. - Page 18 In the case of display screen Trim the image. Changing the Size of the Trimming Frame • Press the zoom lever or the zoom button to adjust the size of the trimming frame. • The trimming frame can be changed to a minimum selection of approximately half the displayed image (in width and height) or a maximum selection that is virtually the same size as the image.
-
Page 19: Set Button
In the case of display screen Trim the image. Changing the Size of the Trimming Frame • Press the up and down buttons to adjust the size of the trimming frame. • The trimming frame can be changed to a minimum selection of approximately half the displayed image (in width and height) or a maximum selection that is virtually the same size as the image. - Page 20 • The trimming setting only applies to one image. • The trimming setting is canceled with the following operations. • When you set the trimming settings for another image. • When you close the Print mode (when you turn the camera power off, change the camera mode, or detach the connection cable).
-
Page 21: Selecting The Paper Settings
Selecting the Paper Settings Select [Paper Settings] and press the SET button. The paper size setting screen appears. Select a paper size and press the SET button. The default settings and specified paper cassette size are displayed. The paper type setting screen appears. - Page 22 Select a layout. The following layout can be selected. Default Print settings differ according to your printer model. Bordered Prints with a border. Borderless Prints right to the edges of the paper. N-up Prints 2, 4 or (8*) images on a single sheet of paper (p.
-
Page 23: Printing Multiple Images On A Sheet Of Paper
Printing Multiple Images on a Sheet of Paper Selecting [N-up] in the layout setting (p. 20) will allow you to specify the following layout settings. 2 images (height 2 x width 1) of the same dimensions are arranged on a single sheet of paper. 4 images (height 2 x width 2) of the same dimensions are arranged on a single sheet of paper. -
Page 24: Printing By Specifying The Print Size (Id Photo Print)
Printing by Specifying the Print Size (ID Photo Print) Selecting [ID Photo] in the layout setting (p. 20) will allow you to specify the print size and print portion of an image or a whole image as an ID photo*. * Images printed with the ID Photo Print function may not be allowed as a formal certificate photo. -
Page 25: Print Area
Selectable combination : Available print size Short Side 20 mm 25 mm 30 mm 35 mm 40 mm 45 mm 50 mm 25 mm 30 mm 35 mm 40 mm 45 mm 50 mm 55 mm 60 mm 70 mm 1.4 inch 1.5 inch 1.8 inch... -
Page 26: Printing Images In The Fixed Size
Printing Images in the Fixed Size Selecting [Fixed Size] in the layout setting (p. 20) will allow you to print by specifying the print size of the image on a sheet of paper. Select the fixed print size required. Depending on the paper size, you can select print sizes as follows: Paper size Print size... -
Page 27: Printing Movies (Movie Print)
Printing Movies (Movie Print) You can print movie frames selected automatically at fairly regular intervals laid out in index style on a single sheet of paper. Select the movie you want to print, then press the SET button. The movie control panel appears. Select (Print) and press the SET button. - Page 28 • If you press the button instead of the SET button in Step 1, movie print begins. • The number of printed movie frames per sheet of paper is determined by the paper size shown as follows: (Depending on the number of seconds in the movie, there are cases when the number of frames indicated below will not be printed.) •...
-
Page 29: Printing With Dpof Print Settings
Printing with DPOF Print Settings For instructions on how to set DPOF print settings, please refer to the DPOF print settings section of the Camera User Guide. In this section, we will explain how to print several images already specified with DPOF print settings. In the [ (Play)] menu, select [Print Order] and... - Page 30 Select [Print] and press the SET button. • The image will start to print and, when it is completely finished, the display will revert to the standard playback mode. • If the MENU button is pressed, the display will revert to the print order screen in Step 2 and printing will not take place.
- Page 31 Cancel Printing • To cancel printing between images printed, press the SET button. A confirmation dialog appears. Select [OK] and press the SET button. The printer will stop printing the current image and eject the paper. Restarting Printing • Select [Resume] and press the SET button. The remaining images can be printed.
-
Page 32: List Of Messages
List of Messages The following messages may appear on the camera’s LCD monitor when an error occurs during a camera and printer connection. (Depending on the printer model, some messages may not display.) Please refer to the printer’s user guide for solutions. Paper cassette is incorrectly inserted or out of No Paper paper. -
Page 33: Printing With Bubble Jet Printers (Pixma Series/Selphy Ds Series) Using Pictbridge
Printing with Bubble Jet Printers (PIXMA series/ SELPHY DS series) using PictBridge Printing Easy Print You can print images by pressing only one button after connecting the camera to the printer. Make sure that displays in the upper left corner of the LCD monitor. -
Page 34: Print After Changing The Print Settings
Print after Changing the Print Settings You can change the print settings before printing. Make sure that displays in the upper left corner of the LCD monitor. displays on the LCD monitor, please refer to Printing with Bubble Jet Printers using Bubble Jet Direct (p. - Page 35 • You cannot print RAW images and movies. • It may not be possible to play back or print images shot with a different camera. • You may not be able to print if the memory card holds a large number of images (about 1000).
-
Page 36: Selecting Print Settings
Selecting Print Settings Depending on the camera model, the screens that will be displayed will vary. Moreover, available settings differ depending on the printer model (unavailable settings will not appear in the menu). For details, refer to the user guide that came with your printer. -
Page 37: Setting The Print Effect
If you select an image which has had the shooting date embedded in it using a camera with the Postcard Date Imprint mode, [ ] will be set to [Off]. If you select [Date], dates will appear twice on the printed image. Setting the Print Effect This function uses the camera’s shooting information to optimize the image data, yielding high quality prints. -
Page 38: Setting The Number Of Copies
Setting the Number of Copies Select [ ] and set the number of prints. 1 to 99 copies can be set. -
Page 39: Setting The Printing Area (Trimming)
Setting the Printing Area (Trimming) You can specify a portion of the image for printing. Please set [Paper Settings] (p. 41) before setting the trimming settings. If [Paper Settings] is changed after having made the trimming settings, you must select the settings again. Select [Trimming] and press the SET button. - Page 40 In the case of display screen Trim the image. Changing the Size of the Trimming Frame • Press the zoom lever or the zoom button to adjust the size of the trimming frame. • The trimming frame can be changed to a minimum selection of approximately half the displayed image (in width and height) or a maximum selection that is virtually the same size as the image.
- Page 41 In the case of display screen Trim the image. Changing the Size of the Trimming Frame • Press the up and down buttons to adjust the size of the trimming frame. • The trimming frame can be changed to a minimum selection of approximately half the displayed image (in width and height) or a maximum selection that is virtually the same size as the image.
- Page 42 • The trimming setting only applies to one image. • The trimming setting is canceled with the following operations. • When you set the trimming settings for another image. • When you close the Print mode (when you turn the camera power off, change the camera mode, or detach the connection cable).
-
Page 43: Selecting The Paper Settings
Selecting the Paper Settings Select [Paper Settings] and press the SET button. The paper size setting screen appears. Select a paper size and press the SET button. The following paper sizes* are available: 4" × 6", 5" × 7" or 13 ×... - Page 44 Default Print settings differ according to your printer model. * Canon brand paper • Other kind of paper may be used. For the usable paper, please also refer to the printer user guide. • The option you can select will depend on the printer model and paper size.
-
Page 45: Printing Multiple Images On A Sheet Of Paper
Printing Multiple Images on a Sheet of Paper • Selecting [4" x 6"] in the paper size setting (p. 41) will allow you to specify the following layout settings. 2 images (height 2 x width 1) of the same dimensions are arranged on a single sheet of paper. 4 images (height 2 x width 2) of the same dimensions are arranged on a single sheet of paper. - Page 46 Select a layout and press the SET button. This ends the paper settings operations. The display returns to the print order screen. • Images will print with borders, even if [Borderless] was selected with the camera in the following cases: •When [Plain] is selected in the camera's [Paper Type] (cannot be selected depending on the connected printer model) •With printers equipped with an operation panel, when [Plain] is selected...
-
Page 47: Printing With Dpof Print Settings
Printing with DPOF Print Settings For instructions on how to set DPOF print settings, please refer to the DPOF print settings section of the Camera User Guide. In this section, we will explain how to print several images already specified with DPOF print settings. In the [ (Play)] menu, select [Print Order] and... - Page 48 Select [Print] and press the SET button. • The image will start to print and, when it is completely finished, the display will revert to the standard playback mode. • If the MENU button is pressed, the display will revert to the print order screen in Step 2 and printing will not take place.
- Page 49 Cancel Printing • To cancel printing between images printed, press the SET button. A confirmation dialog appears. Select [OK] and press the SET button. The printer will stop printing the current image and eject the paper. Restarting Printing • Select [Resume] and press the SET button. The remaining images can be printed.
-
Page 50: List Of Messages
(waste ink absorber) from the shop Waste tank full where you purchased the printer or your nearest Canon Customer Support center listed in the Contact List provided with the printer or in the user guide. Check the level of the printer’s ink and the condition Ink Error of the waste tank (waste ink absorber). - Page 51 If the error persists, please Printer error consult the dealer where you purchased your printer or your nearest Canon Customer Support center (listed in the Contact List provided with the printer). The printer is in use now. The printer automatically...
-
Page 52: Printing With Non-Canon, Pictbridge Compliant Printers
Printing with Non-Canon, PictBridge Compliant Printers Printing Make sure that displays in the upper left corner of the LCD monitor. After this step, follow the procedures in the section Printing with Bubble Jet Printers (PIXMA series/SELPHY DS series) using PictBridge (p. 31) to print your images. -
Page 53: Printing With Selphy Cp Series Printers Using
Printing with SELPHY CP Series Printers using Canon Direct Print Printing Easy Print You can print images by pressing only one button after connecting the camera to the printer. Make sure that displays in the upper left corner of the LCD monitor. - Page 54 Display the images you wish Sets the Number of to print and press the SET Copies (p. 53) button. The print order screen appears. Sets the Print Style (p. 53) Sets the Printing Area (Trimming) (p. 55) Print Order Screen Select print settings as required.
-
Page 55: Selecting Print Settings
Selecting Print Settings Setting the Number of Copies In the print order screen, select [ ] and set the number of prints. 1 to 99 copies can be set. Setting the Print Style (Image, Borders and Date) You can select from among the following print styles. Standard Prints one image per page. - Page 56 Select settings as needed. Press the MENU button to end the setting selection process. With borderless or multiple prints, the top, bottom and sides of the image may be cropped slightly. If you have not specified a trimming setting, a frame will appear around Print Area Frame the area of the image that will be printed, allowing you to check the...
-
Page 57: Setting The Printing Area (Trimming)
Setting the Printing Area (Trimming) You can specify which portion of an image gets printed. Please set the Print Style (Image, Borders and Date) before setting the trimming settings. If the print style is changed after having made the trimming settings, you must select the settings again. Select [Trimming] and press the SET button. - Page 58 In the case of display screen Trim the image. Changing the Size of the Trimming Frame • Press the zoom lever or the zoom button to adjust the size of the trimming frame. • The trimming frame can be changed to a minimum selection of approximately half the displayed image (in width and height) or a maximum selection that is virtually the same size as the image.
- Page 59 In the case of display screen Trim the image. Changing the Size of the Trimming Frame • Press the up and down buttons to adjust the size of the trimming frame. • The trimming frame can be changed to a minimum selection of approximately half the displayed image (in width and height) or a maximum selection that is virtually the same size as the image.
- Page 60 • The trimming setting only applies to one image. • The trimming setting is canceled with the following operations. • When you set the trimming settings for another image. • When you close the Print mode (when you turn the camera power off, change the camera mode, or detach the connection cable).
-
Page 61: Printing By Specifying The Print Size (Id Photo Print)
Printing by Specifying the Print Size (ID Photo Print) You can specify the print size and print portion of an image or a whole image as an ID photo*. * Images printed with the ID Photo Print function may not be allowed as a formal certificate photo. - Page 62 Selectable combination : Available print size Short Side 20 mm 25 mm 30 mm 35 mm 40 mm 45 mm 50 mm 25 mm 30 mm 35 mm 40 mm 45 mm 50 mm 55 mm 60 mm 70 mm 1.4 inch 1.5 inch 1.8 inch...
- Page 63 • The print size setting only applies to one image. • The print size setting is canceled with the following operations: • When you set the print size settings for another image. • When you close the Print mode (when you turn the camera power off, change the camera mode, or detach the connection cable).
-
Page 64: Printing Movies (Movie Print)
Printing Movies (Movie Print) You can print movie frames selected automatically at fairly regular intervals laid out in index style on a single sheet of paper. Select the movie you want to print, then press the SET button. The movie control panel appears. Select (Print) and press the SET button. - Page 65 • If you press the button instead of the SET button in Step 1, movie print begins. • The number of printed movie frames per sheet of paper is determined by the paper size shown as follows: (Depending on the number of seconds in the movie, there are cases when the number of frames indicated below will not be printed.) •...
-
Page 66: Printing With Dpof Print Settings
Printing with DPOF Print Settings For instructions on how to set DPOF print settings, please refer to the DPOF print settings section of the Camera User Guide. In this section, we will explain how to print several images already specified with DPOF print settings. In the [ (Play)] menu, select [Print Order] and... - Page 67 Select [Print] and press the SET button. • The image will start to print and, when it is completely finished, the display will revert to the standard playback mode. • If the MENU button is pressed, the display will revert to the print order screen in Step 2 and printing will not take place.
- Page 68 Restarting Printing • Select [Resume] and press the SET button. The remaining images can be printed. • Printing cannot be restarted under the following circumstances. • If the print settings have been changed before restarting. • If the image for which the print settings were set has been deleted before restarting.
-
Page 69: List Of Messages
List of Messages The following messages may appear on the camera’s LCD monitor when an error occurs during a camera and printer connection. (Depending on the printer model, some messages may not display.) • Please refer to the printer’s user guide for solutions. Paper cassette is incorrectly inserted or out of No Paper paper. -
Page 70: Printing
PictBridge (p. 31). After this step, follow the procedures in the section Printing with SELPHY CP Series Printers using Canon Direct Print (p. 51) to print your images. However, please note that some menus and precautions differ, as listed below. -
Page 71: Setting The Print Style
Cancel Printing • To cancel printing between images printed, press the SET button. A confirmation dialog appears. Select [OK] and press the SET button. The printer will stop printing the current image and eject the paper. Printing Errors • An error message appears if an error occurs for some reason during the printing process. -
Page 72: See Page
• The ID photo print function cannot be used. • If you select an image which has had the shooting date embedded in it using a camera with the Postcard Date Imprint mode, [Date] in the [Style] menu will be set to [Off]. If you set [Date] to [On], dates will appear twice on the printed image. -
Page 73: Settings That Can Be Set With The Camera
Settings that Can Be Set with the Camera SELPHY CP Series Printers using PictBridge (When appears on the camera’s LCD monitor during a connection ) Print Options Selectable with the Camera Date File No. Date/File No. Both Default Print Effect Default Number of Prints 1 to 99... -
Page 74: Bubble Jet Printers (Pixma Series/Selphy Ds Series) Using Pictbridge
Bubble Jet Printers (PIXMA series/ SELPHY DS series) using PictBridge (When appears on the camera’s LCD monitor during a connection) Some settings are not available with certain cameras and printers. Print Options Selectable with the Camera Date Date Default Vivid Print Effect Vivid+NR Default... - Page 75 4" × 6" 5" × 7" or 13 × 18 cm 8.5" × 11" or A4 Paper Size* CreditCard 13" × 19" or A3+ Default Paper Settings Photo Fast Photo Paper Type Plain Default Bordered Borderless Page Layout N-up* 2/4/9/16 Default Paper sizes vary according to region.
-
Page 76: Selphy Cp Series Printers Using Canon Direct Print Bubble Jet Printers Using Bubble Jet Direct
SELPHY CP Series Printers using Canon Direct Print Bubble Jet Printers using Bubble Jet Direct (When appears on the camera’s LCD monitor during a connection) SELPHY Bubble Jet CP series Printers Printers Print Options Selectable with the Camera using using... - Page 77 MEMO...
- Page 78 MEMO...
