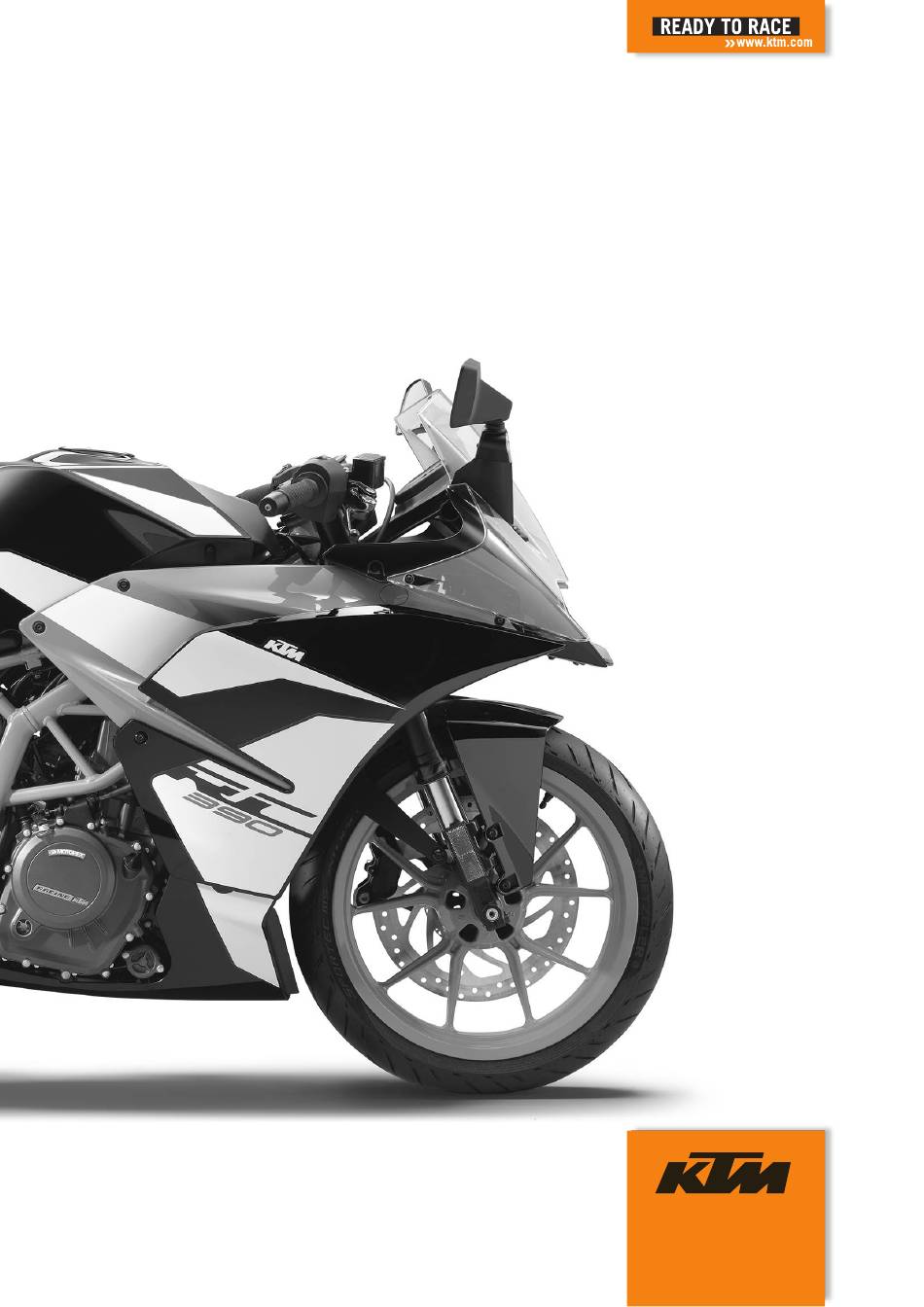

- Page 1 SETUP INSTRUCTIONS 2018 RC 390 Art. no. 3213887en...
- Page 3 KTM accepts no liability for delivery options, deviations from figures and descriptions, misprints, and other errors. The models portrayed partly contain special equipment that does not belong to the regular scope of supply.
-
Page 4: Means Of Representation
1 MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips. -
Page 5: Mount And Tighten Screws
SETUP 2 Unpacking and setting up the vehicle – Remove the straps and box. A00034-10 – Remove the adhesive tape in the upper area of the motorcycle. S01886-01 – Roll down the film at the sides. Info To avoid damaging the motorcycle during unpacking, leave the other films on the vehicle until you have fin- ished work on the vehicle. - Page 6 2 SETUP Guideline Screw, anti-rotation 4 Nm (3 lbf ft) lock, handlebar stub (All standard models) – Check the clutch lever play. ( p. 6) – Position damping rubber on both sides. – Join plug-in connector of the mirror on both sides. –...
- Page 7 Remove spare key and KEYCODECARD and keep in a safe place for the handover. – Install the battery. ( p. 11) – Remove the remaining films. – Refuel. ( p. 13) – Prepare the vehicle according to the specifications in the KTM Dealer.net for handover to the customer. S01889-01...
- Page 8 3 WORK Checking the clutch lever play Note Clutch damage If there is no free travel by the clutch lever, the clutch will begin to slip. – Check the free travel of the clutch lever each time before using the motorcycle. –...
- Page 9 WORK 3 Adjusting play in the clutch lever (All standard models) – Move the handlebar to the straight-ahead position. – Push back sleeve – Loosen lock nut – Adjust the play in the clutch level by turning adjusting screw Guideline 1 …...
- Page 10 3 WORK Main work – Remove screw with washer. – Lift and take off the passenger seat. L02191-10 Mounting the passenger seat Main work – Attach hook into bracket – Lower the front of the passenger seat and push back. K00021-10 –...
-
Page 11: Mounting The Battery Cover
WORK 3 Mounting the front rider's seat – Attach recesses on the front rider's seat to the fuel tank, push the front rider's seat forward, and lower at the rear. The pin locks audibly in place. – Check that the front rider's seat is mounted correctly. H01084-10 Removing the battery cover Preparatory work... -
Page 12: Recharging The Battery
3 WORK Recharging the battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns. – Keep batteries out of the reach of children. – Wear suitable protective clothing and safety glasses. – Avoid contact with battery acid and battery gases. –... - Page 13 WORK 3 Alternative 3 CH battery charger XCharge-professional (00029095053) Info Follow the instructions of the charger and the manual. – Disconnect the battery charger after charging the battery. Guideline The charging current, charging voltage, and charging time must not be exceeded. Charge the battery regularly 3 months when the motorcycle is not...
-
Page 14: Setting The Clock
3 WORK 3.11 Setting the clock Info The clock is displayed in 24-hour format. The time must be reset if the battery was disconnected from the vehicle or the fuse was removed. Condition The motorcycle is stationary. – Press the MODE button briefly and repeatedly until ODO appears on the display. - Page 15 WORK 3 – Lift the cover of the filler cap and insert the ignition key in the lock. Note Danger of damage The ignition key may break if overloaded. Damaged ignition keys must be replaced. – Push down on the filler cap to take pressure off the igni- tion key.
- Page 16 3 WORK Note Material damage Inadequate fuel quality causes the fuel filter to quickly become clogged. In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in problems with the fuel system. – Refuel only with clean fuel that meets the specified standards.
-
Page 17: Technical Data
TECHNICAL DATA 4 Chassis tightening torques EJOT PT Screw, chain guard ® K60x30 4 Nm (3 lbf ft) Remaining screws, chassis 4 Nm (3 lbf ft) Screw, engine electronics control 3 Nm (2.2 lbf ft) unit Nut, chain guard 7 Nm (5.2 lbf ft) Nut, reflector on retaining plate 5 Nm (3.7 lbf ft) Remaining nuts, chassis... - Page 18 4 TECHNICAL DATA Screw, front fender 7 Nm (5.2 lbf ft) Screw, front seat fixing 6 Nm (4.4 lbf ft) Screw, front spoiler bottom front 6 Nm (4.4 lbf ft) Screw, front spoiler rear 6 Nm (4.4 lbf ft) Screw, front spoiler top front 7 Nm (5.2 lbf ft) Screw, fuel tank trim 6 Nm (4.4 lbf ft)
- Page 19 TECHNICAL DATA 4 Screw, passenger foot pegs bracket 20 Nm (14.8 lbf ft) Loctite ® 243™ Screw, presilencer on frame 24 Nm (17.7 lbf ft) Screw, rear brake disc 21 Nm (15.5 lbf ft) Loctite ® 243™ Screw, retaining bracket on fuel 13 Nm (9.6 lbf ft) tank Screw, shift lever...
- Page 20 5 SUBSTANCES Gasohol 95 E20 (RON 95) Standard/classification – Gasohol 95 E20 (RON 95) Guideline – Only use super unleaded fuel that matches or is equivalent to the specifications. – Super unleaded fuel with an ethanol content of 19 to 20% is permissible. Info Do not use fuel made of methanol (e.
- Page 21 *3213887en* 3213887en 01/2018 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
