OPERATING INSTRUCTIONS
Dishwasher DSD655G
EN

Advertisement

Table of Contents
loading

Related Manuals for Asko DSD655G

Summary of Contents for Asko DSD655G

  • Page 1 OPERATING INSTRUCTIONS Dishwasher DSD655G...

  • Page 2: Table Of Contents

    Open the door and press the main power switch. "Welcome to your new ASKO. This is a first time set up." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good dishwashing results. See page 4.

  • Page 3: Safety Instructions

    Safety instructions may remain inside! After adding detergent, NOTE! always start the dishwasher immediately. Read the operating instructions and keep them in a safe place! WARNING! Number of standard place settings: 15 Children must be supervised – dishwasher Never use the dishwasher for any purpose detergent is corrosive! other than that specified in these operating instructions.

  • Page 4: Before Washing For The First Time

    Open the door and press the main power switch. soft water (water with low mineral content). Hard water leaves a white "Welcome to your new ASKO. This is a first time set up." is shown coating on dishes and the dishwasher.
  • Page 5 3. Top up with rinse aid 4. Top up with salt Drying is faster and a better result is achieved if you use rinse aid. You Before you begin using a dishwasher with a water softener, you must will also achieve a better dishwashing result with clear and spotless fill the salt compartment with salt for the water supply to be softened dishes.

  • Page 6: Loading The Dishwasher

    Loading the dishwasher Greener dishwashing Fragile dishes Do not rinse under running water Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand strong heat, others can be damaged Simply scrape off large food particles before loading the dishwasher. by dishwashing detergent.

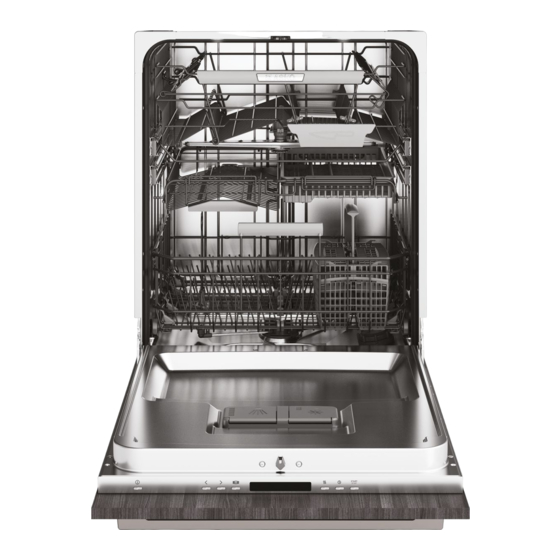

  • Page 7 The dishwasher's baskets Middle basket The dishwasher is equipped with an upper basket, a middle basket The middle basket's wire basket with spray pipes is suitable for low and a lower basket with a cutlery basket. objects. The middle basket's utensils basket has space for ladles, whisks, serving cutlery and similar items.
  • Page 8 Washing large plates Accessory Move foldable tines and their mounts to widen the distance between Buy an extra cutlery basket. The extra cutlery basket is flexible and the tine rows to adapt the lower basket to plates with a diameter greater can be dismantled and attached to the lower basket or the large cutlery than 25 cm.

  • Page 9: Using The Dishwasher

    Using the dishwasher Add detergent NOTE! Use only dishwasher detergent! Washing up liquid must not be used Press to open as the foam that forms prevents the dishwasher from operating effectively. Dishwasher tablets Halve the tablet if it is difficult to close the dispenser lid. There is a risk that the detergent will not be released properly if the lid is tight and will not open correctly.
  • Page 10 Open the door and press the main power switch. Starting the dishwasher START STOP 2:00 Speed mode Select the programme Select a programme mode Select any options Hygiene wash The main power switch This programme is ideal to use where demands on hygiene are extra high, e.g.
  • Page 11 Speed mode Red - Do not load The programme time is shortened, but the dishwasher uses more You should not load more dishes (risk of poorer dishwashing result). energy. Flashing red indicates a problem. See also the chapter Troubleshooting. Night mode Green - Unload Lower noise level during the dishwashing programme.

  • Page 13: Settings

    Settings Open the dishwasher's Settings menu To open the dishwasher's Settings menu, press the Navigation button until Settings menu is shown on the display and confirm your selection with the mode selector To exit the dishwasher's Settings menu, select Exit and confirm your selection with the mode selector Navigation buttons for choosing setting Mode selector to confirm current setting START...
  • Page 14 Settings Options Rinse aid 0/1/2/3/4/5/TAB Setting for rinse aid dosage. The rinse aid dispenser can be adjusted between 0 (Off) and 5 (High dosage). Increase the rinse aid dosage: If the dishes have water marks. Decrease the rinse aid dosage: If the dishes have a sticky white/blue film.
  • Page 15 Settings Options Interior light at power off On/Off Select whether the interior light is to be switched on when the dishwasher is turned off and the door is opened. (If the main power switch is turned on, the interior light is always switched on when the door is opened.)

  • Page 16: Care And Cleaning

    Care and cleaning 2 Unscrew the spray arm bearings counterclockwise to remove the Coarse filter spray arm from the upper basket. The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the coarse filter as necessary. Coarse filter The middle basket's spray pipes Pull out the middle basket.
  • Page 17 Unblocking the drainage pump NOTE! If the dishwasher still contains water after the programme has finished, Do not forget to replace the drainage pump stop. something may be blocking the drainage pump. Such items are easily removed. Unblocking the inlet hose filter 1 Turn off the machine using the main power switch and unplug it from the wall socket.

  • Page 18: Troubleshooting

    Troubleshooting Type of fault on the display Action Overfilling water 1 Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department. Water outlet fault See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department.
  • Page 19 Problem Possible causes Action The dishwasher does not start. The Start/Stop start button has been pressed for Press and hold Start/Stop until the display shows too short a time. "Program started, close door". The door is not properly closed. Check. You have opened the dishwasher to add more Close the door and wait.
  • Page 20 Problem Possible causes Action Spots or films on the dishes. Incorrect rinse aid dosage setting. See the chapter Settings. The setting TAB is activated and all-in-one Switch all-in-one detergents or deactivate the detergent with insufficient drying effect is being setting TAB and top up with salt and separate used.
  • Page 21 Problem Possible causes Action The dishes are not dry enough. The Auto Open option is not activated. Activate the Auto Open option. The dishwasher is not fully loaded. Fully load the dishwasher. Rinse aid needs topping up or dosage is set too Top up with rinse aid or increase the rinse aid low.

  • Page 22: Technical Information

    Technical information Information on energy labelling Information sheet, in compliance with Commission Delegated Regulation (EU) No. 1059/2010 ASKO Model designation: DSD655G Number of standard place settings: Energy efficiency class: A+++ Annual energy consumption(AE 239 kWh per year Energy consumption of the standard cleaning cycle(E 0.84 kWh...

  • Page 23: Installation

    Installation [mm] 1198 1254** 30-94 *Remove locking nuts for an installed height of 820-821 mm. Door length Cover door with slide function fitted, which means the cover door slides upwards when the dishwasher is opened. Nominal dimensions. Actual measurements may vary. It is important that you read through and follow the instructions and Check that the machine is installed such that the door opens freely, directions below.

  • Page 24: Service

    If you have encountered a problem that you cannot resolve, See the separate installation instructions for necessary information. please contact your nearest dealer, see www.asko.com. This dishwasher is suitable for installing in a raised recess (to attain When making contact, provide the details on the serial number plate.

  • Page 25: Information For Test Institute

    Information for test institute Request test institute information via e-mail dishwashers@appliance-development.com. The request should include the details on the serial number plate. Include the article number (1) and the serial number (2). ART. NO. SERIAL NO.

  • Page 26: Your Notes

    Your notes...
  • Page 27 Your notes...

  • Page 28: Quick Guide

    Top up salt and rinse aid to achieve good washing and drying results. (See page 4.) Top up rinse aid Top up salt Select a programme, programme mode and any options (See page 10.) Press Start/Stop, close the door START STOP ASKO APPLIANCES SOCKERBRUKSGATAN 3, SE-531 40 LIDKÖPING, SWEDEN WWW.ASKO.COM...
