Appearance View - Sharp R-24ST Service Manual

OVEN
10
14
CONTROL PANEL
4

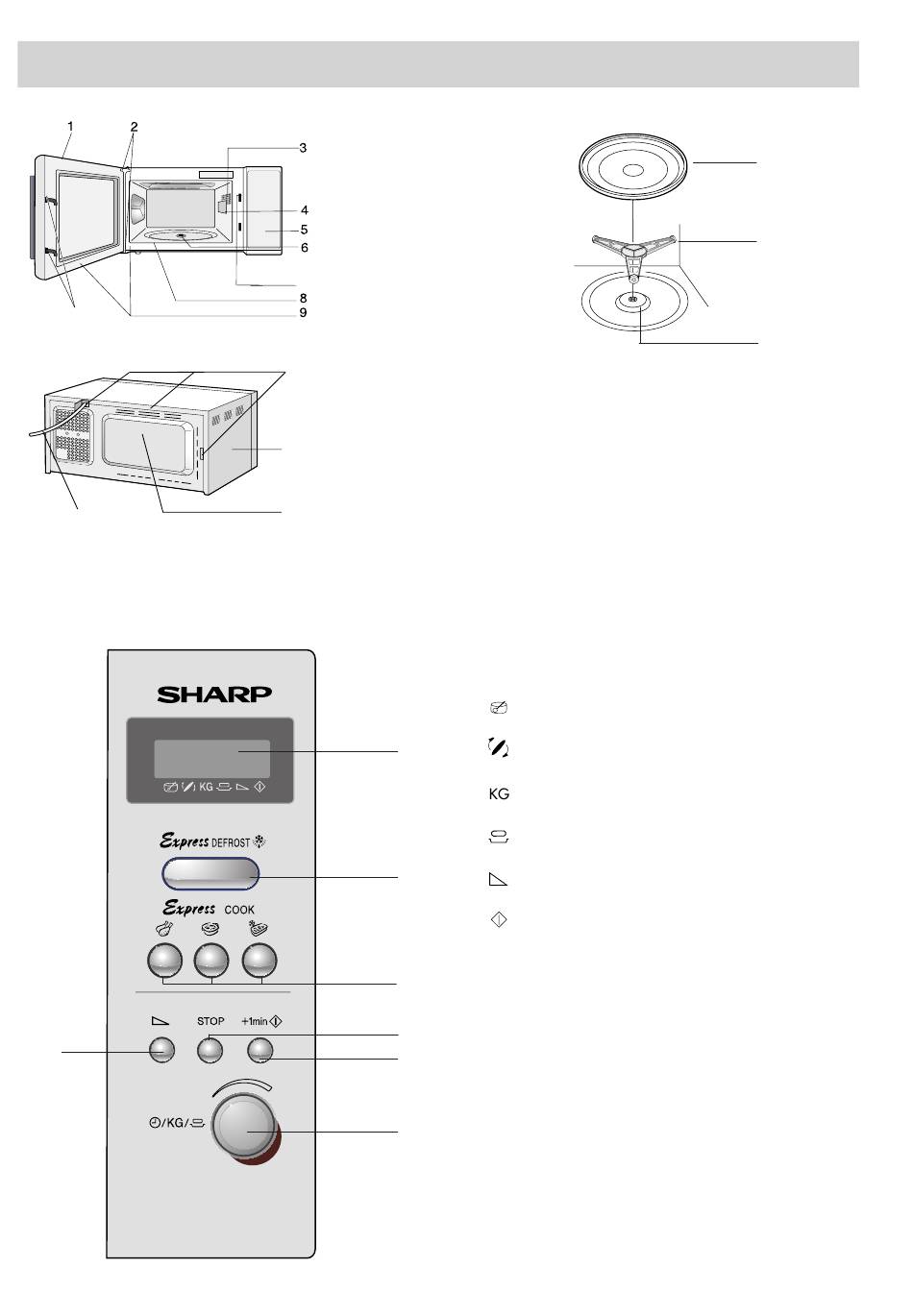

APPEARANCE VIEW

1 Door
2 Door hinges
3 Oven lamp
4 Waveguide cover
5 Control panel
6 Coupling
7 Door lock openings
8 Oven cavity
7
9 Door seals and sealing surfaces
10 Safety door latches
11 Ventilation openings
12 Outer cabinet
13 Rear plate
11
14 Power supply cord
12
13
1
2
3
5
6
7
R-24ST/R-2B34 - 8
1. Place the roller stay on the floor of
the oven cavity, engaging shaft into
turntable motor shaft.
2. Then place the turntable on roller
stay.
1 Digital Display
2 Indicators
The appropriate indicator will flash or light up,
just above each symbol according to the
instruction. When an indicator is flashing, press
the suitable button (having the same symbol)
or do the necessary operation
Stir
Turn over
Weight
Portion Indicator
Microwave power level
Cooking in progress indicator
1. DIGITAL DISPLAY
2. EXPRESS DEFROST buttons
3. EXPRESS COOK buttons
4 POWER LEVEL button
5 STOP button
6 +1 MIN/STARTbutton
7 TIME/WEIGHT/PORTION knob
Turntable
Roller stay
Seal packing
