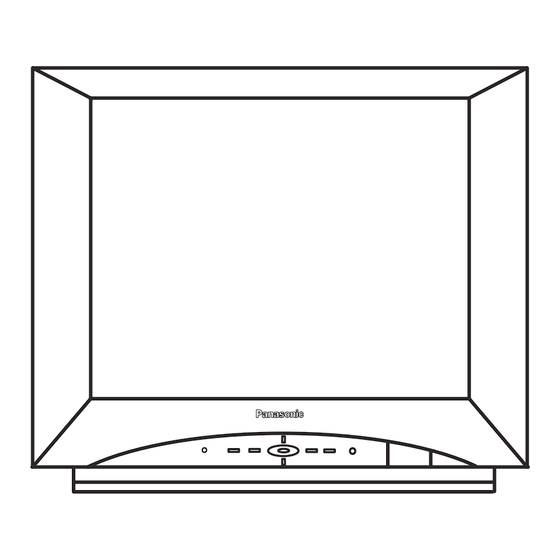

HDTV Monitor Operating Instructions Écran à haute définition Manuel d’utilisation CT-27HC15 CT-27HL15 CT-32HC15 TQB2AA0531 PRINTED IN USA IMPRESO EN EE.UU IMPRIMÉ AUX ÉTATS-UNIS CT-32HL15 50222...
Read these instructions completely before operating television. Contents are subject to change without notice or obligation. Copyright 2005 by Panasonic Corporation of North America. All rights reserved. Unauthorized copying and distribution is a violation of law. The lightning flash with arrow head...
NFORMATION Important Information FCC CAUTION: ANY CHANGES OR MODIFICATIONS TO THIS TV RECEIVER NOT EXPRESSLY APPROVED BY PANASONIC CORPORATION OF NORTH AMERICA COULD CAUSE HARMFUL INTERFERENCE, WHICH WOULD VOID THE USER’S AUTHORITY TO OPERATE THIS EQUIPMENT. FCC INFORMATION This equipment has been tested and found to comply with the limit for a TV Broadcast Receiver accordance with Part 15 of the FCC Rules.
Congratulations Your new Panasonic Tau television features state-of-the-art technology for high quality picture and sound with complete audio/video connections for your home theater system. Your TV is designed to give you many years of enjoyment. It was thoroughly tested and tuned at the factory for best performance.
A falling television can cause serious injury or even death. CT-32HC15, CT-32HC15U: CAUTION: These television receivers for use only with PANASONIC TY-32SC15T stand. Use with other carts (or stands) is capable of resulting in instability causing possible injury. CT-32HL15, CT-32HL15U: CAUTION: These television receivers for use only with PANASONIC TY-32HL15T stand.
IDIOMA/LANGUE MODE AUTO PROGRAM TILT CORRECTION PRESS ACTION TO EXIT CABLE Note: Tilt Correction is not available in models CT-27HC15 and CT-27HL15. NITIAL to display adjustment menu. VOL or VOL to adjust picture tilt. TILT CORRECTION ENGLISH CABLE TO ADJUST...
PTIONAL QUIPMENT ONNECTIONS Optional Equipment Connections Note: The remote control must be programmed with supplied codes to operate the optional equipment. VCR Connection Follow this diagram when connecting your television to a VCR only. PLAY STOP AV IN AV OUT VIDEO HDMI TERMINALS ON BACK OF TELEVISION...
TO AUDIO CABLES NOT INCLUDED Front Panel CT-27HC15 INPUT 3 VOLUME CHANNEL ACTION TV/VIDEO S-VIDEO VIDEO L - AUDIO - R Front Panel for CT-27HL15 ACTION TV/VIDEO S-VIDEO VIDEO L - AUDIO - R INPUT 4 POWER TV / VIDEO...
Video Input). In this case, the picture will be displayed as an analog signal. Notes: *3. HDMI-DVI conversion cable (TY-SCH03DH) available on Panasonic Website: www.panasonic.com (only for USA customers). *4. Please refer to pages 10 and 11 for Audio setting detail. Vertical scanning No.
Basic Menu Navigation Press to display the Main Menu. Press to choose the desired icon. Press to enter the sub- menu field. Press to select desired sub-menu. Press to select or adjust desired sub-menu. Note: For sub -menu with OTHER ADJ. Press to select OTHER ADJ.
ENUS PERATION Icon Menus Operation Notes: • Some menus vary depending on model. • Refer to page 9 for Icon menu navigation procedures. PICTURE Note: While sub-menu features are highlighted, press VOL to adjust or activate. PIC MODE - Lets you choose one of three pre-set Picture Modes that best suits the program you are viewing.
ON by the TIMER. If the OFF time is selected or if a key is pressed, the automatic OFF after 90 minutes will be cancelled. ENUS PERATION For models CHANNELS CT-27HL15 INPUT LABEL COMPONENT1 CT-32HL15 COMPONENT2 HDMI VIDEO1...
ENUS PERATION • The TIMER is active when the television is OFF or ON. The television will switch to the selected channel at the selected time set in the TIMER. CLOCK SET - Set the time of the day and the day of the week.
Page 15
LOCK (cont.) U.S TV Programs (cont.) Customer Caution The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and none) per FCC Rules Section 15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming:”...
Page 16
ENUS PERATION LOCK (cont.) Canadian English (cont.) Note: E (Exempt) programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming. LOCK CANADIAN ENGLISH VIEW E PROGRAMS? PRESS ACTION TO RETURN Procedure • Press CH or CH to move between different ratings.
IMAGE SHIFT 6 VIDEO2 PRESS FOR MORE 7 VIDEO3 PRESS ACTION TO RETURN 8 VIDEO4 For models CT-27HL15 and CT-32HL15 • Note: Video input can also be selected by pressing the TV/VIDEO, then the CH ASPECT Button Press this button to select the desired viewing aspect (16:9 or 4:3) when receiving 480i signals from broadcast or cable input or receiving 480p/480i signals from a STB or a DVD player.
Presione VOL o VOL para ajustar la inclinación de imagen. LA ANTENA DEBE ESTAR CONECTADA PROGRAMACION INICIAL ESPAÑOL CABLE La opción Inclinacion no esta disponible en los modelos CT-27HC15 y CT-27HL15. modo INCLINACION AJUSTE PRESIONE ACTION PARA SALIR...
Conexiones de Equipo Opcional Nota: El control remoto debe de ser programando con los codigos suministrados para operar equipo opcional. Conexión de la Videocasetera Siga este diagrama cuando conecte en su televisión, solamente la videocasetera. VIDEOCASETERA PLAY STOP AV IN AV OUT VIDEO HDMI...
El indicador de APAGADO/ENCENDIDO (rojo) estará prendido cuando el tlelvisor esté encendido. Panel Frontal para CT-27HC15 POWER VOLUME CHANNEL ACTION TV/VIDEO S-VIDEO VIDEO L - AUDIO - R Panel Frontal para CT-27HL15 POWER ACTION TV/VIDEO S-VIDEO INPUT 4 POWER TV / VIDEO...
(o el conector de S-Video o Video). En este caso, la imagen vista será de señal análoga. disponible en la página de internet de Panasonic: www.panasonic.com audio. ESUMEN...
ANUAL DE INSTRUCCIONES Navegación básica del menú para desplegar el Presione menu Principal. Presione para seleccionar el icono deseado. Presione para accesar al compo del submenu. Presione para seleccionar el sub-menu deseado Presione para seleccionar o austar el sub-menu deseado. Nota: Para Sub-menu con OTROS AJ.
Troubleshooting Chart Before calling for service, determine the symptoms and follow suggested solutions UDIO Noisy Audio Snowy Video Multiple Image / Noisy Audio Color shift in picture Noisy Audio Interference No Audio Normal Video Noisy Audio No Video with Snow No Audio No Video Picture shifts slightly (vertically)
NDEX Index Numerics 3D Y/C Filter 10 AC Power Supply Cord 4 AI Sound 10 Amplifier Connection (TO AUDIO AMP) 7 Analog 10 Antenna Connection 4 ASPECT Button 15 Audio 10 Auto 10 Auto Power On 15 Auto Program 5, 15 Balance 10 Basic Menu Navigation 9 Bass 10...
Page 26
Lire ces instructions au complet avant d’utiliser l’appareil. Le contenu du présent manuel peut être modifié sans préavis. Copyright 2005. Panasonic Corporation of North America. Tous droits réservés. Toute reproduction ou distribution non autorisée constitue une violation de la loi sur les droits d’auteur.
Renseignements importants AVERTISSEMENT DU FCC: TOUTE MODIFICATION APPORTÉE À CE TÉLÉVISEUR QUI N’EST PAS EXPRESSÉMENT APPROUVÉE PAR MASUSHITA ELECTRIC CORPORATION OF AMERICA PEUT CAUSER DES INTERFÉRENCES NUISIBLES LESQUELLES POURRAIENT ENTRAÎNER L’ANNULATION DU DROIT DE L’UTILISATEUR D’OPÉRER CET APPAREIL. Informations fournies par la Commission fédérale des communication américaine (FCC) Cet équipment est conforme aux limites relatives aux appareils numériques de classe B selon les stipulations de la section 15 de réglementaion de la FCC.
Page 28
ABLE DES MATIÈRES Table des matières Félicitations... 3 Dossier du client ... 3 Entretien et nettoyage... 3 Spécifications... 3 Table des caractéristiques... 3 Installation... 4 Emplacement du téléviseur ... 4 Branchement de sources auxiliaires... 4 Cordon d’alimentation... 4 Câble / antenne ... 4 Installation des piles de la télécommande ...
Félicitations Votre nouveau téléviseur Tau de Panasonic avec tube image plat a été conçu pour vous procurer une image de qualité avant- gardiste et un son de qualité avec des raccordements audio et vidéo complets pour votre système de cinéma maison. Ce téléviseur a été...
La chute d’un téléviseur peut causer des blessures graves, voire mortelles. CT-32HC15, CT-32HC15U: ATTENTION: N’utiliser que le meuble TY-32SC15T de Panasonic avec ce téléviseur. L’utilisation d’un autre meuble (ou chariot) pourrait causer une instabilité susceptible de provoquer des blessures. CT-32HL15, CT-32HL15U: ATTENTION: N’utiliser que le meuble TY-32HL15T de...
PROG. AUTO RÉGLAGE INITIAL INCLINAISON FRANÇAIS CÂBLE APPUYER ACTION PR QUITTER Nota: La inclinaison n’est pas disponible sur les modèles CT-27HC15 et CT-27HL15. ÉGLAGE INITIAL pour afficher le menu de VOL ou VOL pour ajuster INCLINAISON FRANÇAIS CÂBLE PR RÉGLER...
’ RANCHEMENT D APPAREILS AUXILIAIRES Branchement d’appareils auxiliaires Nota: La télécommande doit avoir été programmée avec les codes fournis afin de permettre le fonctionnement d’un appareil auxiliaire. Branchement à un magnétoscope Suivre le diagramme ci-dessous lors du branchement d’un magnétoscope seulement au téléviseur. Magnétoscope PLAY STOP...
TO AUDIO Câbles vendus séparément Panneau avant du CT-27HC15 INPUT 3 VOLUME CHANNEL ACTION TV/VIDEO S-VIDEO VIDEO L - AUDIO - R Panneau avant du CT-27HL15 ACTION TV/VIDEO S-VIDEO VIDEO L - AUDIO - R INPUT 4 POWER TV / VIDEO...
’ RANCHEMENT D APPAREILS AUXILIAIRES Branchement à la prise PROG OUT Pour utiliser le signal audio et vidéo du téléviseur avec un équipement auxiliaire, brancher ce dernier aux prises PROG OUT et TO AUDIO AMP à l’arrière du téléviseur. Nota: Si le signal de l’image principale est acheminé...
Navigation au menu de base Appuyer sur pour afficher le menu principal. pour Appuyer sur sélectionner l’icône désirée. pour accéder à Appuyer sur un sous-menu. pour Appuyer sur sélectionner le sous-menu. pour sélectionner Appuyer sur ou régler le sous-menu désiré. Nota: Pour un sous-menu avec AUTRES RÉG.
ONCTIONNEMENT AVEC MENUS À ICÔNES Fonctionnement avec menus à icônes Nota: Les menus varient selon le modèle. Voir la page 9 pour la marche à suivre pour la navigation au menu à icônes. IMAGE Nota: Pour régler les rubriques du sous-menu lorsqu’elles sont en surbrillance, appuyer sur VOL MODE - Permet de choisir un des trois modes préréglés...
APPUYER ACTION POUR RETOURNER • IDENT. PRISES - Pour identifier les branchements d’entrées vidéo aux fins d’affichage. Pour les CANAUX modèles SIGLE PRÉRÉGLÉ CT-27HL15 et SIGLE MANUEL CT-32HL15. IDENT. PRISES AUTRES RÉG APPUYER ACTION POUR RETOURNER CANAUX SIGLE PRÉRÉGLÉ SIGLE MANUEL IDENT.
ONCTIONNEMENT AVEC MENUS À ICÔNES BLOCAGE CRÉER CODE - Au moyen des touches numériques de la télécommande, entrer le code à quatre chiffres. (Utiliser un code facile à mémoriser et le conserver dans un endroit sûr.) BLOCAGE CRÉER CODE _ _ _ _ D'ABORD VERROUILLER - Pour bloquer l'utilisation de jeux vidéo et...
Page 39
BLOCAGE (suite) ÉMISSIONS TÉLÉ USA (suite) • Appuyer sur la touche CH COMBIEN D’HEURES? • Appuyer sur les touches sélectionner 12, 24, 48 heures ou CONTINU. ACTION • Appuyer sur la touche principal, puis appuyer sur CH Mise en garde La "...
Page 40
ONCTIONNEMENT AVEC MENUS À ICÔNES BLOCAGE (suite) Canada (ANGLAIS) (suite) Nota: Les émissions exemptées comprennent : les émissions de nouvelles, de sports, les documentaires et les autres émissions d’information, les tribunes téléphoniques et les émissions de musique vidéo et de variété. BLOCAGE CANADA ÉMISSIONS EXEMPTÉES? OUI...
5 VIDÉO1 AUTRES RÉG DÉCAL. IMAGE 6 VIDÉO2 7 VIDÉO3 8 VIDÉO4 APPUYER ACTION POUR RETOURNER Pour les modèles CT-27HL15 et CT-32HL15. • Nota: ll est également possible de sélectionner l’entrée vidéo ajouter supprimer en appuyant sur les touches TV/VIDEO et CH Touche de ASPECT Appuyer sur cette touche pour sélectionner le format de...
UIDE DE DÉPANNAGE Guide de dépannage Avant de faire appel à un technicien, vérifier les problèmes et apporter les corrections simples décrites ci-dessous. UDIO Présence de bruit Présence de neige Image dédoublée / Présence de bruit Distorsion de couleur à l’image Présence de bruit Interférence Absence de son...
Index Aigus 10 Audio 10 Autres Réglages 10, 11, 15 Bal. ca (Balayage canal) 11 BBE 10 Blocage 12 Branchement à la câblodistribution 4 Branchement à la prise PROG OUT 8 Branchement à un amplificateur audio (TO AUDIO AMP) 7 Branchement à...
Page 44
EMOTE ONTROL PERATION PERACIÓN DEL Remote Control Operation/ Operación del Control Remoto/ Fonctionnement de la télécommande ASPECT EUR7613ZC0 Buttons Description Botónes Descripción Touches Press to turn ON and OFF. Presione para ENCENDER y APAGAR. Appuyer pour établir ou couper le contact. Press to select remote operation.
Page 45
EMOTE ONTROL PERATION Mode Operational Key Chart/Tabla del Modo operacional de las Teclas/Tableau de référence des fonctions télécommandées. This chart defines the keys that are operational in the selected component modes (TV, VCR, DBS, CABLE or DVD) after programming (if needed). Esta tabla define que teclas funcionan después de programar (si son requeridas) el control remoto, cuando se seleccciona uno de los modos TV, CABLE, DBS, VCR, DVD.
Control. The component button will illuminate steadily and all others will go out. Default Réglage par défaut Press the Panasonic Code the step mode. Código TV Panasonic Point the remote control towards the component. Codes Panasonic Press VOL Panasonic Code Código Panasonic press the Remote Control Codes Panasonic component.
Page 47
EMOTE ONTROL PERATION Procedimiento Español (cont.) Nota: Si el componente no opera con el Control Remoto, repita los pasos del 3 al 6 usando otro código (Algunas marcas tienen múltiples códigos). código incorrectamente, o si el procedimiento toma más de 30 segundos, la programación ha fracasado y se tendra que repetir el procedimiento.
Page 48
Marca Samsung Código Marque Sharp Sony Denon Technics Ferguson Thomson Toshiba Mitsubishi Yamaha Nordmende Zenith Panasonic HNS (Hughes) Codes for DBS Códigos para DBS Magnavox Codes pour récepteurs DBS Panasonic Philips Brand Code Marca Primestar Código Marque Proscan Dish Network...
Panasonic Color Television Limited Warranty Coverage If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the warran- tor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("warranty period"), at its option either (a) repair your product with new or refurbished parts,...
Page 51
IMITED ARRANTY OR MODELS SOLD IN ONLY Limited Warranty continued from previous page Limited Warranty Limits And Exclusions This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the picture tube resulting from viewing fixed images (including, among other things, letterbox pictures on standard 4:3 screen TVs, or non-expanded standard 4:3 pictures on wide screen TV’s, or onscreen data in a stationary and fixed location).
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST. For hearing or speech impaired TTY users, TTY : 1-877-833-8855 Accessory Purchases Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web Site at: http://www.pasc.panasonic.com or, send your request by E-mail to: npcparts@us.panasonic.com...
Page 53
TELEVISION: 22” and over In-home Service In-home Service will be carried out only to locations accessible by roads and within 50 Km of an authorized Panasonic service facility. LIMITATIONS AND EXCLUSIONS This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed,...
Page 54
Certificat de garantie limitée Panasonic Panasonic Canada Inc. garantit cet appareil contre tout vice de fabrication et accepte, le cas échéant, de remédier à toute défectuosité pendant la période indiquée ci-dessous et commençant à partir de la date d'achat original.
Page 56
Division of Panasonic Corporation of North America One Panasonic Way Secaucus, New Jersey 07094 www.panasonic.com Panasonic Sales Company, Division of Panasonic Puerto Rico, Inc. (“PSC”) Ave. 65 de Infantería, Km 9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985 Tel. (787) 750-4300 Fax (787) 768-2910 Panasonic Canada Inc.
