Operation of the Bridge Battery
When installed in the pen tablet PC, the battery provides
power to some system components—even when the
system is in the Off state. When the battery is removed,
power is supplied to these components by a "bridge"
battery that is built into the pen tablet PC.
The bridge battery is not designed for long-term opera-
tion. To maintain the bridge battery properly, observe the
following measures:
P O I N T
• The bridge battery function is disabled if Wake On
LAN is enabled in the BIOS.
• The system arrives with the bridge battery in a
discharged state. Be sure to charge it sufficiently
before relying upon it to support the system in the
event of battery removal.
• To prevent draining the bridge battery, always store
the system with a charged battery installed.
• If the bridge battery becomes drained, it takes
approximately 8 hours for it to be fully recharged.
•
The bridge battery charges when the AC Adapter is
connected and the system is in On or Off states or
Suspend mode. It charges from the battery only when
the system is in the On state.
MODEM CONNECTION
P O I N T
The internal 56 Kbps LAN/modem module installed in
the Stylistic ST4000P Series pen tablet PC has actual
maximum transfer rates of 53 Kbps (receive), 33.6 Kbps
(send), and 14.4 Kbps (fax). Download rates are limited
to 53 Kbps in the United States due to FCC restrictions.
The Stylistic ST4000P Series pen tablet PC is designed to
accept a standard RJ-11 telephone plug. Connect the plug
to the modem jack located on the left-hand side of the
pen tablet PC (See Figure 1-4 on page 5 for location). The
telephone plug can be installed whether or not the pen
tablet PC has power applied.
If you need assistance configuring the Stylistic ST4000P
Series pen tablet PC modem or LAN, contact your local
help desk or your reseller.
U s i n g Y o u r S t y l i s t i c S T 4 0 0 0 P
PC CARD SLOT
The Stylistic ST4000P Series Pen Tablet PC Card slot
allows you to install a Type I or Type II PCMCIA Card.
Installing a PC Card
To install a PC card, position the side with the arrow
facing up (i.e., when looking at the tablet's display side,
the arrow on the card should be visible.) Slide the card
into the PC Card slot, and press it firmly to ensure proper
seating. (See Figure 2-3 for location)
If you need assistance installing a PC Card in the Stylistic
ST4000P Series pen tablet PC, contact your corporate
help desk or your reseller.

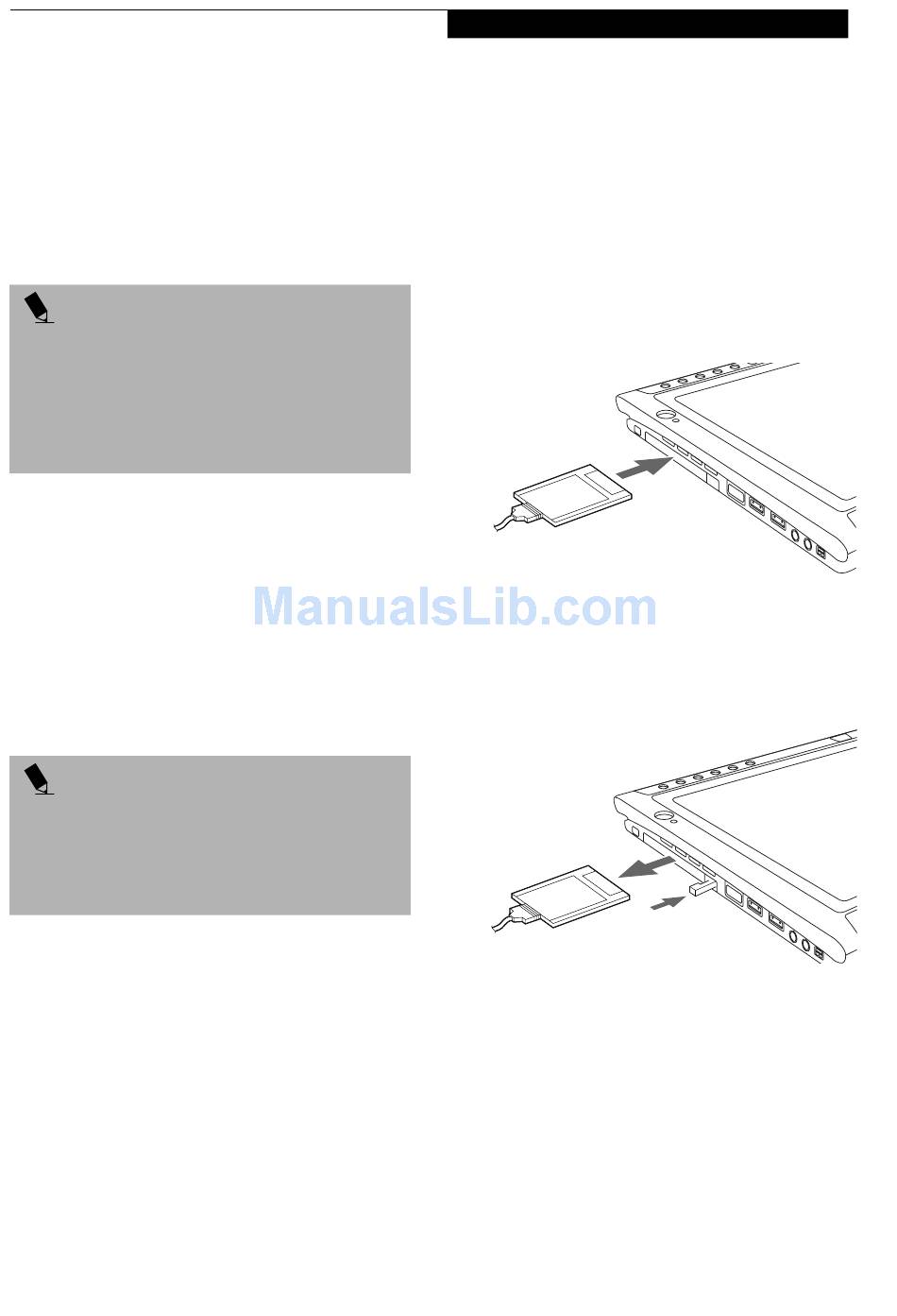

Figure 2-3 Installing a PC Card
Removing a PC Card
To remove a PC Card, press the PC Card eject button so
that it pops out. Once the button has popped out, press it
in firmly to eject the card. (See Figure 2-4 for location)
Figure 2-4 Removing a PC Card
REMOVING AND INSTALLING
MEMORY MODULES
There is one DIMM slot in your pen tablet PC and
256MB on the motherboard. 256MB and 512MB
modules are available, so you can install a combination of
up to 768MB in the system.
