ReTurn7500
SystemRoMedic
TM
ReTurn7400
SystemRoMedic
TM

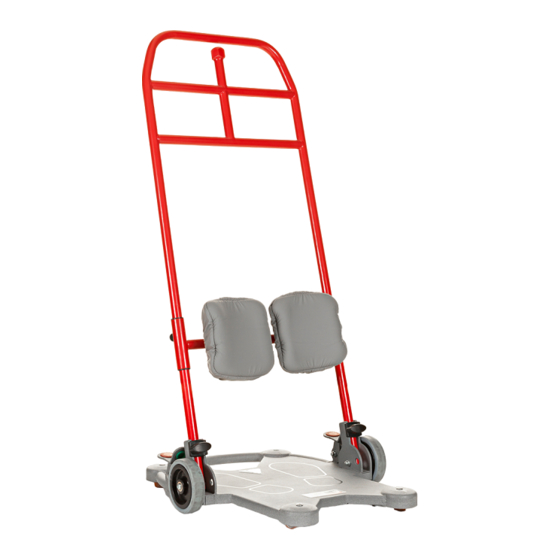

ReTurn7500, with
opening for ReTurnBelt
ReTurn7500 and ReTurn7400 are used indoors for shorter transfers between wheelchair and bed, wheelchair and toilet/
portable toilet/wheelchair or chair/armchair. ReTurn7500 and ReTurn7400 can also be used to aid repositioning farther
back in the chair. Both models are designed for easy manoeuvring and use in confined spaces. They are easy to assemble
and disassemble in just two sections for easier transport and storage. ReTurn7500 is available in two versions. One model
has an opening at the upper vertical handle for hooking of ReTurnBelt. ReTurn7400 is lower than ReTurn7500 and is
designed mainly for children and short adults.
SystemRoMedic is a series of different models of transfer assistive devices. The choice of assistive devices depends on
the transfer situation and the patient's functional capability and needs.
Functional inspection
Visual inspection
Check the condition and function of the product regularly. Check to ensure that material is free from damage. If there are
signs of wear, the product must be inspected and serviced.
Always read the manual
Always read the manuals for all assistive devices used during a transfer.
Keep the manual where it is accessible to users of the product.
Do not leave the patient unattended during a transfer situation.
The product should be inspected yearly, and otherwise as required, by a qualified technician. Service must be performed
by a qualified technician.
Manual no: 840 En Ver. 8 120525
ReTurn7500
ReTurn7400
Manual - English
Art. no.
01-7 500
01-7500i
01-7 400
Max: 150 kg/330 lbs
Advertisement
Related Manuals for Handicare 01-7500i
Summary of Contents for Handicare 01-7500i
- Page 1 ReTurn7500 Manual - English SystemRoMedic ReTurn7400 Art. no. 01-7 500 SystemRoMedic 01-7500i 01-7 400 Max: 150 kg/330 lbs ReTurn7500, with ReTurn7400 ReTurn7500 opening for ReTurnBelt ReTurn7500 and ReTurn7400 are used indoors for shorter transfers between wheelchair and bed, wheelchair and toilet/ portable toilet/wheelchair or chair/armchair.
- Page 2 Assembly A. Push the rising ladder/tube down into the mounting fixtures on the chas- sis, so that the height-adjustment buttons are facing towards the caregiver. B. Insert the fixture knobs and tighten. Check to ensure that the fixture knobs are securely tightened before using the ReTurn. Special requirements and conditions •...
- Page 3 Chassis and placement of feet The feet are placed one on either side, see foot markings on base plate. The patient’s weight must be centred on the product’s support surface (all weight between the wheels); i.e., the patient must be in a standing position. The patient’s weight must not be outside of the support surface.
- Page 4 Testing standing function ReTurn is ideal for testing a patient’s standing function in cases where there is uncertainty as to whether the patient is able to rise from a seated to a standing position. Training standing function ReTurn can be used to train the patient’s standing, sitting and sit-to-stand func- tion.
- Page 5 Transfers Bed to wheelchair Place the wheelchair at some distance from the bed to allow enough working space. Lock the wheelchair wheels. Place the patient’s feet on the base plate. The patient grasps the raising ladder, leans forward, and then raises himself/ herself.
- Page 6 Using ReTurnBelt together with ReTurn7500 See manual for ReTurnBelt. ReTurnBelt is used for raising from a seated to a standing position, and for support in the standing position in combina- tion with the use of ReTurn transfer platform. ReTurnBelt has a more rigid lower section for easy application and an elastic upper section for a better and more comfortable fit.
-
Page 7: Sitting Down
When it is necessary to attach ReTurnBelt to ReTurn7500 ReTurn7500, with opening for hooking of ReTurnBelt ReTurn7500 ReTurn7500: Do not secure the clasp on the ReTurnBelt before rising. When the patient is in a standing position facing the ReTurn, the strap can be placed around one of the vertical handles. -
Page 8: Technical Specifications
SupportStraps Contact your local distributor if you have any questions about the product and its use. See www.handicare.com for a complete list of distributors. Always make sure that you have the right version of the manual. The most recent editions of manuals are available for downloading from our website, www.handicare.com.
