Summary of Contents for Electrolux FRT21S6AW1

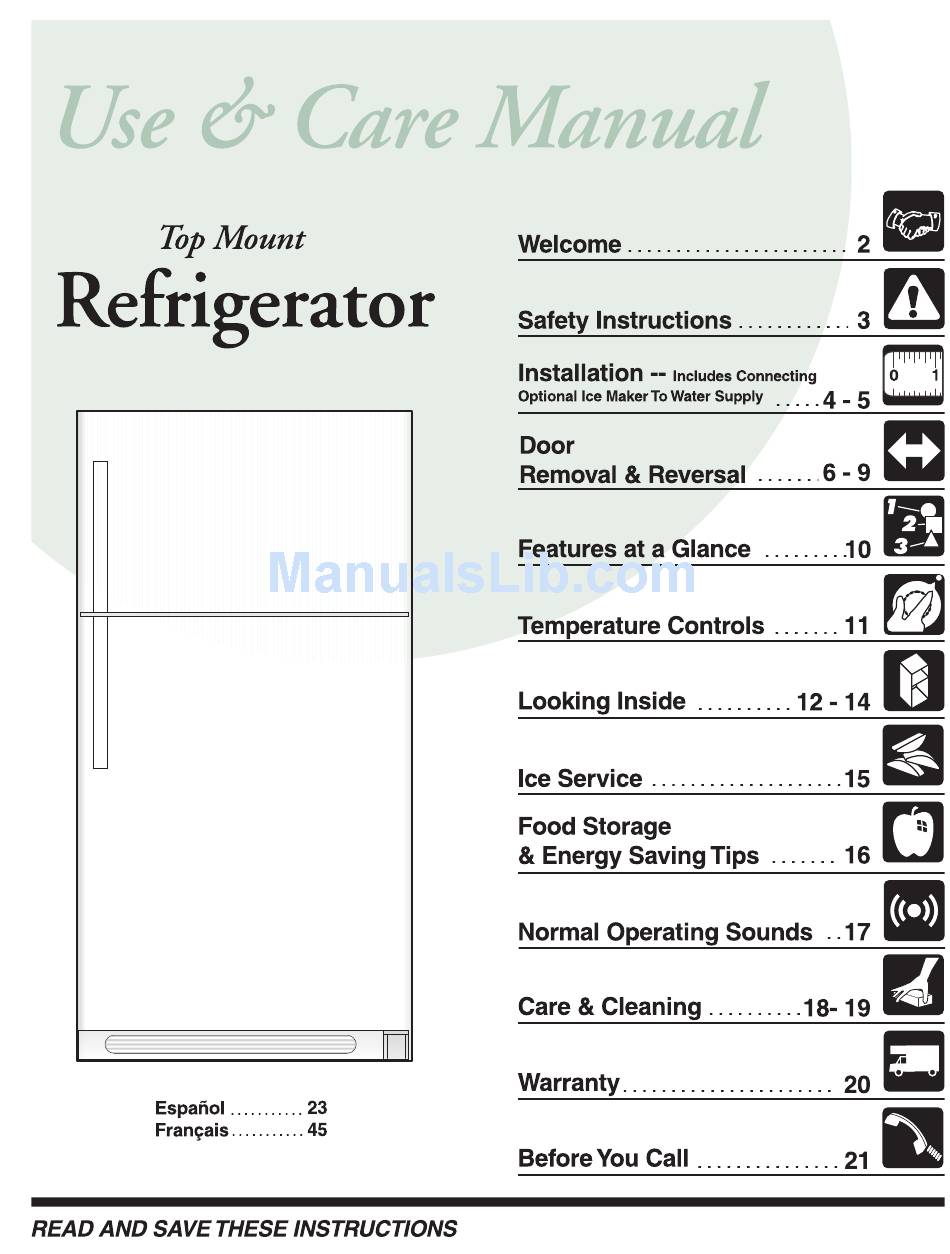

- Page 1 P/N 240400102 (0101)
-
Page 2: Welcome & Congratulations
Please read this Use & Care Manual very carefully. It contains valuable information on how to properly maintain your new refrigerator. We know you’ll enjoy your new refrigerator and Thank You for choosing our product. We hope you consider us for future purchases. -
Page 3: Important Safety Instructions
Children should NEVER use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation. These Guidelines Must Be Followed To Ensure That Safety Mechanisms In This Refrigerator Will Operate Properly. ELECTRICAL INFORMATION •... -
Page 4: Installation
If possible, place the refrigerator out of direct sunlight and away from the range, dishwasher or other heat sources. • The refrigerator must be installed on a floor that is level and strong enough to support a fully loaded refrigerator. • Consider water supply availability for models equipped with an automatic ice maker. - Page 5 A water supply line made of ¼ inch (6.4 mm) OD, copper tubing. To determine the length of copper tubing needed, you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe.
- Page 6 7. Remove bottom hinge with 3/8” hex driver. Reinsert two outside screws in holes and tighten. Inside screw will go to opposite side in step 8. 8. Remove two outside screws on opposite side of refrigerator and install bottom hinge.
- Page 7 Door Removal and Reversal Instructions NOTE: Some models have “pocket” handles, which are recessed into the sides of the door. On these models, only the hinges will need to be reversed. TO REMOVE FREEZER HANDLE: (Handles may be easier to reverse while doors are off.) 1.
- Page 8 TRIM REMOVAL (FULL-LENGTH TRIM MODELS ONLY) In some models, the refrigerator door has a full length trim piece which continues from the bottom of the handle to the bottom of the door. The top of the trim attaches to the handle bracket (Figure 1) or fits around the base of the handle (Figure 2).
- Page 9 (Handles may be easier to reverse while doors are off.) 1. Remove two screws attaching handle to top of refrigerator door. 2. Remove button plug and screw on refrigerator door side and remove handle. 3. Reverse freezer and refrigerator handles as shown in figure 3.
-
Page 10: Features At A Glance
Features At A Glance Features may vary according to model... -
Page 11: Temperature Controls
COOL DOWN PERIOD To ensure safe food storage, allow the refrigerator to operate with the doors closed for at least 8 to 12 hours before loading it with food. REFRIGERATOR & FREEZER CONTROLS NOTE: When first setting the controls or when changing a setting, wait 24 hours for the temperature to stabilize before making additional changes. -
Page 12: Looking Inside
Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. SHELF ADJUSTMENT Refrigerator shelves are easily adjusted to suit individual needs. Before adjusting the shelves, remove all food. To adjust sliding shelves: Remove shelf by pulling forward to stop position. -
Page 13: Door Storage
12 ounce drink cans, a bottle of wine, a two-liter soft drink bottle, or a carton of eggs. The Special Item Rack mounts on the left side of your refrigerator. To install, just slide the Special Item Rack onto any shelf as shown in the drawing. - Page 14 MEAT PAN Some models are equipped with a Meat Pan that can be positioned below any refrigerator shelf. Use this pan for short term storage of bulk meat items. If meats are to be kept longer than one or two days, they should be frozen.
-
Page 15: Ice Service
• Occasionally shake the ice container to keep ice separated. • Keep the wire signal arm in its “up” or OFF position until the refrigerator is connected to the water supply or whenever the water supply is turned off. •... -
Page 16: Food Storage & Energy Saving Ideas
The fresh food compartment should be kept between 34° F and 40° F with an optimum temperature of 37° F. • Avoid overcrowding the refrigerator shelves. This reduces the circulation of air around the food and results in uneven cooling. -
Page 17: Normal Operating Sounds & Sights
E. Cold Control & Defrost Timer These parts can produce a snapping or clicking sound when turning the refrigerator on and off. The timer also produces sounds similar to an electric clock. F. Condenser Fan... -
Page 18: Care & Cleaning Chart
Keep your refrigerator and freezer clean to prevent odor build-up. Wipe up any spills immediately and clean both sections at least twice a year. Never use metallic scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any surface. Do not wash any removable parts in a dishwasher. Always unplug the electrical power cord from the wall outlet before cleaning. -
Page 19: Vacation And Moving Tips
4. Unscrew and replace old bulb with an appliance bulb of the same wattage. Replace light shield. 6. Remember to plug the refrigerator back in. • Leave refrigerator operating during vacations of 3 weeks or less. Short • Use all perishable items from refrigerator compartment. Vacations •... -
Page 20: Warranty Information
REFRIGERATOR WARRANTY Your refrigerator is protected by this warranty WARRANTY PERIOD One year from original FULL ONE-YEAR purchase date WARRANTY Second through fifth LIMITED 2 years from original YEAR WARRANTY purchase date (Cabinet Liner and Sealed System) Time periods listed LIMITED above. -
Page 21: Before You Call
• The temperature control is turned to OFF. • Refrigerator may be in defrost cycle. Wait 20 minutes and check again. • Set freezer control to a warmer setting until freezer temperature is satisfactory. Allow 24 hours for the temperature to stabilize.
