Frigidaire FRT21INLH Factory Parts Catalog
R134a system series
Hide thumbs
Also See for FRT21INLH:
- Factory parts catalog (13 pages) ,
- Factory parts catalog (15 pages)
Advertisement
Quick Links
Download this manual
See also:

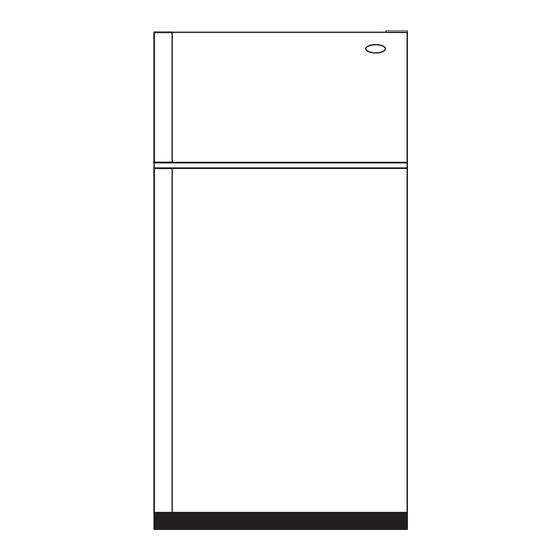

Factory Parts Catalog
PRODUCT NO.
BASE MODEL NO.
FRT21INLHB4
FRT21INLH
FRT21INLHD4
FRT21INLH
FRT21INLHW4
FRT21INLH
MARKET
North America
WIRING DIAGRAM - #193832
OWNER'S GUIDE - # 218972200
SERVICE DATA SHEET - # 218755000
101 Masters Blvd.
Anderson, SC 29624
FACTORY PARTS CATALOG
SERIES
COLOR
R134a System
black
R134a System
almond
R134a System
white
Publication No.
5995343430
000913
-EN/SERVICE /DJH
357
REFRIGERATOR
VOLTS
115
115
115
REFRIGERATOR
Model No.
FRT21INLH
©2000 White Consolidated Industries, Inc.
All rights reserved
Advertisement
Related Manuals for Frigidaire FRT21INLH
Summary of Contents for Frigidaire FRT21INLH
- Page 1 PRODUCT NO. BASE MODEL NO. FRT21INLHB4 FRT21INLH FRT21INLHD4 FRT21INLH FRT21INLHW4 FRT21INLH MARKET North America WIRING DIAGRAM - #193832 OWNER’S GUIDE - # 218972200 SERVICE DATA SHEET - # 218755000 101 Masters Blvd. Anderson, SC 29624 FACTORY PARTS CATALOG REFRIGERATOR SERIES...
- Page 2 Publication No. FRT21INLH 5995343430 DOOR 09/00...
- Page 3 A = FRT21INLH (FRT21INLHW4) B = FRT21INLH (FRT21INLHD4) C = FRT21INLH (FRT21INLHB4) POS. NO 37A* 37A* 37A* # = Fast-moving Parts * = Non-Illustrated Parts FRT21INLH DOOR PART NO DESCRIPTION 215608972 A B - Gasket-frzr door,white ,magnetic 215608923 - - C...
- Page 4 Publication No. FRT21INLH 5995343430 CABINET 09/00...
- Page 5 A = FRT21INLH (FRT21INLHW4) B = FRT21INLH (FRT21INLHD4) C = FRT21INLH (FRT21INLHB4) POS. NO 13 # # = Fast-moving Parts * = Non-Illustrated Parts FRT21INLH CABINET PART NO DESCRIPTION 5304402655 A B C Cover-fan 5303307351 A B C Knob-damper control...
- Page 6 Publication No. FRT21INLH 5995343430 SHELVES 09/00...
- Page 7 A = FRT21INLH (FRT21INLHW4) B = FRT21INLH (FRT21INLHD4) C = FRT21INLH (FRT21INLHB4) POS. NO 8* # 14 # 16A# 19 # 21 # 23 # # = Fast-moving Parts * = Non-Illustrated Parts FRT21INLH SHELVES PART NO DESCRIPTION 218651900 A - -...
- Page 8 Publication No. FRT21INLH 5995343430 SYSTEM 09/00...
- Page 9 A = FRT21INLH (FRT21INLHW4) B = FRT21INLH (FRT21INLHD4) C = FRT21INLH (FRT21INLHB4) POS. NO 13 # 14 # 15 # 21 # 29 # 30 # 55 # # = Fast-moving Parts * = Non-Illustrated Parts FRT21INLH SYSTEM PART NO...
-
Page 10: Ice Maker
Publication No. FRT21INLH 5995343430 ICE MAKER 09/00... - Page 11 A = FRT21INLH (FRT21INLHW4) B = FRT21INLH (FRT21INLHD4) C = FRT21INLH (FRT21INLHB4) POS. NO 11 # 12 # 13 # 15 # 17 # 39 # # = Fast-moving Parts * = Non-Illustrated Parts FRT21INLH ICE MAKER PART NO DESCRIPTION...
-
Page 12: Wiring Schematic
Publication No. FRT21INLH 5995343430 WIRING SCHEMATIC 09/00... -
Page 13: Wiring Diagram
FRT21INLH Publication No. 5995343430 WIRING DIAGRAM # = Fast-moving Parts 09/00 * = Non-Illustrated Parts...
