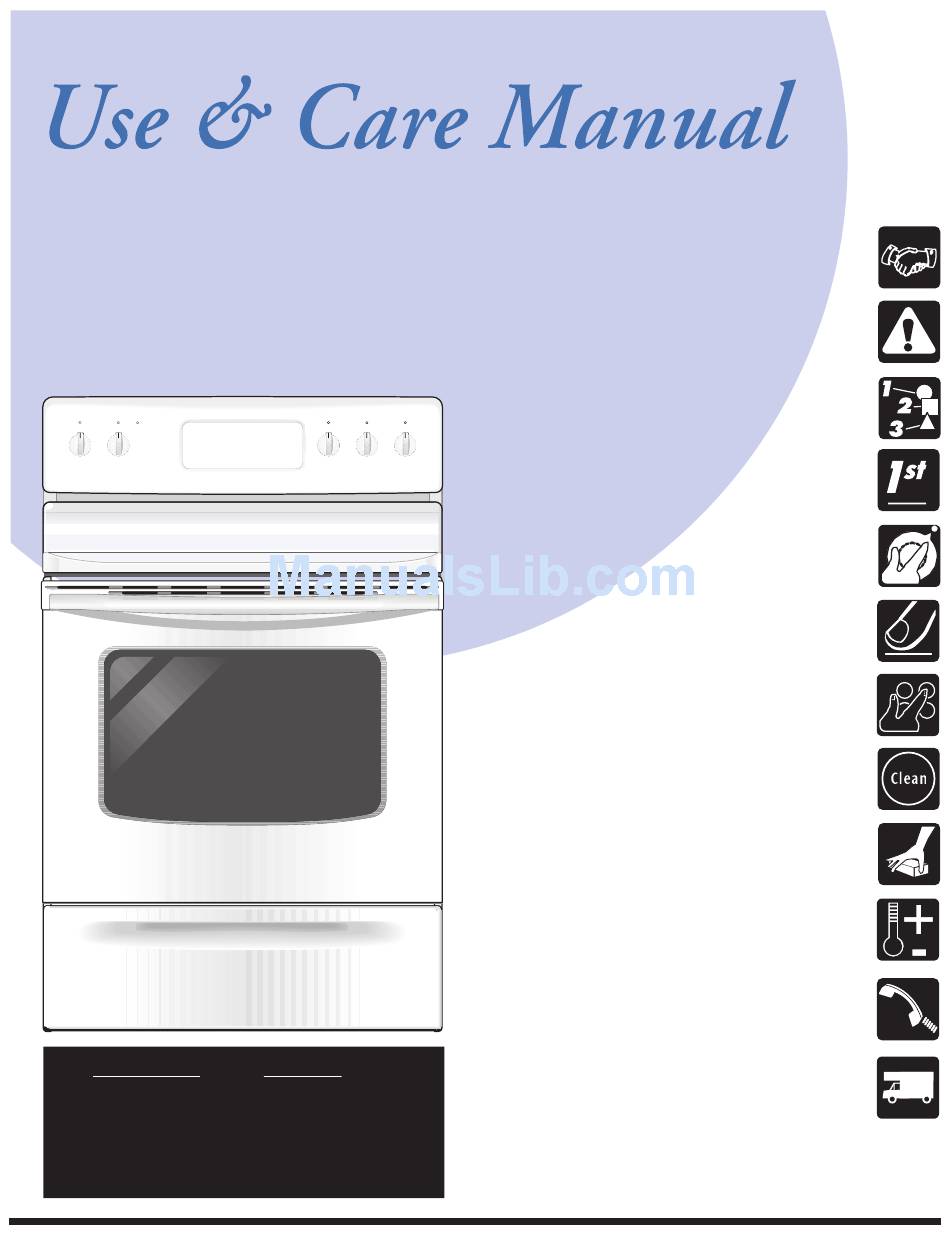

Visit the Frigidaire Web Site at: Electric http://www.frigidaire.com Range Welcome... 2 ES330 Control, Self-Cleaning Oven with Ceramic Cooktop Important Safety Instructions ...3-4 Features at a Glance ... 5 Before Setting Oven Controls ...6-8 Setting Surface Controls ...8-9 Oven Control Functions ... 10 Setting Oven Controls ...
Your satisfaction is our number one priority. We know you’ll enjoy your new range and Thank You for choosing our product. We hope you consider us for future purchases. PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS This Use &...
Ask your dealer to recommend a qualified technician and an authorized repair service. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency. • User servicing—Do not repair or replace any part of the appliance unless specifically recommended in the manuals.
• Do Not Clean Door Gasket—The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket. •The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another well-ventilated room.
25. Warming Zone Radiant Element (some models). 26. Broil Pan (some models). 27. Broil Pan Insert (some models). 28. Leveling Legs and Anti-tip Bracket (included). NOTE: The features of your range may vary according to model type & color. Features At A Glance...
Turkey, roast or ham (some models) Types of Oven Racks & Roasting Shelf Your range may be equipped with one or more of the oven rack types shown; Flat Rack (Fig. 5) and Roasting Shelf (Fig. 6; some models). To...
Page 7
Use & Care Manual. Element On & Hot Surface Indicator Lights Your range is equipped with two different types of radiant surface control indicator lights that will glow on your range— the Element On indicator light and the Hot Surface indicator lights (See illustration at left).
Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch fire if placed too close to the surface elements.
Page 9
Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch fire if placed too close to the surface elements.
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various pad functions of the oven as described below. CLOCK BAKE TIME PAD— Used PAD— Used to to set the enter the length of time of day.
Note: The time of day must first be set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00".
Page 12
To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: 1. Press . "— — —" appears in the display. 2.
Page 13
To Set the Timed Bake and Delay Start Features BAKE TIME and START TIME pads operate the features that will turn the oven ON and OFF at the times you select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin baking at a later time with a delayed start time (Delay Start).
Page 14
Speed Bake™ Cooking System Benefits of Speed Bake™ Cooking System: —Foods cook up to 25 to 30% faster, saving time and energy. —Multiple rack baking. —No special pans or bakeware needed. Fig. 1 General Cooking Instructions: For Baking: 1. For optimum cooking results it is recommended to preheat the oven when baking foods such as cookies, biscuits and breads. 2.
To Set for Broiling: 1. Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Table below. 2. Press . " — — "will appear in display. 3. Press and hold the until the desired broil setting level appears in the display.
During the Self-Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave small children unattended near the appliance. The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range.
Page 17
Starting the Self-Clean Cycle or a Delayed Start Self-Clean Cycle For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour cycle for heavier soils. NOTE: The kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood during the 1st Self-Clean cycle.
Rinse & wipe dry with a clean cloth. Remove all cleaners or the porcelain may Liner & Oven Bottom become damaged during future heating. DO NOT use spray oven cleaners on the range top. Oven Racks Remove oven racks. See "Removing & Replacing Oven Racks" under Before Setting Oven Controls.
Note: Additional cooktop cleaning cream may be ordered by visiting the Frigidaire website at www.frigidaire.com Prior to using your cooktop for the first time, apply some of the cooktop cleaning cream supplied with your new range. Buff with a non-abrasive cloth or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.
Page 20
Cleaning Recommendations for the Ceramic Glass Cooktop (cont’d) Do not use the following on the ceramic glass cooktop: • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult to clean. •...
4. Replace glass shield over bulb and snap wire holder into place. 5. Turn power back on again at the main source (or plug the range back in). 6. The clock will then need to be reset. To reset, see Setting the Clock and Minute Timer in this Use &...
Range is not level - (1) Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of range until the oven rack is level. (2) Be sure floor is level, strong & stable enough to adequately support range.
Major Appliance Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
