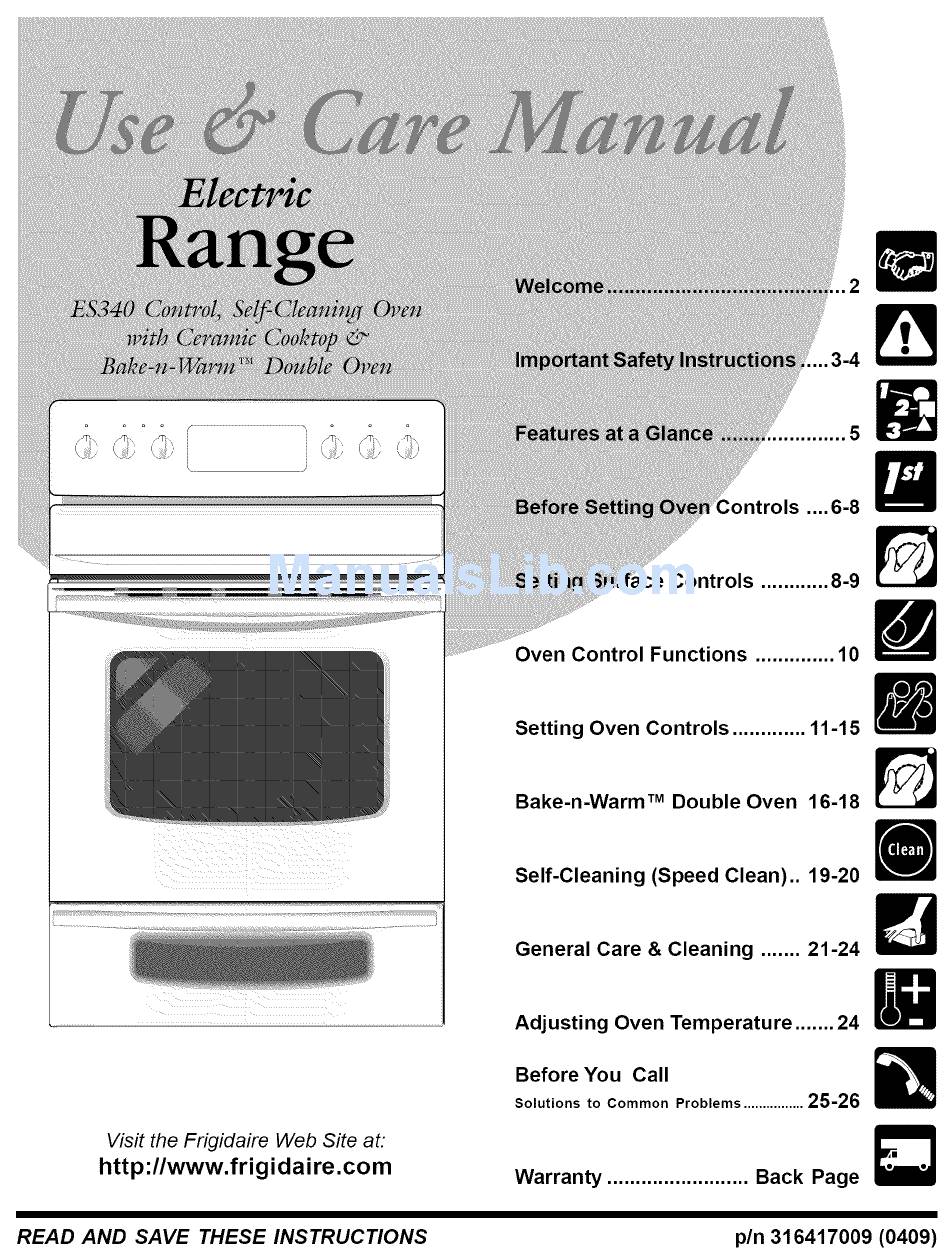

Page 1: Table Of Contents
19-20 General Care & Cleaning ..21-24 Adjusting Oven Temperature ..24 Before You Call 25-26 Solutions to Common Problems ....Visit the Frigidaire Web Site at: http://www.frigidaire.com Warranty ......Back Page READ AND SAVE THESE INSTRUCTIONS pin 316417009 (0409)
Page 2 Congratulations on your purchase of a new range! At Electrolux Home Products, we are very proud of our product and are completely committed to providing you Questions? with the best service possible. Your satisfaction is our number one priority. 1-800-944-9044 We know you'll enjoy your new range and Thank You for choosing our product.
Page 3 Important Safety Instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. This symbol will help alert you to situations that may cause serious bodily harm. death or property damage. This symbol will help alert you to situations that may cause bodily injury or property damage.
Page 4 IMPORTANT INSTRUCTIONS FOR USINGYOUR IMPORTANT INSTRUCTIONS FOR USINGYOUR COOKTOP OVEN • Know which knob controls each surface heating unit. Place a • Use Care When Opening Oven Door or Warmer Drawer/Bake- pan of food on the unit before turning it on, and turn the unit off n-Warm Double Oven...
Page 5 ® (some models) Your Electric Range Features Include: Electronic Oven Control with Kitchen Timer. * i¸ Ji :'I 'l ' Left Front Single Radiant Element Control (some models) or Dual Radiant Element Control (some models). Left Rear Single Radiant Element Control (some models) or Dual ®...
Page 6 OVENVENT Oven Vent Location The oven vent is located under the left side of the control panel (See Fig. 1). When the oven is on, warm air passes through the vent. This venting is necessary for proper air circulation in the oven and good baking results.
Page 7 About the Ceramic Glass Cooktop The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the element outline on the cooktop.
Page 8 S ettin g Surfa ce Co n tro Is *CORRECT Using proper cookware INCORRECT The size and type of cookware used will influence the setting needed for best cooking results. Cookware should have flat bottoms that make good contact with the entire surface heating •...
Page 9 Setting Surfa ce Con trois To Operate Dual Radiant Surface Elements (some models) ® Small Large Small Large Element Element Element Element Symbols on the backguard are used to indicate which coil of the Dual Radiant element will heat. The o symbol indicates the inner coil only. The @ symbol indicates both inner and outer coils will heat (See Figs.
Page 10 READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use ofyour oven, become familiar with the various pad functions of the oven as described below. CLOCK BAKE TIME UP and DOWN ARROW PADS-- Used along BAKE PAD--Used PAD-- Used PAD-- Used to with the function...
Page 11: Setting Oven Controls
Setting Oven Controls ..• • • • Oven @@© :::::. © Controls • • . Selt-Cleanin_ Oven• . . Note: The time of day must first beset in order to operate the oveni To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00".
Page 12 To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: Press _. " "appears in the display. Within 5 seconds, press the A or V-The displaywill show "350°F (177°C).
Page 13 Settin g Ove nC ontro Is To Set the Timed Bake and Delay Start (Delayed Timed Bake) Features The _ BAKE TIME and _ START TIME pads operate the features that will turn the oven ON and OFF at the times you select in advance.
Page 14 Speed Bake Cooking System Benefits of Speed Bake Cooking Speed Bake System: --Foods cook up to 25 to 30% faster, • • • • Oven saving time and energy. --Multiple rack baking. , , Self-cleaning Oven --No special pans or bakeware needed. How the Speed Bake Cooking...
Page 15 To Set for Broiling: Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Table below. "will appear in display. Press _. "---- Press and hold the A or V until the desired broil setting level appears in the display.
Page 16 Bake.n.Warm TM Double Oven Dual Features of the Bake-n-Warm Double Oven The Bake-n-Warm Double Oven is designed to provide two unique food preparation features. The features provide a Mini Oven and a Warmer Drawer using the same lower oven cavity, drawer and control. The Mini Oven feature is ideal for cooking foods such as pizza, casseroles, baked potatoes and frozen convenience foods.
Page 17 To Set the Mini Oven Feature of the Bake-n-Warm Double Oven: Push in and turn the Bake-n-Warm TM control knob clockwise to the desired temperature setting (See Fig. 1). A beep will sound indicating the oven is ON. For best results always preheat the oven drawer before adding food. An empty oven Mini Warmer drawer will preheat in approximately 15 minutes.
Page 18: Bake-N-Warm
Bake'n.Warm Double Oven Bake-n-Warm Double Oven Light Operation (some models): The Bake-n-Warm Double Oven light operates with the upper oven light and automatically turns ON when the upper oven door is opened. If equipped, the Bake-n-Warm Double Oven light may also be manually operated by pressing the _ pad.
Page 19: Self-Cleaning (Speed Clean)
During the Self-Cleaning cycle, the outside of the range can ....become very hot to the touch. DO NOT leave small children unattended near the appliance. The health of some birds Oven • • • • is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any Door Locked •...
Page 20 Starting the Self-Clean Cycle or a Delayed Start Self-Clean Cycle (including Speed Clean) satisfactory results, press the _ (Speed Clean) pad for a 2 hour Self-Clean cycle (for lighter soils). Press the (Clean) pad for a 3 hour cycle (for heavier soils). NOTE: The kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood during the 1st Self-Clean cycle.
Page 21: General Care & Cleaning
Surfaces How to Clean Aluminum (Trim Pieces) & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth. Painted and Plastic Control Knobs, Forgeneral cleaning, use hot, soapywater and a cloth. Formore difficult soils and Body Parts, and Decorative Trim built-up grease, apply a liquid detergent directly onto the soil.
Page 22 Note: Additional cooktop cleaning cream may be ordered by visiting the Frigidaire website at www.frigidaire.com Prior to using your cooktop for the first time, apply some of the cooktop cleaning cream supplied with your new range. Buffwith a non-abrasive cloth or pad (such as a 3M Scotch-Brite®...
Page 23 Cleaning Recommendations for the Ceramic Glass Cooktop (cont'd) • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult to clean. Do not use the following on the ceramic glass cooktop: •...
Page 24 Changing the Oven Light The oven light automatically turns ON when the door is opened. The oven light Oven may also be manually operated by pressing the @ pad. Light The oven light bulb is located at the rear of the oven and is covered with a glass shield held by a wire holder.
Page 25: Before You Call
Before You Call Solutions to Common Probiems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION...
Page 26: Solutions Tocommonproblems
Solutions toCommonProblems OCCURRENCE POSSIBLE CAUSE/SOLUTION Oven light does not work. Replace or tighten bulb. See Changing Oven Light section in this Use & Care Manual. Control(s) not set properly. Follow instructions under Setting Oven Controls. Oven smokes excessively during broiling. Make sure oven door is opened to broil...
Page 28: Warranty
LIMITED WARRANTY Your range is protected by this warranty WARRANTY THROUGH OUR AUTHORIZED THE CONSUMER WILL BE PERIOD SERVICERS WE WILL: RESPONSIBLE FOR: FULLONE-YEAR year from original Pay all costs for repairing or replacing any parts of this Costs of service calts that are Iisted under NORMAL WARRANTY purchase...
