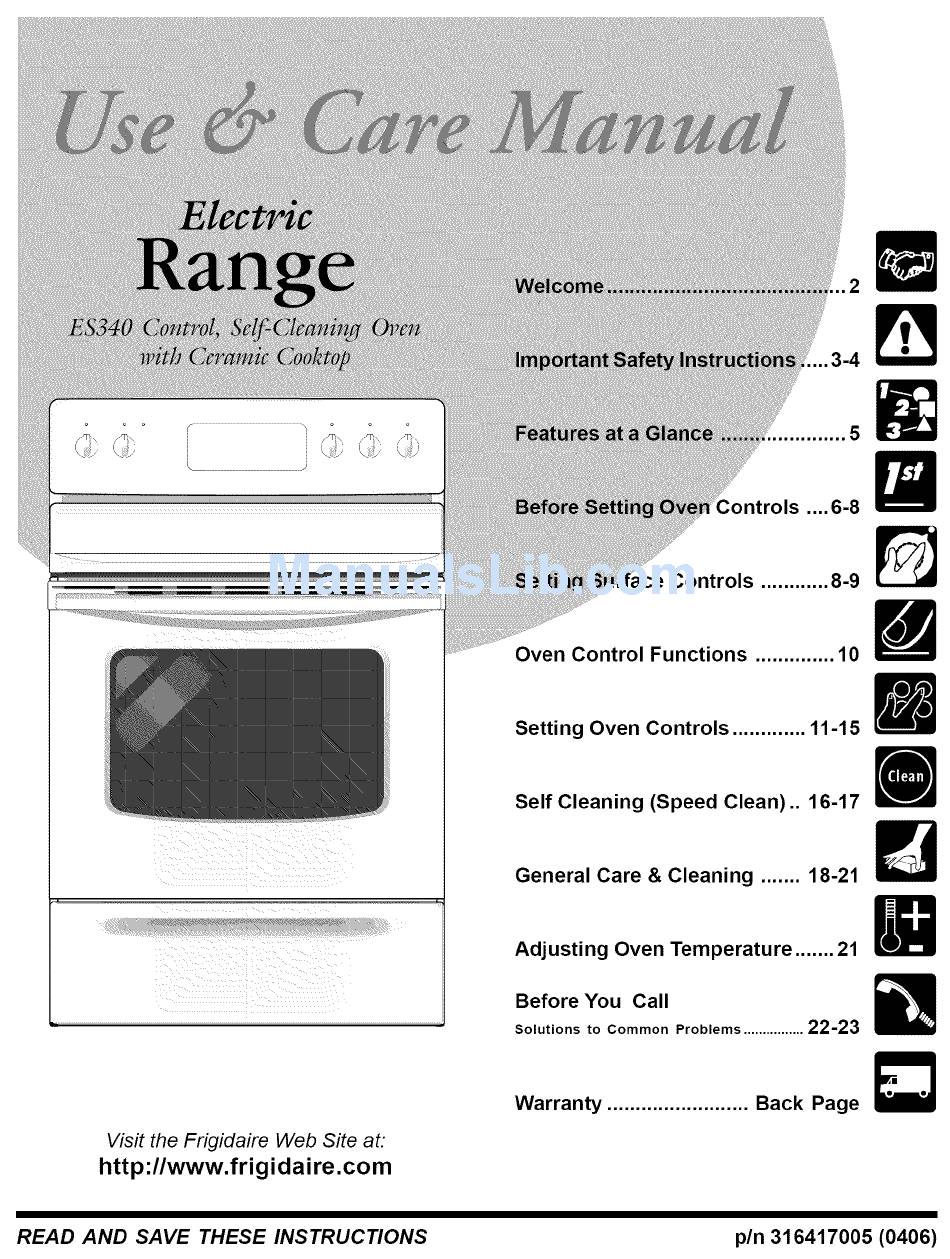

Page 1: Table Of Contents
General Care & Cleaning ..18-21 Ill, Adjusting Oven Temperature ..21 Before You Call 22-23 Solutions to Common Problems ....Warranty ......Back Page Visit the Frigidaire Web Site at: http://www.frigidaire.com READ AND SAVE THESE INSTRUCTIONS pin 316417005 (0406)
Page 2 Congratulations on your purchase of a new range! At Electrolux Home Products, we are very proud of our product and are completely committed to providing you Questions? with the best service possible. Your satisfaction is our number one priority. 1-800-944-9044 We know you'll enjoy your new range and Thank You for choosing our product.
Page 3 Important Safety Instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. This symbol will help alert you to situations that may cause serious bodily harm. death or property damage. This symbol will help alert you to situations that may cause bodily injury or property damage.
Page 4 IMPORTANT INSTRUCTIONS FOR USING YOUR IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP OVEN • Use Care When Opening Oven Door or Warmer Drawer • Know which knob controls each surface heating unit. Place a equipped)--Stand to the side of the range when opening the door pan of food on the unit before...
Page 5 7 ® Your Electric Range Features Include: Electronic Oven Control with Kitchen Timer. Left Front Single Radiant Element Control (some models) or Dual Radiant Element Control (some models). Left Rear Single Radiant Element Control (some models) or Dual Radiant Element Control (some models). Warming Zone Radiant Element Control (some models).
Page 6 OVENVENT Oven Vent Location The oven vent is located under the left side of the control panel (See Fig. 1). When the oven is on, warm air passes through the vent. This venting is necessary for proper air circulation in the oven and good baking results.
Page 7 About the Ceramic Glass Cooktop The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the element outline on the cooktop.
Page 8 S ettin g Surfa ce Co n tro Is *CORRECT Using proper cookware INCORRECT The size and type of cookware used will influence the setting needed for best cooking results. Cookware should have flat bottoms that make good contact with the entire surface heating •...
Page 9 Setting Surfa ce Con trois To Operate Dual Radiant Surface Elements (some models) ® Small Large Small Large Element Element Element Element Symbols on the backguard are used to indicate which coil of the Dual Radiant element will heat. The o symbol indicates the inner coil only. The @ symbol indicates both inner and outer coils will heat (See Figs.
Page 10 READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use ofyour oven, become familiar with the various pad functions of the oven as described below. CLOCK BAKE TIME UP and DOWN ARROW PADS-- Used along BAKE PAD--Used PAD-- Used PAD-- Used to with the function...
Page 11: Controls
Setting Oven Controls ..• • • • Oven @@© :::::. © Controls • • . Selt-Cleanin_ Oven• . . Note: The time of day must first beset in order to operate the oveni To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00".
Page 12 To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: Press _. " "appears in the display. Within 5 seconds, press the A or V-The displaywill show "350°F (177°C).
Page 13 Setting oven Controls To Set the Timed Bake and Delay Start (Delayed Timed Bake) Features The @ BAKE TIME and _ START TIME pads operate the features that will turn the oven ON and OFF at the times you select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin baking at a later time with a delayed start time (Delayed Timed Bake).
Page 14 Speed Bake Cooking System Benefits of Speed Bake Cooking Speed Bake System: --Foods cook up to 25 to 30% faster, • • • • Oven saving time and energy. --Multiple rack baking. , , Self-cleaning Oven --No special pans or bakeware needed. How the Speed Bake Cooking...
Page 15: General Care & Cleaning
To Set for Broiling: Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Table below. "will appear in display. Press _. "---- Press and hold the A or V until the desired broil setting level appears in the display.
Page 16 During theSelf-Cleaning cycle, t heoutside oftherange can ....become veryhottothetouch. D ONOT leave small c hildren unattended nearthe appliance. Thehealth ofsomebirds Oven • • • • isextremely s ensitive tothefumes given offduring theSelf-Cleaning cycle ofany Door Locked • range. M ove birds toanotherwell- ventilated r oom.
Page 17 Starting the Self-Clean Cycle or a Delayed Start Self-Clean Cycle (including Speed Clean) satisfactory results, press the _ (Speed Clean) pad for a 2 hour Self-Clean cycle (for lighter soils). Press the (Clean) pad for a 3 hour cycle (for heavier soils). NOTE: The kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood during the 1st Self-Clean cycle.
Page 18 (Cleaning Table) Surfaces How to Clean Aluminum (Trim Pieces) & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth. Painted and Plastic Control Knobs, Forgeneral cleaning, use hot, soapywater and a cloth. Formore difficult soils and Body Parts, and Decorative Trim built-up grease, apply a liquid detergent directly onto the soil.
Page 19 Note: Additional cooktop cleaning cream may be ordered by visiting the Frigidaire website at www.frigidaire.com Prior to using your cooktop for the first time, apply some of the cooktop cleaning cream supplied with your new range. Buffwith a non-abrasive cloth or pad (such as a 3M Scotch-Brite®...
Page 20 Cleaning Recommendations for the Ceramic Glass Cooktop (cont'd) • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult to clean. Do not use the following on the ceramic glass cooktop: •...
Page 21 Changing the Oven Light The oven light automatically turns ON when the door is opened. The oven light Oven may also be manually operated by pressing the @ pad. Light The oven light bulb is located at the rear of the oven and is covered with a glass shield held by a wire holder.
Page 22: Before You Call
Before You Call So/utions to Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION...
Page 23: Solutions To Common Problems
Solutions to Common Problems OCCURRENCE POSSIBLE CAUSE/SOLUTION Oven light does not work. Replace or tighten bulb. See Changing Oven Light section in this Use & Care Manual. Oven smokes excessively during broiling. Control(s) not set properly. Follow instructions under Setting Oven Controls.
Page 24: Warranty
LIMITED WARRANTY Your range is protected by this warranty WARRANTY THROUGH OUR AUTHORIZED THE CONSUMER WILL BE PERIOD SERVICERS WE WILL: RESPONSIBLE FOR: FULLONE-YEAR year from original Pay all costs for repairing or replacing any parts of this Costs of service calts that are Iisted under NORMAL WARRANTY purchase...
