PRODUCT NO.
BASE MODEL NO.
GLEC30S8AQA
GLEC30S8A
GLEC30S8ASA
GLEC30S8A
WIRING DIAGRAM - # 318047024
OWNER'S GUIDE - # 318200612
INSTALLATION INSTRUCTIONS - # 318201410
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. BOX 212378, Augusta, GA 30917
FACTORY PARTS CATALOG
FACTORY NO.
COLOR
3805624361041
bisque
3805623361011
white
Publication No.
5995360145
011018
-EN/SERVICE /ECL
377
RANGE
MARKET
North America
North America
ELECTRIC

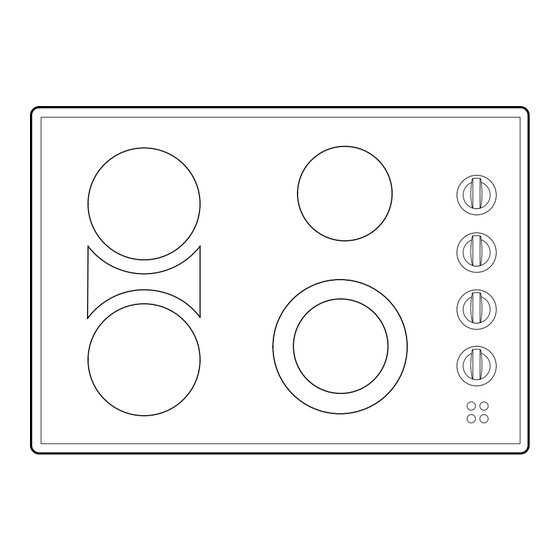

COOKTOP
Model No.
GLEC30S8A
©2001 White Consolidated Industries, Inc.
All rights reserved
Advertisement
Related Manuals for Frigidaire GLEC30S8A
Summary of Contents for Frigidaire GLEC30S8A
- Page 1 PRODUCT NO. BASE MODEL NO. GLEC30S8AQA GLEC30S8A GLEC30S8ASA GLEC30S8A WIRING DIAGRAM - # 318047024 OWNER’S GUIDE - # 318200612 INSTALLATION INSTRUCTIONS - # 318201410 ELECTROLUX HOME PRODUCTS NORTH AMERICA P.O. BOX 212378, Augusta, GA 30917 FACTORY PARTS CATALOG FACTORY NO.
-
Page 2: Control Panel
Publication No. GLEC30S8A 5995360145 CONTROL PANEL 10/01... - Page 3 A = GLEC30S8A (GLEC30S8ASA) B = GLEC30S8A (GLEC30S8AQA) POS. NO 54 # # = Functional Parts * = Non-Illustrated Parts GLEC30S8A CONTROL PANEL PART NO DESCRIPTION 318096325 Box,instrument mtg 318196603 Knob,control ,white 318196605 Knob,control ,bisque 318196600 Knob,dual control ,white 318196602...
- Page 4 Publication No. GLEC30S8A 5995360145 MAINTOP / SURFACE UNITS 10/01...
- Page 5 A = GLEC30S8A (GLEC30S8ASA) B = GLEC30S8A (GLEC30S8AQA) POS. NO 15 # 15A# 15B# # = Functional Parts * = Non-Illustrated Parts GLEC30S8A MAINTOP / SURFACE UNITS PART NO DESCRIPTION 316010205 Element,surface ,6" ,1200 W ,radiant 318177900 Element,bridge 316224300 Element,dual ,9"/6" ,surface ,2100W/700W,radiant...
-
Page 6: Wiring Diagram
Publication No. GLEC30S8A 5995360145 WIRING DIAGRAM 10/01...
