DIGITAL MEDIA RECEIVER
RÉCEPTEUR MÉDIA NUMÉRIQUE
RECEPTOR DE MEDIOS DIGITALES
MVH-S512BS
Important (Serial number)
The serial number is located on the bottom of this unit. For your own security and convenience, be sure to
record this number on the enclosed warranty card.
Important (Numéro de série)
Le numéro de série se trouve au bas de cet appareil. Pour votre sécurité et votre commodité, veillez à noter ce
numéro sur la carte de garantie fournie.
Importante (Número de serie)
El número de serie se encuentra en la parte inferior de esta unidad. Por su propia seguridad y comodidad,
asegúrese de anotar este número en la tarjeta de garantía que se adjunta.
Operation Manual
Mode d'emploi
Manual de operación

Advertisement

Table of Contents
loading

Related Manuals for Pioneer MVH-S512BS

Summary of Contents for Pioneer MVH-S512BS

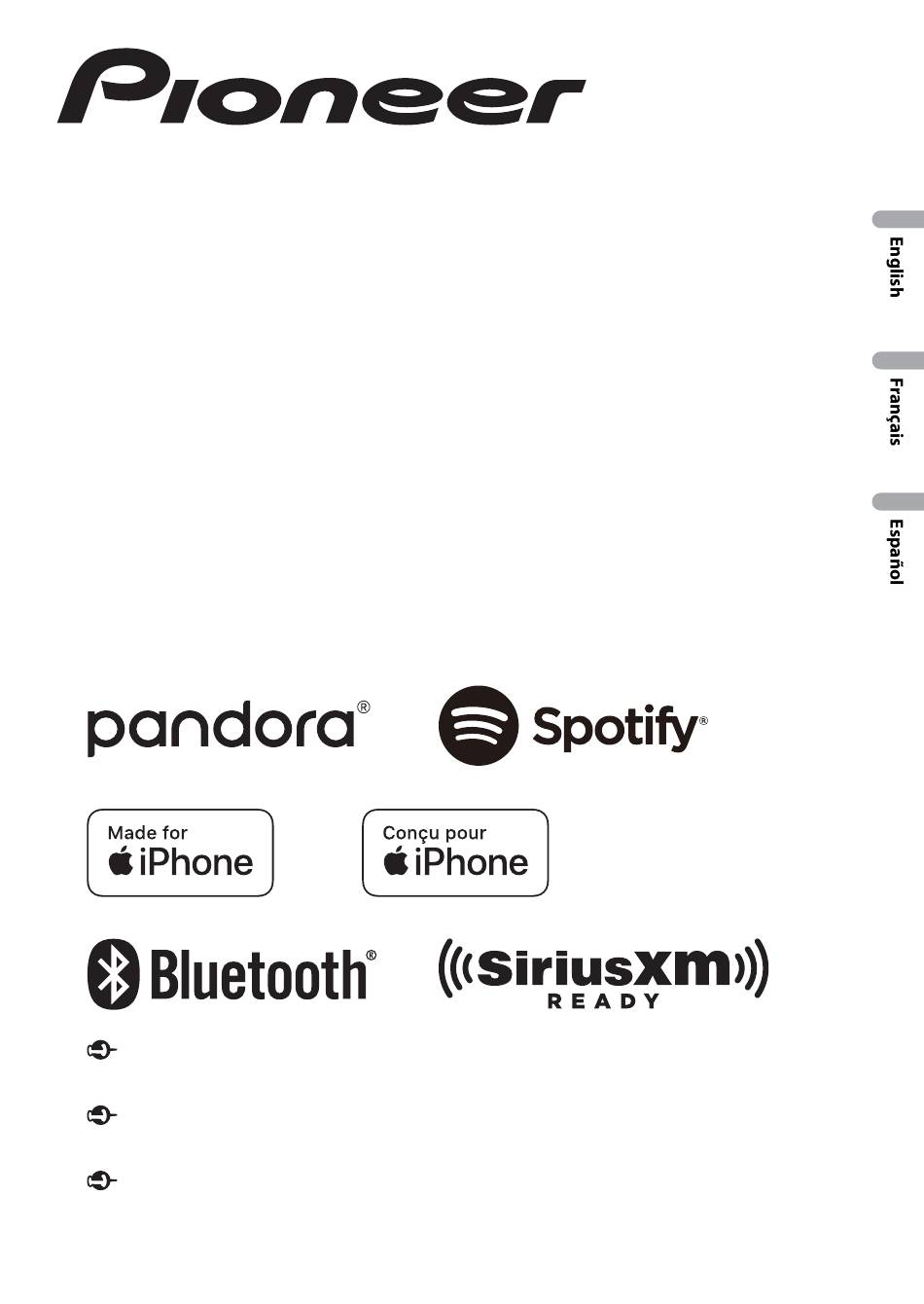

  • Page 1 DIGITAL MEDIA RECEIVER RÉCEPTEUR MÉDIA NUMÉRIQUE RECEPTOR DE MEDIOS DIGITALES MVH-S512BS Operation Manual Mode d’emploi Manual de operación Important (Serial number) The serial number is located on the bottom of this unit. For your own security and convenience, be sure to record this number on the enclosed warranty card.

  • Page 2: Table Of Contents

    USB/iPhone®/AUX..................8 Bluetooth ....................10 Pandora® ....................14 Spotify® ....................16 SiriusXM Satellite Radio ..............18 Using Pioneer Smart Sync/APP............21 Audio Adjustments ................24 Settings ....................26 FUNCTION settings ................26 AUDIO settings ..................28 SYSTEM settings ..................31 ILLUMINATION settings................

  • Page 3: Getting Started

    Getting Started Basic operation MVH-S512BS M.C. (multi-control) dial USB port SRC (source)/OFF DISP (display) Display window BAND/ BASS (navigation)/LIST Detach button AUX input jack (3.5 mm stereo jack) Optional remote control The remote control CD-R510 is sold separately. Frequently used operations...
  • Page 4 Appears when a Bluetooth connection is made (page 10). Appears when a Pioneer Smart Sync connection is made (page 21). Detaching the front panel Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it.
  • Page 5 Resetting the microprocessor The microprocessor must be reset in the following situations: – Before using this unit for the first time after installation – If the unit fails to operate properly – When strange or incorrect messages appear on the display Remove the front panel (page 4).
  • Page 6 [USB CONN. SET] appears when all the settings have been made. Press the M.C. dial to clear the message. • A message that prompts you to install the Pioneer Smart Sync application will appear on your iPhone/Android device by connecting your device to the unit via USB.

  • Page 7: Radio

    Press the M.C. dial to display the main menu. Turn the M.C. dial to select [INITIAL], then press to confirm. Turn the M.C. dial to select an option, then press to confirm. Menu Item Description REAR-SP Select when there is a full-range speaker connected to the rear speaker output leads.

  • Page 8: Usb/Iphone®/Aux

    After selecting the band, press the M.C. dial to display the main menu. Turn the M.C. dial to select [FUNCTION], then press to confirm. Turn the M.C. dial to select [BSM], then press to confirm. To seek a station manually After selecting the band, press to select a station.
  • Page 9 AOA connections A device running Android OS 4.1 or later installed and also supports AOA (Android Open Accessory) 2.0 can be connected to the unit via AOA, using the cable supplied with the device. NOTE If you use an AOA connection, [APP CONTROL] needs to be set to [WIRED] (page 32) and [USB MTP] needs to be set to [OFF] (page 32) in the SYSTEM settings.

  • Page 10: Bluetooth

    For details on MIXTRAX settings, see page 34. NOTES • iPhone needs to be connected with Pioneer Smart Sync via USB for using this function (page 21). • Depending on the file/song, sound effects may not be available.
  • Page 11 The unit starts to search for available devices, then displays them in the device list. • To cancel searching, press the M.C. dial. • If the desired device is not in the list, select [RE-SEARCH]. • If there is no device available, [NOT FOUND] appears in the display. •...
  • Page 12 For details on the voice recognition features, refer to the manual supplied with your device. When a Pioneer Smart Sync connection is made (page 21), you can also use the voice recognition function from Pioneer Smart Sync installed on your iPhone/Android device by pressing and holding .
  • Page 13 Phone menu Press to display the phone menu. Menu Item Description RECENTS Display the missed call history. [MISSED] [DIALED] Display the dialed call history. [RECEIVED] Display the received call history. PHONE BOOK Display the contacts in your phone. PRESET 1-6 Recall the preset phone numbers.

  • Page 14: Pandora

    * Depending on the connected device, these operations may not be available. Pandora® (Not available when [USB MTP] is set to [ON] in the SYSTEM settings (page 32).) Pandora music is a music service not affiliated with Pioneer. More information is available at http://www.pandora.com. - 14 -...
  • Page 15 The Pandora mobile application is available for iPhone and Android phones. Please visit www.pandora.com/everywhere/mobile for the latest compatibility information. Listening to Pandora Update the firmware of the Pandora application to the latest version before use. Connect this unit with the mobile device. •...

  • Page 16: Spotify

    Spotify® (Not available when [USB MTP] is set to [ON] in the SYSTEM settings (page 32).) Spotify is a music streaming distribution service not affiliated with Pioneer. More information is available at http://www.spotify.com. The Spotify application is available for compatible smartphones, please visit https:// support.spotify.com/ for the latest compatibility information.
  • Page 17 Press and hold 1/ to display [APP CONTROL]. Turn the M.C. dial to select one of the below. • Select [WIRED] for the USB connection. • Select [BLUETOOTH] for the Bluetooth connection. Press SRC/OFF to select [SPOTIFY]. Launch the Spotify application on the mobile device and start playback. NOTE When you connect a mobile device other than an iPhone/Android device, it may not operate correctly depending on your mobile device.

  • Page 18: Siriusxm Satellite Radio

    SiriusXM Satellite Radio Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required.
  • Page 19 NOTE The Radio ID does not include the letters I, O, S or F. Activate the SiriusXM service online or by phone. For US Subscriptions: • Visit www.siriusxm.com/activatenow • Call SiriusXM Listener Care at 1-866-635-2349 For Canadian Subscriptions: • Visit www.siriusxm.ca/activatexm •...
  • Page 20 NOTE You can also make various adjustments in the SiriusXM settings (page 27). Category scan The live broadcast for each channel in the current category plays for six seconds at a time. Follow the instructions below. To search for a channel from a list Press and hold during playback.

  • Page 21: Using Pioneer Smart Sync/App

    For details on what operations are available on the application, see the application’s help section. NOTE The APP source is not available when a Pioneer Smart Sync connection is not made or [USB MTP] is set to [ON] in the SYSTEM settings (page 32). WARNING Do not attempt to operate the application while driving.
  • Page 22 For Android device users This function is compatible with devices that have Android OS 5.0 or later installed. You can download Pioneer Smart Sync on Google Play. NOTE Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version.
  • Page 23 • The 31 Band EQ setting is converted into 13 bands when a music source from this product is engaged. It is recommended to enter the search term "Pioneer Smart Sync" in the search field to search for the application.

  • Page 24: Audio Adjustments

    • When you connect a mobile device other than an iPhone/Android device, it may not operate correctly depending on your mobile device. • If Pioneer Smart Sync has not been installed on your iPhone/Android device yet, a message that prompts you to install the application will appear on your iPhone/Android device (except for the Android device connected via Bluetooth).
  • Page 25 Adjusting the cut-off frequency value and the slope value You can adjust the cut-off frequency value and the slope value of each speaker. The following speakers can be adjusted. Network mode: [HIGH] (high-range speaker HPF), [MID HPF] (middle-range speaker HPF), [MID LPF] (middle-range speaker LPF), [SUBWOOFER] Standard mode: [FRONT], [REAR], [SUBWOOFER]...

  • Page 26: Settings

    Settings You can adjust various settings in the main menu. Press the M.C. dial to display the main menu. Turn the M.C. dial to select one of the categories below, then press to confirm. • FUNCTION settings (page 26) • AUDIO settings (page 28) •...
  • Page 27 Menu Item Description BOOKMARK Store the track information currently being played in your Pandora account. NEW STATION [FROM TRACK], [FROM ARTIST] Create a new station based on the track or artist currently being played. PLAY Start playback. STOP Stop playback. SiriusXM settings Menu Item Description...

  • Page 28: Audio Settings

    1 Repeat steps 1 to 3 to enter a new passcode. 2 After inputting the passcode, press the M.C. dial. The new passcode is saved. AUDIO settings NOTE [CHK APP SETTG.] may be displayed when the setting is performed from Pioneer Smart Sync. - 28 -...
  • Page 29 M.C. dial, then store the preset equalizer curve that is the customized equalizer curve in [CUSTOM1]. not available in the unit has been set from Pioneer Smart Sync. Select an equalizer band and level for further customizing. Equalizer band: [50HZ] to [12.5kHZ]...
  • Page 30 [CROSSOVER], [SPEAKER LEVEL], [EQ SETTING], [POSITION], [TIME ALGNMNT], [D.BASS], [SUBWOOFER]. • The settings that can be saved differ when a Pioneer Smart Sync connection is made. LOAD SETTINGS Load the sound settings, when you have already performed [SAVE SETTINGS].

  • Page 31: System Settings

    CLOCK SET [12H], [24H] Set the clock (page 5). • This setting is not available when a Pioneer Smart Sync connection is made. BEEP TONE (Only for standard mode) [ON], [OFF] A beep can be heard when any button is pushed.
  • Page 32 [ON]. • APP, PANDORA, SPOTIFY, iPhone, and USB (AOA) AUTO APP CONN [ON], [OFF] Select [ON] to automatically launch Pioneer Smart Sync when the iPhone/Android device is connected to the unit. USB AUTO [ON], [OFF] Select [ON] to automatically switch to USB source when a USB device/iPhone is connected to the unit.

  • Page 33: Illumination Settings

    The available sources differ depending on the setting value. Please set [APP CONTROL] according to the table for the source you want to use. For details on Pioneer Smart Sync connection, see page 21. When Pioneer Smart Sync connection is NOT performed...

  • Page 34: Mixtrax Settings

    [PHONE COLOR] – you are on a phone call – the message received on the device is being read when a Pioneer Smart Sync connection is made – the front panel is attached. The illumination effect will activate when the ACC power is turned on/off regardless of this setting.
  • Page 35 Menu Item Description FLASH AREA [KEY/DISPLAY], [KEY], [OFF] Select the area for the illumination effect. When [OFF] is selected, the color set under the ILLUMINATION settings (page 33) is used as the display color. FLASH PATTERN [SOUND LEVEL 1] to [SOUND LEVEL Change the illumination effect according to the sound and bass level.

  • Page 36: Additional Information

    ON again. If the message remains, – Select the repeat play range again. contact your dealer or an authorized Pioneer Service Station for assistance. A subfolder is not played back. → Subfolders cannot be played when NO XXXX (NO TITLE, for example) [FLD] (folder repeat) is selected.
  • Page 37 SKIPPED ERROR-23 → The connected USB device contains → USB device was not formatted properly. DRM protected files. – Format the USB device with FAT12, – The protected files are skipped. FAT16 or FAT32. PROTECT ERROR-16 → All the files on the connected USB →...
  • Page 38 Pandora – Wait until Pandora allows you to skip again. ERROR-19 UPDATE APP → Communication failed. → This version of the Pandora application – Disconnect the cable from the device. is not supported. Once the device’s main menu is – Connect a device that has a displayed, reconnect the device and compatible version of the Pandora reset it.
  • Page 39 CHECK ANTENNA → The antenna cable may be either disconnected or damaged. CONNECT APP – Check the antenna connection or → Pioneer Smart Sync connection is not replace if damaged. made. – Make a connection with Pioneer Smart CHECK TUNER →...
  • Page 40 Handling guidelines NO SIGNAL → The SiriusXM Connect Vehicle Tuner is having difficulty receiving the SiriusXM USB storage device satellite signal. – Move your vehicle outdoors with a • Connections via USB hubs are not clear view of the southern sky. supported.
  • Page 41 8 and 16 (LPCM) hierarchies. Sampling frequency 16 kHz to 48 kHz (LPCM) CAUTION • Pioneer cannot guarantee compatibility AAC files with all USB mass storage devices, and assumes no responsibility for any loss of Compatible format AAC encoded by...
  • Page 42 Bluetooth SIG, • Users of iPhone with the Lightning® Inc. and any use of such marks by PIONEER Connector should use the Lightning to CORPORATION is under license. Other USB Cable (supplied with iPhone).
  • Page 43 INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER MIXTRAX IN CONTRACT, STRICT LIABILITY, OR TORT MIXTRAX is a trademark of the PIONEER (INCLUDING NEGLIGENCE OR OTHERWISE) CORPORATION. ARISING IN ANY WAY OUT OF THE USE OF Spotify®...
  • Page 44 T-Kernel 2.0 Audio This product uses the source code of T- Maximum power output: Kernel 2.0 under T-License 2.0 granted by • 50 W × 4 ch/4 Ω (for no subwoofer) T-Engine Forum (www.tron.org). • 50 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for subwoofer) Copyright (C) 1998-2009 PacketVideo Continuous power output:...
  • Page 45 Slope: –6 dB/oct, –12 dB/oct, –18 dB/ AM tuner oct, –24 dB/oct, OFF Frequency range: 530 kHz to 1 710 kHz Low pass filter (MID) (Network mode): Usable sensitivity: 25 μV (S/N: 20 dB) Frequency: 1.25 kHz/1.6 kHz/2 kHz/ Signal-to-noise ratio: 60 dB (analog 2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/ broadcasting) (IHF-A network) 8 kHz/10 kHz/12.5 kHz...
  • Page 46 © 2018 PIONEER CORPORATION. All rights reserved. © 2018 PIONEER CORPORATION. Tous droits de reproduction et de traduction réservés. <QRI3108-A> UC...
  • Page 55 By utilizing more of your smartphone’s features, it expands, evolves and furthers the enjoyment of every moment you spend in your car. With the Pioneer Smart Sync app, you can bring your smartphone’s maps, messages, and music together in the car. To learn more about the Pioneer Smart Sync app, visit www.pioneer-carglobal.com/pss.
  • Page 56 English, French, Spanish English, French, Spanish English, French, Spanish Multi-language UI For full specifications and other Pioneer products, visit www.pioneerelectronics.com CAUTION: Read all safety instructions in plan. Android devices require a Bluetooth connection Pandora, the Pandora logo, and the Pandora trade Pioneer Electronics (USA) Inc.
