Summary of Contents for Ryobi R18XLMW20

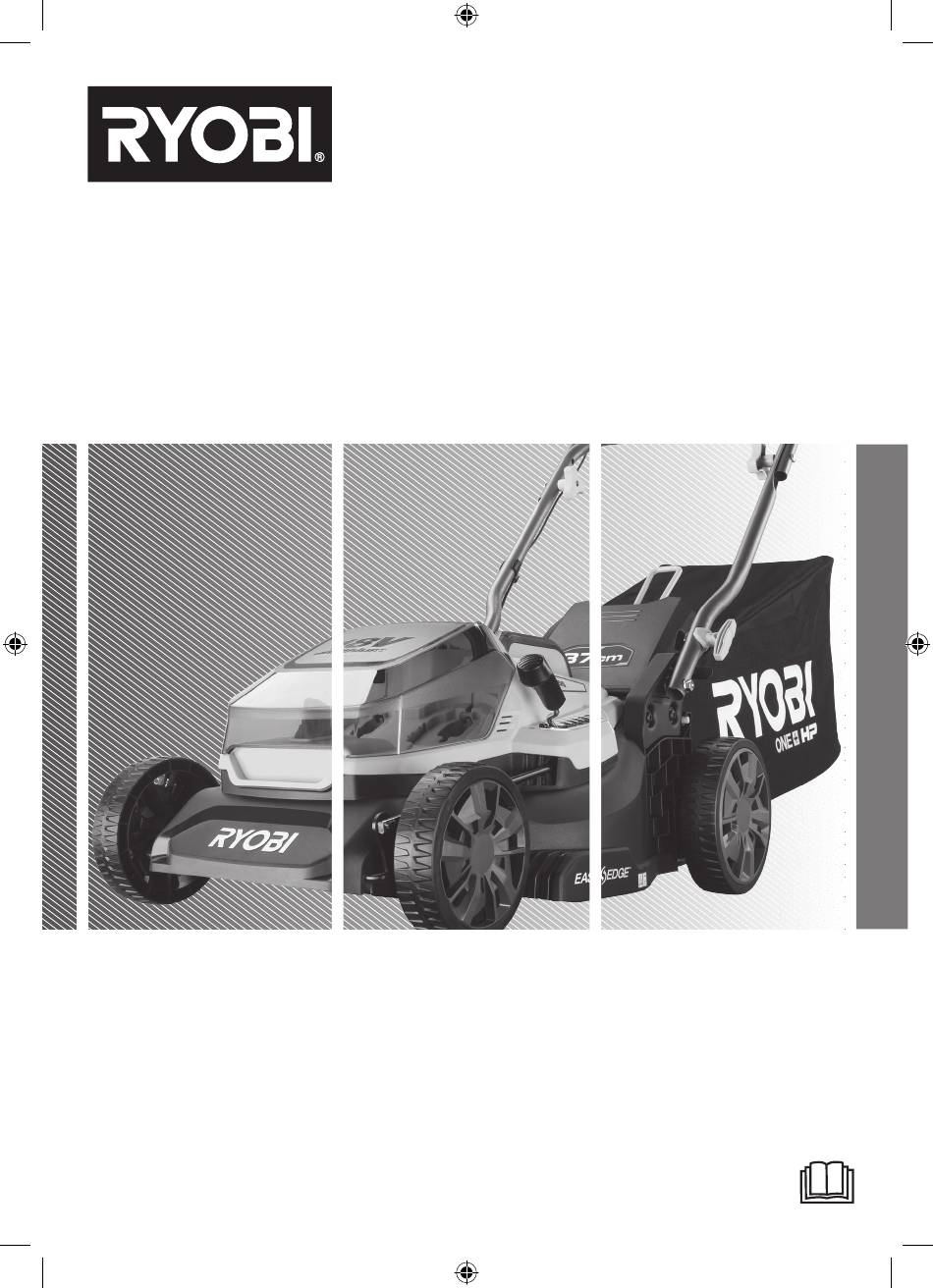

- Page 1 FRONT PAGE R18XLMW20...
-
Page 2: Intended Use
■ Do not use the product near drop-offs, IMPORTANT! ditches, excessively steep slopes, or It is essential that you read the instructions embankments. in this manual before assembling, operating, ■ Always wear safety glasses. and maintaining the product. ■ The product is capable of amputating hands Subject to technical modification. -
Page 3: Lawnmower Safety Warnings
BATTERY TOOL USE AND CARE ■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. ■ Read, understand, and always follow If contact accidentally occurs, flush with the safety instructions which came with water. If liquid contacts eyes, additionally your battery and charger. -
Page 4: Product Features
near or under rotating parts. Keep clear of ADDITIONAL BATTERY SAFETY the discharge opening at all times. WARNINGS ■ Never pick up or carry the product while it To reduce the risk of fire, personal injury, and is running. product damage due to a short circuit, never ■... -
Page 5: Transportation And Storage
■ Check all nuts, bolts, and screws at frequent TRANSPORTATION AND STORAGE intervals for proper tightness to ensure that ■ Turn off the product, and remove the isolator the product is in safe working condition. key and the battery pack. Make sure that ■... -
Page 6: Symbols On The Product
SYMBOLS ON THE PRODUCT Read and understand all instructions before operating the product. Follow all warnings and safety instructions. Wear ear protection. Wear eye protection. Do not operate the product on inclines greater than 15°. Mow across the face of slopes, never up and down. - Page 7 R18XLMW20 Start button On/off lever Motor control cable Handle Motor control cable retainer Handle lock Grass catcher Quick-release fastener Battery door Cutting height adjustment lever Rear wheel Front wheel Isolator key Mulching plug Operator’s manual Battery pack Charger R18XLMW24 15 mm...
- Page 8 Wear full eye protection, ear protection, Set the handle to the operating Attach the top handle to the bottom non-slip heavy-duty gloves, substantial position. Make sure that the quick- handle. Install and tighten the handle footwear, and long trousers at all times release fasteners snap to lock the knobs to secure and lock the handles.
- Page 9 Make sure the handle locks are tight Insert the motor control cable into the motor control cable retainers. Clip the and secure. retainers to the right-hand handle, securing the motor control cable. Ensure that the motor control cable is properly routed along the handle. Always make sure that the cable is never trapped, pinched, or damaged during assembly or when folding the handles.
- Page 10 Cutting with easy Adjusting the Using the grass p.11 p.12 p.13 edge cutting height catcher Cleaning the Replacing the Emptying the grass Storing the product p.14 p.17 p.16 p.18 product blade catcher...
- Page 11 USING THE GRASS CATCHER WARNING: Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. WARNING: Do not operate the product on inclines greater than 15°. Mow across the face of slopes, never up and down. 1. Open the battery door. Insert the battery Max.15˚...
- Page 12 CUTTING WITH EASY EDGE EASY EDGE allows the product to easily cut the grass along walls or the edge of the lawn. NOTE: EASY EDGE pulls grass towards the blade when the product is running along a wall or the edge of the lawn. Operation...
- Page 13 ADJUSTING THE CUTTING HEIGHT To adjust the deck height, pull the height adjustment lever towards the wheel, then raise or lower the deck to the preferred height. Make sure that the handle is always secured into one of the six height slots. NOTE: The cutting height can be adjusted to 6 positions.
- Page 14 REPLACING THE BLADE 1. Open the battery door. Remove the battery packs. Remove the isolator key, and close the battery door. 2. Tilt the product on its side. 3. Remove all grass clippings and debris from the cutting deck and blade. 4.
- Page 15 6. Install the new blade, washer, spacer, and nut. 7. Insert a piece of wood into the cutting deck to prevent the blade from spinning during tightening the blade nut. Hand- tighten the nut until the blade is secured and does not shake, then use a spanner to further tighten the nut to 35-40 Nm torque.
- Page 16 CLEANING THE PRODUCT Remove all foreign materials from the product. Clean the product with a soft, dry cloth, or cleaning brush. WARNING: Do not use water to clean the product. Maintenance...
- Page 17 EMPTYING THE GRASS CATCHER NOTE: Stop mowing when the grass catcher is full. Empty the grass catcher before resuming operation. 1. Raise the rear door, and remove the grass catcher. 2. Remove the grass clippings from the grass catcher into a bin. Maintenance...
- Page 18 STORING THE PRODUCT 1. Open the battery door. Remove the battery packs. Remove the isolator key, and close the battery door. 2. Raise the rear door, and remove the grass catcher. 3. Loosen the handle locking screws, and fold down the upper handle. 4.
- Page 19 6. Fold the grass catcher and place it on top of the product. 7. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts. Do not store the product outdoors.
-
Page 20: Product Specifications
Cordless lawnmower measured in accordance with a standardised Model R18XLMW20 test and may be used to compare one tool with Rated voltage 18 V d.c. another. They may be used for a preliminary assessment of exposure. - Page 24 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. © 2021 Techtronic Cordless GP. 961479052-01...
