Setting up a second listening zone

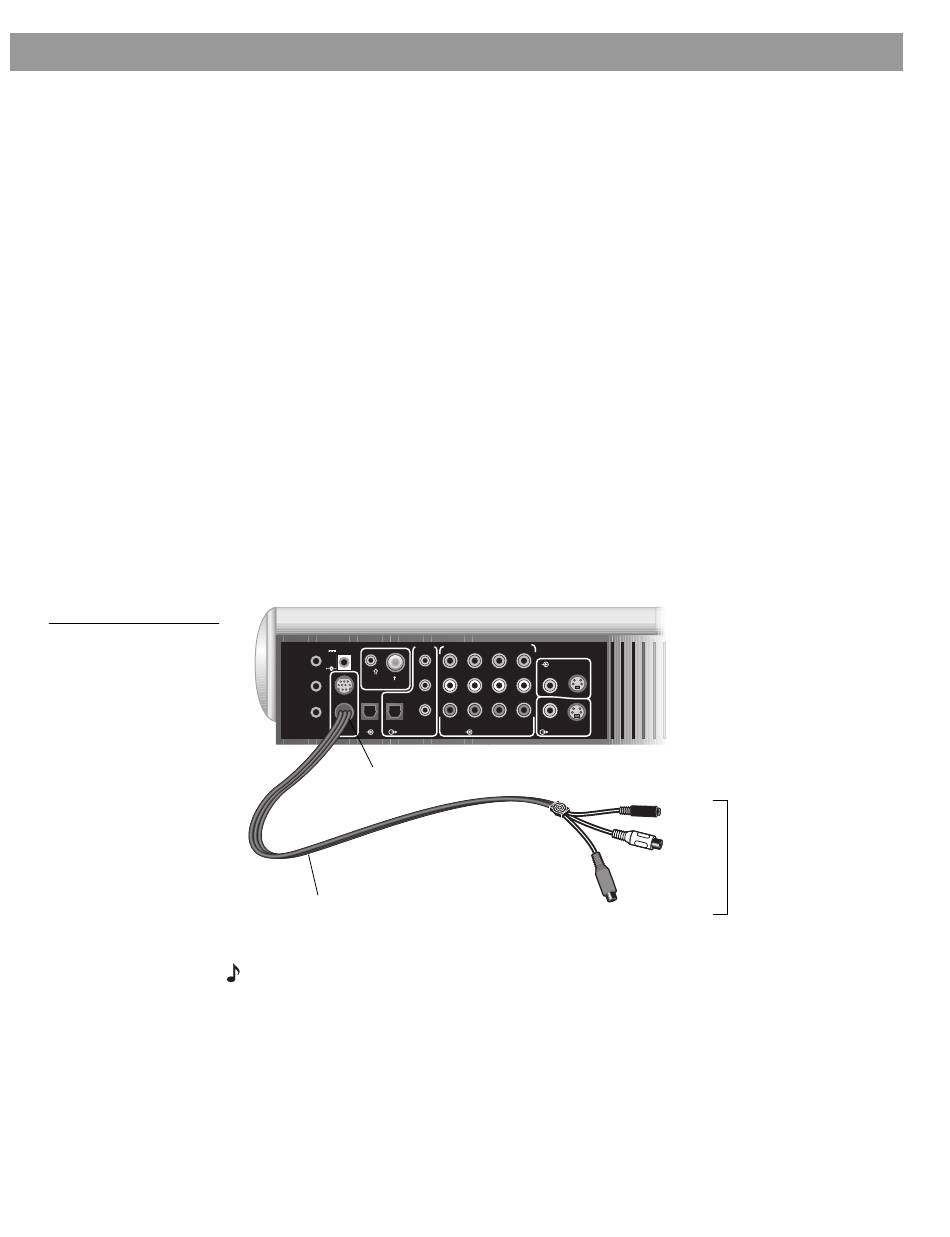

Figure 21
Media center-to-Zone 2
connections
AM 259777 Rev.00 PDF
®
Your Lifestyle home entertainment system can direct sound from one or two sound sources
(such as CD, AM/FM tuner, TAPE, or AUX) to two different listening zones at the same time.

What is a zone?

Each listening area, whether a room or a group of rooms (including outdoor areas), is called a
zone. Your primary listening area is set up as zone 1.

What do I need for setting up a second zone?

®
• A Bose powered speaker system that is compatible with your home entertainment system.
An existing stereo system can also be connected (special adapter required).
• The appropriate Lifestyle
SPEAKER ZONES 2 connector on the rear panel of the media center.
• A second Lifestyle ® system remote control to operate the zone 2 sound.
See your dealer or contact Bose for information on obtaining additional powered speakers,
remote controls, cables, and adapters for connecting additional equipment.
How do I set up a speaker system in a second zone?
1. Set up a speaker system in zone 2.
2. Connect the audio input cable from the zone 2 system to the SPEAKER ZONE 2 output
on the rear panel of the media center.
3. When power is connected and you are ready to set up your second remote control, see
"Setting up a second listening zone" in your Lifestyle
RECORD
33V DC POWER
1.1A
TV
SENSOR
L
AM
FM 75
IR
ANTENNA
EMITTER
R
1 OPTICAL OPTICAL
SERIAL
DATA
2
DIGITAL
INPUT OUTPUT
SPEAKER
AUDIO OUTPUTS
ZONES
Zone 2 output connection
Zone 2 stereo adapter kit cable
(Mini-DIN connector is marked "FIX".)
Note: For zone 2, use only cables that have a mini-DIN connector marked "FIX". Cables
marked "VAR" should not be used.
August 14, 2001
®
system cable to connect the zone 2 speaker system to the
TAPE AUX VCR TV
VIDEO INPUTS
COMPOSITE S-VIDEO
L L L L
R R R R
DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL
COMPOSITE S-VIDEO
AUDIO INPUTS VIDEO OUTPUTS
Reference
® system operating guide.
Zone 2 speaker connections
Control
Note: Before using your zone
2 speakers, you may need to
Left
change the "Zone 2 Protocol"
channel
setting for the zone 2 speak-
ers you are using. See
"Changing the System Set-
Right channel
up" in your operating guide.
23
