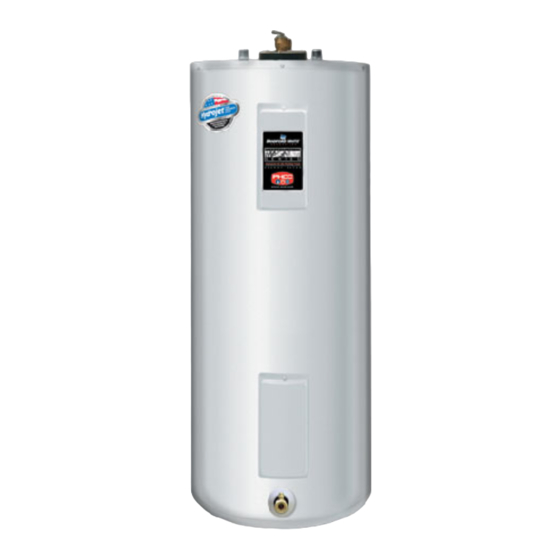

Bradford White ElectriFLEX LD RE1 Series Service Manual

Residential electric and light duty commercial electric water heater
Hide thumbs Also See for ElectriFLEX LD RE1 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Residential Electric and Light Duty
Commercial Electric Water Heaters
Manual 238-51544-00C REV /21
SERVICE
MANUAL
MANUAL
Troubleshooting Guide
and Instructions for Service
(To be performed ONLY by
qualified service providers)
Models Covered
by This Manual:
Residential:
RE1, RE2 & RE3 Upright Models.
RE1 & RE2 Lowboy Models.
RE1 Utility Models.
RE1 Wall Hung Models.
Light Duty:
LE Upright Models.
LE Utility Models.
LE Lowboy.
LE Wall Hung.
Save this manual for future reference

Advertisement

Table of Contents
loading

Related Manuals for Bradford White ElectriFLEX LD RE1 Series

Summary of Contents for Bradford White ElectriFLEX LD RE1 Series

  • Page 1 Residential Electric and Light Duty Commercial Electric Water Heaters SERVICE MANUAL MANUAL Troubleshooting Guide and Instructions for Service (To be performed ONLY by qualified service providers) Models Covered by This Manual: Residential: RE1, RE2 & RE3 Upright Models. RE1 & RE2 Lowboy Models. RE1 Utility Models.
  • Page 2 This service manual is designed to aid service and maintenance professionals on the function, proper diagnosis and repair of Bradford White residential electric and light duty commercial electric water heaters. The text and illustrations in this manual provide step by step instructions to facilitate proper operation and troubleshooting procedures.
  • Page 3 GENERAL INFORMATION Commonly Used Formulas Watts Amps = (for single phase units) Example: 4500W/240V = 18.75A Volts Watts Amps = (for balanced 3 phase units) Example: 4500W/240V x 1.732 = 10.82A Volts x 1.732 Watts = Example: 18.75A x 240V = 4500W Amps x Volts Volts Ohms =...

  • Page 4: General Information

    GENERAL INFORMATION Wattage Limitations at Various Voltages Residential Electric Upright RE2 & RE3 Series (Non-Simultaneous Operation) Residential High Efficiency Upright RE2 Series (Non-Simultaneous Operation) Residential Electric Lowboy RE2 Series (Non-Simultaneous Operation) Voltage Maximum Element Wattage Upper/Lower 3,000/3,000 3,000 6,000/6,000 208, 240 6,000 277, 480 6,000...
  • Page 5 GENERAL INFORMATION Surface Mounted Thermostats Surface mounted thermostats are mounted into a bracket which holds the thermostat against the side of the tank. Surface mounted thermostats respond to tank surface temperatures to sense a call for heat, set point temperature settings and high limit (ECO) activation.

  • Page 6: Sequence Of Operation

    SEQUENCE OF OPERATION Residential and light duty commercial electric water heaters are designed to operate using several different operating modes. The common modes and sequence of operation are as follows: 1. Single Element Operation. 2. Double Element Non-Simultaneous Operation (single phase). 3.
  • Page 7 SEQUENCE OF OPERATION Non-Simultaneous and Simultaneous Operation Double element electric water heaters are designed to operate in either Non-Simultaneous or Simultaneous mode. Non-Simultaneous Mode: Allows only one heating element to operate at a time. For example, when the tank is cold, the upper element is energized first, heating the top of the tank.
  • Page 8 SEQUENCE OF OPERATION A 4 wire, double element heater wired for simultaneous operation is essentially two single element systems operating independently. The heaters are wired internally with two independent circuits, one circuit for each thermostat/element combination. When installed using a two wire service, the blue and red (or white) wires will be connected together, likewise black and yellow wires will be connected together.
  • Page 9 SEQUENCE OF OPERATION Sequence of Operation- Double Element, Non-Simultaneous Operation, 3 Phase. Line voltage is applied across terminals L1 & L3 of upper thermostat. Likewise, Line Thermostat closed Closed at terminal T2 voltage is applied to terminal L3 of lower thermostat.
  • Page 10 SEQUENCE OF OPERATION Sequence of Operation- Double Element, Simultaneous Operation, 3 Phase. Line voltage is applied across terminals L1 & L3 of upper thermostat. Line voltage also extends to terminal L1 of lower thermostat. Also, line voltage is applied to terminal L3 Closed Thermostat closed of lower thermostat.
  • Page 11 SEQUENCE OF OPERATION Some electric utility companies will offer discounts for using electricity during “Off Peak” Times of the day. The system allows the use of an “Off Peak” meter, which interrupts power to the lower element during high power demand periods. Sequence of Operation- Double Element, Non-Simultaneous Operation, Single Phase, Off Peak.

  • Page 12: Troubleshooting

    TROUBLESHOOTING Most common cause for improper electric water heater operation can be linked to heating element failure. When troubleshooting an electric water heater with the incidence of “No Hot Water” or “Insufficient Amount of Hot Water,” It’s always a good idea to check the heating elements first by following the procedure on page 15. Common Heating Element Failures: 1.

  • Page 13: Service Procedure

    TROUBLESHOOTING Quick Step Plan to Hot Water WARNING High voltage exposure. Use caution when 1. TURN OFF power to water heater and check all wire making voltage checks to avoid personal connections to ensure they are tight and corrosion free. injury.
  • Page 14 SERVICE PROCEDURE RE-I Line Voltage & High Limit (ECO) Testing Line Voltage Testing WARNING High voltage exposure. Use caution when making voltage checks to avoid personal injury. 1. Turn “OFF” power to water heater. 2. Remove access cover(s) from front of water heater.

  • Page 15: Heating Element Testing

    SERVICE PROCEDURE RE-II Heating Element Testing Testing For Open Or Burned Out Element WARNING High voltage exposure. Be sure power is turned OFF to water heater prior to performing this Step 1. TURN OFF POWER TO WATER HEATER procedure. Step 2. Remove access cover(s) from front of water heater.
  • Page 16 SERVICE PROCEDURE RE-III Residential Thermostat Testing WARNING Single Element Operation or Double Element, High voltage exposure. Use caution to avoid 4 Wire, Simultaneous, Single Phase Operation personal injury during this procedure. Water In Tank Is Cold With Power ON 1. This procedure assumes line voltage, ECO and elements are in working order.
  • Page 17 SERVICE PROCEDURE RE-III Residential Thermostat Testing WARNING Double Element, Non-Simultaneous, Single Phase High voltage exposure. Use caution to avoid Operation. personal injury during this procedure. Water In Tank Is Cold With Power ON. 1. This procedure assumes line voltage, ECO and elements are in working order.
  • Page 18 SERVICE PROCEDURE RE-III Residential Thermostat Testing WARNING Double Element, Non-Simultaneous, Single Phase High voltage exposure. Use caution to avoid Operation (continued). personal injury during this procedure. Not Enough Hot Water (continued). 7. Check voltage across terminal L4 of upper thermostat and terminal 1 of lower thermostat (see Figure 11).
  • Page 19 SERVICE PROCEDURE RE-III Residential Thermostat Testing WARNING Double Element, Non-Simultaneous, Three Phase High voltage exposure. Use caution to avoid Operation. personal injury during this procedure. Water In Tank Is Cold With Power ON. 1. This procedure assumes line voltage, ECO and elements are in working order.
  • Page 20 SERVICE PROCEDURE RE-III Residential Thermostat Testing Double Element, Non-Simultaneous, WARNING Three Phase Operation (continued). High voltage exposure. Use caution to avoid personal injury during this procedure. Tank Does Not Deliver Enough Hot Water (continued) 7. Check voltage across terminal L1 & L3 of lower thermostat (see Figure 16). A) Rated voltage NOT present, check wire connection between thermostats.
  • Page 21 SERVICE PROCEDURE RE-III Residential Thermostat Testing Double Element, Simultaneous, Three Phase WARNING Operation. High voltage exposure. Use caution to avoid personal injury during this procedure. Water In Tank Is Cold Or Not Enough Hot Water With Power ON. 1. This procedure assumes line voltage, ECO and elements are in working order.
  • Page 22 SERVICE PROCEDURE RE-III Residential Thermostat Testing WARNING Double Element, Simultaneous, Three Phase High voltage exposure. Use caution to avoid Operation (continued). personal injury during this procedure. Water Temperature In Tank Is Above Thermostat Setting. 1. This procedure assumes line voltage, ECO and elements are in working order.
  • Page 23 SERVICE PROCEDURE RE-III Residential Thermostat Testing Double Element, Non-Simultaneous, Single Phase, WARNING Off Peak Operation. High voltage exposure. Use caution to avoid personal injury during this procedure. Water In Tank Is Cold With Power ON. 1. This procedure assumes line voltage, ECO and elements are in working order.
  • Page 24 SERVICE PROCEDURE RE-III Residential Thermostat Testing Double Element, Non-Simultaneous, WARNING Single Phase, Off Peak Operation. High voltage exposure. Use caution to avoid (continued) personal injury during this procedure. ot Enough Hot Water (continued). 7. Check voltage across terminal T4 of upper thermostat &...
  • Page 25 SERVICE PROCEDURE RE-IV Light Duty Commercial Thermostat Testing WARNING Double Element, Non-Simultaneous, Single Phase High voltage exposure. Use caution to avoid Operation. personal injury during this procedure. Water In Tank Is Cold With Power ON. 1. This procedure assumes line voltage, ECO and elements are in working order.
  • Page 26 SERVICE PROCEDURE RE-IV Light Duty Commercial Thermostat Testing Double Element, Non-Simultaneous, WARNING Single Phase Operation (continued) High voltage exposure. Use caution to avoid personal injury during this procedure. Tank Does Not Deliver Enough Hot Water (continued). 7. Check voltage across terminal L3 of upper thermostat &...
  • Page 27 SERVICE PROCEDURE RE-IV Light Duty Commercial Thermostat Testing Double Element, Simultaneous, Single Phase WARNING Operation. High voltage exposure. Use caution to avoid personal injury during this procedure. Water In Tank Is Cold Or Not Enough Hot Water With Power ON. 1.
  • Page 28 SERVICE PROCEDURE RE-IV Light Duty Commercial Thermostat Testing Double Element, Simultaneous, Single Phase WARNING Operation (continued) High voltage exposure. Use caution to avoid personal injury during this procedure. Water Temperature In Tank Is Above Thermostat Setting. 1. This procedure assumes line voltage, ECO and elements are in working order.
  • Page 29 SERVICE PROCEDURE RE-IV Light Duty Commercial Thermostat Testing Double Element, Non-Simultaneous, Three Phase WARNING Operation. High voltage exposure. Use caution to avoid personal injury during this procedure. Water In Tank Is Cold With Power ON. 1. This procedure assumes line voltage, ECO and elements are in working order.
  • Page 30 SERVICE PROCEDURE RE-IV Light Duty Commercial Thermostat Testing WARNING Double Element, Non-Simultaneous, High voltage exposure. Use caution to avoid Three Phase Operation (continued). personal injury during this procedure. Tank Does Not Deliver Enough Hot Water (continued). 7. Check voltage across terminal L1 of upper thermostat &...
  • Page 31 SERVICE PROCEDURE RE-IV Light Duty Commercial Thermostat Testing Double Element, Simultaneous, Three Phase WARNING Operation. High voltage exposure. Use caution to avoid personal injury during this procedure. Water In Tank Is Cold Or Not Enough Hot Water With Power ON. 1.
  • Page 32 SERVICE PROCEDURE RE-IV Light Duty Commercial Thermostat Testing Double Element, Simultaneous, Three Phase WARNING Operation (continued). High voltage exposure. Use caution to avoid personal injury during this procedure. Water Temperature In Tank Is Above Thermostat Setting. 1. This procedure assumes line voltage, ECO and elements are in working order.

  • Page 33: Thermostat Removal And Replacement

    SERVICE PROCEDURE RE-V Thermostat Removal and Replacement Thermostat Removal WARNING High voltage exposure. Be sure power is 1. Turn power “OFF” to water heater. “OFF” when performing this procedure. 2. Remove access cover and insulation. 3. Remove plastic thermostat protector from thermostat. 4.

  • Page 34: Heating Element Removal And Replacement

    SERVICE PROCEDURE RE-VI Heating Element Removal and Replacement WARNING High voltage exposure. Be sure power is Heating Element Removal “OFF” when performing this procedure. 1. Turn power “OFF” To water heater. 2. Turn off cold water supply to heater. Connect hose to drain WARNING spigot of water heater and route to an open drain.

  • Page 35: Diptube Inspection And Replacement

    SERVICE PROCEDURE RE-VII Dip Tube and Anode Inspection and Replacement Diptube Inspection and Replacement WARNING Heater components and stored water may be HOT when performing the following steps in this procedure. Take necessary precaution to prevent personal injury. Step 1. Turn power “OFF”...
  • Page 36 Generic Parts List 11. Heating Element 1. T&P Relief Valve 12. Element Gasket 2. Heat Trap Insert (Outlet) 13. Access Cover 3. Hot Water Outlet/Anode 14. Lower Thermostat Protector 4. Cover Conduit/Ground 15. Lower Thermostat (59T) 5. Junction Box Cover 16.
  • Page 40 800-334-3393 Technical Support Email techsupport@bradfordwhite.com 800-531-2111 Warranty Email warranty@bradfordwhite.com Orders ca.orders@bradfordwhite.com International General Contact international@bradfordwhite.com Orders export.po@bradfordwhite.com For field service, please contact your professional installer or local Bradford White sales representative. ©2021, Bradford White Corporation, USA. All rights reserved. www.bradfordwhite.com...
