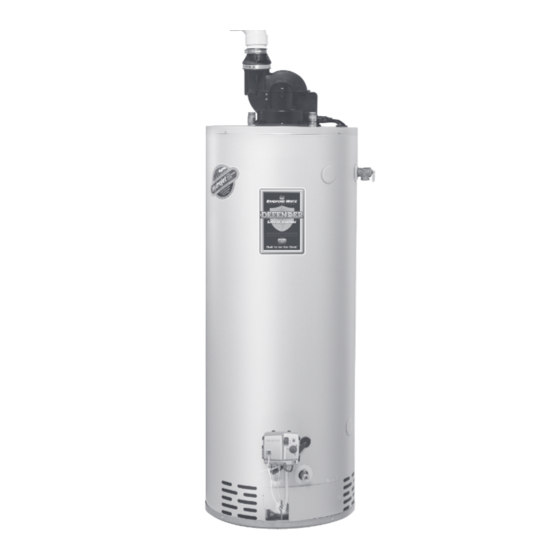

POWER VENT GAS WATER HEATER
INSTALLATION AND OPERATION
INSTRUCTION MANUAL
If the information in these instructions is not
FOR YOUR SAFETY
238-51010-00E REV 5/18
Advertisement
Table of Contents
Related Manuals for Bradford White LG2PV50H653N
Summary of Contents for Bradford White LG2PV50H653N
- Page 1 POWER VENT GAS WATER HEATER A Spanish language version of these instructions is available by contacting the company listed on the rating plate. La version espanola de estas instrucciones se puede obtener al escribirle a la fabrica cuyo nombre aparece en la placa de especificaciones. INSTALLATION AND OPERATION INSTRUCTION MANUAL If the information in these instructions is not...
- Page 2 CONGRATULATIONS! You have just purchased one of the finest water heaters on the market today! This installation, operation and instruction manual will explain in detail the installation and maintenance of your new Power Vent Gas Water Heater. We strongly recommend that you contact a plumbing professional for the installation of this water heater.
-
Page 3: Table Of Contents
TABLE OF CONTENTS page GENERAL INFORMATION ..............INSTALLATION................... Locating the Water Heater ............Minimum Clearances ..............Venting ..................Vent Pipe Preparation and Joining ..........Combustion Air Supply ............... Water Connections ..............Gas Connections ................Electrical Connections ..............Wiring Diagram ..............GENERAL OPERATION .............. -
Page 4: General Information
GENERAL INFORMATION This gas-fired water heater’s design is certified by CSA International under the American National Standard Z21.10.1, CSA 4.1-M, Z21.10.3 and CSA 4.3 most current editions at the time of manufacture. This is a category III water heater. This water heater must be installed in accordance with local codes or, in the absence of local codes, the National Fuel Gas Code, ANSI Z223.1-Latest Edition) and/or in Canada CAN/CGA B149 Installation Codes (Latest Editions). -
Page 5: Installation
General Information continued- IMPORTANT Before proceeding, please inspect the water heater and its components for possible damage. DO NOT install any water heater with damaged components. If damage is evident then please contact the supplier where the water heater was purchased or the manufacturer listed on the rating plate for replacement parts. - Page 6 Installation (Locating The Water Heater) continued- The location of this water heater is of the utmost importance. Before installing this water heater, read the installation section of these instructions. After reading these installation and operating instructions, select a location for the water heater where the floor is level and is easily accessible to gas and water supply lines.
- Page 7 Installation (Locating The Water Heater) continued- WARNING DO NOT ATTEMPT TO LIGHT ANY GAS APPLIANCE IF YOU ARE NOT CERTAIN OF THE FOLLOWING: • Liquefied petroleum gases/propane gas and natural gas have an odorant added by the gas supplier that aids in the detection of the gas.
-
Page 8: Minimum Clearances
Minimum Clearances WARNING Failure to adhere to these installation and operating instructions may create a hazard to life and property and will nullify the warranty. This installation must allow access to the front of the water heater and adequate clearance must be provided for servicing and operating this water heater. The water heater may be installed on either a combustible or non-combustible floor. - Page 9 Venting continued- Canadian Installations US Installations Clearance above grade, 12 inches 12 inches veranda, porch, deck or (30 cm) (30 cm) balcony Clearance to window or 6 in. (15 cm) for appliances 4 ft (1.2 m) below or to ≤ 10,000 Btuh (3 kW), 12 in. door that may be side of opening;...
- Page 10 Venting continued- The vent system must terminate so that proper clearances are maintained as cited in local codes or the latest edition of the National Fuel Gas Code, ANSI Z223.1.73.4e and 7.8a, b as follows: 1. Do not terminate near soffit vents or crawl space or other area where condensate or vapor could create a nuisance or hazard or cause property damage.
- Page 11 Venting continued- NOTICE For installations in Canada, field supplied vent piping must comply with CAN/CGA B149.1 (latest edition) and be certified to the Standard For Type BH, Class II, 65°C, Gas Venting Systems, ULC S636. Components of this listed system shall not be interchanged with other vent systems or unlisted pipe/fittings.
- Page 12 Venting continued- Venting System Condensation Condensate formation does not occur in all installations of pow er vented w ater heaters, but should be protected against on installations w here condensation can form in the venting system. Formation of condensation in the venting system of Pow er Vented w ater heaters is dependent upon installation conditions including, but not limited ambient temperature and humidity of installation location;...
- Page 13 the following pages. Make sure the vent pipe terminal elbow fitting is at least 1 inch (2.5 cm) away from the edge of the wall.
- Page 14 Venting continued- TABLE 1 - VENT CONNECTOR LENGTHS FOR 3 inch (7.6 cm) DIAMETER VENT PIPE Terminating # of Maximum straight Minimum Elbows Length ft (m) straight (excl. Length ft (m) 55 and 75 gal. vent term) 45 (13.7) Through the Wall 2 (.6) 40 (12.2) Through the Wall...
- Page 15 Venting continued- CONNECTION TO 3” (7.6 CM) CONNECTION TO A 3” (7.6 CM) TO VENT PIPE 4” (10.2 CM) REDUCER Figure 2 IMPORTANT All of the Venting connections must be leak checked with a soap and water solution upon initial start up of the water heater. Any leaks must be repaired before continuing operation of the water heater.
- Page 16 Venting continued- THROUGH THE WALL VENTING: (HORIZONTAL VENTING) Cut a 3 1/2 in. (8.9 cm) diameter hole in the w all at the point w here the vent connector is going to pass through the w all. Use the proper cement to secure the 90°...
- Page 17 Venting continued- THROUGH THE ROOF VENTING: (VERTICAL VENTING) Cut the necessary holes through the roof and ceiling and install the vent connector as shown in Figure 4. Make sure that the installation meets the local codes and/or The National Fuel Gas Code ANSI Z223.1 (Latest Edition) or CGA/CAN B149 Installation Code (latest edition).
- Page 18 Venting continued- THROUGH THE WALL VENTING WITH LOW GROUND CLEARANCE: When venting cannot exit through the wall at a height greater than or equal to 12 inches (30.5 cm) above the ground, or anticipated snow level, the installation must be modified as shown below (see Figure 5). Refer to Table 3 for maximum venting lengths using 3 inch (7.6 cm) vent pipe or Table 4 for maximum lengths using 4 inch (10.2 cm) vent pipe.
- Page 19 Venting continued- TABLE 3 3 inch (7.6 cm) VENT CONNECTOR LENGTHS FROM INSIDE WALL FOR LOW GROUND CLEARANCE INSTALLATIONS Terminating # of Max Straight Elbows Length ft (m) straight (excl. Length 55 and 75 gal. ft (m) vent term.) 30 (9.1) 5 (1.5) (2) 90°...
-
Page 20: Vent Pipe Preparation And Joining
Vent Pipe Preparation and Joining Most failures in vent systems result from improper preparation and joining of pipe and fittings. The guidelines below must be followed when installing the venting system. If you have any question about the application or installation of the venting system, contact the vent pipe manufacturer, supplier, or your plumbing professional. - Page 21 Vent Pipe Preparation and Joining continued- d) Cementing must be done quickly to avoid over-drying before joining. Apply one coat to the outside end of the pipe at a width slightly greater than the depth of the socket. ii) Apply a coat around the inside of the fitting socket. iii) Apply a second coat around the end of the pipe.
-
Page 22: Combustion Air Supply
Combustion Air Supply WARNING Liquefied petroleum gases/propane gas are heavier than air and will remain at floor level if there is a leak. Basements, crawl spaces, closets and areas below ground level will serve as pockets for accumulation of leaking gas. Before lighting, smell all around the appliance area for gas. - Page 23 Installation (Combustion Air Supply) continued- All Air From Inside the Building: The confined space must be provided with two permanent openings communicating directly with an additional room(s) of sufficient volume so that the combined volume of all spaces meets the criteria for an unconfined space.
-
Page 24: Water Connections
Water Connections NOTE: BEFORE PROCEEDING WITH THE INSTALLATION, CLOSE THE MAIN WATER SUPPLY VALVE. After shutting off the main water supply, open a faucet to relieve the water line pressure to prevent any water from leaking out of the pipes while making the water connections to the water heater. - Page 25 Water Connections continued- WARNING For protection against excessive temperatures and pressure, install temperature and pressure protective equipment required by local codes, but not less than a combination temperature and pressure relief valve certified by a nationally recognized testing laboratory that maintains periodic inspection of production of listed equipment or materials as meeting the requirements of the Standard for Relief Valves and Automatic Gas Shutoff Devices for Hot Water Supply Systems, ANS Z21.22 or the Standard CAN1-4.4.
- Page 26 Water Connections continued- WARNING Hydrogen gas can be produced in an operating water heater that has not had water drawn from the tank for a long period of time (generally two weeks or more). Hydrogen gas is extremely flammable. To prevent the possibility of injury under these conditions, we recommend the hot water faucet to be open for several minutes at the kitchen sink before you use any electrical appliance which is connected to the hot water...
-
Page 27: Gas Connections
Gas Connections The gas supply lines must meet all requirements of the National Fuel Gas Code (ANSI Z223.1-Latest Edition), or in Canada CAN/CGA B149.1 Natural Gas Installation Code (Latest Edition) or CAN/CGA B149.2 Propane Installation Code (Latest Edition). The minimum permissible gas supply pressure for the purpose of input adjustment is 1 inch (0.25 kPa) water column above the operating manifold pressure. -
Page 28: Electrical Connections
3. While checking for leaks care must be taken to prevent solution from contacting the electrical connections at the control. If electrical connections at the control become wet, they must be thoroughly dried before attempting to operate the water heater. Electrical Connections All electrical wiring and connections must be in accordance with the National Electric Code ANSI/NFPA No. -
Page 29: Wiring Diagram
Wiring Diagram Figure 6... -
Page 30: General Operation
GENERAL OPERATION WARNING Water heaters are heat producing appliances. To avoid damage or injury there must be no materials stored against the water heater or vent-air intake system, and proper care must be taken to avoid unnecessary contact (especially by children) with the water heater and vent-air intake system. UNDER NO CIRCUMSTANCES MUST FLAMMABLE MATERIALS, SUCH AS GASOLINE OR PAINT THINNER BE USED OR STORED IN THE VICINITY OF THIS WATER HEATER, VENT-AIR INTAKE SYSTEM OR IN... -
Page 31: Lighting And Shutdown Instructions
Lighting and shutdown instructions... -
Page 32: Thermostat Adjustment
Thermostat Adjustment The thermostat dial is adjusted to approximately 120°F (49°C) when shipped from the factory. When adjusting the thermostat, it should be remembered that lower temperature settings are more energy efficient. To adjust the thermostat turn the dial clockwise until the minimum acceptable temperature is set. It is suggested that the starting point setting not exceed the 120°F (49°C) or “HOT”... -
Page 33: Burner Flame Check
Burner Flame Check Steel Burner: These models are equipped with self-adjusting air mixture and do not have an adjustable air shutter (See Figure 8). At periodic intervals a visual check of the main burner and pilot flames should be made to determine if they are burning properly. -
Page 34: Maintenance
MAINTENANCE WARNING Water heaters are heat producing appliances. To avoid damage or injury there must be no materials stored against the water heater or vent-air intake system, and proper care must be taken to avoid unnecessary contact (especially by children) with the water heater and vent-air intake system. UNDER NO CIRCUMSTANCES MUST FLAMMABLE MATERIALS, SUCH AS GASOLINE OR PAINT THINNER BE USED OR STORED IN THE VICINITY OF THIS WATER HEATER, VENT-AIR INTAKE SYSTEM OR IN... - Page 35 Maintenance continued- 5. Annually remove the inner door and main burner assembly to clean orifices and related parts of any dirt or other foreign material. Inspect the burner ports for obstructions or debris and clean with a wire brush as needed. Wire brush and/or vacuum clean the combustion chamber as needed to remove scale deposits and debris.
- Page 36 Maintenance continued CAUTION FOR YOUR SAFETY, DO NOT ATTEMPT REPAIR OF COMBINATION GAS CONTROL, BURNERS OR GAS PIPING. REFER REPAIRS TO A QUALIFIED SERVICE TECHNICIAN. Contact your supplier or plumbing professional for replacement parts or contact the company at the address given on the rating plate of the water heater. Provide the part name, model and serial numbers of the water heater when ordering parts.
-
Page 37: Troubleshooting
TROUBLESHOOTING LED Status Control Status Probable Cause None (LED not on or Electrical power not Control power switch in “OFF” position.Supply flashing) present. voltage interuppted. Stand-by mode, One short flash every Thermostat is Temperature demand is satisfied (no call for heat). four seconds satisfied (no faults). - Page 38 LED Status Control Status Probable Cause 1. Unstable pilot. Pilot flame 2. Pilot tube blocked or restricted. Six flashes-three extinguished. 3. Oxidation build up on pilot electrode. flashes, three second System resets after 5 4. Wire damage to pilot assembly or bad pause (Soft lockout) minutes.
-
Page 39: Parts List And Drawing
PARTS LIST DRAWING (ACTUAL WATER HEATER VISUAL REPRESENTATION MAY VARY) PART NAME AND DESCRIPTION 1. Blower Assembly 11. Inner Door (Left) 2. Pressure Switch (not shown) 12. Inner Door (Right) 3. Blower temp. switch (not shown) 13. Screw (Inner Door) 4. -
Page 40: Space Heating
THE FOLLOWING INSTRUCTIONS ARE FOR INSTALLATION OF: GAS WATER HEATERS SUITABLE FOR WATER (POTABLE) HEATING AND SPACE HEATING 1. All piping components connected to this water heater for space heating applications must be suitable for use with potable water. In Massachusetts, space heating piping length must not exceed 50 feet. -
Page 41: Notes
