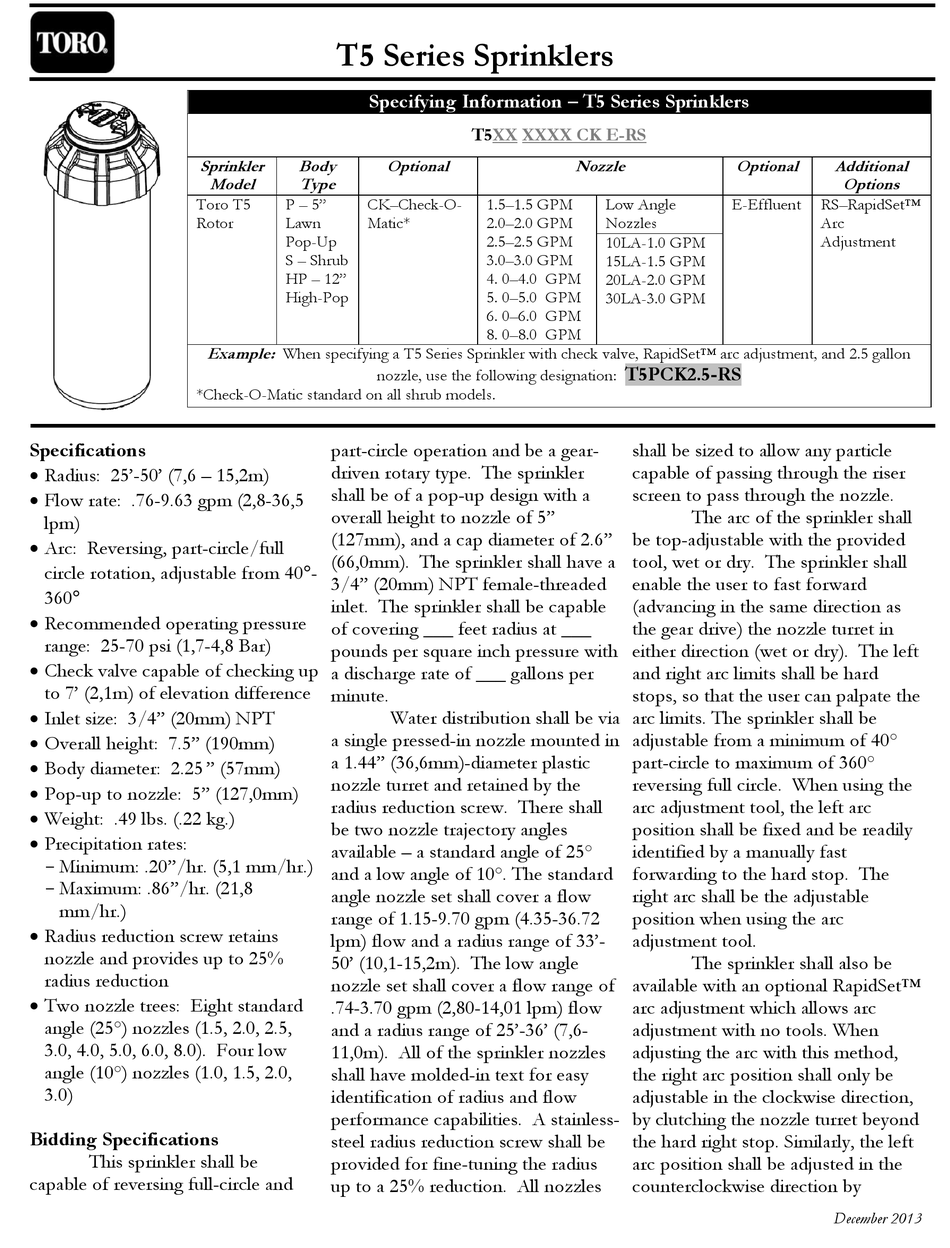

Toro T5 Series Quick Start Manual

Sprinkler
Toro T5
Rotor
Example:
*Check-O-Matic standard on all shrub models.
Specifications
 Radius: 25'-50' (7,6 – 15,2m)
 Flow rate: .76-9.63 gpm (2,8-36,5
lpm)
 Arc: Reversing, part-circle/full
circle rotation, adjustable from 40-
360
 Recommended operating pressure
range: 25-70 psi (1,7-4,8 Bar)
 Check valve capable of checking up
to 7' (2,1m) of elevation difference
 Inlet size: 3/4" (20mm) NPT
 Overall height: 7.5" (190mm)
 Body diameter: 2.25 " (57mm)
 Pop-up to nozzle: 5" (127,0mm)
 Weight: .49 lbs. (.22 kg.)
 Precipitation rates:
- Minimum: .20"/hr. (5,1 mm/hr.)
- Maximum: .86"/hr. (21,8
mm/hr.)
 Radius reduction screw retains
nozzle and provides up to 25%
radius reduction
 Two nozzle trees: Eight standard
angle (25°) nozzles (1.5, 2.0, 2.5,
3.0, 4.0, 5.0, 6.0, 8.0). Four low
angle (10°) nozzles (1.0, 1.5, 2.0,
3.0)
Bidding Specifications
This sprinkler shall be
capable of reversing full-circle and
T5 Series Sprinklers
Specifying Information – T5 Series Sprinklers
Body Optional
Model Type
P – 5" CK–Check-O-
Lawn Matic*
Pop-Up
S – Shrub
HP – 12"
High-Pop
When specifying a T5 Series Sprinkler with check valve, RapidSet™ arc adjustment, and 2.5 gallon
nozzle, use the following designation:
part-circle operation and be a gear-
driven rotary type. The sprinkler
shall be of a pop-up design with a
overall height to nozzle of 5"
(127mm), and a cap diameter of 2.6"
(66,0mm). The sprinkler shall have a
3/4" (20mm) NPT female-threaded
inlet. The sprinkler shall be capable
of covering ___ feet radius at ___
pounds per square inch pressure with
a discharge rate of ___ gallons per
minute.
a single pressed-in nozzle mounted in
a 1.44" (36,6mm)-diameter plastic
nozzle turret and retained by the
radius reduction screw. There shall
be two nozzle trajectory angles
available – a standard angle of 25°
and a low angle of 10°. The standard
angle nozzle set shall cover a flow
range of 1.15-9.70 gpm (4.35-36.72
lpm) flow and a radius range of 33'-
50' (10,1-15,2m). The low angle
nozzle set shall cover a flow range of
.74-3.70 gpm (2,80-14,01 lpm) flow
and a radius range of 25'-36' (7,6-
11,0m). All of the sprinkler nozzles
shall have molded-in text for easy
identification of radius and flow
performance capabilities. A stainless-
steel radius reduction screw shall be
provided for fine-tuning the radius
up to a 25% reduction. All nozzles
T5XX XXXX CK E-RS
1.5–1.5 GPM
2.0–2.0 GPM
2.5–2.5 GPM
3.0–3.0 GPM
4. 0–4.0 GPM
5. 0–5.0 GPM
6. 0–6.0 GPM
8. 0–8.0 GPM
Water distribution shall be via
Nozzle Optional
Low Angle E-Effluent
Nozzles
10LA-1.0 GPM
15LA-1.5 GPM
20LA-2.0 GPM
30LA-3.0 GPM
T5PCK2.5-RS
shall be sized to allow any particle
capable of passing through the riser
screen to pass through the nozzle.
The arc of the sprinkler shall
be top-adjustable with the provided
tool, wet or dry. The sprinkler shall
enable the user to fast forward
(advancing in the same direction as
the gear drive) the nozzle turret in
either direction (wet or dry). The left
and right arc limits shall be hard
stops, so that the user can palpate the
arc limits. The sprinkler shall be
adjustable from a minimum of 40°
part-circle to maximum of 360°
reversing full circle. When using the
arc adjustment tool, the left arc
position shall be fixed and be readily
identified by a manually fast
forwarding to the hard stop. The
right arc shall be the adjustable
position when using the arc
adjustment tool.
The sprinkler shall also be
available with an optional RapidSet™
arc adjustment which allows arc
adjustment with no tools. When
adjusting the arc with this method,
the right arc position shall only be
adjustable in the clockwise direction,
by clutching the nozzle turret beyond
the hard right stop. Similarly, the left
arc position shall be adjusted in the
counterclockwise direction by
Additional
Options
RS–RapidSet™
Arc
Adjustment
December 2013
