3192 HDSL4 Transceiver Unit for the Central Office (H4TU-C)
CONTENTS
1. General .................................................................... 1
2. Installation............................................................... 3
3. Provisioning ............................................................ 4
4. HDSL4 System Testing .......................................... 5
5. Control Port Operation (HDSL4)............................ 7
6. HDSL4 Deployment Guidelines ........................... 20
7. Maintenance .......................................................... 24
8. Specifications........................................................ 24
9. Warranty and Customer Service ........................... 24
Appendix A. HDSL4 Loopbacks ............................ A-1
TABLES
Table 1. HDSL4 List Versions.................................... 1
Table 2. Compliance Codes ........................................ 2
Table 3. Front Panel LED Indicators .......................... 3
Table 4. Provisioning Options .................................... 4
Table 5. Screen Abbreviations .................................... 7
Table 6. Attenuation Limits ...................................... 20
Table A-2. Loopback Control Codes ...................... A-3
1. GENERAL
The ADTRAN 3192 HDSL4 Transceiver Unit for the
Central Office (3192 H4TU-C) is used to deploy an
HDSL4 T1 circuit using 4-wire metallic facilities. The
unit occupies one slot in a 3192 chassis.
trates the 3192 H4TU-C (P/N 1223404L2).
Revision History
This is the first release of this document. Future
revisions will be explained in this paragraph.
Description
The DS1 or DSX-1 input signal is supplied from the
network. The HDSL4 signals are provided to the local
loop. The 3192 H4TU-C works in conjunction with the
H4TU-R and up to two H4Rs to provide a DS1 service
on the local loop.
61223404L2-5A
Installation and Maintenance Practice
Figure 1
illus-
Trademarks: Any brand names and product names included in this document are
trademarks, registered trademarks, or trade names of their respective holders.
CLEI Code: T1L7RCFA_ _
DSX
/DS1
ALM
ESF
/SF
B8ZS
/AMI
LBK
R
S
2
3
2

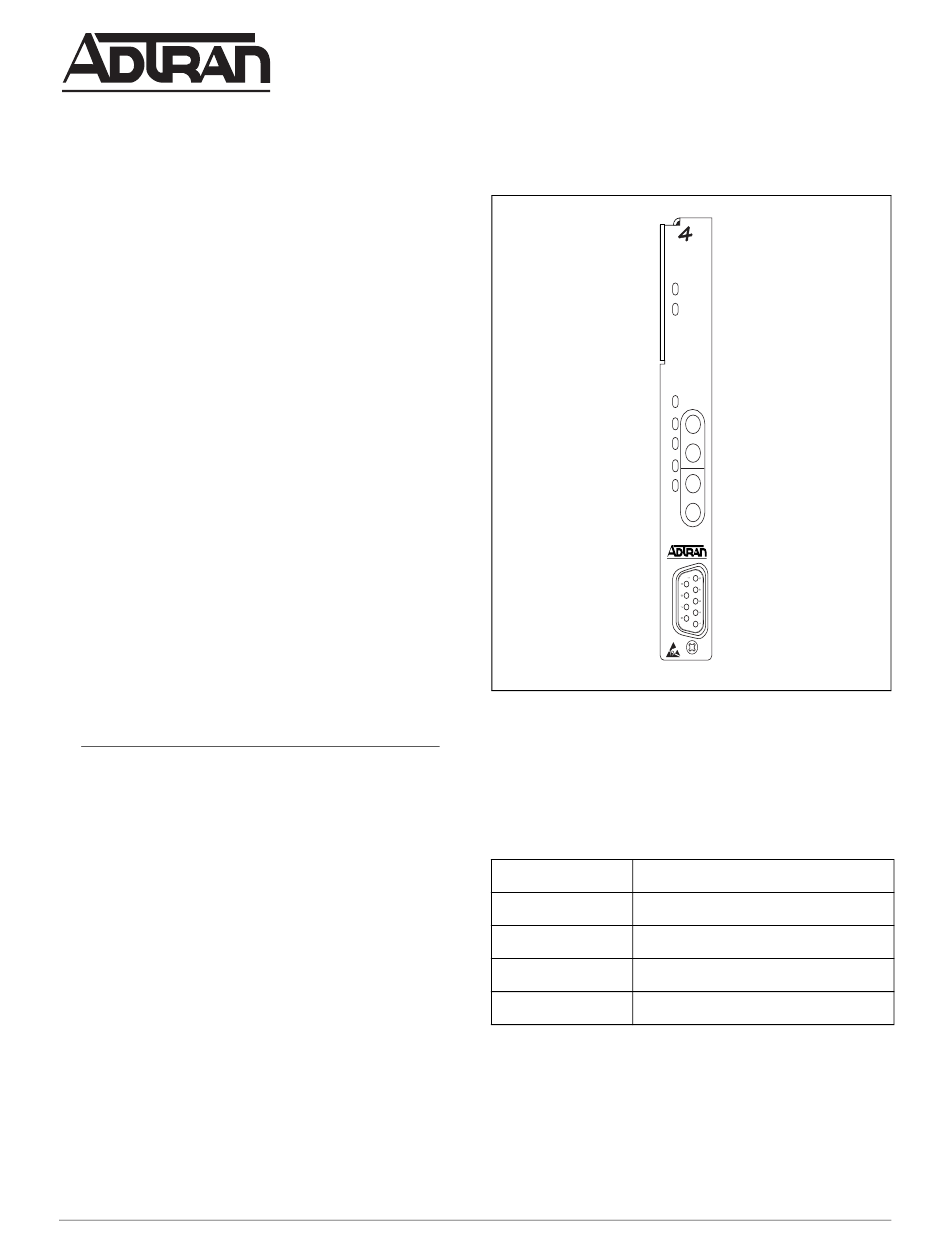

Figure 1. 3192 H4TU-C
The 3192 H4TU-C works with the HDSL4 unit for the
remote end (H4TU-R) and the repeater (H4R) as shown
in
Table
1.
Table 1. HDSL4 List Versions
Part Number
Description
122x424L1 or L2
T200 H4TU-R, Local Power
122x426L1 or L2
T200 H4TU-R, Span Power
122x441L1
T200 H4R
122x445L1
239 H4R
Note: x = any generic number
The 3192 H4TU-C can be deployed in circuits
consisting of one H4TU-C, one H4TU-R, and up to two
H4Rs. System power and alarm bus connections are
made through the backplane of the 3192 chassis.
Section 61223404L2-5A
Issue 1, December 2003
H TUC
1223404L2
DSL 1
DSL 2
DSX EQ
TX
RX
TX
RX
DSX MON
1

Advertisement

Table of Contents
loading

Related Manuals for ADTRAN 3192 H4TU-C

Summary of Contents for ADTRAN 3192 H4TU-C

  • Page 1: Table Of Contents

    Table A-1. HDSL4 Loopback Control Codes..A-2 Table A-2. Loopback Control Codes ...... A-3 Figure 1. 3192 H4TU-C The 3192 H4TU-C works with the HDSL4 unit for the remote end (H4TU-R) and the repeater (H4R) as shown 1. GENERAL Table...

  • Page 2: Table 2. Compliance Codes

    3192 provides data retrieval and diagnostic capabilities for H4TU-C. The 3192 H4TU-C is to be installed in a remote management of DS1 circuits. TScan allows restricted access location and in a Type “B” or “E”...

  • Page 3: Installation

    OR DECREASE IN RELIABILITY. HANDLING PRECAUTIONS REQUIRED. 2. Hold the 3192 H4TU-C by the front panel while supporting the bottom edge of the module. After unpacking the 3192 H4TU-C, inspect it for 3. Align the module edges to fit in the lower and damage.

  • Page 4: Provisioning

    3. PROVISIONING The provisioning settings can be viewed and manipu- There are no configuration switches for the H4TU-C. lated through management access via the front panel Configuration is performed via software. For more RS-232 port. Table 4 lists the available provisioning information, refer to the Control Port Operation options and their factory default settings.

  • Page 5: Hdsl4 System Testing

    The 3192 H4TU-C is default enabled for span powering replaced in the field. mode. The 3192 H4TU-C can be set to have span power disabled when the H4TU-R is locally powered and no In order to avoid a shelf alarm, the H4TU-C element can H4Rs are on the circuit.
  • Page 6 H4TU-R NIU Loopback Port Operation (HDSL4) of this practice. LOCAL DSX-1 LOOP • Second, the 3192 H4TU-C responds to the industry H4TU-C H4TU-R standard patterns for HDSL4 loopbacks. A detailed H4TU-R Customer-Side Loopback description of these loopback sequences is given in...

  • Page 7: Control Port Operation (Hdsl4)

    The supported terminal type is VT100 or compatible. and their displays will vary slightly from those shown in this section. The 3192 H4TU-C supports two types of terminal emulation modes. The manual update mode is a dumb For abbreviations used in the screen diagrams, see...
  • Page 8 Operation, Administration, Maintenance, and Provi- HDSL4 circuit. This screen also displays contact infor- sioning (OAM&P) screens are available as listed on the mation for ADTRAN Technical Support, Internet site, Figure 7). To access a particular menu and address.
  • Page 9 Provisioning provisioning settings for the HDSL4 circuit. Options circuit is terminated with the ADTRAN H4TU-R that can be changed from this screen are labeled with a (P/N 1223426L2). Some settings may differ when using number (for example, “1” for DSX-1 Line Build Out).
  • Page 10 Figure 10. Span Status Screen (Figure 11), accessed from menu (Figure Detailed Status Screen Loopbacks and Test Commands the Span Status menu displays the HDSL4 status for provides the user with the ability to invoke or terminate each receiver point. all available HDSL4 loopbacks.
  • Page 11 screens (Figure 13 This unit stores performance data in 15-minute incre- Performance History Figure 14) are used to select and display the historical ments for the previous 24-hour period. At each 24-hour HDSL4 and T1 performance data in several different interval, the performance data is transferred into the 24- registers.
  • Page 12 Abbreviations used in the screens Figure 15 shows the Line related definitions, and Performance History are defined in screens, as Figure 16 shows the Path related definitions. Performance Data Definitions Figure 15 Figure Circuit ID: 11/03/03 09:29:45 Performance Data Definitions H4TUC, H4TUR, and H4R LOOP Related: HDSL4 Framing ES-L...
  • Page 13 screen Scratch Pad, Circuit ID, and Time/Date (Figure 17) provides a Scratch Pad for user-defined information that can be any alphanumeric string up to 50 characters in length. The Circuit ID can be any alphanumeric string up to 25 characters in length. The time should be entered using military time.
  • Page 14 menu (Figure 18) and These screens include a time, date, first/last occurrence, T1 Alarm History HDSL4 menu (Figure 19) provide a detailed alarm and count for each type of HDSL4 or T1 alarm. A Span History history and events log for the HDSL4 and T1 spans. historical alarm log is also available in the System menu.
  • Page 15 screen illustrated in Figure 20 option (Figure Event History System PM/Screen Report provides a log history of HDSL4 circuit events. offers four types of reports on performance monitoring. Selecting a report type will then display all the reports for that category on the screen at once, which is more efficient than stepping through the menus individually.
  • Page 16 Press ESC to return to previous menu Troubleshooting For HELP based on detected problems, select Troubleshooting Guidance from the list below. If further assistance is needed, contact ADTRAN Tech Support. Hours: Normal 7am - 7pm CST 1. Troubleshooting Guidance Emergency 7 days x 24 hours 2.
  • Page 17 Selecting option 1 from the screen Selecting option 2 from the screen Troubleshooting Troubleshooting causes the H2TU-C to read the operational status of the accesses the screen (Figure General Information card and return , or hints, as that summarizes the deployment guidelines necessary Troubleshooting Guidance to the probable cause of the trouble, as shown in Figure...
  • Page 18 Figure 26 shows the screen. Virtual Terminal Session Virtual Terminal (VT) allows control of the remote unit provisioning from the H4TU-C. Select option 1 from this screen to begin a user-initiated session with the remote unit. When the remote session is completed, Press to terminate the session.

  • Page 19: Hdsl4 Deployment Guidelines

    Figure 27. HDSL4 Circuit Segments 3. Total bridged tap length is limited to 2.5 kft. The ADTRAN HDSL4 system provides DS1-based 4. Bridge tap within 1000 feet of units may affect services over loops designed to comply with the guide- performance of the circuit.

  • Page 20: Table 9. Single Pair Dc Resistance Value

    7. Resistance Values. See Table NOTE Each of the three segments associated with span A circuit that otherwise meets attenuation and powering two H4Rs and a H4TU-R must satisfy other requirements for cable reach will the DC resistance budgets in addition to the encounter span powering problems if resis- recommended loop attenuation requirements.
  • Page 21 Once the resistance of each segment is confirmed, refer b. Find the first segment resistance on the vertical Figure 28 to decide if the H4TU-C is capable of span axis. powering two H4Rs and one H4TU-R. Alternatively, c. Find the second segment resistance on the the DSL Assistant program will automatically calculate horizontal axis.
  • Page 22 An example problem is illustrated in Figure 29. For this b. Find the 600 ohms first segment resistance point on example, begin with three known measurements: 600 the vertical axis. ohms first segment resistance, 700 ohms second c. Find the 700 ohms second segment resistance point segment resistance, and 900 ohms third segment on the horizontal axis.

  • Page 23: Maintenance

    7. MAINTENANCE Refer to the following subsections for sales, support, The 3192 H4TU-C requires no routine maintenance for CAPS requests, or further information. normal operation. In case of equipment malfunction, ADTRAN Sales use the front panel bantam jack connectors to help Pricing/Availability: locate the source of the problem.

  • Page 24: Table 10. 3192 H4Tu-C Specifications

    533-655 ft. ABAM DSX-1 Line Code: B8ZS (default), AMI Power Tested with the ADTRAN H4TU-R (P/N 1223426L2) and H4R (P/N 1223445L1) H4TU-C Total Power: –48 VDC @ 200 mA with H4TU-R –48 VDC @ 330 mA with H4TU-R and one H4R –48 VDC @ 560 mA with H4TU-R and two H4Rs...
  • Page 25 Table 10. 3192 H4TU-C Specifications (Continued) Specification Description Environment Operating Temperature (Standard): –40ºC to +70ºC Storage Temperature: –40ºC to +85ºC Compliance UL 60950 GR-1089-CORE GR-63-CORE ANSI T1.418-2002 ANSI T1.102 (DS1 Interface) Part Number 3192 HDSL4 Transceiver Unit for the Central Office:...
