Table Of Contents
Service Manual
COVER
1 Powering Up of the Main
TOP NEXT
Unit
1.1 Checking Player with
ORDER NO. MD0403140C1
Active Subwoofer
1.2 Using of Power Jig
A6
2 Before Repair and
Adjustment (Using Active
Subwoofer Unit)
3 Protection Circuitry
4 Safety Precautions
4.1 General Guidelines
4.1.1 Leakage Current Cold
Check

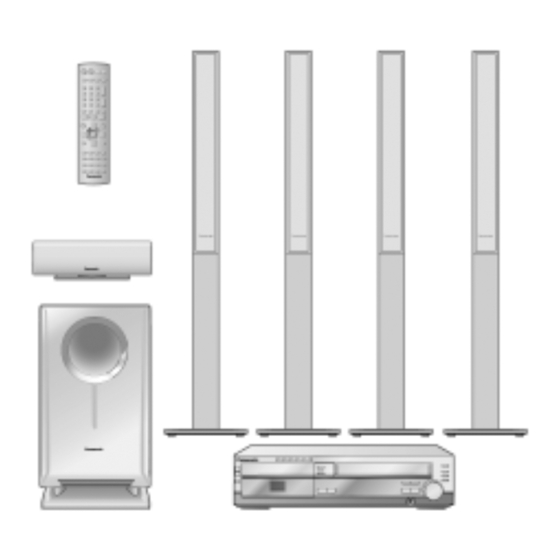

DVD/VHS Home Theater Sound System
4.1.2 Leakage Current Hot
Check (See Figure 1)
4.1.3 Caution for fuse
replacement
5 Handling the Lead-free
Solder
5.1 About lead free solder
SA-HT822VP
(PbF)
6 Prevention of Electro
Colour
Static Discharge (ESD) to
Electrostatically Sensitive (ES)
(S)... Silver Type
Devices
7 Accessories
8 Precaution of Laser Diode
9 Optical Pickup Self-
Diagnosis and Replacement
Procedure (DVD Section)
9.1 Self-diagnosis
9.2 Cautions to Be Taken
During Replacement of Optical
Pickup and Spindle Motor
Assembly
9.2.1 Cautions to be taken
during replacement of optical
pickup
10 Self-Diagnosis Function
and Service Mode
10.1 Self-Diagnosis Function
(VTR Section)
10.1.1 Sef-Diagnosis Display
10.1.2 Service Mode
10.1.3 Service Mode Display
10.1.4 Self-Diagnosis
History Memory Function
10.1.5 Self-Diagnosis
History Memory
10.2 Self-Diagnosis Function
(DVD Section)
10.2.1 Self-Diagnosis
Display
10.2.2 Error Code Display
10.3 Self-Diagnosis Function
and Service Mode
10.4 Mode Table
10.5 Servo Process
Flowchart
10.6 Servo Process Display
Mode
http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/PVAccel.html (1 of 4)9/3/2004 9:42:47 AM
Specifications
AMPLIFIER SECTION
RMS output power, 10% total harmonic distortion
1 kHz FL/FR
1 kHz Center
1 kHz SL/SR
100 Hz Subwoofer
Total RMS Dolby Digital mode power
FTC output power, 1% total harmonic distortion
120 Hz - 20 kHz FL/FR
120 Hz - 20 kHz Center
120 Hz - 20 kHz SL/SR
45 Hz - 120 kHz Subwoofer
Total FTC power in Dolby Digital mode (Band 1% THD)
Input sensitivity
AUX
Input impedance
DISC SECTION
50 W per channel 6Ω
150 W per channel 6Ω
50 W per channel 6Ω
200 W per channel 4Ω
550 W
28 W per channel 6Ω
100 W per channel 6Ω
28 W per channel 6Ω
128 W per channel 4Ω
340 W
250 mV
47 kΩ

Advertisement

Table of Contents
loading

Related Manuals for Panasonic SA-HT822VP

Summary of Contents for Panasonic SA-HT822VP

  • Page 1 Total FTC power in Dolby Digital mode (Band 1% THD) 340 W 10.4 Mode Table Input sensitivity 10.5 Servo Process 250 mV Flowchart Input impedance 47 kΩ 10.6 Servo Process Display Mode DISC SECTION http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/PVAccel.html (1 of 4)9/3/2004 9:42:47 AM...
  • Page 2 16.1 Disassembly flow chart Input level VIDEO IN; 1 Vp-p, 75Ω 16.2 P.C.B. Positions Output level VIDEO OUT; 1 Vp-p, 75Ω 16.3 Disassembly of Top Antenna receive input VHF 2-13 CH, 75Ω Cabinet UHF 14-69 CH, 75Ω http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/PVAccel.html (2 of 4)9/3/2004 9:42:47 AM...
  • Page 3 18.1 Preparation Items 18.1.1 Procedures 19 Illustration of IC ’ s, © 2004 Panasonic AVC Networks Singapore Pte. Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. Transistors and Diodes 20 Block Diagram 20.1 DVD Module Block 20.2 Main Block...
  • Page 4 25.2 Cassette Mechanism 25.2.1 Cassette Mechanism Parts Location 25.2.2 Cassette Mechanism Parts List 25.3 Cabinet 25.3.1 Cabinet Parts Location 25.3.2 Cabinet Parts List 25.4 Electrical Parts List 25.5 Packing Materials & Accessories Parts List 25.6 Packaging http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/PVAccel.html (4 of 4)9/3/2004 9:42:47 AM...

  • Page 5: Table Of Contents

    5.1 About lead free solder (PbF) 6 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices 7 Accessories 8 Precaution of Laser Diode 9 Optical Pickup Self-Diagnosis and Replacement Procedure (DVD Section) http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/final.html (1 of 8)9/3/2004 9:42:48 AM...
  • Page 6 10.2 Self-Diagnosis Function (DVD Section) 10.2.1 Self-Diagnosis Display 10.2.2 Error Code Display 10.3 Self-Diagnosis Function and Service Mode 10.4 Mode Table 10.5 Servo Process Flowchart 10.6 Servo Process Display Mode 10.7 ADSC internal RAM display 10.8 Lock Function http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/final.html (2 of 8)9/3/2004 9:42:48 AM...
  • Page 7 12 Adjustment Procedure (DVD Section) 12.1 Required Tools and Equipment 12.2 Necessity of Adjustment 12.2.1 Necessity of Optical Adjustment 12.2.2 Necessity of Electrical Adjustment 12.3 Storing and Handling Test Discs 12.4 Optical Adjustment (Optical Pickup Tilt Adjustment) http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/final.html (3 of 8)9/3/2004 9:42:48 AM...
  • Page 8 16.2 P.C.B. Positions 16.3 Disassembly of Top Cabinet 16.4 Disassembly of Front Panel 16.5 Disassembly of VTR Mecha Unit 16.6 Disassembly of DVD Mecha Unit 16.7 Disassembly of DSP, Power, AC Inlet and Main P.C.B. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/final.html (4 of 8)9/3/2004 9:42:48 AM...
  • Page 9 16.13.3 Removal of Mecha Unit then take out Cassette Tape 17 Procedure for checking of the major P.C.B. 17.1 Checking the DVD Module P.C.B., DSP P.C.B., Power P.C.B., CD Loading P.C.B., Panel A P.C. B., Panel B P.C.B. and 5DVD Led P.C.B. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/final.html (5 of 8)9/3/2004 9:42:48 AM...
  • Page 10 22.1 DVD Module Circuit 22.2 Main Circuit 22.3 Main Circuit 22.4 Main Circuit 22.5 Main Circuit 22.6 DSP Circuit 22.7 Power Circuit and AC Inlet 22.8 Panel B Circuit 22.9 5DVD LED Circuit and Panel A Circuit http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/final.html (6 of 8)9/3/2004 9:42:48 AM...
  • Page 11 25 Parts Location and Replacement Parts List 25.1 CD Loading Mechanism 25.1.1 CD Loading Mechanism Parts Location 25.1.2 CD Loading Mechanism Parts List 25.2 Cassette Mechanism 25.2.1 Cassette Mechanism Parts Location 25.2.2 Cassette Mechanism Parts List 25.3 Cabinet http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/final.html (7 of 8)9/3/2004 9:42:48 AM...
  • Page 12 25.3.1 Cabinet Parts Location 25.3.2 Cabinet Parts List 25.4 Electrical Parts List 25.5 Packing Materials & Accessories Parts List 25.6 Packaging http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/final.html (8 of 8)9/3/2004 9:42:48 AM...
  • Page 13 FTC output power, 1% total harmonic distortion 120 Hz - 20 kHz FL/FR 28 W per channel 6Ω 120 Hz - 20 kHz Center 100 W per channel 6Ω 120 Hz - 20 kHz SL/SR 28 W per channel 6Ω http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0000000000.html (1 of 4)9/3/2004 9:42:49 AM...
  • Page 14 Video recording system 2 rotary heads, helical scanning system Video heads 4 heads Audio heads 2 heads Tape speed SP; 33.35 mm/s, EP; 11.12 mm/s Tape format VHS tape Recording/playback time SP; 120 min. with NV-T120 http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0000000000.html (2 of 4)9/3/2004 9:42:49 AM...
  • Page 15 Approx. 3.5 W (main unit)+ 0.3 W (subwoofer) DIM mode Approx. 3.2 W (main unit)+ 0.3 W (subwoofer) OFF mode Approx. 1.9 W (main unit)+ 0.3 W (subwoofer) SYSTEM SC-HT822V (P) Main unit: SA-HT822V (P) Satellie speaker: SB-HT822 (P) http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0000000000.html (3 of 4)9/3/2004 9:42:49 AM...
  • Page 16 Mass and dimensions are aproximate. Total harmonic distortion is measured by the digital spectrum analyzer. © 2004 Panasonic AVC Networks Singapore Pte. Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. TOP NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0000000000.html (4 of 4)9/3/2004 9:42:49 AM...

  • Page 17: Powering Up Of The Main Unit Pv

    1 Powering Up of the Main Unit TOP PREVIOUS NEXT 1.1 Checking Player with Active Subwoofer 1.2 Using of Power Jig TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0100000000e.html9/3/2004 9:42:49 AM...

  • Page 18: Checking Player With Active Subwoofer

    2. Connect both AC power supply cords to enjoy all the features of this system. This speakers and tuner will not work unless you connect the subwoofer to a household AC outlet. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0101000000.html (1 of 2)9/3/2004 9:42:51 AM...
  • Page 19 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0101000000.html (2 of 2)9/3/2004 9:42:51 AM...

  • Page 20: Using Of Power Jig

    TOP PREVIOUS NEXT 1. If the active subwoofer is not available during to repair of the unit, use the following equipment. Jig product number RFKZ0182 (110V, 127V, 220V, 230V - 240V for for overseas domestic use) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0102000000.html9/3/2004 9:42:52 AM...

  • Page 21: Before Repair And Adjustment (Using Active Subwoofer Unit)

    DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices. After repairs are completed, restore power gradually using a variac, to avoid overcurrent. Current consumption at AC 120V, 60Hz in NO SIGNAL mode should be ~1000 mA [From Active Subwoofer]. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0200000000x.html9/3/2004 9:42:52 AM...

  • Page 22: Protection Circuitry

    2. Determine the cause of the problem and correct it. 3. Switch ON the power once again. Note : When the protection circuitry functions, the unit will not operate unless the power is first switched OFF and then ON again. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0300000000x.html9/3/2004 9:42:53 AM...

  • Page 23: Safety Precautions Pv

    4 Safety Precautions TOP PREVIOUS NEXT 4.1 General Guidelines 4.1.1 Leakage Current Cold Check 4.1.2 Leakage Current Hot Check (See Figure 1) 4.1.3 Caution for fuse replacement TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0400000000e.html9/3/2004 9:42:54 AM...

  • Page 24: General Guidelines

    5. Before returning the serviced equipment to the customer, be sure to make the following insulation resistance test to prevent the customer from being exposed to a shock hazard. 4.1.1 Leakage Current Cold Check 4.1.2 Leakage Current Hot Check (See Figure 1) 4.1.3 Caution for fuse replacement TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0401000000.html9/3/2004 9:42:54 AM...

  • Page 25: Leakage Current Cold Check

    When the exposed metallic part has a return path to the chassis,the reading should be between 1MΩ and 5.2MΩ. When the exposed metal does not have a return path to the chassis, the reading must be Fig. 1 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0401010000.html9/3/2004 9:42:56 AM...

  • Page 26: Leakage Current Hot Check (See Figure 1)

    1/2 milliamp. In case a measurement is out ofthe limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0401020000.html9/3/2004 9:42:56 AM...

  • Page 27: Caution For Fuse Replacement

    4.1.3 Caution for fuse replacement TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0401030000.html9/3/2004 9:42:57 AM...

  • Page 28: Handling The Lead-Free Solder

    5 Handling the Lead-free Solder TOP PREVIOUS NEXT 5.1 About lead free solder (PbF) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0500000000x.html9/3/2004 9:42:58 AM...

  • Page 29: About Lead Free Solder (Pbf)

    When soldering or unsoldering, please completely remove all of the solder on the pins or solder area, and be sure to heat the soldering points with the Pb free solder until it melts enough. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0501000000.html9/3/2004 9:42:59 AM...

  • Page 30: Prevention Of Electro Static Discharge (Esd) To Electrostatically Sensitive (Es) Devices Pv

    8. Minimize body motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient todamage an ES device). http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0600000000e.html (1 of 2)9/3/2004 9:43:00 AM...
  • Page 31 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0600000000e.html (2 of 2)9/3/2004 9:43:00 AM...

  • Page 32: Accessories Pv

    7 Accessories TOP PREVIOUS NEXT Remote control AC power supply cord AM loop antenna FM indoor antenna Video cable http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0700000000e.html (1 of 2)9/3/2004 9:43:02 AM...
  • Page 33 System cable Antenna plug Coaxial cable Speaker cable stickers TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0700000000e.html (2 of 2)9/3/2004 9:43:02 AM...

  • Page 34: Precaution Of Laser Diode Pv

    CAUTION! THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. Use of Caution Labels http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0800000000e.html (1 of 2)9/3/2004 9:43:04 AM...
  • Page 35 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0800000000e.html (2 of 2)9/3/2004 9:43:04 AM...

  • Page 36: Optical Pickup Self-Diagnosis And Replacement Procedure (Dvd Section) Pv

    9 Optical Pickup Self-Diagnosis and Replacement Procedure (DVD Section) TOP PREVIOUS NEXT 9.1 Self-diagnosis 9.2 Cautions to Be Taken During Replacement of Optical Pickup and Spindle Motor Assembly 9.2.1 Cautions to be taken during replacement of optical pickup TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0900000000e.html9/3/2004 9:43:04 AM...
  • Page 37 Especially when"NO DISC" is displayed, be sure to apply the self-diagnosis function before replacing with an optical pickup. Replacement of optical pickup generally requires when the present value of laser drive exceeds 55. Note: Start diagnosis within three minutes after turning on the power (as diagnosis fails when the unit becomes warm). http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0901000000.html (1 of 2)9/3/2004 9:43:07 AM...
  • Page 38 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0901000000.html (2 of 2)9/3/2004 9:43:07 AM...

  • Page 39: Cautions To Be Taken During Replacement Of Optical Pickup And Spindle Motor Assembly

    DVD player, the "FORWARD" button checking mode is cancelled.) on VTR and the number "6" button on the remote controller unit at the same time. 9.2.1 Cautions to be taken during replacement of optical pickup TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0902000000.html9/3/2004 9:43:08 AM...

  • Page 40: Cautions To Be Taken During Replacement Of Optical Pickup

    If an anti-static soldering iron is not available, short-circuit the terminal surface of the flexible cable and then the land using a clip or equivalent device. For short-circuit of the above laser diode, remove soldering as instructed in this manual after completing repair. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0902010000.html (1 of 2)9/3/2004 9:43:09 AM...
  • Page 41 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s0902010000.html (2 of 2)9/3/2004 9:43:09 AM...

  • Page 42: Self-Diagnosis Function And Service Mode Pv

    10.2.2 Error Code Display 10.3 Self-Diagnosis Function and Service Mode 10.4 Mode Table 10.5 Servo Process Flowchart 10.6 Servo Process Display Mode 10.7 ADSC internal RAM display 10.8 Lock Function 10.8.1 Setting 10.8.2 Exiting Lock Function http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1000000000e.html (1 of 2)9/3/2004 9:43:10 AM...
  • Page 43 10.9 Cautions To Be Taken During Servicing 10.9.1 Recovery Process after Repair of DVD Player 10.9.2 DVD Player Firmware Version Upgrade Process 10.10 Operation after Completion of Repair 10.10.1 Steps 10.10.2 Precaution Note (Important) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1000000000e.html (2 of 2)9/3/2004 9:43:10 AM...

  • Page 44: Self-Diagnosis Function (Vtr Section)

    10.1 Self-Diagnosis Function (VTR Section) TOP PREVIOUS NEXT 10.1.1 Sef-Diagnosis Display 10.1.2 Service Mode 10.1.3 Service Mode Display 10.1.4 Self-Diagnosis History Memory Function 10.1.5 Self-Diagnosis History Memory TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1001000000.html9/3/2004 9:43:11 AM...

  • Page 45: Sef-Diagnosis Display

    The details of a failure applicable to an error code are displayed on the minute, ten seconds, one second position of the FIP. <Display> FL display example: <List of Remedy Code> <List of Error Code> http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1001010000.html (1 of 2)9/3/2004 9:43:12 AM...
  • Page 46 No capstan FG when cassette is loaded(Capstan system, S-reel system failure) Cylinder lock detected during normal rotation S-reel lock detected during normal running T-reel lock detected during normal running EJECT mode when an error is detected Error during PG automatic adjustment TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1001010000.html (2 of 2)9/3/2004 9:43:12 AM...

  • Page 47: Service Mode

    Manual operation Real timeMechanical position Real timeMotor command PLAY button ON: loading direction STOP button Same as the details of Service 2 Same as the details of ON: Unloading direction Service 2 http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1001020000.html (1 of 2)9/3/2004 9:43:12 AM...
  • Page 48 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1001020000.html (2 of 2)9/3/2004 9:43:12 AM...

  • Page 49: Service Mode Display

    Press and hold down the FF and EJECT buttons for at least three seconds to enter the service mode. As this operation is repeated, service number changes starting at 0 up to 7, and then counter (clock) is displayed. <Display> FL display example: TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1001030000.html9/3/2004 9:43:13 AM...

  • Page 50: Self-Diagnosis History Memory Function

    <Display of Self-Diagnosis History> The self-diagnosis history and additional data will be displayed on the FL, using numbers 3 to 5 of the service mode. FL display example: http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1001040000.html (1 of 2)9/3/2004 9:43:14 AM...
  • Page 51 By selecting 3, 4 or 5 of the service mode, error code and additional data of history 1, history 2, and history 3 are displayed respectively. When no error code is memorized, "-" will appear as error code and additional data. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1001040000.html (2 of 2)9/3/2004 9:43:14 AM...

  • Page 52: Self-Diagnosis History Memory

    T-reel lock detected during normal running VCR mode Processing number Tape position FG count EJECT mode when an error is detected VCR mode Tape position None Error during PG automatic adjustment VCR mode Tape position None http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1001050000.html (1 of 4)9/3/2004 9:43:15 AM...
  • Page 53 L both terminals detected when loading starts *Additional data 3 and 4 While the self-diagnosis history is displayed, press the STOP button (on the unit or the remote controller unit) to switch between Additional data 3 and 4. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1001050000.html (2 of 4)9/3/2004 9:43:15 AM...
  • Page 54 4A : End terminal check, tape forwarding4- : PLAY check, tape forwarding 80 : PLAY P OFF81 : Rewind82 : P OFF REV (CUE) 49 : Double speed forwarding, remaining computation jump <Additional data 4> (LM information) http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1001050000.html (3 of 4)9/3/2004 9:43:15 AM...
  • Page 55 By loading motor driving request No change in mechanical position: 1 (loading motor OFF) Some change in mechanical position: 2 (loading motor ON) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1001050000.html (4 of 4)9/3/2004 9:43:15 AM...

  • Page 56: Self-Diagnosis Function (Dvd Section)

    10.2 Self-Diagnosis Function (DVD Section) TOP PREVIOUS NEXT 10.2.1 Self-Diagnosis Display 10.2.2 Error Code Display TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1002000000.html9/3/2004 9:43:16 AM...

  • Page 57: Self-Diagnosis Display

    F 03 Traverse servo error F 04 Tracking servo error F 05 Seek error F 06 Power supply error Power cannot be turned off due to communication error between panel computer and system computer. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1002010000.html9/3/2004 9:43:17 AM...

  • Page 58: Error Code Display

    No permission of command issue F611 6626 QCODE don´t read ERROR Unable to obtain seek address at CD system F612 No CRC OK during a certain time of duration Unable to obtain ID data at DVD system http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1002020000.html (1 of 3)9/3/2004 9:43:17 AM...
  • Page 59 Firm device incompatible (non-conformant destination value) F896 PERR JMP NON Firm device incompatible (non existing jumper) F897 PERR NO INIT Initialization incomplete F8A0 Unsuitable message command When a message starts transmission to AV task (error stops) http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1002020000.html (2 of 3)9/3/2004 9:43:17 AM...
  • Page 60 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1002020000.html (3 of 3)9/3/2004 9:43:17 AM...

  • Page 61: Self-Diagnosis Function And Service Mode

    10.3 Self-Diagnosis Function and Service Mode TOP PREVIOUS NEXT Improvement of Self-Diagnosis FunctionPrevious self-diagnosis function of DVD player has been improved as follows: TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1003000000.html9/3/2004 9:43:19 AM...

  • Page 62: Mode Table

    10.4 Mode Table TOP PREVIOUS NEXT Following modes are available with combinations of the pressed buttons on the player and on the remote controller unit. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1004000000.html (1 of 3)9/3/2004 9:43:21 AM...
  • Page 63 (2 of 3)9/3/2004 9:43:21 AM...
  • Page 64 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1004000000.html (3 of 3)9/3/2004 9:43:21 AM...

  • Page 65: Servo Process Flowchart

    10.5 Servo Process Flowchart TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1005000000.html (1 of 2)9/3/2004 9:43:24 AM...
  • Page 66 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1005000000.html (2 of 2)9/3/2004 9:43:24 AM...

  • Page 67: Servo Process Display Mode

    Error recovery according to attention error interruption sent from S-ODC. C5 ~ C9 (Q-code read) Reset and retry when Q-code cannot be read. CA ~ CF Stop Stop Disc operation completely stops as servo down according to user´s F0 ~ FF operation. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1006000000.html9/3/2004 9:43:25 AM...

  • Page 68: Adsc Internal Ram Display

    10.7 ADSC internal RAM display TOP PREVIOUS NEXT Displays servo learning values of ADSC internal RAM as servo processor.Used for judging the quality of servo operation, disc, and OPU. Followings are commonly displayed addresses: TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1007000000.html9/3/2004 9:43:26 AM...

  • Page 69: Lock Function

    This function prohibits removal of disc and some disc operations to prevent loss of disc at a shop during sales promotion or equivalent occasions. While this function is activated, the player displays "LOCKED" if any button is touched. 10.8.1 Setting 10.8.2 Exiting Lock Function TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1008000000.html9/3/2004 9:43:27 AM...

  • Page 70: Setting

    TOP PREVIOUS NEXT While pressing and holding down the "STOP" key on the unit, press the POWER button on the remote controller unit to activate. (The message, "LOCKED" appears when the function is activated.) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1008010000.html9/3/2004 9:43:27 AM...

  • Page 71: Exiting Lock Function

    While the lock function is activated, press the buttons which are used to enter the mode in the same manner. (When the lock function is deactivated, the message, "UNLOCKED" appears.) (This function cannot be cancelled even when the power is turnedoff.) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1008020000.html9/3/2004 9:43:28 AM...

  • Page 72: Cautions To Be Taken During Servicing

    10.9 Cautions To Be Taken During Servicing TOP PREVIOUS NEXT 10.9.1 Recovery Process after Repair of DVD Player 10.9.2 DVD Player Firmware Version Upgrade Process TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1009000000.html9/3/2004 9:43:29 AM...

  • Page 73: Recovery Process After Repair Of Dvd Player

    Previously required initialization after repair of DVD player is no longer necessary. After completing the recovery process, the user´s setting is replaced with factory setting like user initialization. Therefore, record the user´ssetting before repair in order to restore it after applying the recovery process. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1009010000.html9/3/2004 9:43:29 AM...

  • Page 74: Dvd Player Firmware Version Upgrade Process

    Version upgrade process cannot be complete if the AC power is cut off due to power failure and other occasions during the process. If this occurs, replace FLASH ROM and restart version upgrade. Version upgrade disc number is informed when ordered. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1009020000.html9/3/2004 9:43:30 AM...

  • Page 75: Operation After Completion Of Repair

    10.10 Operation after Completion of Repair TOP PREVIOUS NEXT Follow the steps described below after completion of repair. 10.10.1 Steps 10.10.2 Precaution Note (Important) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1010000000.html9/3/2004 9:43:31 AM...

  • Page 76: Steps

    10.10.1 Steps TOP PREVIOUS NEXT While the power is turned on: 1. Close the tray using the OPEN/CLOSE button. 2. Turn off the power using the POWER button. 3. Unplug the power outlet. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1010010000.html9/3/2004 9:43:31 AM...

  • Page 77: Precaution Note (Important)

    10.10.2 Precaution Note (Important) TOP PREVIOUS NEXT Do not unplug the power outlet while the tray is open, and do not close the tray manually. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1010020000.html9/3/2004 9:43:32 AM...

  • Page 78: Checking Points For Sys Com Timer My-Com (Ic6001) (Video) Pv

    11 CHECKING POINTS FOR SYS COM TIMER MY- COM (IC6001) (VIDEO) TOP PREVIOUS NEXT 11.1 Points to check when replacing 11.2 Initial setting when replacing My-com. 11.3 Initial figure ( # ) setting procedure TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1100000000e.html9/3/2004 9:43:33 AM...

  • Page 79: Points To Check When Replacing

    (Unless carrying out the Factory Setting, the indication of the line-in doesn´t appear on the FIP panel). 6. After carrying out the procedure 1. to 5. as above please adjust the PG shifter. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1101000000.html9/3/2004 9:43:33 AM...

  • Page 80: Initial Setting When Replacing My-Com

    4. The RAM inside of the microcomputer (IC6001) stores the PG self-adjustment. Be sure to do the PG self-adjustment when the Sys Com Timer My-Com, the P.C.B. with microcomputer, and cylinder unit are replaced. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1102000000.html9/3/2004 9:43:34 AM...

  • Page 81: Initial Figure (#) Setting Procedure

    11.3 Initial figure (#) setting procedure TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1103000000.html (1 of 2)9/3/2004 9:43:36 AM...
  • Page 82 Caution: When using the service mode, please be sure to plug in and plugout once (for resetting) after clearing the service mode and setting the normal mode. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1103000000.html (2 of 2)9/3/2004 9:43:36 AM...

  • Page 83: Adjustment Procedure (Dvd Section) Pv

    12.2.2 Necessity of Electrical Adjustment 12.3 Storing and Handling Test Discs 12.4 Optical Adjustment (Optical Pickup Tilt Adjustment) 12.4.1 Optical Adjustment (Optical Pickup Tilt Adjustment) 12.4.2 Tips 12.4.3 Check After Adjustment 12.4.4 Procedure for Screw Lock TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1200000000e.html9/3/2004 9:43:37 AM...

  • Page 84: Required Tools And Equipment

    TORX screw driver (T6) Available on sales route. (T6) or RFKZ0185 Others Hanarl VFK1784 Grease RFKXPG641 Drysurf RFKXGUD24 Checking CD test disc PVCD-K06 and any commercially available disc VCD test disc PVCD-K06 and any commercially available disc Recovery disc RFKZD03R005 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1201000000.html9/3/2004 9:43:38 AM...

  • Page 85: Necessity Of Adjustment

    12.2 Necessity of Adjustment TOP PREVIOUS NEXT 12.2.1 Necessity of Optical Adjustment 12.2.2 Necessity of Electrical Adjustment TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1202000000.html9/3/2004 9:43:38 AM...

  • Page 86: Necessity Of Optical Adjustment

    Optical adjustment is not necessary after replacement of other parts inside traverse, however, may require when picture deterioration is detected. Optical adjustment cannot be applied to the inside of optical pickup. When a traverse unit is replaced,the adjustment is not necessary. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1202010000.html9/3/2004 9:43:39 AM...

  • Page 87: Necessity Of Electrical Adjustment

    12.2.2 Necessity of Electrical Adjustment TOP PREVIOUS NEXT Follow the procedure for adjustment. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1202020000.html9/3/2004 9:43:40 AM...

  • Page 88: Storing And Handling Test Discs

    3. Accurate adjustment cannot be expected with a disc warped against a flat surface. Obtain a new test disc for optical adjustment. 4. If a warped disc is used, adjustment would result incorrectly, and other discs could not be used. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1203000000.html9/3/2004 9:43:40 AM...

  • Page 89: Optical Adjustment (Optical Pickup Tilt Adjustment)

    Adjustment value None (LCD display of the player is used.) Adjust that jitter value becomes minimum. 12.4.1 Optical Adjustment (Optical Pickup Tilt Adjustment) 12.4.2 Tips 12.4.3 Check After Adjustment 12.4.4 Procedure for Screw Lock TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1204000000.html9/3/2004 9:43:41 AM...

  • Page 90: Optical Adjustment (Optical Pickup Tilt Adjustment)

    9. Adjust till the jitter value becomes, using the tilt adjustment screws 1 and 2 alternatively. 10. Finally please reproduce T01 (inner priphery) and T43 (outer periphery) and check the jitter value. (Please readjust, when the jitter value is extremely different.) http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1204010000.html (1 of 2)9/3/2004 9:43:42 AM...
  • Page 91 Fig. 12-1 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1204010000.html (2 of 2)9/3/2004 9:43:42 AM...

  • Page 92: Tips

    12.4.2 Tips TOP PREVIOUS NEXT 1. Apply the tangential adjustment first and then the tilt adjustment. 2. Repeat the adjustment a couple of times to find the optimum point. 3. Complete with the tilt adjustment. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1204020000.html9/3/2004 9:43:43 AM...

  • Page 93: Check After Adjustment

    Replay test discs or other commercial discs in order to confirm that no picture deterioration or sound skipping is detected in the inner, middle, and outer tracks. After this, fasten each adjustment screw securely using a screw lock. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1204030000.html9/3/2004 9:43:44 AM...

  • Page 94: Procedure For Screw Lock

    2. Place the traverse unit upside down, and fasten the adjustment screws with a screw lock. <Fig. 12.2> 3. After fastening the screws, assemble in order of the traverse unit, disc tray, clamper base, and then top cover. Fig. 12-2 http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1204040000.html (1 of 2)9/3/2004 9:43:45 AM...
  • Page 95 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1204040000.html (2 of 2)9/3/2004 9:43:45 AM...

  • Page 96: Operation Procedure

    13 Operation Procedure TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1300000000o.html9/3/2004 9:43:46 AM...

  • Page 97: Disc Information

    14 Disc information TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1400000000x.html9/3/2004 9:43:47 AM...

  • Page 98: About Highmat Pv

    15 About HighMAT TOP PREVIOUS NEXT 15.1 What is HighMAT? 15.2 Why use HighMAT? 15.3 The advantages of using HighMAT 15.4 Outline of the HighMAT standard TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1500000000e.html9/3/2004 9:43:48 AM...
  • Page 99 HighMat is a format that allows users to save digital contents such as photographs, audio and images on a CD. This gives consistency in the way of reading data when general consumer products (such as DVD players) and PCs are used, and thus, it iseasy to operate for the user. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1501000000.html9/3/2004 9:43:49 AM...

  • Page 100: Why Use Highmat

    As the number of CD-ROMs recorded increased retrieved the contents became more difficult. Because display and operation methods were different depending on the equipment, the play order of the content on the same disc could change. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1502000000.html9/3/2004 9:43:50 AM...

  • Page 101: The Advantages Of Using Highmat

    15.3 The advantages of using HighMAT TOP PREVIOUS NEXT Applying the HighMAT standard will solve the following problems and will improve usability. It will create a common user interface for both PC and consumer products. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1503000000.html (1 of 3)9/3/2004 9:43:52 AM...
  • Page 102 You can also play digital content on the disc, which was created in accordance with the HighMAT format with a conventional CD-ROM player. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1503000000.html (2 of 3)9/3/2004 9:43:52 AM...
  • Page 103 (3 of 3)9/3/2004 9:43:52 AM...

  • Page 104: Outline Of The Highmat Standard

    15.4 Outline of the HighMAT standard TOP PREVIOUS NEXT 1. Recording medium CD-R/CD-RW Supports ISO 9660 Level Expanded Joliet For multiple session 2. Support data format http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1504000000.html (1 of 3)9/3/2004 9:43:55 AM...
  • Page 105 Menu: Classified for the navigation of the HighMAT digital contents. When menu selected, its submenu or the play list will be displayed. Play list: A list in which one or more digital contents are arranged in order. Group: Sub-divided group of a play list. Digital Contents: Audio, still picture and animation data. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1504000000.html (2 of 3)9/3/2004 9:43:55 AM...
  • Page 106 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1504000000.html (3 of 3)9/3/2004 9:43:55 AM...

  • Page 107: Assembling And Disassembling Pv

    16.10.2 Replacement of traverse deck 16.10.3 Replacement of optical pickup unit 16.10.4 Disassembly of Traverse Motor (Unit) and Spindle Motor (Unit) 16.10.5 Replacement for the disc tray 16.10.6 Replacement for the traverse deck 16.10.7 Disassembly for loading unit http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1600000000e.html (1 of 2)9/3/2004 9:43:56 AM...
  • Page 108 16.13 Removing the Cassette Tape Manually 16.13.1 Removal by Compulsory Loading 16.13.2 Removal by Use of Battery to Rotate Loading Motor 16.13.3 Removal of Mecha Unit then take out Cassette Tape TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1600000000e.html (2 of 2)9/3/2004 9:43:56 AM...

  • Page 109: Disassembly Flow Chart

    TOP PREVIOUS NEXT The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing. To assemble the unit, reverse the steps shown in the chart below. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1601000000.html (1 of 2)9/3/2004 9:43:57 AM...
  • Page 110 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1601000000.html (2 of 2)9/3/2004 9:43:57 AM...
  • Page 111 16.2 P.C.B. Positions TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1602000000.html9/3/2004 9:43:58 AM...

  • Page 112: Disassembly Of Top Cabinet

    16.3 Disassembly of Top Cabinet TOP PREVIOUS NEXT Step 1: Remove all the screws. Step 2: Remove the Top Cabinet as arrow shown below. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1603000000.html (1 of 2)9/3/2004 9:43:59 AM...
  • Page 113 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1603000000.html (2 of 2)9/3/2004 9:43:59 AM...

  • Page 114: Disassembly Of Front Panel

    16.4 Disassembly of Front Panel TOP PREVIOUS NEXT Follow the (Step 1) to (Step 2) of item 16.3 Step 1: Release all the catches. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1604000000.html (1 of 3)9/3/2004 9:44:01 AM...
  • Page 115 Step 2: Detach the P7202 and FFC board (P36001). [Caution of disassembly for Front Panel] Press upward the cassette rack to place the Front Panel. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1604000000.html (2 of 3)9/3/2004 9:44:01 AM...
  • Page 116 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1604000000.html (3 of 3)9/3/2004 9:44:01 AM...

  • Page 117: Disassembly Of Vtr Mecha Unit

    Follow the (Step 1) to (Step 2) of item 16.3 Follow the (Step 1) to (Step 2) of item 16.4 Step 1 to 4: Remove all the screws. Step 5: Detach all the FFC board (P4002, P2501). Step 6: Disconnect the connector (P1531). http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1605000000.html (1 of 5)9/3/2004 9:44:04 AM...
  • Page 118 Step 7: Lift up the VTR Mecha Unit as arrow shown below. Step 8: Detach the connector (P5001, P4001, P2571) carefully when lift up the VTR Mecha Unit. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1605000000.html (2 of 5)9/3/2004 9:44:04 AM...
  • Page 119 )of the position switch tothe position of “EJECT” (the center part of the terminal). (Figure 2) 2. Assembly the boss at the position switch to the rectangular hole at the main gear. (Figure 1) http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1605000000.html (3 of 5)9/3/2004 9:44:04 AM...
  • Page 120 3. Slowly join back the VTR Mecha Unit to fit the position setting boss (3 locations) on the Main unit. 4. Make sure the FFC insert to the the connector (P5001). http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1605000000.html (4 of 5)9/3/2004 9:44:04 AM...
  • Page 121 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1605000000.html (5 of 5)9/3/2004 9:44:04 AM...

  • Page 122: Disassembly Of Dvd Mecha Unit

    TOP PREVIOUS NEXT Follow the (Step 1) to (Step 2) of item 16.3 Follow the (Step 1) to (Step 2) of item 16.4 Step 1: Remove 1 screw and DVD Bracket. Step 2: Remove 2 screws. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1606000000.html (1 of 3)9/3/2004 9:44:06 AM...
  • Page 123 Step 3: Detach all the FFC board (P36004, P36005). http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1606000000.html (2 of 3)9/3/2004 9:44:06 AM...
  • Page 124 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1606000000.html (3 of 3)9/3/2004 9:44:06 AM...

  • Page 125: Disassembly Of Dsp, Power, Ac Inlet And Main P.c.b

    Follow the (Step 1) to (Step 8) of item 16.5 Follow the (Step 3) of item 16.6 Step 1: Remove 1 screw. Step 2: Remove 6 screws. Step 3: Remove the back panel as arrow shown below. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1607000000.html (1 of 6)9/3/2004 9:44:09 AM...
  • Page 126 Step 4: Press the PCB Spacer as arrow shown and lift up the DSP P.C.B. Step 5: Detach all the FFC board (CN101, CN401). http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1607000000.html (2 of 6)9/3/2004 9:44:09 AM...
  • Page 127 Step 6: Remove 2 screws. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1607000000.html (3 of 6)9/3/2004 9:44:09 AM...
  • Page 128 Step 7: Detach the POWER P.C.B. and AC INLET P.C.B. while removing tab on board holder. Step 8: Detach the connector (P1102). http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1607000000.html (4 of 6)9/3/2004 9:44:09 AM...
  • Page 129 Step 9: Remove 5 screws. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1607000000.html (5 of 6)9/3/2004 9:44:09 AM...
  • Page 130 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1607000000.html (6 of 6)9/3/2004 9:44:09 AM...
  • Page 131 Follow the (Step 1) to (Step 2) of item 16.4 Step 1: Release the catches and remove Volume Knob. Step 2: Remove 8 screws. Step 3: Detach the FFC board (P7203). Step 4: Remove 2 screws. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1608000000.html (1 of 2)9/3/2004 9:44:11 AM...
  • Page 132 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1608000000.html (2 of 2)9/3/2004 9:44:11 AM...

  • Page 133: Procedure For Removing Cr16 Mechanism (Precaution)

    2. Unplug AC power cord after the indication of [GOOD-BYE], then disassemble the body. 3. Disassemble the body, and take out CD loading mechanism. 4. Perform disassembly according to the following procedure for disassembly. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1609000000.html9/3/2004 9:44:12 AM...

  • Page 134: Cr16 Mechanism Disassembly Procedure

    16.10.2 Replacement of traverse deck 16.10.3 Replacement of optical pickup unit 16.10.4 Disassembly of Traverse Motor (Unit) and Spindle Motor (Unit) 16.10.5 Replacement for the disc tray 16.10.6 Replacement for the traverse deck 16.10.7 Disassembly for loading unit TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610000000.html9/3/2004 9:44:12 AM...

  • Page 135: Gear For Servicing Information

    In case of re-servicing the same set, the “ gear for servicing” may be took off because it had been used. So, the “gear for servicing” must be stored. 1. Remove the gear attached to top cover of CD loading mechanism. 2. Insert the hexgonal wrench (2.5mm) into the gear. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610010000.html (1 of 2)9/3/2004 9:44:13 AM...
  • Page 136 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610010000.html (2 of 2)9/3/2004 9:44:13 AM...

  • Page 137: Replacement Of Traverse Deck

    16.10.2 Replacement of traverse deck TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 16.3. Follow the (Step 1) - (Step 2) of Item 16.4. Follow the (Step 1) - (Step 5) of Item 16.6. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610020000.html (1 of 2)9/3/2004 9:44:15 AM...
  • Page 138 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610020000.html (2 of 2)9/3/2004 9:44:15 AM...

  • Page 139: Replacement Of Optical Pickup Unit

    Follow the (Step 1) - (Step 2) of Item 16.3. Follow the (Step 1) - (Step 2) of Item 16.4. Follow the (Step 1) - (Step 5) of Item 16.6. Follow the (Step 1) - (Step 2) of Item 16.10.2. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610030000.html (1 of 14)9/3/2004 9:44:20 AM...
  • Page 140 (2 of 14)9/3/2004 9:44:20 AM...
  • Page 141 (3 of 14)9/3/2004 9:44:20 AM...
  • Page 142 (4 of 14)9/3/2004 9:44:20 AM...
  • Page 143 (5 of 14)9/3/2004 9:44:20 AM...
  • Page 144 (6 of 14)9/3/2004 9:44:20 AM...
  • Page 145 (7 of 14)9/3/2004 9:44:20 AM...
  • Page 146 (8 of 14)9/3/2004 9:44:20 AM...
  • Page 147 (9 of 14)9/3/2004 9:44:20 AM...
  • Page 148 (10 of 14)9/3/2004 9:44:20 AM...
  • Page 149 (11 of 14)9/3/2004 9:44:20 AM...
  • Page 150 (12 of 14)9/3/2004 9:44:20 AM...
  • Page 151 (13 of 14)9/3/2004 9:44:20 AM...
  • Page 152 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610030000.html (14 of 14)9/3/2004 9:44:20 AM...

  • Page 153: Disassembly Of Traverse Motor (Unit) And Spindle Motor (Unit)

    Follow the (Step 1) - (Step 2) of Item 16.4. Follow the (Step 1) - (Step 5) of Item 16.6. Follow the (Step 1) - (Step 2) of Item 16.10.2. Follow the (Step 1) - (Step 13) of Item 16.10.3. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610040000.html (1 of 5)9/3/2004 9:44:22 AM...
  • Page 154 (2 of 5)9/3/2004 9:44:22 AM...
  • Page 155 (3 of 5)9/3/2004 9:44:22 AM...
  • Page 156 (4 of 5)9/3/2004 9:44:22 AM...
  • Page 157 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610040000.html (5 of 5)9/3/2004 9:44:22 AM...

  • Page 158: Replacement For The Disc Tray

    16.10.5 Replacement for the disc tray TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 16.3. Follow the (Step 1) - (Step 2) of Item 16.4. Follow the (Step 1) - (Step 5) of Item 16.6. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610050000.html (1 of 8)9/3/2004 9:44:27 AM...
  • Page 159 (2 of 8)9/3/2004 9:44:27 AM...
  • Page 160 (3 of 8)9/3/2004 9:44:27 AM...
  • Page 161 (4 of 8)9/3/2004 9:44:27 AM...
  • Page 162 (5 of 8)9/3/2004 9:44:27 AM...
  • Page 163 (6 of 8)9/3/2004 9:44:27 AM...
  • Page 164 (7 of 8)9/3/2004 9:44:27 AM...
  • Page 165 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610050000.html (8 of 8)9/3/2004 9:44:27 AM...

  • Page 166: Replacement For The Traverse Deck

    Follow the (Step 1) - (Step 2) of Item 16.3. Follow the (Step 1) - (Step 2) of Item 16.4. Follow the (Step 1) - (Step 5) of Item 16.6. Follow the (Step 1) - (Step 10) of Item 16.10.5. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610060000.html (1 of 3)9/3/2004 9:44:29 AM...
  • Page 167 (2 of 3)9/3/2004 9:44:29 AM...
  • Page 168 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610060000.html (3 of 3)9/3/2004 9:44:29 AM...

  • Page 169: Disassembly For Loading Unit

    Follow the (Step 1) - (Step 2) of Item 16.4. Follow the (Step 1) - (Step 5) of Item 16.6. Follow the (Step 1) - (Step 10) of Item 16.10.5. Follow the (Step 1) - (Step 4) of Item 16.10.6. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610070000.html (1 of 18)9/3/2004 9:44:37 AM...
  • Page 170 (2 of 18)9/3/2004 9:44:37 AM...
  • Page 171 (3 of 18)9/3/2004 9:44:37 AM...
  • Page 172 (4 of 18)9/3/2004 9:44:37 AM...
  • Page 173 (5 of 18)9/3/2004 9:44:37 AM...
  • Page 174 (6 of 18)9/3/2004 9:44:37 AM...
  • Page 175 (7 of 18)9/3/2004 9:44:37 AM...
  • Page 176 (8 of 18)9/3/2004 9:44:37 AM...
  • Page 177 (9 of 18)9/3/2004 9:44:37 AM...
  • Page 178 (10 of 18)9/3/2004 9:44:37 AM...
  • Page 179 (11 of 18)9/3/2004 9:44:37 AM...
  • Page 180 (12 of 18)9/3/2004 9:44:37 AM...
  • Page 181 (13 of 18)9/3/2004 9:44:37 AM...
  • Page 182 (14 of 18)9/3/2004 9:44:37 AM...
  • Page 183 (15 of 18)9/3/2004 9:44:37 AM...
  • Page 184 (16 of 18)9/3/2004 9:44:37 AM...
  • Page 185 (17 of 18)9/3/2004 9:44:37 AM...
  • Page 186 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1610070000.html (18 of 18)9/3/2004 9:44:37 AM...

  • Page 187: Cr16 Mechanism Assembly Procedure

    Follow the (Step 1) - (Step 5) of Item 16.6. Follow the (Step 1) - (Step 10) of Item 16.10.5. Follow the (Step 1) - (Step 4) of Item 16.10.6. Follow the (Step 1) - (Step 22) of Item 16.10.7. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1611000000.html (1 of 53)9/3/2004 9:44:49 AM...
  • Page 188 (2 of 53)9/3/2004 9:44:49 AM...
  • Page 189 (3 of 53)9/3/2004 9:44:49 AM...
  • Page 190 (4 of 53)9/3/2004 9:44:49 AM...
  • Page 191 (5 of 53)9/3/2004 9:44:49 AM...
  • Page 192 (6 of 53)9/3/2004 9:44:49 AM...
  • Page 193 (7 of 53)9/3/2004 9:44:49 AM...
  • Page 194 (8 of 53)9/3/2004 9:44:49 AM...
  • Page 195 (9 of 53)9/3/2004 9:44:49 AM...
  • Page 196 (10 of 53)9/3/2004 9:44:49 AM...
  • Page 197 (11 of 53)9/3/2004 9:44:49 AM...
  • Page 198 (12 of 53)9/3/2004 9:44:49 AM...
  • Page 199 (13 of 53)9/3/2004 9:44:49 AM...
  • Page 200 (14 of 53)9/3/2004 9:44:49 AM...
  • Page 201 (15 of 53)9/3/2004 9:44:49 AM...
  • Page 202 (16 of 53)9/3/2004 9:44:49 AM...
  • Page 203 (17 of 53)9/3/2004 9:44:49 AM...
  • Page 204 (18 of 53)9/3/2004 9:44:49 AM...
  • Page 205 (19 of 53)9/3/2004 9:44:49 AM...
  • Page 206 (20 of 53)9/3/2004 9:44:49 AM...
  • Page 207 (21 of 53)9/3/2004 9:44:49 AM...
  • Page 208 (22 of 53)9/3/2004 9:44:49 AM...
  • Page 209 (23 of 53)9/3/2004 9:44:49 AM...
  • Page 210 (24 of 53)9/3/2004 9:44:49 AM...
  • Page 211 (25 of 53)9/3/2004 9:44:49 AM...
  • Page 212 (26 of 53)9/3/2004 9:44:49 AM...
  • Page 213 (27 of 53)9/3/2004 9:44:49 AM...
  • Page 214 (28 of 53)9/3/2004 9:44:49 AM...
  • Page 215 (29 of 53)9/3/2004 9:44:49 AM...
  • Page 216 (30 of 53)9/3/2004 9:44:49 AM...
  • Page 217 (31 of 53)9/3/2004 9:44:49 AM...
  • Page 218 (32 of 53)9/3/2004 9:44:49 AM...
  • Page 219 (33 of 53)9/3/2004 9:44:49 AM...
  • Page 220 (34 of 53)9/3/2004 9:44:49 AM...
  • Page 221 (35 of 53)9/3/2004 9:44:49 AM...
  • Page 222 (36 of 53)9/3/2004 9:44:49 AM...
  • Page 223 (37 of 53)9/3/2004 9:44:49 AM...
  • Page 224 (38 of 53)9/3/2004 9:44:49 AM...
  • Page 225 (39 of 53)9/3/2004 9:44:49 AM...
  • Page 226 (40 of 53)9/3/2004 9:44:49 AM...
  • Page 227 (41 of 53)9/3/2004 9:44:49 AM...
  • Page 228 (42 of 53)9/3/2004 9:44:49 AM...
  • Page 229 (43 of 53)9/3/2004 9:44:49 AM...
  • Page 230 (44 of 53)9/3/2004 9:44:49 AM...
  • Page 231 (45 of 53)9/3/2004 9:44:49 AM...
  • Page 232 (46 of 53)9/3/2004 9:44:49 AM...
  • Page 233 (47 of 53)9/3/2004 9:44:49 AM...
  • Page 234 (48 of 53)9/3/2004 9:44:49 AM...
  • Page 235 (49 of 53)9/3/2004 9:44:49 AM...
  • Page 236 (50 of 53)9/3/2004 9:44:49 AM...
  • Page 237 (51 of 53)9/3/2004 9:44:49 AM...
  • Page 238 (52 of 53)9/3/2004 9:44:49 AM...
  • Page 239 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1611000000.html (53 of 53)9/3/2004 9:44:49 AM...
  • Page 240 16.12 Disassembly of traverse mechanism TOP PREVIOUS NEXT Follow the (Step 1) - (Step 2) of Item 16.3. Follow the (Step 1) - (Step 2) of Item 16.4. Follow the (Step 1) - (Step 5) of Item 16.6. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1612000000.html (1 of 6)9/3/2004 9:44:53 AM...
  • Page 241 (2 of 6)9/3/2004 9:44:53 AM...
  • Page 242 (3 of 6)9/3/2004 9:44:53 AM...
  • Page 243 (4 of 6)9/3/2004 9:44:53 AM...
  • Page 244 (5 of 6)9/3/2004 9:44:53 AM...
  • Page 245 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1612000000.html (6 of 6)9/3/2004 9:44:53 AM...
  • Page 246 When electrical system failure occurs and a loaded cassette tape is stuck in the unit, follow the instruction below to remove it. 16.13.1 Removal by Compulsory Loading 16.13.2 Removal by Use of Battery to Rotate Loading Motor 16.13.3 Removal of Mecha Unit then take out Cassette Tape TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1613000000.html9/3/2004 9:44:53 AM...
  • Page 247 1. Press and hold down the "FF" and "EJECT" buttons at least three seconds then adjust the service number until appears as "7". 2. Press the "STOP" button to unload. (Carefully check for tape slack) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1613010000.html9/3/2004 9:44:54 AM...
  • Page 248 2. Use a mechanism drive jig (or three AA-size batteries connected in series) in order to supply 4.5V and to rotate the loading motor. 3. Suspend the unloading operation right before completion. Rotate the S-reel board with a negative screwdriver (small size) to remove tape slack. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1613020000.html (1 of 4)9/3/2004 9:44:56 AM...
  • Page 249 (2 of 4)9/3/2004 9:44:56 AM...
  • Page 250 4. Restart the unloading operation to remove the cassette tape. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1613020000.html (3 of 4)9/3/2004 9:44:56 AM...
  • Page 251 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1613020000.html (4 of 4)9/3/2004 9:44:56 AM...
  • Page 252 1. Unplug the power outlet and remove the top panel and the front panel. 2. Remove the VTR mechanism unit. 3. Remove the loading motor (remove a screw). 4. Rotate the main cam gear counterclockwise, and suspend the unloading operation right before completion. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1613030000.html (1 of 3)9/3/2004 9:44:58 AM...
  • Page 253 5. Rotate the capstan rotor clockwise in order to remove tape slack. Rotate the main cam gear counterclockwise again and remove the cassette tape. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1613030000.html (2 of 3)9/3/2004 9:44:58 AM...
  • Page 254 6. Reassemble the loading motor and the mechanical unit to the Main P.C.B. and securely fasten with the screws. (Refer to "Precaution to Be Taken During Installation of Traverse Deck Unit".) TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1613030000.html (3 of 3)9/3/2004 9:44:58 AM...
  • Page 255 TOP PREVIOUS NEXT 17.1 Checking the DVD Module P.C.B., DSP P.C.B., Power P.C.B., CD Loading P.C.B., Panel A P.C. B., Panel B P.C.B. and 5DVD Led P.C.B. 17.2 Checking Main P.C.B. & AC Inlet P.C.B. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1700000000e.html9/3/2004 9:44:58 AM...

  • Page 256: Checking The Dvd Module P.c.b., Dsp P.c.b., Power P.c.b., Cd Loading P.c.b., Panel A P.c. B., Panel B P.c.b. And 5Dvd Led P.c.b

    C.B., CD Loading P.C.B., Panel A P.C.B., Panel B P.C.B. and 5DVD Led P.C.B. TOP PREVIOUS NEXT Preparation Follow items 16.1 to 16.7 of Disassembly Procedure (Refer to below diagram for service position 1). TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1701000000.html9/3/2004 9:45:00 AM...

  • Page 257: Checking Main P.c.b.& Ac Inlet P.c.b

    17.2 Checking Main P.C.B.& AC Inlet P.C.B. TOP PREVIOUS NEXT Preparation Follow items 16.1 to 16.7 of Disassembly Procedure (Refer to below diagram for service position 2). http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1702000000.html (1 of 2)9/3/2004 9:45:01 AM...
  • Page 258 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1702000000.html (2 of 2)9/3/2004 9:45:01 AM...

  • Page 259: Preparation Items

    18 Waveform Chart TOP PREVIOUS NEXT 18.1 Preparation Items 18.1.1 Procedures TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1800000000e.html9/3/2004 9:45:02 AM...
  • Page 260 18.1 Preparation Items TOP PREVIOUS NEXT 1. Test disc DVDT-S20 2. Video Analyzer 3. Digital Oscilloscope 4. RGB Encoder http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1801000000.html (1 of 2)9/3/2004 9:45:04 AM...
  • Page 261 18.1.1 Procedures TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1801000000.html (2 of 2)9/3/2004 9:45:04 AM...
  • Page 262 3. Play DVDT S20 test disc (T9) Note : There should not be any abnormality on picture such as color dim or color too bright. Precaution : RGB component O/P should be 75Ω termination. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1801010000.html (1 of 3)9/3/2004 9:45:05 AM...
  • Page 263 (2 of 3)9/3/2004 9:45:05 AM...
  • Page 264 TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1801010000.html (3 of 3)9/3/2004 9:45:05 AM...

  • Page 265: Illustration Of Ic's, Transistors And Diodes

    19 Illustration of IC’s, Transistors and Diodes TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s1900000000x.html9/3/2004 9:45:06 AM...

  • Page 266: Block Diagram

    20 Block Diagram TOP PREVIOUS NEXT 20.1 DVD Module Block 20.2 Main Block TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2000000000b.html9/3/2004 9:45:06 AM...

  • Page 267: Dvd Module Block

    20.1 DVD Module Block TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2001000000.html9/3/2004 9:45:07 AM...

  • Page 268: Main Block

    20.2 Main Block TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2002000000.html9/3/2004 9:45:08 AM...
  • Page 269 (All schematic diagrams may be modified at any time with the development of the new technology) Note: : Stock switch : Play switch : Botton switch : Open switch : Change switch S1531 : Safety Tab switch S1532 : Mode switch S7001 : Disc 5 switch http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2100000000e.html (1 of 4)9/3/2004 9:45:09 AM...
  • Page 270 : Disc 3. switch S7006 : D.Play switch S7007 : Disc 2 switch S7008 : Stop switch S7009 : Disc 1 switch S7010 : Disc Check switch S7011 : Selector switch S7012 : Open/Close switch http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2100000000e.html (2 of 4)9/3/2004 9:45:09 AM...
  • Page 271 The voltage value and waveforms are the reference voltage of this unit measured by DC electronic voltmeter (high impedance) and oscilloscope on the basis of chassis. Accordingly, there may arise some error in voltage values and waveformsdepending upon the internal impedance of the tester or the measuring unit. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2100000000e.html (3 of 4)9/3/2004 9:45:09 AM...
  • Page 272 Cover the parts boxes made of plastics with aluminium foil. Put a conductive mat on the work table. Ground the soldering iron. Do not touch the pins of IC, LSI or VLSI with fingers directly. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2100000000e.html (4 of 4)9/3/2004 9:45:09 AM...

  • Page 273: Schematic Diagram

    22.4 Main Circuit 22.5 Main Circuit 22.6 DSP Circuit 22.7 Power Circuit and AC Inlet 22.8 Panel B Circuit 22.9 5DVD LED Circuit and Panel A Circuit 22.10 CD Loading Circuit 22.11 VCR Deck Circuit TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2200000000s.html9/3/2004 9:45:10 AM...

  • Page 274: Dvd Module Circuit

    22.1 DVD Module Circuit TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2201000000.html9/3/2004 9:45:10 AM...

  • Page 275: Main Circuit

    22.2 Main Circuit TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2202000000.html9/3/2004 9:45:11 AM...
  • Page 276 22.3 Main Circuit TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2203000000.html9/3/2004 9:45:12 AM...

  • Page 277: Main Circuit

    22.4 Main Circuit TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2204000000.html9/3/2004 9:45:12 AM...

  • Page 278: Main Circuit

    22.5 Main Circuit TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2205000000.html9/3/2004 9:45:13 AM...

  • Page 279: Dsp Circuit

    22.6 DSP Circuit TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2206000000.html9/3/2004 9:45:14 AM...

  • Page 280: Power Circuit And Ac Inlet

    22.7 Power Circuit and AC Inlet TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2207000000.html9/3/2004 9:45:14 AM...

  • Page 281: Panel B Circuit

    22.8 Panel B Circuit TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2208000000.html9/3/2004 9:45:15 AM...

  • Page 282: 5Dvd Led Circuit And Panel A Circuit

    22.9 5DVD LED Circuit and Panel A Circuit TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2209000000.html9/3/2004 9:45:16 AM...

  • Page 283: Cd Loading Circuit

    22.10 CD Loading Circuit TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2210000000.html9/3/2004 9:45:16 AM...

  • Page 284: Vcr Deck Circuit

    22.11 VCR Deck Circuit TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2211000000.html9/3/2004 9:45:17 AM...

  • Page 285: Printed Circuit Board

    23.2 Main P.C.B. 23.3 DSP P.C.B. 23.4 Power P.C.B. and AC Inlet P.C.B. 23.5 Panel B P.C.B. 23.6 5 DVD Led P.C.B. and Panel A P.C.B. 23.7 CD Loading P.C.B. and VCR Deck P.C.B. TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2300000000x.html9/3/2004 9:45:18 AM...

  • Page 286: Dvd Module P.c.b. (Side A And Side B)

    23.1 DVD Module P.C.B. (Side A and Side B) TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2301000000.html9/3/2004 9:45:18 AM...

  • Page 287: Main P.c.b

    23.2 Main P.C.B. TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2302000000.html9/3/2004 9:45:19 AM...

  • Page 288: Dsp P.c.b

    23.3 DSP P.C.B. TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2303000000.html9/3/2004 9:45:20 AM...

  • Page 289: Power P.c.b. And Ac Inlet P.c.b

    23.4 Power P.C.B. and AC Inlet P.C.B. TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2304000000.html9/3/2004 9:45:20 AM...

  • Page 290: Panel B P.c.b

    23.5 Panel B P.C.B. TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2305000000.html9/3/2004 9:45:21 AM...

  • Page 291: Dvd Led P.c.b. And Panel A P.c.b

    23.6 5 DVD Led P.C.B. and Panel A P.C.B. TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2306000000.html9/3/2004 9:45:22 AM...

  • Page 292: Cd Loading P.c.b. And Vcr Deck P.c.b

    23.7 CD Loading P.C.B. and VCR Deck P.C.B. TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2307000000.html9/3/2004 9:45:22 AM...

  • Page 293: Wiring Connection Diagram

    24 Wiring Connection Diagram TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2400000000x.html9/3/2004 9:45:23 AM...

  • Page 294: Parts Location And Replacement Parts List

    After the end of this period, the assembly will no longer be available. [M] markings in the Remarks columns indicates parts supplied by PAVCSG. [SPC] markings in the Remarks columns indicates parts supplied by SPC. http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2500000000p.html (1 of 2)9/3/2004 9:45:23 AM...
  • Page 295 25.2.1 Cassette Mechanism Parts Location 25.2.2 Cassette Mechanism Parts List 25.3 Cabinet 25.3.1 Cabinet Parts Location 25.3.2 Cabinet Parts List 25.4 Electrical Parts List 25.5 Packing Materials & Accessories Parts List 25.6 Packaging TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2500000000p.html (2 of 2)9/3/2004 9:45:23 AM...

  • Page 296: Cd Loading Mechanism

    25.1 CD Loading Mechanism TOP PREVIOUS NEXT 25.1.1 CD Loading Mechanism Parts Location 25.1.2 CD Loading Mechanism Parts List TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2501000000.html9/3/2004 9:45:24 AM...

  • Page 297: Cd Loading Mechanism Parts Location

    25.1.1 CD Loading Mechanism Parts Location TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2501010000.html9/3/2004 9:45:25 AM...

  • Page 298: Cd Loading Mechanism Parts List

    UD SPEED DOWN GEAR RDG0536 S/SPEED DOWN GEAR RDG0537 SELECT DRIVE GEAR RDG0538 CHANGE GEAR RDG0539 UD DRIVE GEAR RDG0540 TIMING GEAR RDG0542 TRAY GEAR RDG0543 HOR PULLEY GEAR RDV0068 HOR BELT RDV0069 UD BELT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2501020000.html (1 of 3)9/3/2004 9:45:26 AM...
  • Page 299 SELECT GUIDE RMQ1051 PITCH PLATE PART RMQ1209 UD BASE RMQ1056 TRAY GUIDE (L) RMQ1057 TRAY GUIDE (R) RMQ1058 GEAR HOLDER RMQ1059 TOP COVER RMQ1060 CLAMP GUIDE RMQ1061 TG.PLATE RMR1531-X FIXTURE RMR1446-X CLAMPER RMR1407A-H1 TRAY http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2501020000.html (2 of 3)9/3/2004 9:45:26 AM...
  • Page 300 XWG6FFY BACKYOKE JSM0048 MAGNET RMC0387 SUPPORT SPRING XTBS26+8J SCREW RAE2008W-S DT68 TRV SUB UNIT RMG0598A-K FLOATING RUBBER RMG0617-H CUSHION RUBBER A RMG0618-H CUSHION RUBBER B RMR1596-K MIDDLE CHASSIS RMS0789 FIXED PIN TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2501020000.html (3 of 3)9/3/2004 9:45:26 AM...

  • Page 301: Cassette Mechanism

    25.2 Cassette Mechanism TOP PREVIOUS NEXT 25.2.1 Cassette Mechanism Parts Location 25.2.2 Cassette Mechanism Parts List TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2502000000.html9/3/2004 9:45:26 AM...

  • Page 302: Cassette Mechanism Parts Location

    25.2.1 Cassette Mechanism Parts Location TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2502010000.html9/3/2004 9:45:27 AM...

  • Page 303: Cassette Mechanism Parts List

    VML3626 PINCH CHARGE ARM VML3632 IDLER ARM VMX3092 P4 CAP VXA7105 S SHAFT HOLDER UNIT VXA7106 T SHAFT HOLDER UNIT L1AE00000036 AC HEAD UNIT (HEXA.) VMB3548 T BRAKE SPRING VXL3107 S LOADING ARM UNIT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2502020000.html (1 of 2)9/3/2004 9:45:28 AM...
  • Page 304 CUT WASHER (C) VMX2699 CUT WASHER VMX2208 CUT WASHER XTN26+7J SCREW (CAPSTAN X3) XYN3+C4 MOTOR FIXING SCREW XTV26+5F SCREW XTV26+8FR-NC SCREW 9SIDE) VHD1117 DD SCREW VHD1044 A/C SET SCREW VMC1247-1 EARTH SPRING TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2502020000.html (2 of 2)9/3/2004 9:45:28 AM...

  • Page 305: Cabinet

    25.3 Cabinet TOP PREVIOUS NEXT 25.3.1 Cabinet Parts Location 25.3.2 Cabinet Parts List TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2503000000.html9/3/2004 9:45:28 AM...

  • Page 306: Cabinet Parts Location

    25.3.1 Cabinet Parts Location TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2503010000.html9/3/2004 9:45:29 AM...
  • Page 307 RKFV0015 DVD DOOR UNIT RKMV0008 TOP PANEL RMAV0003 DVD BRACKET RMEV0002 DVD DOOR SPRING RMNV0012 LED COVER RMNV0013 PCB STAND RMZV0004 POWER BARRIER RXQV0005 CHASSIS FRAME UNIT VHD1095 CYLINDER SCREW B XSB3+5FC SCREW RF http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2503020000.html (1 of 2)9/3/2004 9:45:30 AM...
  • Page 308 8P LED TO FRONT RWJV0003 19 MSIN TO FRONT A RWJV0004 50P FFC BE-MAIN RWJV0005 14P FFC TRAVERSE RWJV0006 30P FFC DSP-MAON VWJ070W200MM RDD FFC WIRE VWJ12XW115MM 12P FFC DSP-MAIN RMA1543 CD LID SUPPORT TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2503020000.html (2 of 2)9/3/2004 9:45:30 AM...

  • Page 309: Electrical Parts List

    IC UP/DOWN MOTOR DRIVE [M] IC21 C0GAG0000007 IC LOADING MOTOR DRIVE [M] IC201 C1AB00001472 IC CAPSTAN DRIVE IC201 C2HBZC000013 IC DSP IC202 KIA4558FEL IC DUAL OP AMP IC301 C0JBAR000326 IC LOGIC IC302 C0ABCB000040 IC QUAD OP AMP http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (1 of 55)9/3/2004 9:45:39 AM...
  • Page 310 RFKFMH81T160 IC FLASH ROM [SPC] IC8691 C0JBCA000066 IC AND GATE LOGIC IC8695 C0JBCA000066 IC AND GATE LOGIC IC33001 C0DBZHG00013 IC DC-DC CONVERTER IC33002 C0DBEKG00003 IC REGULATOR IC33501 C9ZB00000431 IC MICROCONTROLLER IC36001 C2CBJG000414 IC MICRO-P http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (2 of 55)9/3/2004 9:45:39 AM...
  • Page 311 TRANSISTOR Q608 KTC3875GRTA TRANSISTOR Q609 KTA1046 TRANSISTOR Q610 KTC2026 TRANSISTOR Q611 B1ADCF000001 TRANSISTOR Q1150 B1DEDQ000014 TRANSISTOR Q1151 2SC3311ASA TRANSISTOR Q1152 2SC3311ASA TRANSISTOR Q1153 B1DEDQ000014 TRANSISTOR Q1200 B3PBA0000078 TRANSISTOR Q1351 B1AAGD000006 TRANSISTOR Q1352 B1AAGD000006 TRANSISTOR http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (3 of 55)9/3/2004 9:45:40 AM...
  • Page 312 TRANSISTOR Q7710 UNR211700L TRANSISTOR Q8550 2SB1219AHL TRANSISTOR Q8551 2SD1819A0L TRANSISTOR Q8552 2SB09700RL TRANSISTOR Q8560 2SD1819A0L TRANSISTOR Q8561 2SD1819A0L TRANSISTOR Q8562 2SB09700RL TRANSISTOR Q8605 2SD1819A0L TRANSISTOR Q8606 2SD1819A0L TRANSISTOR Q33001 B1AAGD000006 TRANSISTOR Q33003 2SC3940A0A TRANSISTOR http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (4 of 55)9/3/2004 9:45:40 AM...
  • Page 313 CHIP TRANSISTOR QR33003 UNR211200L CHIP TRANSISTOR QR33005 UNR211200L CHIP TRANSISTOR QR33012 UNR221300L CHIP TRANSISTOR QR33013 UNR221300L CHIP TRANSISTOR DIODES D201 B0JCME000012 DIODE D202 B0JCME000012 DIODE D203 B0JCME000012 DIODE D301 B0BC5R000009 DIODE D302 B0BC5R000009 DIODE http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (5 of 55)9/3/2004 9:45:40 AM...
  • Page 314 DIODE D1157 MAZ40360MF DIODE D1180 MAZ751000C DIODE D1210 B0HAGM000006 DIODE D1230 MA2C18500E DIODE D1240 B0JAME000037 DIODE D1241 B0JAME000037 DIODE D1250 B0JAMK000015 DIODE D1251 B0JAMK000015 DIODE D1260 B0JAPE000008 DIODE D1261 B0JAPE000008 DIODE D1270 MA2C18500E DIODE http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (6 of 55)9/3/2004 9:45:40 AM...
  • Page 315 DIODE D7754 B0JACE000001 DIODE D8550 MA2S11100L DIODE D8571 MA2J72800L DIODE D33001 MAZ4056NHF DIODE D33002 B0JAME000025 DIODE D33003 MAZ4130NLF DIODE D33004 MAZ4062NLF DIODE D33005 B0EAKL000031 DIODE D33006 B0EAKL000031 DIODE D33007 B0EAKL000031 DIODE D33008 MAZ4062NLF DIODE http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (7 of 55)9/3/2004 9:45:40 AM...
  • Page 316 0 1/16W LB8001 J0JHC0000045 CHIP INDUCTOR LB8002 J0JHC0000045 CHIP INDUCTOR LB8011 ERJ3GEYJ220V 22 1/16W LB8271 ERJ3GEY0R00V 0 1/16W LB8272 ERJ3GEY0R00V 0 1/16W LB8273 ERJ3GEY0R00V 0 1/16W LB8301 J0JCC0000119 FERRITE BEAD LB8302 J0JCC0000119 FERRITE BEAD http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (8 of 55)9/3/2004 9:45:40 AM...
  • Page 317 ERJ3GEY0R00V 0 1/16W LB8514 ERJ3GEY0R00V 0 1/16W LB8690 J0JCC0000091 FILTER LB8691 ERJ3GEYJ101V 100 1/16W LB8692 ERJ3GEYJ101V 100 1/16W LB8693 ERJ3GEYJ101V 100 1/16W LB33001 J0JCC0000188 CHIP COIL LB33002 ERJ3GEY0R00V 0 1/16W LB33003 ERJ3GEY0R00V 0 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (9 of 55)9/3/2004 9:45:40 AM...
  • Page 318 S7003 EVQ21405RJ SW DISC 4 S7005 EVQ21405RJ SW DISC 3 S7006 EVQ21405RJ SW D. PLAY S7007 EVQ21405RJ SW DISC 2 S7008 EVQ21405RJ SW STOP S7009 EVQ21405RJ SW DISC 1 S7010 EVQ21405RJ SW DISC CHECK http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (10 of 55)9/3/2004 9:45:40 AM...
  • Page 319 K1MN07A00020 7P CONNECTOR P2571 K1KA08A00290 8P CONNECTOR P4001 K1MZ02A00003 2P CONNECTOR P4002 RJS1A9406 CONNECTOR P5001 K1MN09A00029 9P CONNECTOR P7201 K1MN19B00072 19P FFC P7202 K1KB12B00039 12P CONNECTOR P7203 K1MN08B00096 8P CONNECTOR P7502 K1KA10A00263 10P CONNECTOR http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (11 of 55)9/3/2004 9:45:40 AM...
  • Page 320 G0C270JA0019 COIL L3302 G0C680JA0019 COIL L3303 G0C270JA0019 COIL L3705 G0C680JA0019 COIL L4081 G0C471KA0004 COIL L4501 G0C1R2J00004 COIL L4502 G0C391JA0019 COIL L5001 G0C680JA0019 COIL L6001 G0C5R6JA0019 COIL L7001 J0JBC0000019 CHIP INDUCTOR L7003 J0JBC0000019 CHIP INDUCTOR http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (12 of 55)9/3/2004 9:45:40 AM...
  • Page 321 REMOTE SENSOR TU7502 ENG06802QF TUNER PACK TU7601 ENG36502G TUNER OSCILLATORS X201 RSXZ36M8M01T CRYSTAL OSCILLATOR X3001 H0D357400067 CRYSTAL OSCILLATOR X6001 H0D120500009 CRYSTAL OSCILLATOR X6002 H0A327200064 CRYSTAL OSCILLATOR X8621 H0J270500064 CRYSTAL X36001 H2B100500004 CERAMIC RESONATOR DISPLAY TUBES http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (13 of 55)9/3/2004 9:45:40 AM...
  • Page 322 ZA1104 EYF52BC FUSE HOLDER FL DISPLAY DP7201 A2BD00000083 FIP DISPLAY JACKS JK3701 K2HA612B0039 2P RCA PIN JK3702 K1CB105B0037 JK VIDEO JK3703 K2HA103B0022 JK I/O JACK JK7001 RJJ37TK07-X JK HEADPHONE P1101 K2AB2B000002 JK AC INLET http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (14 of 55)9/3/2004 9:45:40 AM...
  • Page 323 0 1/16W W512 ERJ6GEY0R00V 0 1/10W W513 ERJ6GEY0R00V 0 1/10W W514 ERJ6GEY0R00V 0 1/10W W515 ERJ6GEY0R00V 0 1/10W W516 ERJ3GEY0R00V 0 1/16W W517 ERJ3GEY0R00V 0 1/16W W518 ERJ6GEY0R00V 0 1/10W W519 ERJ3GEY0R00V 0 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (15 of 55)9/3/2004 9:45:40 AM...
  • Page 324 0 1/10W W7701 ERJ6GEY0R00V 0 1/10W W7702 ERJ6GEY0R00V 0 1/10W W7703 ERJ6GEY0R00V 0 1/10W W7704 ERJ6GEY0R00V 0 1/10W W7705 ERJ6GEY0R00V 0 1/10W W7706 ERJ6GEY0R00V 0 1/10W W7707 ERJ6GEY0R00V 0 1/10W W7708 ERJ6GEY0R00V 0 1/10W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (16 of 55)9/3/2004 9:45:40 AM...
  • Page 325 R203 ERJ3GEYJ332V 3.3K 1/16W R204 ERJ3GEYJ332V 3.3K 1/16W R205 D0GZR91JA001 0.91 1/16W R205 ERJ3GEYJ472V 4.7K 1/16W R206 ERJ3GEYJ472V 4.7K 1/16W R207 B4ABB0000013 RESISTOR R207 ERJ3GEYJ332V 3.3K 1/16W R208 B4ABB0000013 RESISTOR R208 ERJ3GEYJ332V 3.3K 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (17 of 55)9/3/2004 9:45:40 AM...
  • Page 326 3.9K 1/16W R305 ERJ3GEYJ333V 33K 1/16W R306 ERJ3GEYJ333V 33K 1/16W R307 ERJ3GEYJ333V 33K 1/16W R308 ERJ3GEYJ332V 3.3K 1/16W R309 ERJ3GEYJ332V 3.3K 1/16W R310 ERJ3GEYJ333V 33K 1/16W R311 ERJ3GEYJ391V 390 1/16W R312 ERJ3GEYJ273V 27K 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (18 of 55)9/3/2004 9:45:40 AM...
  • Page 327 1K 1/16W R339 ERJ3GEYJ102V 1K 1/16W R340 ERJ3GEYJ102V 1K 1/16W R341 ERJ3GEYJ102V 1K 1/16W R342 ERJ3GEYJ472V 4.7K 1/16W R343 ERJ3GEYJ391V 390 1/16W R344 ERJ3GEYJ222V 2.2K 1/16W R345 ERJ3GEYJ222V 2.2K 1/16W R346 ERJ3GEYJ272V 2.7K 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (19 of 55)9/3/2004 9:45:40 AM...
  • Page 328 22 1/16W R421 ERJ3GEYJ220V 22 1/16W R422 ERJ3GEYJ220V 22 1/16W R423 ERJ3GEYJ473V 47K 1/16W R424 ERJ3GEYJ473V 47K 1/16W R425 ERJ3GEYJ333V 33K 1/16W R426 ERJ3GEYJ333V 33K 1/16W R427 ERJ3GEYJ332V 3.3K 1/16W R428 ERJ3GEYJ332V 3.3K 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (20 of 55)9/3/2004 9:45:40 AM...
  • Page 329 560 1/16W R456 ERJ3GEYJ154V 150K 1/16W R457 ERJ3GEYJ393V 39K 1/16W R458 ERJ3GEYJ472V 4.7K 1/16W R459 ERJ3GEYJ822V 8.2K 1/16W R460 ERJ3GEYJ472V 4.7K 1/16W R461 ERJ3GEYJ273V 27K 1/16W R462 ERJ3GEYJ273V 27K 1/16W R463 ERJ3GEYJ273V 27K 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (21 of 55)9/3/2004 9:45:40 AM...
  • Page 330 4.7K 1/16W R490 ERJ3GEYJ101V 100 1/16W R493 ERJ3GEYJ333V 33K 1/16W R503 ERJ3GEYJ473V 47K 1/16W R504 ERJ3GEYJ102V 1K 1/16W R505 ERJ3GEYJ102V 1K 1/16W R508 ERJ3GEYJ682V 6.8K 1/16W R510 ERJ3GEYJ102V 1K 1/16W R511 ERJ3GEYJ102V 1K 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (22 of 55)9/3/2004 9:45:40 AM...
  • Page 331 2.7K 1/16W R627 ERJ3GEYJ561V 560 1/16W R701 ERJ3GEYJ103V 10K 1/16W R702 ERJ3GEYJ103V 10K 1/16W R703 ERJ3GEYJ103V 10K 1/16W R704 ERJ3GEYJ103V 10K 1/16W R705 ERJ3GEYJ103V 10K 1/16W R706 ERJ3GEYJ103V 10K 1/16W R707 ERJ3GEYJ473V 47K 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (23 of 55)9/3/2004 9:45:40 AM...
  • Page 332 8.2K 1/10W R1230 ERJ6GEYJ473V 47K 1/10W R1351 ERDS2TJ471T 470 1/4W R1501 ERJ3GEYJ273V 27K 1/16W R1502 ERJ3GEYJ273V 27K 1/16W R1503 ERDS2TJ151T 150 1/4W R1511 ERJ3GEYJ273V 27K 1/16W R1512 ERJ3GEYJ273V 27K 1/16W R1513 ERJ6GEYJ121V 120 1/10W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (24 of 55)9/3/2004 9:45:40 AM...
  • Page 333 1.5K 1/16W R3004 ERJ3GEYJ332V 3.3K 1/16W R3005 ERJ3GEYJ222V 2.2K 1/16W R3012 ERJ3GEYJ102V 1K 1/16W R3013 ERJ3GEYJ273V 27K 1/16W R3018 ERJ3GEYJ153V 15K 1/16W R3020 ERJ3GEYJ152V 1.5K 1/16W R3021 ERJ3GEYJ331V 330 1/16W R3024 ERJ3GEYJ102V 1K 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (25 of 55)9/3/2004 9:45:40 AM...
  • Page 334 3.3K 1/16W R4083 ERJ6GEYJ2R2V 2.2 1/10W R4084 ERJ3GEYJ102V 1K 1/16W R4085 ERJ3GEYJ102V 1K 1/16W R4086 ERJ3GEYJ222V 2.2K 1/16W R4087 ERJ3GEYJ222V 2.2K 1/16W R4301 ERJ3GEYJ473V 47K 1/16W R4302 ERJ3GEYJ473V 47K 1/16W R4303 ERJ3GEYJ223V 22K 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (26 of 55)9/3/2004 9:45:40 AM...
  • Page 335 470 1/16W R4704 ERJ3GEY0R00V 0 1/16W R6001 ERJ3GEYJ102V 1K 1/16W R6002 ERJ3GEYJ102V 1K 1/16W R6003 ERJ3GEYJ223V 22K 1/16W R6004 ERJ3GEYJ221V 220 1/16W R6005 ERJ3GEYJ103V 10K 1/16W R6006 ERJ3GEYJ183V 18K 1/16W R6009 ERJ3GEYJ103V 10K 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (27 of 55)9/3/2004 9:45:40 AM...
  • Page 336 1.2K 1/16W R7007 ERJ3GEYJ122V 1.2K 1/16W R7008 ERJ3GEYJ102V 1K 1/16W R7009 ERJ3GEYJ102V 1K 1/16W R7010 ERJ3GEYJ102V 1K 1/16W R7011 ERJ3GEYJ102V 1K 1/16W R7013 ERDS2TJ681T 680 1/4W R7023 ERJ3GEY0R00V 0 1/16W R7024 ERJ3GEYJ102V 1K 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (28 of 55)9/3/2004 9:45:40 AM...
  • Page 337 10K 1/16W R7222 ERJ3GEYJ103V 10K 1/16W R7223 ERJ3GEYJ103V 10K 1/16W R7224 ERJ3GEYJ103V 10K 1/16W R7225 ERDS2TJ681T 680 1/4W R7226 ERJ3GEYJ101V 100 1/16W R7501 ERJ3GEYJ471V 470 1/16W R7502 ERJ3GEYJ471V 470 1/16W R7503 ERJ3GEYJ123V 12K 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (29 of 55)9/3/2004 9:45:40 AM...
  • Page 338 8.2K 1/16W R8241 ERJ3GEYJ223V 22K 1/16W R8242 ERJ3GEYJ752V 7.5K 1/16W R8251 ERJ6GEYJ6R8V 6.8 1/10W R8271 ERJ14YKR39U 0.39 1/4W R8281 ERJ3GEYJ101V 100 1/16W R8282 ERJ3GEYJ101V 100 1/16W R8311 D0HB242ZA002 2.4K 3W R8312 ERJ3RBD102V 1K 3W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (30 of 55)9/3/2004 9:45:40 AM...
  • Page 339 51 1/16W R8558 ERJ3GEYJ473V 47K 1/16W R8559 ERJ3GEYJ153V 15K 1/16W R8560 ERJ3GEYJ102V 1K 1/16W R8561 ERJ3GEY0R00V 0 1/16W R8562 ERJ3GEYJ331V 330 1/16W R8563 ERJ3GEYJ102V 1K 1/16W R8564 ERJ3GEYJ100V 10 1/16W R8565 ERJ3GEYJ2R2V 2.2 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (31 of 55)9/3/2004 9:45:40 AM...
  • Page 340 470 1/4W R34004 ERDS2TJ471T 470 1/4W R34005 ERJ3GEYJ562V 5.6K 1/16W R34426 ERJ3GEYJ472V 4.7K 1/16W R34427 ERJ3GEYJ472V 4.7K 1/16W R34428 ERJ3GEYJ222V 2.2K 1/16W R34429 ERJ3GEYJ222V 2.2K 1/16W R36001 ERJ3GEYJ221V 220 1/16W R36002 ERJ3GEYJ221V 220 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (32 of 55)9/3/2004 9:45:40 AM...
  • Page 341 220 1/16W R36029 ERJ3GEYJ221V 220 1/16W R36030 ERJ3GEYJ102V 1K 1/16W R36031 ERJ3GEYJ102V 1K 1/16W R36032 ERJ3GEYJ102V 1K 1/16W R36033 ERJ3GEY0R00V 0 1/16W R36034 ERJ3GEYJ331V 330 1/16W R36035 ERJ3GEYJ331V 330 1/16W R36036 ERJ3GEYJ331V 330 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (33 of 55)9/3/2004 9:45:40 AM...
  • Page 342 22K 1/16W R36063 ERJ3GEYJ223V 22K 1/16W R36064 ERJ3GEYJ223V 22K 1/16W R36065 ERJ3GEYJ223V 22K 1/16W R36066 ERJ3GEYJ223V 22K 1/16W R36067 ERJ3GEYJ472V 4.7K 1/16W R36074 ERJ3GEYJ221V 220 1/16W R36075 ERJ3GEY0R00V 0 1/16W R36076 ERJ3GEYJ102V 1K 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (34 of 55)9/3/2004 9:45:40 AM...
  • Page 343 0 1/16W K8321 ERJ2GE0R00X 0 1/4W K8325 ERJ2GE0R00X 0 1/4W K8331 ERJ2GE0R00X 0 1/4W K8335 ERJ2GE0R00X 0 1/4W K8341 ERJ2GE0R00X 0 1/4W K8421 ERJ3GEY0R00V 0 1/16W K8651 ERJ2GE0R00X 0 1/4W K36002 ERJ3GEY0R00V 0 1/16W http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (35 of 55)9/3/2004 9:45:41 AM...
  • Page 344 10 16V C104 ECEA1CKA100B 10 16V C105 ECEA1CKA100B 10 16V C106 ECEA1CKA100B 10 16V C113 ECJ1VC1H101J 100P 50V C114 ECJ1VC1H101J 100P 50V C115 ECJ1VC1H101J 100P 50V C116 ECJ1VC1H101J 100P 50V C120 ECEA1CKA220B 22 16V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (36 of 55)9/3/2004 9:45:41 AM...
  • Page 345 ECA1HAK4R7XB 4.7 50V C211 ECA1AM221B 220 10V C212 ECJ2VB1H223K 0.022 50V C213 ECJ2VF1H104Z 0.1 50V C214 ECJ1VC1H050C 5P 50V C215 ECJ1VC1H120J 12P 50V C216 ECA1CAK101XB 100 16V C217 F1H1A105A025 1 10V C218 F1H1C104A065 0.1 16V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (37 of 55)9/3/2004 9:45:41 AM...
  • Page 346 100P 50V C245 ECJ1VC1H470J 47P 50V C246 ECJ1VB1H103K 0.01 50V C247 ECA1HAK4R7XB 4.7 50V C301 ECJ1VB1H471K 470P 50V C302 ECJ1VB1H471K 470P 50V C303 ECJ1VB1H471K 470P 50V C304 ECJ1VB1H471K 470P 50V C305 ECJ1VB1H471K 470P 50V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (38 of 55)9/3/2004 9:45:41 AM...
  • Page 347 1 10V C332 F1H1A105A025 1 10V C333 F1H1C104A065 0.1 16V C334 F1H1A105A025 1 10V C335 F1H1A105A025 1 10V C336 ECJ1VB1H102K 1000P 50V C337 ECJ2VB1H153K 0.015 50V C338 ECA1HAKR33XB 0.33 50V C339 F1H1C104A065 0.1 16V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (39 of 55)9/3/2004 9:45:41 AM...
  • Page 348 ECA1CAK100XB 10 16V C413 ECA1CAK100XB 10 16V C414 ECJ2VB1H333K 0.033 50V C415 ECEA1HKAR47B 0.47 50V C416 ECEA1HKAR47B 0.47 50V C417 ECA1CAK100XB 10 16V C419 ECJ1VB1H102K 1000P 50V C420 ECJ1VB1H102K 1000P 50V C421 ECJ2VB1H333K 0.033 50V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (40 of 55)9/3/2004 9:45:41 AM...
  • Page 349 ECA1HAK4R7XB 4.7 50V C448 ECA1HAK4R7XB 4.7 50V C449 ECA1HAK4R7XB 4.7 50V C450 ECJ1VC1H101J 100P 50V C451 ECJ1VC1H330J 33P 50V C452 F1H1C104A065 0.1 16V C453 ECJ1VB1C333K 0.033 16V C454 ECJ1VB1H222K 2200P 50V C455 ECJ1VB1C393K 0.039 16V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (41 of 55)9/3/2004 9:45:41 AM...
  • Page 350 0.01 50V C614 F1B1H103A007 0.01 50V C615 ECA1CM101B 100 16V C616 ECA1CM100B 10 16V C701 F1H1A105A025 1 10V C702 F1H1A105A025 1 10V C703 ECJ1VC1H101J 100P 50V C704 ECJ1VC1H101J 100P 50V C705 ECJ1VC1H330J 33P 50V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (42 of 55)9/3/2004 9:45:41 AM...
  • Page 351 220 6.3V C1250 F2A1E6810011 680P 25V C1251 ECA1EM101B 100 25V C1260 F2A1A1020056 1000P 10V C1261 F2A1A1020056 1000P 10V C1262 ECA1AM221B 220 10V C1270 F2A1H470A147 47P 50V C1280 F2A1H1010044 100P 50V C1290 F2A1C6810023 680P 16V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (43 of 55)9/3/2004 9:45:41 AM...
  • Page 352 0.01 50V C2520 F1H1C104A065 0.1 16V C2551 ECJ1VB1C563K 0.056 16V C2552 ECJ1VB1C563K 0.056 16V C2561 ECJ1VB1C563K 0.056 16V C2562 ECJ1VB1C563K 0.056 16V C2571 ECA1EM221B 220 25V C2572 ECA1EM221B 220 25V C2601 F1H1H103A730 0.01 50V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (44 of 55)9/3/2004 9:45:41 AM...
  • Page 353 47 6.3V C3033 ECJ1VB1C105K 1 16V C3034 ECJ1VC1H020C 2P 50V C3035 F1H1C104A065 0.1 16V C3036 ECEA1EKA3R3B 3.3 25V C3037 ECEA1HKA2R2B 2.2 50V C3038 ECJ1VB1H472K 4700P 50V C3039 ECJ1VB1C333K 0.033 16V C3040 F1H1A474A025 0.47 10V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (45 of 55)9/3/2004 9:45:41 AM...
  • Page 354 47 6.3V C4084 ECJ1VB1H182K 1800P 50V C4085 ECJ1VB1C683K 0.068 16V C4303 F2A1HR22A009 22 50V C4304 F2A1HR22A009 22 50V C4501 F1H1C104A041 0.1 16V C4502 ECEA1CKA100B 10 16V C4503 ECEA1CKA100B 10 16V C4504 ECEA1CKA100B 10 16V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (46 of 55)9/3/2004 9:45:41 AM...
  • Page 355 56P 50V C4538 ECJ1VF1H103Z 0.01 50V C4563 F1H1C104A041 0.1 16V C4565 F1H1C104A041 0.1 16V C4567 ECEA1EKA3R3B 3.3 25V C4568 ECJ1VB1H103K 0.01 50V C4570 F1H1C104A041 0.1 16V C4572 ECEA1HKA2R2B 2.2 50V C4574 ECEA1HKA3R3B 3.3 50V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (47 of 55)9/3/2004 9:45:41 AM...
  • Page 356 1000P 50V C6017 ECJ1VC1H471J 470P 50V C6101 ECJ2VF1H104Z 0.1 50V C6102 F1H1H103A730 0.01 50V C6103 F1H1H103A730 0.01 50V C6111 ECJ1VF1C104Z 0.1 16V C6112 ECJ1VC1H330J 33P 50V C6113 ECJ1VC1H330J 33P 50V C6301 F1H1H103A730 0.01 50V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (48 of 55)9/3/2004 9:45:41 AM...
  • Page 357 100 6.3V C7506 ECJ1VF1C104Z 0.1 16V C7602 ECEA1HKA010B 1 50V C7603 ECEA0JKA470B 47 6.3V C7604 F1H1H103A730 0.01 50V C7605 ECJ1VC1H330J 33P 50V C7709 ECJ1VB1H182K 1800P 50V C7752 ECEA0JKA331Q 330 6.3V C8001 EEEFC0J101P 100P 6.3V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (49 of 55)9/3/2004 9:45:41 AM...
  • Page 358 0.1 16V C8028 F1H0J1050013 1 6.3V C8031 ECJ1ZF1C104Z 0.1 16V C8051 F1H0J1050013 1 6.3V C8052 ECJ0EF1C104Z 0.1 16V C8053 ECJ1VC1H221J 220P 50V C8054 F1H0J1050013 1 6.3V C8055 F1H0J1050013 1 6.3V C8056 ECJ0EF1C104Z 0.1 16V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (50 of 55)9/3/2004 9:45:41 AM...
  • Page 359 0.1 16V C8227 ECJ1ZF1C104Z 0.1 16V C8228 ECJ2FB1A105K 1 10V C8229 ECJ2FB1A105K 1 10V C8232 ECJ1ZF1C104Z 0.1 16V C8233 ECJ1VB1H472K 4700P 50V C8234 ECJ1ZF1C104Z 0.1 16V C8235 ECJ1VC1H102J 1000P 50V C8236 ECJ1VC1H102J 1000P 50V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (51 of 55)9/3/2004 9:45:41 AM...
  • Page 360 0.1 16V C8312 F1H0J1050013 1 6.3V C8400 ECJ1VC1H150J 15P 50V C8420 F2G0J331A015 330P 6.3V C8423 ECJ1ZF1C104Z 0.1 16V C8424 ECJ1ZF1C104Z 0.1 16V C8451 F3F1A106A001 10 10V C8452 F3F1A106A001 10 10V C8453 F3F1A106A001 10 10V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (52 of 55)9/3/2004 9:45:41 AM...
  • Page 361 0.1 16V C8652 ECJ1ZF1C104Z 0.1 16V C8691 ECJ0EF1C104Z 0.1 16V C8695 ECJ0EF1C104Z 0.1 16V C33001 ECJ1VF1H103Z 0.01 50V C33002 ECA1CHJ221B 220 16V C33003 ECA1CHJ221B 220 16V C33004 ECJ1VF1H103Z 0.01 50V C33005 ECEA1HKA4R7B 4.7 50V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (53 of 55)9/3/2004 9:45:41 AM...
  • Page 362 330 6.3V C33517 ECA0JM331B 330 6.3V C33522 ECEA0JKA220B 22 6.3V C33531 ECJ1VB1H103K 0.01 50V C34010 F2A1A221A206 220P 10V C34012 ECJ1VF1H103Z 0.01 50V C34013 ECEA1HKA4R7B 4.7 50V C34015 ECEA1HKA4R7B 4.7 50V C34405 ECJ1VB1H102K 1000P 50V http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (54 of 55)9/3/2004 9:45:41 AM...
  • Page 363 ECJ1VC1H331J 330P 50V C36008 F1H1C104A065 0.1 16V C36009 ECEA1AKA220B 22 10V C36011 ECA1HM2R2B 2.2 50V C36013 F4D55334A008 0.055 2000V C36014 ECJ2VF1E104Z 0.1 25V C36015 ECJ1VF1H103Z 0.01 50V C36016 ECJ2VF1E104Z 0.1 25V TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2504000000.html (55 of 55)9/3/2004 9:45:41 AM...
  • Page 364 R/C BATTERY COVER K2CB2CB00006 AC CORD RQT7388-P OI BOOK (En) K1HA25HA0001 SYSTEM CABLE RSA0007-L FM ANTENNA WIRE K2RC021B0001 ANTENNA PLUG N1DAAAA00002 AM LOOP ANTENNA RJL1P016B15A VIDEO CABLE VJA1125 COAXIAL CABLE RQCA1029 SPK LABEL SHEET TOP PREVIOUS NEXT http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2505000000.html9/3/2004 9:45:43 AM...
  • Page 365 25.6 Packaging TOP PREVIOUS TOP PREVIOUS http://202.224.189.178/~sgml/viewing/SA-HT822VP/ALL/SVC/s2506000000.html9/3/2004 9:45:43 AM...
  • Page 371 C1AB00001192 (8p) C0JBAR000326 (16p) C0ABCB000040 (14p) C2HBZC000013 (80p) C0DBCHD00002 (6p) C0HBB0000039 (64p) C0GBF0000004 (16p) C1AB00001472 (28p) C0CBCBD00018 (8p) C0FBBK000036 (48p) C9ZB00000431 (34p) MN2DS0003APH (256p) KIA4558FEL (8 p) C2CBJG000414 (100p) C3ABPG000067 (54p) C2CBHF000342 (100p) C1BB00000782 (42p) C1AB00001838 (100p) M62456FPE1 (24p) AN3663FBP-AV (64p) C0JBAS000008 (14p) C0DBZHG00013 C0DBZJG00005...
  • Page 372 OPTICAL PICKUP LD(DVD) SPINDLE MOTOR UNIT LD(CD) Q8552 Q8562 SWITCH SWITCH BIAS IC8251 IC8271 OPIN+ C0GBG0000044 C0GBF0000004 LDIN MOTOR DRIVE MOTOR DRIVE BIAS2 TRIN Q8551 Q8561 SWITCH SWITCH QR8571 SUPPLY CONTROL SWITCH 130 134 129 133 127 110 111 132 131 136 115 135 114 137 116 138 117 DV2.1 MN2DS0003APH IC8001...
  • Page 373 Q8550 SWITCH Q8560 SWITCH IC8601 C0EBE0000384 D8550 RESET IC IC8051 IC8651 C3ABPG000067 XRESET RFKFMH81T160 64 SDRAM 16M FLASH ROM Q8606 SWITCH 2,4,5,7,8,10,11, 22-26, 9,10,16,17,48 1-8,18-25 29-36, 13,42,44,45,47, 29-35 38-45 Q8605 48,50,51,53 SWITCH IC8605 C0EBA0000031 RESET IC IC8611 C3EBGC000044 16M EEPROM (NOT SUPPLIED) 1,2,4,5,7,8,10, 217,220,221,223,...
  • Page 374 TO MAIN BLOCK TO MAIN BLOCK 16(20) 14(13) 12(11) IC8111 C0CBCBD00018 3.3V REGULATOR IC8451 C0FBBK000036 RSTB AUDIO DAC 45-47 IC8695 IC8691 C0JBCA000066 C0JBCA000066 AND GATE AND GATE QR8420 AUDIO MUTING SWITCH 174-176 149 151 152 156 158 DV2.1 MN2DS0003APH IC8001...
  • Page 375 IC2601 C0JBAS000008 FROM IC36001 ANALOG SWITCH TU7601 FM/AM 11(2) 10(1) TUNER TUNER 12(13) MIXL(R) 9(4) 8(3) IC701 KIA4558FEL 6(5) DUAL OP-AMP FL(R) 5(3) 7(1) 1(2) W1(Z1) SL(R) 14(13) W(Z) 10(12) 8(14) 9(13) SL(R) 15(11) W0(Z0) CONT IC302 C0ABCB000040 QUAD OP-AMP IC301 COJBAR000326 LOGIC IC...
  • Page 376 IC303 C1BB00000782 4CH VOLUME IC PORT2 17(16) BYPASSL(R) PORT3 IC501 KIA4558FEL DUAL OP AMP LOUT(R) 15(13) LIN(R) LOUT(R) 31(32) SWIN SWOUT COUT SL(R) SLIN(R) 34(35) 9(8) SLOUT(R) 13(9) 14(8) SL(R) 12(10) PORT1 IC403 C0ABCB000040 QUAD OP AMP FROM DP7201 Q7001 POWER FL DISPLAY TRANSFORMER...
  • Page 377 IC4501 IC201 IC202 AN3663FBP-AV C2HBZC000013 HI-FI IC KIA4558FEL DUAL OP AMP 3(1) 57(53) 68(72) 11(14) 5(3) IN1(R) AOT1 BS IN[L](R) L(R) 7(1) 6(2) 66(70) IN3(R) AOT3 24(22) HA1(2) A_COM AOT4 X201 FL4561 QR4506 SIF IN (QR4505) MUTING SWITCH JK3701 AUX L(R) 14(9) QR4504 MUTING...
  • Page 378 IC402 M62456FPE1 SUPER BASS IC401 KIA4558FEL OP AMP D402 2(6) (D401) 1(7) 1(24) 2(23) 3(5) Q412 SWITCH Q401 MUTING SWITCH Q410 MUTING SWITCH JK3701 [L]([R]) QR4701 (QR4702) MUTING SWITCH QR4703 MUTING SWITCH HEADPHONE JK7001 Q404 MUTING SWITCH Q411 MUTING RM11 RM21 SWITCH UP/DOWN...
  • Page 379 ACTIVE SUB WOOFER 7(11) FL(R) SUBAC2 SUBAC1 12(14) SL(R) DCDET HIC_MUTE PCONT SYNC D603, Q601,Q602 Q605 D605 SWITCH SWITCH D614 FP601 Q606 Q610 SWITCH REGULATOR Q603,Q604 D608~D611 SWITCH D607 Q607,Q608 DC DETECT Q33006 Q33007 SWITCH REGULATOR REGULATOR Q609 D613 REGULATOR QR33005 FP602 D611...
  • Page 380 R207 R210 R208 H3 HOLL H3 HOLL H3 HOLL SENSOR SENSOR SENSOR IC201 C1AB00001472 CAPSTAN DRIVE IC33501 C9ZB00000431 L201 8 BIT MICRO CAPSTAN MOTOR MAIN COIL CONTROLLER JK3702 VIDEO YOUT YSAG COUT JK3703 PR/CR/R CRIN CR OUT CRSAG PB/CB/B CBIN CB OUT CBSAG PY/Y/G...
  • Page 381 AUDIO HEAD 85,87 CLOCK DATA 89,91 JK3702 IC3001 C1AB00001838 AV 1 IC AUDIO HEAD X3001 AUDIO ERASE HEAD FULL ERASE HEAD Q4082, Q3003 Q4083 BIAS T4081 SWITCH Q3001 Q4081 BIAS SWITCH L4081 QR4081 Q4084 D.REC POWER (H:OFF) SUPPLY CONTROL HEAD QR4082 BIAS IC6001...
  • Page 382 IC2501 C1AB00001479 PG OUT CYLINDER DRIVE/ LOADING DRIVE OUT1 IC1511 B3NAA0000049 MECHA T-REEL SENSOR Q7501 OUT2 REGULATOR D1501 Q1501 T PHOTO IC1512 B3NAA0000049 S-REEL SENSOR Q1502 S PHOTO IC2502 CODBZJG00005 REGULATOR IC6201 COEBH0000172 POWER DETECT IC IR7201 (REMOTE SENSOR) S1532 MODE SW 30~33 IC6001...
  • Page 383 T1150 Q33004 D1230 REGULATOR Q1352,Q1354 Q1351 L1121 L1120 F1101 5V REG, REGULATOR D1180 P1101 QR33002, TUNER 5V QR33013 D1110 SWITCH, ‘POWER ON’ D1351 D1250, SWITCH D1251 L1250 Q34003 IC33001 C0DBZHG00013 REGULATOR DC-DC CONVERTER D1290, D1140 D33005~D33007 D1291 D33002 L1290 Q33010 Q1153 REGULATOR SWITCHING...

  • Page 384: Optical Pickup Unit Circuit

    SCHEMATIC DIAGRAM - 1 OPTICAL PICKUP UNIT CIRCUIT : +B SIGNAL LINE : CD-DA SIGNAL LINE J0JBC0000105 J0JBC0000105 TO ACT GND (IM) MODULE VREF2(RF-) (IN/OUT) PIN (DVD) CIRCUIT LD (CD) (FP8501) ON LD GND SCHEMATIC LD (DVD) DIAGRAM-2 GND (OEIC) VREF VREF1 SUB2...
  • Page 385 SCHEMATIC DIAGRAM - 2 SIDE A SIDE B DVD MODULE (IN/OUT) CIRCUIT : +B SIGNAL LINE : CD-DA SIGNAL LINE LB8271 ERJ3GEY0R00V LB8272 ERJ3GEY0R00V IC8271 C0GBF0000004 MOTOR DRIVE IC LB8273 ERJ3GEY0R00V IC8271 C8275 FP8271 TC8271 COIL_W CP8273 TC8272 COIL_V C8284 0.01 TC8273 COIL_U...
  • Page 386 SCHEMATIC DIAGRAM - 3 : DVD AUDIO SIGNAL LINE DVD MODULE (IN/OUT) CIRCUIT : +B SIGNAL LINE : CD-DA SIGNAL LINE CP8423 DMIXOUT R8271 0.39 SBI3 SBO3 SBT3 RA8271 STBDAC (10K x 2) MUTE3 SPDRV PNRST ADAC-CLK R8451 CP8421 VHALF SRCK CP8422 LRCK...
  • Page 387 SCHEMATIC DIAGRAM - 4 : MAIN SIGNAL LINE : DVD AUDIO SIGNAL LINE DVD MODULE (IN/OUT) CIRCUIT : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE C8423 C8424 C8451 C8452 C8420 10V10 10V10 6.3V330 FP8101 VGND Y/PY/G LB8303 J0JCC0000119 TC8303 Y/PY/G VGND CB/PB/B...
  • Page 388 SCHEMATIC DIAGRAM - 5 DVD MODULE (DV2) CIRCUIT : +B SIGNAL LINE IC8651 RFKFMH81T160 16M FLASH ROM IC EXADT15 EXADR16 EXADT14 XBYTE EXADT13 EXADT12 FDT15 DQ15/A-1 EXADT11 FDT7 EXADT10 FDT14 DQ14 EXADT9 FDT6 EXADT8 FDT13 DQ13 EXADR19 FDT5 EXADR20 FDT12 DQ12 NEXWE FDT4...
  • Page 389 SCHEMATIC DIAGRAM - 6 DVD MODULE (DV2) CIRCUIT : +B SIGNAL LINE C8028 C8027 C8026 C8024 C8023 C8051 2200P MDQ0 MDQ15 DQ15 C8052 VDDQ VSSQ MDQ1 MDQ14 DQ14 C8025 C8022 MDQ2 MDQ13 DQ13 C8057 2200P RA8013 (82 x 4) VSSQ VDDQ MDQ5 MDQ3...
  • Page 390 SCHEMATIC DIAGRAM - 7 DVD MODULE (DV2) CIRCUIT : +B SIGNAL LINE RA8018 (82 x 4) RA8017 RA8014 (82 x 4) C8021 (82 x 4) RA8015 (22 x 2) MDQ9 MDQ24 MDQ5 VDD33 MDQ10 TRCST MDQ4 TRCDATA3 VDD33 TRCDATA2 MDQ11 TRCDATA1 MDQ3 TRCDATA0...
  • Page 391 SCHEMATIC DIAGRAM - 8 : CD-DA SIGNAL LINE : DVD VIDEO SIGNAL LINE DVD MODULE (DV2) CIRCUIT : +B SIGNAL LINE : DVD AUDIO SIGNAL LINE LB8001 J0JHC0000045 D+3.3V D+1.2V C8002 C8001 LB8002 4V330 6.3V100 J0JHC0000045 RA8031 C8017 (4.7K x 2) CP8047 RA8032 CP8046...
  • Page 392 SCHEMATIC DIAGRAM-21 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE CN101 DVDGND DVDFDR C716 C124 DVDGND C701 C703 W105 R701 R705 50V4.7 16V22 100P DVDFL DVD_FL +VE7.5V MAIN (DVD R704 R706 R140 C130 DVDSR INTERFACE:IF) 100P C708...
  • Page 393 SCHEMATIC DIAGRAM-22 : +B SIGNAL LINE DSP CIRCUIT : MAIN SIGNAL LINE : -B SIGNAL LINE R218 100K C216 C218 16V100 R212 C223 0.022 R205 R202 R201 R206 0.91 4.7K 4.7K 4.7K C212 0.022 C201 R207 C205 3.3K 100P L601 R203 G0C100JA0030 0.91...
  • Page 394 SCHEMATIC DIAGRAM-23 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE -7.5V C309 0.01 R325 R328 C316 R313 R321 C318 16V10 1.8K 1.8K 16V10 C331 R312 C312 C319 R322 R340 100P 100P C313 C324 IC302 C0ABCB000040 QUAD OP AMP C353...
  • Page 395 SCHEMATIC DIAGRAM-24 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE SUBW_A C421 R433 R455 C432 0.033 8.2K 50V4.7 FR_A C441 D401 R477 +7.5V D403,D404 16V10 B0ACCK000005 B0ACCK000005 Q412 R440 R444 C436 R457 R459 C422 3.3K R478 C413...
  • Page 396 SCHEMATIC DIAGRAM-25 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE C458 R487 16V10 SR_A +7.5V C416 C437 R428 50V0.47 3.3K C415 C459 R427 R474 R488 Q402 50V0.47 16V10 3.3K SL_A B1GFGCAA0001 MUTING SWITCH C433 C450 R454 100P...
  • Page 397 SCHEMATIC DIAGRAM-26 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE MUTE_S1 Q406 KRA110STA MUTING SWITCH R461 R481 1.8K -7.5V MUTE_S C444 50V4.7 R468 CN401 DSP_IN_R TV_VCR_AUX_MIX_R Q405 C491 KTD1304TA SUBW DSP_IN_L TV_VCR_AUX_MIX_L MUTING SWITCH R452 3.3K Q410...
  • Page 398 SCHEMATIC DIAGRAM-9 : +B SIGNAL LINE : MAIN SIGNAL LINE : AM/FM SIGNAL LINE MAIN (AUDIO:A) CIRCUIT : -B SIGNAL LINE TUN_L TUN_CTR R2606 R2602 C2601 4.7K 0.01 IC2601 IC2601 C0JBAS000008 ANALOG SWITCH R2601 +7.5V R2605 TUN_R C2602 R2604 0.01 DVD_CTR R2603 1.8K...
  • Page 399 SCHEMATIC DIAGRAM-10 : +B SIGNAL LINE : MAIN SIGNAL LINE : AUX SIGNAL LINE MAIN (AUDIO:A) CIRCUIT MUTE TC FM_MUTE_H IIC_CLK IIC_DATA TL4502 TL4501 OSD_SC_IN FL4561 EFCT4R5MS5W R4508 C4568 R4540 R4525 0.01 C4523 SIF_OUT 0.01 R4563 L4501 G0C1R2J00004 AUDIO_5V D_REC[H] D4501 MA2C165001VT ENVE...
  • Page 400 SCHEMATIC DIAGRAM-11 : +B SIGNAL LINE MAIN (DVD INTERFACE:IF) CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE CD LOADING CIRCUIT (CN1) ON SCHEMATIC DIAGRAM-31 P36005 14 13 12 C36016 D36002,D36004,D36006, D36010,D36012 B0JACE000001 D36006 D36004 VCC_L Q33010 R36089 R36086 D36010 D36012 2SC3940AHA RESET...
  • Page 401 SCHEMATIC DIAGRAM-12 MAIN (DVD INTERFACE:IF) CIRCUIT : +B SIGNAL LINE R36102 R36100 R36023 R36020 R36104 VREF JOG_A R36022 R36092 JOG_A DEMO_SEL JOG_B R36021 MUTE_SW JOG_B MUTE_SW R36029 DSP_RST DSP_RST TUN_CTR R36041 R36028 CH_SW TUNER_CTR CH_SW DVD_CTR R36090 VREF R36042 DVD_CTR VREF DSP_CS R36057...
  • Page 402 SCHEMATIC DIAGRAM-13 : DVD VIDEO SIGNAL LINE MAIN (DVD INTERFACE:IF) CIRCUIT : +B SIGNAL LINE : VIDEO SIGNAL LINE C33505 C33506 C33507 C33508 K33504 K33501 C33501 10V220 IC33501 C9ZB00000431 IC33501 8 BIT MICROCONTROLLER C33502 C33503 0.01 0.01 L33501 G0C220JA0019 C33014 10V220 Q33001 B1AAGD000006...
  • Page 403 SCHEMATIC DIAGRAM-14 : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE MAIN (DVD INTERFACE:IF) CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE DSP CIRCUIT (CN101) ON SCHEMATIC DIAGRAM-21 P36007 P36004 1 2 3 4 5 6 VGND Y/PY/G LB33013 J0JCC0000188 Y/PY/G VGND...
  • Page 404 SCHEMATIC DIAGRAM-28 : +B SIGNAL LINE PANEL B CIRCUIT : -B SIGNAL LINE DP7201 A2BD00000083 FL DISPLAY 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 C7201 35V10 R7226...
  • Page 405 SCHEMATIC DIAGRAM-29 : +B SIGNAL LINE PANEL B CIRCUIT : -B SIGNAL LINE K7201 C7202 Q7001 VR7201 EVEKE2F3024B 2SD602A0L VOLUME JOG FL DRIVE R7024 R7026 R7028 R7030 1.8K 4.7K 1.8K S7016 S7018 S7020 S7024 R7201 T.PLAY T.STOP CH UP EJECT D7202 R7202 B0AAED000003...
  • Page 406 SCHEMATIC DIAGRAM-31 CD LOADING CIRCUIT : +B SIGNAL LINE IC11 C0GAG0000007 UP/DOWN MOTOR DRIVE 16V100 0.01 RM11 UP/DOWN MOTOR CHANGE BOTTOM OPEN STOCK PLAY MAIN (DVD INTERFACE :IF) CIRCUIT (P36005) ON SCHEMATIC DIAGRAM-11 B3NAA0000068 SENSOR IC21 C0GAG0000007 LOADING MOTOR DRIVE 16V100 0.01 RM12...
  • Page 407 SCHEMATIC DIAGRAM - 32 VCR DECK CIRCUIT : +B SIGNAL LINE R209 EZMPX300F13 FG SENSOR TL0204 P201 CAP_VM GND(FG) MAIN (SYSTEM CONTROL:S) CIRCUIT (P2571) ON CAP_R/F SCHEMATIC MGND DIAGRAM-15 C201 IC201 C1AB00001472 CAPSTAN DRIVE C204 C205 R207 R207 HW-108A-FT SGND (H3 HOLL SENSOR) C206 1000P...
  • Page 408 SCHEMATIC DIAGRAM-18 : +B SIGNAL LINE : MAIN SIGNAL LINE MAIN (VIDEO:V) CIRCUIT AUDIO P5001 HEAD(R) AUDIO A COM A_COM HEAD(L) SP L SP(L) SP L C5001 0.01 SP COM SP COM SP(R) SP R C5002 0.01 SP R EP L C5003 0.01 EP L...
  • Page 409 SCHEMATIC DIAGRAM-19 MAIN (VIDEO:V) CIRCUIT : +B SIGNAL LINE TRK_ENV TRAKING_ENV C3047 L3303 R4061 G0C270JA0019 Q3003 330K 2SD0601A0L SWITCH C4061 R4062 0.01 C4062 R4063 6.3V33 C3052 X3001 H0D357400067 R3024 VIDEO_H_SW TW3001 C3099 6.3V100 C3028 C3027 0.01 6.3V47 C5006 C5005 6.3V100 R3038 2.2K VIDEO5V...
  • Page 410 SCHEMATIC DIAGRAM-20 : VIDEO SIGNAL LINE : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE : AUXILLARY SIGNAL LINE MAIN (VIDEO:V) CIRCUIT C3703 0.01 DVD_OUT DVD_OUT [H] C3702 0.01 OSD_VIDEO_OUT QR4702 QR4701 UNR521600L TL4504 MUTING SWITCH TV_VCR_AUX_MIX_R QR4703 QR4702 MUTE_LINE UNR521600L IC3703 MUTING SWITCH...
  • Page 411 SCHEMATIC DIAGRAM-15 : +B SIGNAL LINE MAIN (SYSTEM CONTROL:S) CIRCUIT : FM/AM SIGNAL LINE C7505 6.3V100 D6302 Q6306 B0JACE000001 2SD0601A0L +B REGULATOR UNREG 6V P7502 K7401 FM_DET C6301 R7502 D7753 0.01 D7751 B0AAED000003 B0JACE000001 TUNER STEREO D7754 PACK R7501 B0JACE000001 TW1004 R6307 TU7502...
  • Page 412 SCHEMATIC DIAGRAM-16 : +B SIGNAL LINE MAIN (SYSTEM CONTROL:S) CIRCUIT R6006 TRK_ENV C6005 50V3.3 TW6008 T-PHOTO MODE Q7501 S-PHOTO ART_V_H_N KTC2026 9V REGULATOR TW2001 C7506 C6020 R7506 TL6010 1000P 6.8K UNREG_38V VIDEO_H_SW A_H_SW D_REC_H D7501 C7504 R6016 5VAD B0BA9R000007 16V47 5VAD R6021 ABS_NORM_L...
  • Page 413 SCHEMATIC DIAGRAM-17 : +B SIGNAL LINE MAIN (SYSTEM CONTROL:S) CIRCUIT +5VA TU7601 ENG36502G SREEL R1511 R1512 IC1511 TUN_V_IN TL6013 TL6012 TU V IN T.S.CURVE R7604 SIF_OUT SIF OUT R1513 A COMPO R1503 TREEL C7602 50V1 IF IN 5VAD R7601 IC1512 IF OUT UNREG_38V REG 30V...
  • Page 414 SCHEMATIC DIAGRAM-27 : -B SIGNAL LINE POWER CIRCUIT : +B SIGNAL LINE D1230 MA2C18500E R1230 D1180 C1230 TL1038 T1150 MAZ751000C 50V22 G4D2A0000159 TL1009 D1290 L1290 B0JAMK000015 G0A220G00018 C1291 C1290 D1291 16V100 16V680 B0JAMK000015 D1250 B0JAMK000015 TL1016 L1250 D1251 G0A220G00018 B0JAMK000015 C1251 C1250 25V100...
  • Page 415 SCHEMATIC DIAGRAM-30 5DVD LED CIRCUIT : +B SIGNAL LINE Q7705 Q7710 Q7706 Q7708 UNR221500L UNR211700L UNR211700L UNR211700L LED DRIVE LED DRIVE LED DRIVE LED DRIVE Q7707 Q7709 UNR221500L UNR221500L R7707 R7710 R7713 LED DRIVE LED DRIVE Q7710 Q7706 Q7708 R7708 R7711 R7714 Q7705...
  • Page 416 DVD MODULE P.C.B (REPV0021A) C8503 LB8502 TP8517 TP8500 R8501 TC8501 TC8502 TP8520 TP8511 LB8501 TP8515 TP8516 TP8521 C8505 RA8502 TP8510 TP8502 TP8519 TP8501 IC8251 TP8524 C8502 TP8525 TC8504 TP8518 RA8504 R8570 RA8503 RA8501 R8569 TC8503 TP8251 D8550 CP8501 LB8514 C8253 Q8560 C8261 QR8571...
  • Page 417 DVD MODULE P.C.B (REPV0021A) CP8251 CP8252 C8254 C8255 FP8501 C8251 TO OPTICAL PICKUP UNIT C8252 R8251 Q8552 C8561 Q8562 R8554 C8550 R8566 C8554 R8567 IC8605 R8564 Q8606 R8553 R8558 R8563 R8565 Q8605 R8559 C8605 C8564 C8606 C8551 C8695 TC8006 R8605 R8606 IC8691 IC8695...
  • Page 418 W424 W471 W373 TU7601 TO TUNER PACK (ENG36502G) W426 C7603 W427 P36001 W344 R7604 C7604 W529 W224 C7602 IC2502 RF IN/OUT W470 W347 D7601 R7601 TW6008 W229 W227 D34001 W348 Q7501 W230 R2606 D36001 C2601 P2501 C34015 R2602 TO VCR TW2001 IC2601 VIDEO HEAD...
  • Page 419 MAIN P.C.B (VEPV0001A) Q1501 W471 Q4084 C2512 W142 P36001 W507 IC6301 W529 R4086 W224 C2510 R2514 IC2502 R2515 W470 R2520 C2511 IC2501 R2523 C2508 C6308 TW6008 C6307 W229 TL6010 C2520 R6016 W230 R6006 W153 C2506 W154 P2501 C2504 W474 C2051 TO VCR TW20 W156...
  • Page 420 R402 R404 C446 Q402 Q403 Q408 Q410 Q406 R432 R416 Q401 R408 R414 R483 CN101 Q411 R447 W403 Q407 R449 Q409 R446 C508 C430 R335 R343 R473 R452 C352 R331 R439 R484 R338 C329 R334 C452 Q405 D302 Q404 C333 C330 R344 R339...
  • Page 421 DSP P.C.B (VEPV0002A) CN401 R441 R489 C460 C432 C412 C413 Q601 R442 R479 D601 C428 C422 C421 R425 W402 R477 R451 C440 D404 W401 R601 Q412 D403 Q602 R478 C436 C605 C508 C442 R457 C439 C431 IC402 R452 C426 C452 Q603 Q405 R488...
  • Page 422 POWER P.C.B (VEPV0004A) IC1200 C1270 R1203 Q1200 Q1151 R1156 Q1152 C1126 LB1211 D1280 Q1150 R1153 R1161 D1241 C1154 D1240 R1160 D1152 D1210 C1210 Q1153 C1261 C1155 R1155 C1260 L1121 R1163 D1140 R1162 R1154 D1291 L1120 D1290 R1150 D1250 D1251 C1140 T1150 D1230 TRANSFORMER...
  • Page 423 R7205 R7206 C7212 C7208 R7207 C7207 R7208 R7226 IC7201 7001 32 33 DP7201...
  • Page 424 PANEL B P.C.B (VEPV0006A) S7024 EJECT S7020 CH UP S7021 CH DN S7023 S7019 S7017 T.REW T.FF C7201 R7031 R7205 D7201 R7013 R7206 P7201 R7225 R7207 VR7201 S7016 S7018 R7208 T.PLAY T.STOP R7226 QR7201 R7024 R7202 W501 L7200 R7203 R7201 QR7202 C7210 Q7001...
  • Page 425 5 DVD LED P.C.B (VEPV0007A) D7705 Q7702 Q7701 P7701 D7704 W7701 D7703 Q7704 Q7710 Q7709 Q7707 Q7708 Q7703 D7702 Q7705 W7705 D7701 R7704 W7704 Q7706 W7708 PANEL A P.C.B (VEPV0005A) S7005 S7002 S7001 S7003 S7007 S7009 DISC DISC5 DISC4 DISC3 DISC2 DISC1 CHANGE...
  • Page 426 CD LOADING P.C.B (REP3569A) CHANGESW RM21 LOADING_MOTOR PLAYSW STOCKSW RM11 UPDOWN IC21 IC11 OPENSW BOTTOMSW VCR DECK P.C.B (VEP02578A) TL201 TL205 TL203 TL202 C201 TL204 P201 R203 R205 R202 CAPSTON UNIT R207 C207 IC201 R208 C205 R210 R201...
  • Page 427 C1270 D1241 D1240 TL1007 TL1004 C1261 L1240 C1260 C1290 L1250 L1290 L1260 D1291 D1290 D1250 D1251 TL1038 TL1006 9 10 P1102 C SHOCK PLEASE DO NOT...
  • Page 428 VCR DECK P.C.B. 2 ....30 1 ....29 CN101 CN401 P201 4..1 DSP P.C.B.
  • Page 429 P7201 VR7201 PANEL B P.C.B. 3 2 1 JK7001 SOLDER SIDE VOLUME HEADPHONES 18 ..2 TU7601 TO TUNER PACK (ENG36502G) 19 ...1 P36001 RF IN/OUT 25 .
  • Page 430 9:46:26 AM...
  • Page 431 9:46:27 AM...
  • Page 432 9:46:28 AM...
  • Page 433 9:46:29 AM...
  • Page 434 9:46:29 AM...
  • Page 435 9:46:30 AM...
  • Page 436 9:46:30 AM...
  • Page 437 9:46:31 AM...

Table of Contents
