Playable Discs
This unit is compatible to play back
the following discs / files.
DVD-video
is a trademark of DVD
Format/Logo Licensing
Corporation.
DVD+RW
DVD+R
DVD+R Double Layer
DVD-RW
(Finalized video mode discs only)
DVD-R
(Finalized video mode discs only)
Region Codes
The number inside the globe refers to region of the world.
This unit can play back DVDs that are labeled for ALL regions or for region 1.
Recordable Discs
This unit can record to DVD+RW, DVD+R, DVD-RW and DVD-R. DVD+R/DVD-R can only
be recorded to once. DVD+RW/DVD-RW can be recorded to and erased many times.
• Following discs are recommended for good recording quality and are proven to be
compatible with this unit. However, depending on the media condition the unit may
not read the disc properly.
Verbatim DVD+R 8x, DVD+RW 4x, DVD-R 8x, DVD-RW 2x,
JVC DVD-RW 4x,
Maxell DVD+R 4x/8x/16x, DVD-R 8x/16x,
SONY DVD+R 4x/8x/16x, DVD+RW 4x,
TDK DVD+R 4x/8x/16x
Performance of any other discs are not guaranteed.
• You can play back DVD+RW on most DVD players without finalizing. However, if
you have added or deleted chapters, or made chapters hidden, you must perform "Make Edits Compatible" before being able to
see those effects on other units (see page 83 in the user manual). To play back discs other than DVD+RW on other DVD players,
you will need to finalize.
Unrecordable Discs
• DVD-RW recorded in the mode other than +VR is not recordable on this unit unless you erase all contents in the disc (see page 82 in the
user manual).
• DVD-R recorded in the mode other than +VR is not recordable on this unit.
E7H42UD_QG.indd 1
All manuals and user guides at all-guides.com

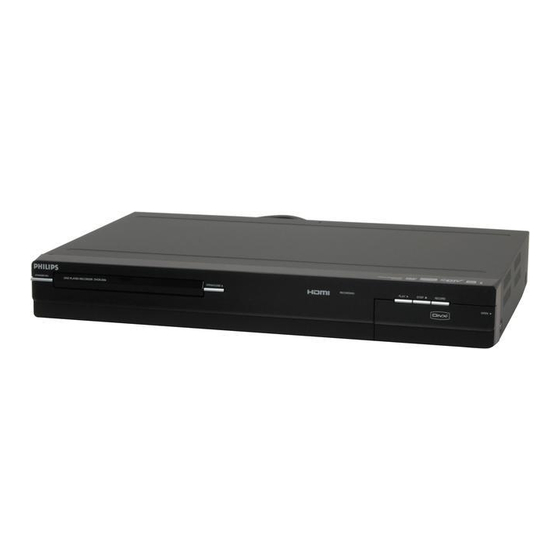

DIGITAL VIDEO DISC RECORDER WITH DIGITAL TUNER
DVDR3506/37
Playable discs Logos Playable discs
CD-DA (audio CD)
video CD
CD-RW
CD-R
Playable files
CD-DA
MP3
Windows Media™ Audio
JPEG
DivX®
Logo
DVD+RW DVD+R
DVD-RW DVD-R
1
Basic Connection
1) Disconnect the power cord of your TV from the AC outlet.
2) Disconnect RF coaxial cable from antenna input jack of your TV.
3) Make the connection as illustrated below.
VHF / UHF
antenna
cable TV
company
Logos
4) Plug in the power cords of the devices to the AC outlet.
Connection Using RF Modulator.
1) Disconnect the power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
VHF / UHF
antenna
cable TV
Media
company
CD-RW/-R
CD-RW/-R
DVD+RW/+R
DVD-RW/-R 3) Set your RF modulator's channel 3/4 switch to either 3 or 4.
4) Plug in the power cords of the devices to the AC outlet.
5) Turn on your TV and choose the same channel as you set the RF modulator's channel 3/4 switch to.
• RF modulator is not supplied with this unit. You need to purchase it at your local store.
Connection to a Cable / Satellite Box
1) Disconnect the power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
e.g.)
Attributes
cable TV
company
8cm/12cm, single-sided, single layer disc
Approx. max. recording time (SLP mode):
360 minutes (4.7GB) (for 12cm)
108 minutes (1.4GB) (for 8cm)
3) Plug in the power cords of the devices to the AC outlet.
* Refer to the user manual for other connection methods.
How to Select External Input Channel on Your TV
After you have completed the connections, switch the input selector on your TV to an appropriate external
input channel. Press a button on the TV's original remote control that selects an external input channel
repeatedly until the DVD recorder's opening picture appears. Check your TV owner's manual for details.
RF coaxial cable IN
VIDEO VIDEO
Y
IN OUT
L P B /C B
L
R
IN R P /C OUT
OUT R R
ANTENNA AV IN S-VIDEO AV OUT COMPONENT S-VIDEO
VIDEO OUTPUT
or RF coaxial
cable
RCA audio
cable
ANT. IN
This connection is
for TV loop
through only
rear of your TV
rear of this unit
RF coaxial cable IN
VIDEO VIDEO
Y
IN OUT
L P /C
B B
L
RF coaxial cable
R
R OUT
OUT IN P R /C R
rear of your ANTENNA COMPONENT
or AV IN S-VIDEO AV OUT VIDEO OUTPUT S-VIDEO
RF modulator
RCA audio cable
(not supplied)
RCA video cable
RF coaxial cable
3 4 R L
ANT. IN CHANNEL AUDIO IN VIDEO IN TO TV
Set channel 3 or 4
satellite
dish
This connection is for
TV loop through only
or
RF coaxial cable
ANT. IN
IN
RF coaxial cable
ANT. IN RF OUT
AUDIO OUT VIDEO S-VIDEO
OUT OUT
R L
cable/satellite
box OUT
ANTENNA
or
RCA video cable
RCA audio cable
S-video cable
Connections
HDMI OUT
COAXIAL
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
RCA video
cable
R L
AUDIO IN VIDEO IN
HDMI OUT
COAXIAL
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
ANT. IN
rear of your TV
rear of your TV
AUDIO IN
VIDEO IN R L
IN
VIDEO VIDEO
IN OUT
L HDMI OUT
RCA RCA
R
OUT IN OUT COAXIAL
ANTENNA AV IN S-VIDEO S-VIDEO DIGITAL AUDIO OUTPUT PCM / BITSTREAM video audio
cable cable
VIDEO VIDEO VIDEO VIDEO
Y
IN IN OUT OUT
L L
P B /C B
L L
R R
IN IN R R P /C OUT
R R
COMPONENT
AV IN AV IN S-VIDEO S-VIDEO AV OUT AV OUT S-VIDEO
VIDEO OUTPUT
Follow to the back side of this sheet.
