ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Product No.
GLGR341CC0
Series
Frigidaire
Market
North America
Color
white
Volts
120
Wiring Diagram
131703900
Owner's Guide
131883500
Installation Instructions 134296400
Operating Instructions 134145400
Publication No.
5995398996
03/11/21
(EN/SERVICE/KC)
361
Copyright

GAS DRYER

Model No.
GLGR341C
2003 Electrolux Home Products, Inc.
All rights reserved.

Advertisement

loading

Related Manuals for Frigidaire GLGR341C

Summary of Contents for Frigidaire GLGR341C

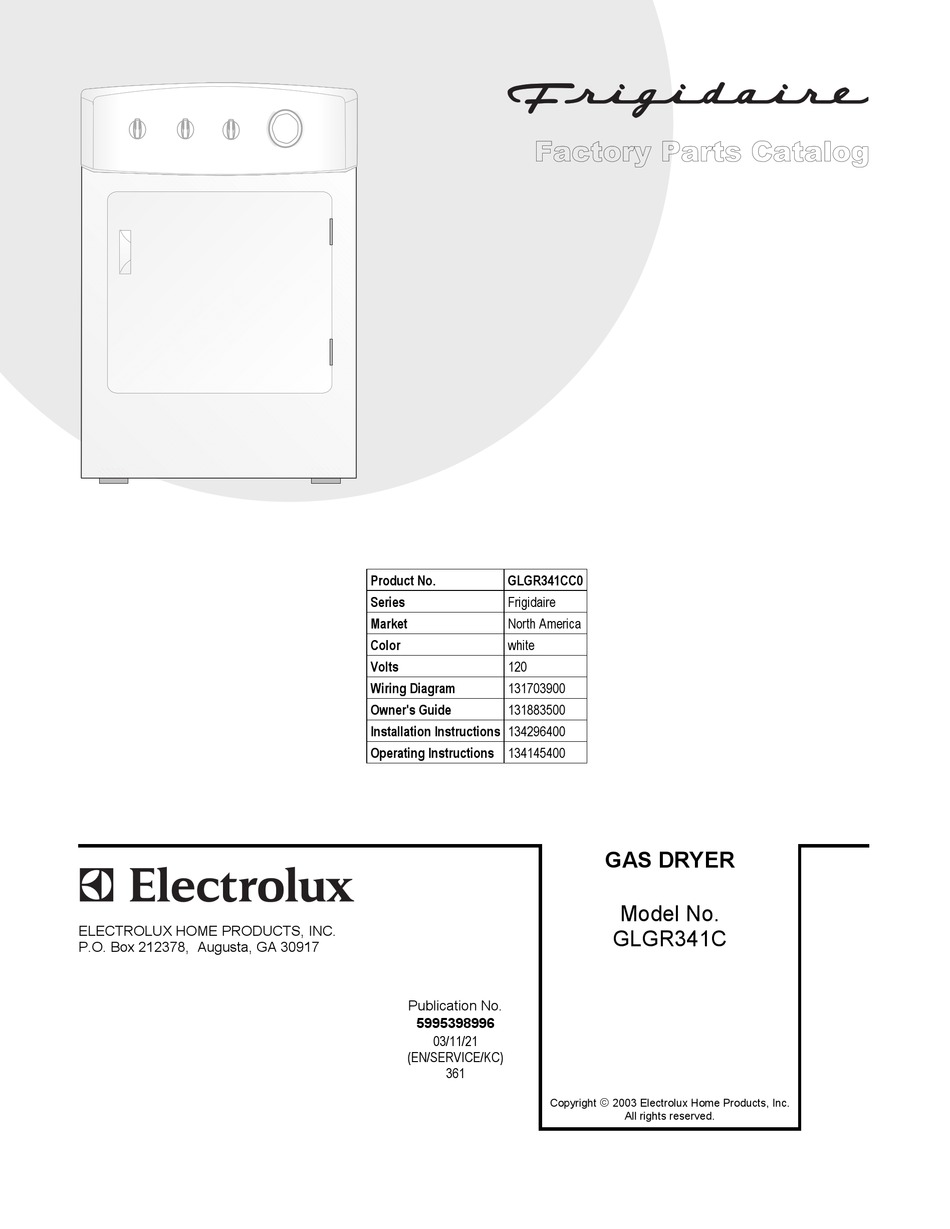

  • Page 1: Gas Dryer

    Series Frigidaire Market North America Color white Volts Wiring Diagram 131703900 Owner's Guide 131883500 Installation Instructions 134296400 Operating Instructions 134145400 GAS DRYER Model No. GLGR341C Publication No. 5995398996 03/11/21 (EN/SERVICE/KC)  Copyright 2003 Electrolux Home Products, Inc. All rights reserved.
  • Page 2 Publication No: 5995398996 GLGR341CC0 CABINET/DRUM 11/03...
  • Page 3 Housing, gas heater assy, w/seal Screw, 10-16AB x 0.375 Bracket, hinge, rear, top panel mtg. Drum, dryer, galvanized stl., service kit Glide, drum Screw, hex washer head, 8-18 x 0 .375, cup point Screw, quadrex head, 10-14 x 1.00, vane mtg., special...
  • Page 4 Publication No: 5995398996 GLGR341CC0 FRONT PANEL/LINT FILTER 11/03...
  • Page 5 POS. NO PART NO. 134063300 131397000 131621900 131622202 131633200 131063700 134036400 5308027429 134134700 131845912 131474700 131658800 26 # 131843101 131450300 5303281074 131627500 131209600 131129900 131644700 131844104 131789303 5303211430 131303300 58 # 131843500 58*# 131862800 # Functional Parts * Non-Ilustrated Parts GLGR341CC0 FRONT PANEL/LINT FILTER DESCRIPTION...
  • Page 6 Publication No: 5995398996 GLGR341CC0 CONTROLS/TOP PANEL 11/03...
  • Page 7 Buzzer, mini Wiring Harness, mini buzzer Screw, pan head, 8-18B x 0.31 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive Panel, dryer top, white, console mtg Screw, pan hd locking, 8-32CA x 0.375, cup point Publication No: 5995398996 11/03...
  • Page 8 Publication No: 5995398996 GLGR341CC0 MOTOR 11/03...
  • Page 9 Spacer, idler Thermostat, temp control Screw, hex head, 1/4-20T x 1.25, spacer mtg., thread cutting Spring, idler arm Idler Arm Belt, dryer Clamp, motor mtg. Motor, main drive, w/pulley Screw, pan head, 8-18AB x 0.375, cr/sq drive Bracket, motor mtg Seal, exhaust tube Screw, pan head, 8-18B x 0.31...
  • Page 10 Publication No: 5995398996 GLGR341CC0 BURNER 11/03...
  • Page 11 POS. NO PART NO. 131168200 131243700 55 # 134264700 134122000 134144900 08015112 134128700 134185100 69 # 5308015194 70 # 5303207409 71 # 5303307291 72 # 5303307292 73 # 5303207410 74 # 134192000 77 # 134197700 79 # 5303281135 80 # 134200801 134315100 # Functional Parts...

  • Page 12: Wiring Diagram

    Publication No: 5995398996 GLGR341CC0 WIRING DIAGRAM 11/03...
