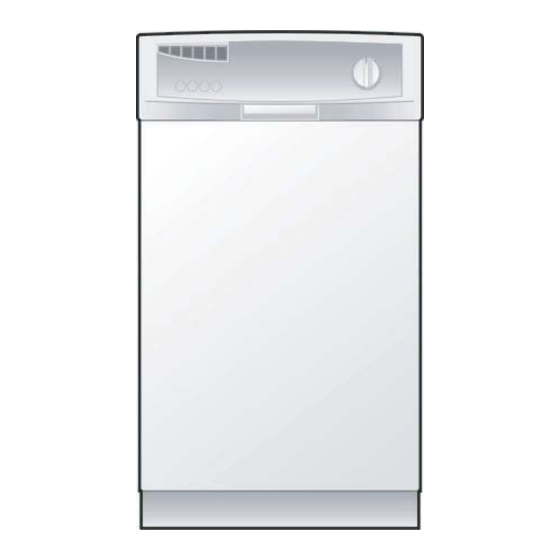

Frigidaire FFBD1821M Installation Instructions Manual
Built-in dishwasher
Hide thumbs
Also See for FFBD1821M:
- Use and care manual (16 pages) ,
- Specifications (5 pages) ,
- Brochure & specs (7 pages)
Table of Contents
Advertisement
I n s t a l l a t i o n
I n s t r u c t i o n s
If you have questions, call 800-944-9400(US), 800-245-8352 (Canada) or visit our website at:
www.Frigidaire.com
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT
governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions for the consumer's and local
inspector's use.
• Note to Consumer – Keep these instructions
with your Owner's Manual for future reference.
• Skill Level – Installation of this dishwasher
requires basic mechanical and electrical skills.
Proper installation is the responsibility of the
installer. Product failure due to improper
installation is not covered under the
ELECTROLUX Appliance Warranty.
• Completion Time – 1 to 3 Hours. New
installations require more time than replacement
installations.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
–
Observe all
B u i l t - I n
Dishwasher
IMPORTANT
MUST be installed to allow for future removal from
the enclosure if service is required.
If you received a damaged dishwasher, you
should immediately contact your dealer or builder.
Optional Accessories – See the Owner's Manual
for available custom panel kits.
FOR YOUR SAFETY
Read and observe all CAUTIONS and WARNINGS
shown throughout these instructions. While
performing installations described in this booklet,
gloves, safety glasses or goggles should be
worn.
WARNING
To reduce the risk of electrical shock, fire,
or injury to persons, the installer must
ensure that the dishwasher is completely
enclosed at the time of installation.
–
The dishwasher
Advertisement
Table of Contents
Related Manuals for Frigidaire FFBD1821M
Summary of Contents for Frigidaire FFBD1821M
- Page 1 • Note to Consumer – Keep these instructions with your Owner’s Manual for future reference. • Skill Level – Installation of this dishwasher requires basic mechanical and electrical skills. Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the ELECTROLUX Appliance Warranty.
-
Page 2: Parts Supplied
PARTS SUPPLIED: ¨ Two #8 Phillips flat head wood screws, 5/8” long to secure dishwasher to underside of countertop (in literature package). ¨ Two Phillips head, color matched toekick screws (in literature package). MATERIALS YOU WILL NEED: ¨ Ferrule, compression nut and 90° Elbow (3/ 8”NPT external thread on one end, opposite... -
Page 3: Prepare Dishwasher Enclosure
32" minimum, high drain loop will result in improper draining of the dishwasher. Installation Preparation • The dishwasher must be installed so that drain hose is no more than 10 feet in length for proper drainage. • The dishwasher must be fully enclosed on the top, sides and back, and must not support any part of the enclosure. -
Page 4: Prepare Electrical Wiring
NOTE: Power cords with plug must pass through a separate hole. Electrical Connection to Dishwasher Electrical connection is on the right front of dishwasher. • For cable direct connections the cable must be routed as shown in Figure E. Cable must extend a minimum of 24”... -
Page 5: Prepare Hot Water Line
• Water connection is on the left side of the dishwasher. Install the hot water inlet line, using no less than 3/8” O.D. copper tubing. Route the line as shown in Figure F and extend forward at least 18”... -
Page 6: Step 2 Adjust Leveling Legs
Installation Instructions STEP 2 ADJUST LEVELING LEGS • Move the dishwasher close to the installation location and lay it on its back. Adjust to Installation Height Figure H • Measure installation height and dishwasher height. Extend leveling legs out from the dishwasher base, 1/4"... -
Page 7: Step 5 Position Water Line And House Wiring
Installation Instructions STEP 7 SLIDE DISHWASHER DO NOT PUSH AGAINST FRONT PANEL WITH KNEES. DAMAGE WILL OCCUR. • Slide dishwasher into the opening a few inches at a time. 4" 6" • As you proceed, pull the drain hose through the opening under the sink. -
Page 8: Step 8 Position Dishwasher Under Countertop
Check Level TIP: Pull lower rack out, about halfway. Check to be sure Side the rack does not roll forward or back into dishwasher. If To Side the rack rolls in either direction, the dishwasher must be leveled again. • If door hits the tub, the dishwasher is not installed correctly. -
Page 9: Step 10 Secure Dishwasher To Countertop Or Cabinet
TO COUNTERTOP OR CABINET In this step you will need the 2 Phillips special head screws set aside prior to Step 1. The dishwasher must be secured to the countertop or the cabinet sides. When countertops are made of wood, use Method 1. -
Page 10: Step 12 Connect Drain Line
DISHWASHER WILL NOT DRAIN IF PLUG IS LEFT IN PLACE. TIP: Avoid unnecessary service call charges. Always be sure disposer drain plug has been removed before attaching dishwasher drain hose to the disposer. Disposer Installation Figure W Fasten to underside of countertop 32"... -
Page 11: Step 13 Connect Power Supply
Verify that power is turned off at the source. • Remove junction box cover “A”. • Locate the three dishwasher wires, (white, black and green) with stripped ends. Insert dishwasher wires through the small hole in the junction box “B”. -
Page 12: Step 15 Dishwasher Wet Test
Reposition the dishwasher if necessary. See Step 9. ¨ The dishwasher will drain and turn off about 5 to 7 minutes after the first fill. Check drain lines. If leaks are found, turn power off at the breaker and correct plumbing as necessary.
