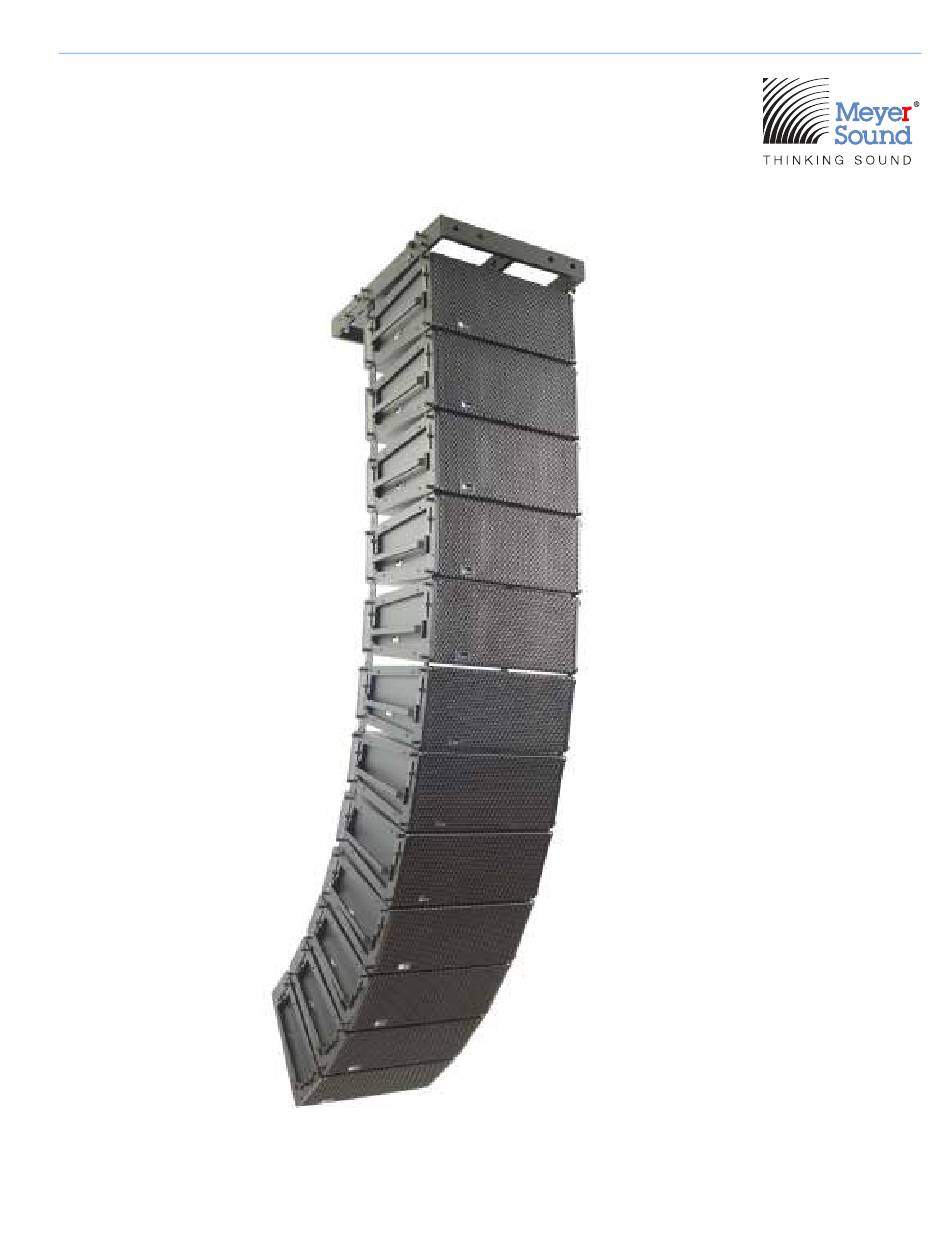

- Page 1 OPERATING INSTRUCTIONS LINE ARRAY LEOPARD™ Compact Linear Line Array Loudspeaker Keep these important operating instructions. Check www.meyersound.com for updates.
- Page 2 The contents of this manual are furnished for informational purposes only, are subject to change without notice, and should not be construed as a commitment by Meyer Sound Laboratories Inc. Meyer Sound assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
-
Page 3: Important Safety Instructions
7. Do not block any ventilation openings. Install in accordance or plug has been damaged; liquid has been spilled or with Meyer Sound's installation instructions. objects have fallen into the apparatus; rain or moisture has entered the apparatus; the apparatus has been dropped; or 8. - Page 4 Das Produkt nicht an einem Ort aufstellen, an dem es direk- ter Wassereinwirkung oder übermäßig hoher Luft- feuchtigkeit ausgesetzt werden könnte, solange es sich Español nicht um ein Produkt handelt, dass mit der Meyer Sound Weather Protection Option ausgestattet ist. • Para reducir el riesgo de descarga eléctrica, desconecte el aparato de la red eléctrica antes de instalar el cable de...
- Page 5 IMPORTANT SAFETY INSTRUCTIONS • No instale el aparato en lugares húmedos o mojados sin usar el equipo de protección contra intemperie de Meyer Sound. • No permita que penetre agua u otros objetos extraños en el interior del aparato. No coloque objetos que contengan líquido sobre o cerca de la unidad.
- Page 6 LEOPARD OPERATING INSTRUCTIONS...
-
Page 7: Table Of Contents
CONTENTS LEOPARD™ Compact Linear Line Array Loudspeaker Important Safety Instructions Symbols Used Chapter 1: Introduction How to Use This Manual LEOPARD Compact Linear Line Array Loudspeaker Native Mode Chapter 2: Power Requirements AC Power Distribution AC Connectors Wiring AC Power Cables LEOPARD Voltage Requirements LEOPARD Current Requirements Intelligent AC Power Supply... - Page 8 LEOPARD OPERATING INSTRUCTIONS Appendix A: Meyer Sound Weather Protection Weather Protection Components Installation Practices IP Ratings Appendix B: LEOPARD Rain Hoods LEOPARD Quick-Clip Rigid Rain Hood LEOPARD Collapsible Rain Hood Appendix C: ULTRA Weather Protection Version Ultra Weather Leopard/900-LFC Rain Hood Kit...
-
Page 9: Chapter 1: Introduction
Make sure to read these instructions in their entirety before coverage, adding greater flexibility and accuracy to configuring a Meyer Sound loudspeaker system. In LEOPARD systems. LEOPARD-M80 can be used wherever particular, pay close attention to material related to safety narrow, more controlled coverage is needed in LEOPARD issues. - Page 10 LYON systems. Applications that require more low- frequency headroom can use Meyer Sound’s 1100-LFC, which also integrates with LEOPARD systems. Meyer Sound recommends driving LEOPARD systems with the Galileo® GALAXY Network Platform, which provides 24 bit, 96 kHz audio, matrix routing, alignment, and processing for array components. To guarantee optimum...
-
Page 11: Native Mode
CHAPTER 1: INTRODUCTION NATIVE MODE LEOPARD and 900-LFC loudspeakers are optimized for use in certain flown and groundstacked configurations without any array compensation or other signal processing. This capability, called Native mode, allows LEOPARD/900-LFC systems to be deployed quickly with excellent results, without equalization, tuning, or use of presets. - Page 12 LEOPARD OPERATING INSTRUCTIONS NOTE: For Native mode to work properly, the source signal must be correctly configured with the appropriate gain structure. CAUTION: Make sure that all cabling for looped loudspeakers is wired correctly (Pin 1 to Pin 1, Pin 2 to Pin 2, and so forth) to prevent the polarity from being reversed.
-
Page 13: Chapter 2: Power Requirements
(208 V AC) (208 V AC) CAUTION: Before applying AC power to any Meyer Sound self-powered loudspeaker, make Line 1 (120 V AC) sure that the voltage potential difference between the Line 2 (120 V AC) neutral and earth-ground lines is less than 5 V AC... -
Page 14: Ac Connectors
LEOPARD OPERATING INSTRUCTIONS current draw for all loudspeakers on the circuit, including the first loudspeaker (Table 1). Loudspeaker Loudspeaker Loudspeaker (230 V AC) (230 V AC) (230 V AC) AC Loop Output (Gray) Line 1 (230 V AC) Line 2 (230 V AC) The gray AC Loop Output connector allows multiple Line 3 (230 V AC) LEOPARDs to be looped and powered from a single power... -
Page 15: Wiring Ac Power Cables
CHAPTER 2: POWER REQUIREMENTS WIRING AC POWER CABLES LEOPARD VOLTAGE REQUIREMENTS LEOPARD ships with a gray powerCON 20 cable mount LEOPARD operates as intended when receiving AC voltage connector (Figure 10), rated at 20 A, for assembling AC within the following range: looping cables. -
Page 16: Intelligent Ac Power Supply
Table 3: LEOPARD Current Draw required range. If the problem persists, contact Current Draw 115 V AC 230 V AC 100 V AC Meyer Sound Technical Support. Idle 0.46 A rms 0.35 A rms 0.49 A rms Maximum Long- 3.0 A rms 1.5 A rms... - Page 17 CHAPTER 2: POWER REQUIREMENTS power cable must be rated for the total current draw of all loudspeakers looped from the power source. • Do not operate the loudspeaker if the power cable is frayed or broken. • Keep all liquids away from LEOPARD loudspeakers to avoid hazards from electrical shock.
- Page 18 LEOPARD OPERATING INSTRUCTIONS...
-
Page 19: Chapter 3: Amplification And Audio
CHAPTER 3: AMPLIFICATION AND AUDIO AUDIO CONNECTORS LEOPARD’s drivers are powered by a proprietary three-channel, open-loop, class D amplifier. The audio signal LEOPARD is available with XLR 5-pin or 3-pin connectors is processed with an electronic crossover plus correction for audio Input and audio Loop output (Figure 13 and filters for flat phase and frequency responses, and by driver Figure 14, respectively). -
Page 20: Trupower Limiting
50 ohms. Each output can drive up connector pin to the case may cause a ground loop, to 20 Meyer Sound (10 kOhm) loudspeakers without resulting in hum. distortion. -
Page 21: Amplifier Cooling System
When levels return to normal, below the limiter thresholds, If the Active/Status LED flashes red and the loudspeaker does not output audio, contact Meyer Sound Technical limiting ceases. Support immediately. LEOPARD performs within its acoustical specifications at... - Page 22 LEOPARD OPERATING INSTRUCTIONS...
-
Page 23: Chapter 4: Quickfly Rigging
CHAPTER 4: QUICKFLY RIGGING IMPORTANT SAFETY CONSIDERATIONS! When installing Meyer Sound loudspeakers and subwoofers, the following precautions should always be observed: • All Meyer Sound products must be used in accordance • Make sure to attach mounting hardware to the building’s with local, state, federal, and industry regulations. - Page 24 LEOPARD OPERATING INSTRUCTIONS Rigging Example, LEOPARD Array with Pull-Back MG-LEOPARD/900 Multipurpose Grid Oriented for maximum (12) LEOPARD array downtilt with four pick-up points and two motors PBF-LEOPARD Pull-Back Frame Attached to bottom cabinet to provide pull-back for extreme array downtilt...
- Page 25 CHAPTER 4: QUICKFLY RIGGING Rigging Example, Mixed Array with 900-LFCs and LEOPARDs MVP Motor Vee Plate Attached to front center of grid with two motors MG-LEOPARD/900 to adjust the horizontal Multipurpose Grid aim of the array Oriented for maximum array downtilt with three pick-up points and three motors (2) 900-LFC...
- Page 26 LEOPARD OPERATING INSTRUCTIONS Rigging Example, LYON Array with LEOPARD Downfill MVP Motor Vee Plate Attached to front center MTG-LYON Top Grid of grid with two motors Oriented for maximum to adjust the horizontal array downtilt with three aim of the array pick-up points and four motors (12) LYON-M...
-
Page 27: Leopard Guidealinks
CHAPTER 4: QUICKFLY RIGGING LEOPARD GUIDEALINKS linked cabinets is continuous. When attached at 0 degrees, the front GuideALinks act as a pivot point between the linked LEOPARD is equipped with four captive GuideALinks and LEOPARDs, with the splay angle between the units four mating links slots that link to adjacent LEOPARDs or determined by the rear GuideALink positions. - Page 28 LEOPARD OPERATING INSTRUCTIONS software should be used to calculate optimum splay the top cabinet with the GuideALink configurations listed in angles for loudspeakers and to predict coverage Table 5. patterns for arrays. Table 5: LEOPARD (Top Cabinet) GuideALink Configurations Rear Front Resulting Angle GuideALinks...
-
Page 29: Chapter 5: Rms Remote Monitoring System
RMS reports, in real time, the status and power module of that particular loudspeaker. Conversely, a usage of multiple Meyer Sound loudspeakers from a Mac or loudspeaker can be identified in Compass RMS by pressing Windows-based computer. The RMS host computer the Identify button on the loudspeaker’s RMS module. -
Page 30: Neuron Id For Rms Module
LEOPARD OPERATING INSTRUCTIONS Wink/Activity LED (Green) chained) loudspeakers on the network. Included with each RMS-equipped loudspeaker are RMS cable connectors and The green Wink/Activity LED indicates the status of the mounting blocks for constructing RMS cables. The RMS loudspeaker: blocks allow the Weidmuller connectors to be securely •... -
Page 31: Chapter 6: System Design And Integration Tools
CHAPTER 6: SYSTEM DESIGN AND INTEGRATION TOOLS This chapter introduces MAPP, Meyer Sound’s patented MAPP software allows for configuration of Meyer Sound system design tool and the Galileo GALAXY Network loudspeaker systems and definition of the environment in Platform. which they operate, including air temperature, pressure, humidity, and the location of prediction surfaces. -
Page 32: Galileo Galaxy Network Platform
GALILEO GALAXY NETWORK PLATFORM The Galileo GALAXY Network Platform is a sophisticated loudspeaker management tool for controlling all Meyer Sound speaker types. The GALAXY loudspeaker processor extends a high level of audio control in driving and aligning loudspeaker systems with multiple zones. It... -
Page 33: Appendix A: Meyer Sound Weather Protection
APPENDIX A: MEYER SOUND WEATHER PROTECTION The Weather Protection option from Meyer Sound is air environments, the exterior grille can quickly show signs intended to increase the useful life of Meyer Sound of oxidation, causing unsightly discoloration. loudspeakers when they are installed outdoors and exposed Apart from selecting suitable weather protection, the to different and often harsh weather conditions. -
Page 34: Weather Protection Components
Meyer Sound Standard Weather Protection Loudspeakers outdoors. Deviation from such practices may Meyer Sound designs toward an IP rating of IPX4 (see “IP cause weather protection to be ineffective and void the Ratings Definition Chart” on page 35) for Standard Weather warranty for the loudspeaker. -
Page 35: Ip Ratings
APPENDIX A: MEYER SOUND WEATHER PROTECTION IP RATINGS IP stands for "Ingress Protection." The current format for expressing an IP rating is a 2-digit code. The first digit of an IP rating represents protection from solid objects. The second digit of an IP rating represents protection from water or moisture. - Page 36 LEOPARD OPERATING INSTRUCTIONS...
-
Page 37: Appendix B: Leopard Rain Hoods
APPENDIX B: LEOPARD RAIN HOODS LEOPARD QUICK-CLIP RIGID RAIN HOOD Weather-protected LEOPARDs include a quick-clip removable rain hood for indoor/outdoor touring and sheltered outdoor installations. The LEOPARD quick-clip removable rain hood (Figure 24) is easily attached and removed with its two winghead studs. To attach the LEOPARD quick-clip rain hood: 1. -
Page 38: Leopard Collapsible Rain Hood
LEOPARD OPERATING INSTRUCTIONS LEOPARD COLLAPSIBLE RAIN HOOD Another option for weather-protected LEOPARDs is the collapsible rain hood. The LEOPARD collapsible rain hood (Figure 24) is easily attached and removed with its two screws. To attach the LEOPARD collapsible rain hood: 1. - Page 39 APPENDIX B: LEOPARD RAIN HOODS The clear windows let you easily locate the connectors on the user panel. 4. To stow the rain hood, reverse the steps. CAUTION: There is only one proper loudspeaker orientation once the rainhood is installed. The loudspeaker must be oriented so that all cabling exits from the bottom of the rain hood.
- Page 40 LEOPARD OPERATING INSTRUCTIONS...
-
Page 41: Appendix C: Ultra Weather Protection Version
Examples would include cruise ship exterior areas, ocean-side visitor attractions, swimming pool areas, and themed attractions with wind-carried water spray. For installations in extremely harsh environments, Meyer Sound offers an IPX5-rated, Ultra Weather Protection version of the LEOPARD loudspeaker, which includes all of the components of standard Weather Protection, plus the following: •... - Page 42 LEOPARD OPERATING INSTRUCTIONS Table 7: LEOPARD Ultra Weather Protection Version Accessory and Part Differences LEOPARD Accessory/Part UW LEOPARD Accessory/Part Comment MG-LEOPARD/900-LFC MG-LEOPARD/900-LFC The clamps, screws, and lock pin replace the quick-release Grid to Loudspeaker Quick-release Grid to Loudspeaker Fasteners pins (with lanyard). Torque screws to 12 in-lb (1.36 N·m). pins (with lanyard) Red UW lock pin clamp, 5/16 in x 0.875 in with 6-inch...
- Page 43 The use of corrosion resistant material reduces the strength of the LEOPARD UW loudspeaker compared to the standard or weather-protected versions. LEOPARD UW loudspeaker versions should not be rigged together with LEOPARD standard or weather-protected loudspeaker versions. Contact Meyer Sound for guidance on loading limitations.
-
Page 44: Ultra Weather Leopard/900-Lfc Rain Hood Kit
LEOPARD OPERATING INSTRUCTIONS ULTRA WEATHER LEOPARD/900-LFC RAIN HOOD KIT The ULTRA-weather-protected LEOPARD/900-LFC kit includes a quick-clip removable rain hood. The Ultra Weather Protection LEOPARD/900-LFC Rain Hood Kit includes the following parts: LEOPARD/900-LFC Quick Clip Rain Hood with Splash Shield Assembly (PN 45.243.241.01) •... - Page 45 APPENDIX C: ULTRA WEATHER PROTECTION VERSION Rain Hood Retainer Flange Captive Wing-head Stud Figure 28: Routing Signal and Power Cables Through Rain Hood and Around Baffle NOTE: Ultra Weather Protected units using the LEOPARD/900-LFC UW Rain Hood are rated IPX5 for water intru- sion.
- Page 46 LEOPARD OPERATING INSTRUCTIONS...
-
Page 47: Appendix D: Specifications
M-noise at the onset of limiting, 2-hour duration, and 50-degree C ambient temperature is <2 dB. M-noise is a full bandwidth (10 Hz–22.5 kHz) test signal developed by Meyer Sound to better measure the loud- speaker’s music performance. It has a constant instantaneous peak level in octave bands, a crest factor that increases with frequency, and a full bandwidth Peak to RMS ratio of 18 dB. - Page 48 LEOPARD OPERATING INSTRUCTIONS LEOPARD Specifications AMPLIFIER Type 3-channel, open-loop, class D Total Output Power 3900 W peak Note: Peak power based on the maximum unclipped voltage the amplifier will produce into the nominal load imped- ance. THD, IM, TIM < 0.02% Cooling Convection AC POWER...
- Page 49 APPENDIX D: SPECIFICATIONS LEOPARD Specifications ENVIRONMENTAL Operating Temperature 0 °C to +45 °C Non Operating –40 °C to +75 °C Temperature Humidity To 95% at 45 °C (non-condensing) Operating Altitude To 5,000 m (16,404 ft) Non Operating Altitude To 12,000 m (39,000 ft) Shock 30 g 11 msec half-sine on each of 6 sides Vibration...
-
Page 50: Leopard Dimensions
LEOPARD OPERATING INSTRUCTIONS LEOPARD DIMENSIONS 26.93 in 21.66 in [684 mm] [550 mm] 24.56 in 19.66 in [624 mm] [499 mm] 5.60 in [142 mm] 11.11 in [282 mm] 10.08 in [256 mm] NOTE: For dimensions and weight for the MG-LEOPARD top grid and MCF-LEOPARD caster frame, refer to the MG-LEOPARD/900 Assembly Guide (PN 05.243.080.01) available at meyersound.com/documents. -
Page 51: Ultra Weather Protection Leopard With Rain Hood Dimensions
APPENDIX D: SPECIFICATIONS ULTRA WEATHER PROTECTION LEOPARD WITH RAIN HOOD DIMENSIONS 23.34 in [593 mm] 21.66 in [550 mm]... - Page 52 LEOPARD OPERATING INSTRUCTIONS FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 54 Meyer Sound Laboratories Inc. © 2015–2020 2832 San Pablo Avenue Meyer Sound. All rights reserved. Berkeley, CA 94702 +1 510 486.1166 LEOPARD Operating Instructions PN 05.243.005.01 B4 meyersound.com...
