PRODUCT NO.
BASE MODEL NO.
FAC054K7A6
FAC054K7A
MARKET
USA
WIRING DIAGRAM - # 309341601
OWNER'S GUIDE - # 309000825
ENERGY GUIDE - # 309369903
ELECTROLUX HOME PRODUCTS, INC
P.O.BOX 212378, AUGUSTA, GA 30917
FACTORY PARTS CATALOG
ROOM AIR CONDITIONER
VOLTS
BTU-COOLING
115
5450 BTU
Publication No.
5995372702
020523
©2002 Electrolux Home Products, Inc.
-EN/SERVICE /BLT
All rights reserved
345
ROOM AIR CONDITIONER
Model No.
FAC054K7A
Advertisement
Table of Contents
Related Manuals for Frigidaire FAC054K7A6
Summary of Contents for Frigidaire FAC054K7A6
-

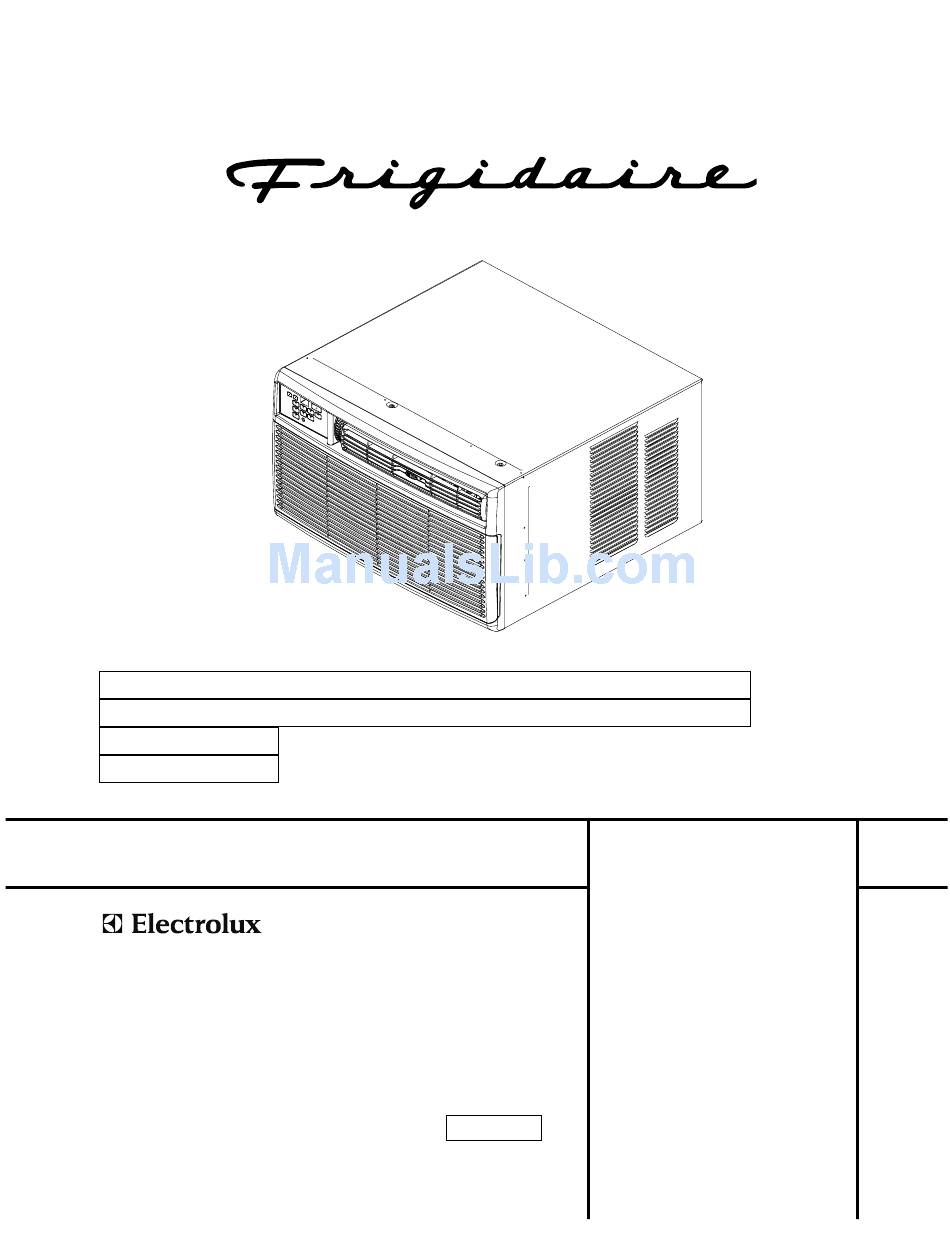

Page 1: Room Air Conditioner
PRODUCT NO. BASE MODEL NO. FAC054K7A6 FAC054K7A MARKET WIRING DIAGRAM - # 309341601 OWNER’S GUIDE - # 309000825 ENERGY GUIDE - # 309369903 ELECTROLUX HOME PRODUCTS, INC P.O.BOX 212378, AUGUSTA, GA 30917 FACTORY PARTS CATALOG ROOM AIR CONDITIONER VOLTS BTU-COOLING... -
Page 2: Cabinet Front And Wrapper
Publication No. FAC054K7A 5995372702 CABINET FRONT AND WRAPPER 05/02... - Page 3 POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FAC054K7A CABINET FRONT AND WRAPPER PART NO DESCRIPTION 5304413783 Cabinet 309640204 Louver Assy,Includes 8 & 9 309639302 Louver,horizontal 309647201 Louver,vertical ,with link 309343501 Filter-air,7.12 x 17.31 ,no frame 309640104 Front-cabinet,4 way ,complete assy 309340803 Overlay 309328601...
- Page 4 Publication No. FAC054K7A 5995372702 CONTROLS 05/02...
- Page 5 POS. NO 13 # 17 # 72 # # = Fast-moving Parts * = Non-Illustrated Parts FAC054K7A CONTROLS PART NO DESCRIPTION 309350301 #Control Box 5303015427 Screw,truss head ,8-18AB x 0.47 309602404 Bulkhead 309111201 Grommet,wire protector 5304413782 Holder,thermistor ,w/seal 5304414108 Holder,thermistor ,without seal 5304427231 Capacitor,370 V ,35+4 microfarad 5303302855...
-
Page 6: Air Handling Parts
Publication No. FAC054K7A 5995372702 AIR HANDLING PARTS 05/02... - Page 7 POS. NO 11 # # = Fast-moving Parts * = Non-Illustrated Parts FAC054K7A AIR HANDLING PARTS PART NO DESCRIPTION 309624506 Fan Blade,with clamp 3202975 Screw,10-16AB x 0.72 ,square drive 309624201 Housing-fan 5303270043 Seal,condenser 5303303759 Seal,bottom 08007481 Nut,Keps ,motor mtg ,(4) 309642701 Motor-fan 309602404...
-
Page 8: Compressor Parts
Publication No. FAC054K7A 5995372702 COMPRESSOR PARTS 05/02... - Page 9 POS. NO 10 # 11 # 12 # 16 # 05/02 COMPRESSOR PARTS PART NO DESCRIPTION 5304417319 Compressor 5303283877 Grommet,compressor mtg ,(3) 5308006948 Nut,compressor mtg ,(3) 5303291330 Gasket,terminal cover 5304416126 Cover,elec terminal ,compressor 5304417320 Overload Protector 5303294292 Nut,terminal cover 5303317601 Start Assist Kit,compressor 309604223 Evaporator...
- Page 10 Publication No. FAC054K7A 5995372702 WINDOW MOUNTING PARTS 05/02...
- Page 11 POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FAC054K7A WINDOW MOUNTING PARTS PART NO DESCRIPTION 5304407729 Seal,window stuffer 5303211056 Bracket,sash lock 309644901 Frame Extension Kit,accordian ,LH & RH ,includes 4 & 14 5304413847 Extension-frame,LH ,w/o accordian 08016226 Seal,top rail/cab 5304414121 Frame,cab extension ,RH 5304413848...
-
Page 12: Wiring Diagram
Publication No. FAC054K7A 5995372702 WIRING DIAGRAM 05/02...
