3.2.5— Right Display Window
The Right Display Window displays:
•
Alarm information
•
HOME menu: basic engine menu information, such as oil pressure, oil temperature, water temperature, battery
voltage
•
MENU: main menu navigation screen
3.2.6— Arrow Keys Pad
The key pad contains four arrow keys, a HOME key, a MENU key, and an ENTER key. Two LEDs are also present, one
labeled NOT IN AUTO and the other ALARM.
Use the arrow keys to navigate through the menus displayed in the Display Windows. For example, when the HOME
key is pressed, the HOME menu is displayed in the Right Display Window. When a flashing cursor appears within a line
of the text, move the cursor up, down, left, or right by pressing the corresponding arrow key.
The NOT IN AUTO LED flashes once each second when the Key Switch is moved to the OFF or MAN positions.
During normal operation when no alarms are present, the ALARM LED flashes for one second every 30 seconds
(approximate) to indicate that the panel is operational. When an active alarm condition is detected, the ALARM LED
flashes once each second. The LED remains ON if the alarm condition is acknowledged, but still active.
3.2.7— Fuse Block
The fuse block is located inside the control panel at the back lower left corner. The 10 amp fuse in the F2 slot is the
control panel fuse.
NOTE: Some units will NOT have a fuse in the F4 slot.
Owner's Manual for Stationary Industrial Generators
Alarms
Engine
Status
Service
Figure 3-3. Right Display Window (Press MENU)

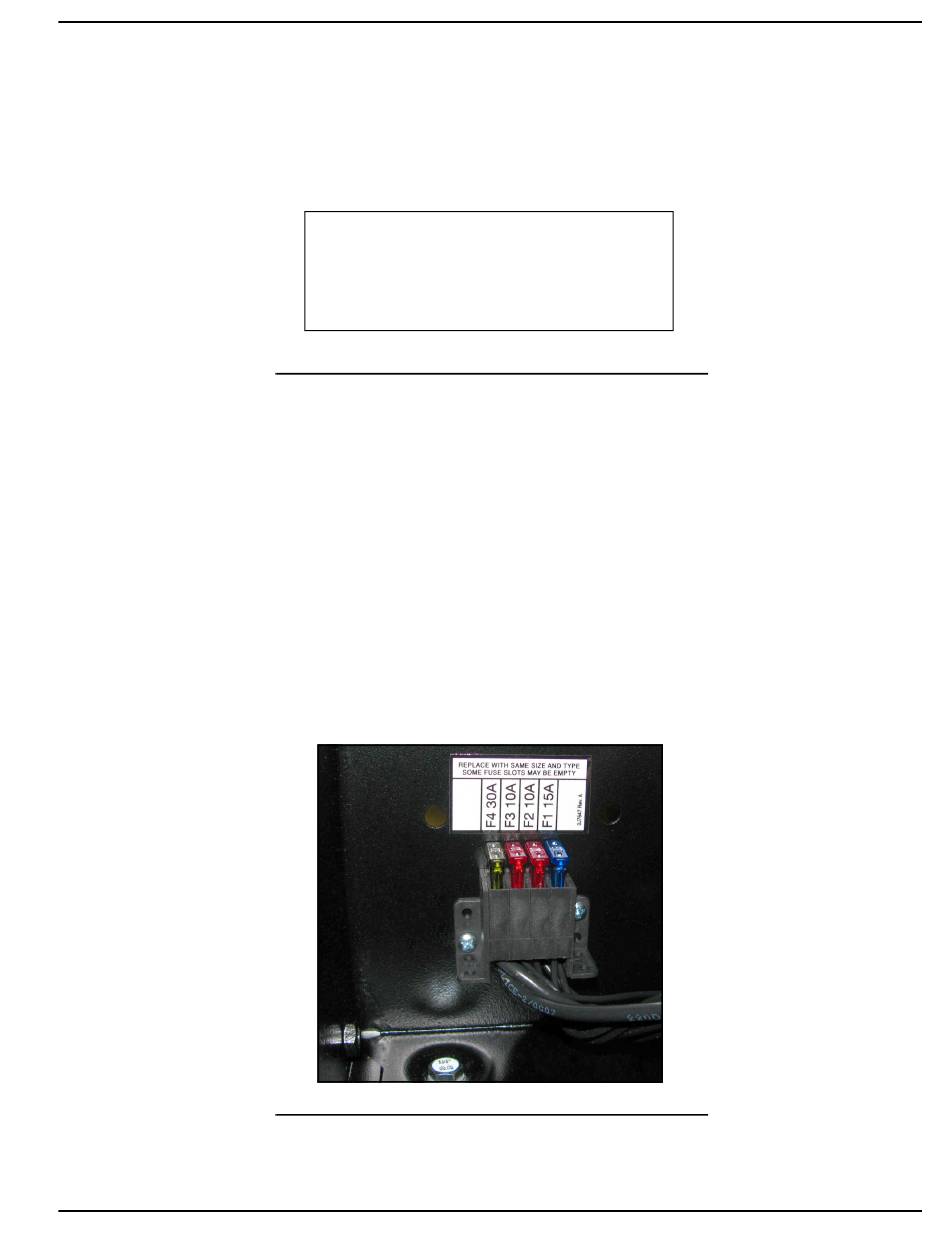

Figure 3-4. Panel Fuse Block
Left Display
Generator
Diagnostic
Exercise/HTS
Operation
