System Network

Adding VLAN subinterfaces

FortiGate-5000 series Administration Guide

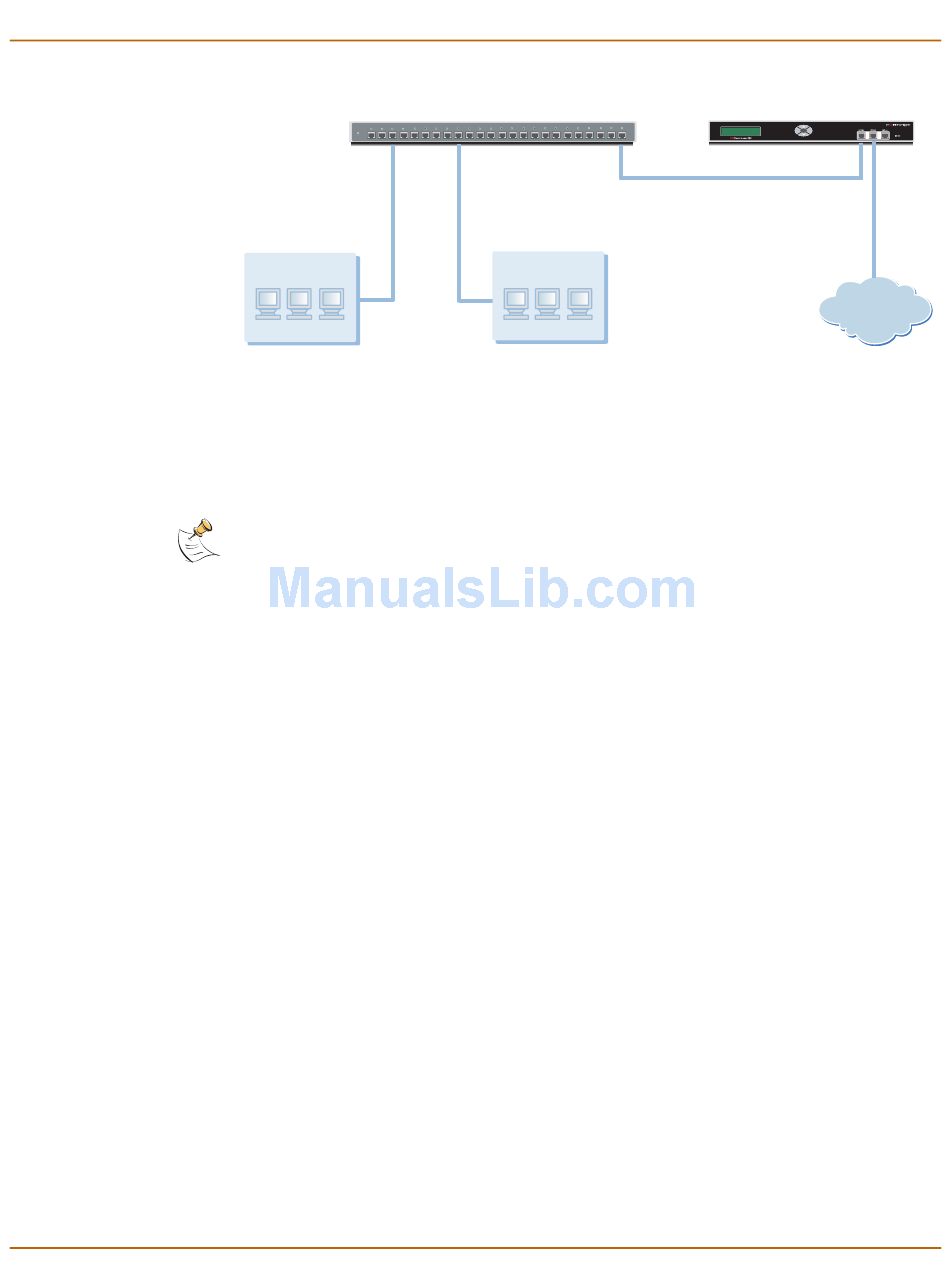

Figure 21: FortiGate unit in Nat/Route mode
POWER
Fa0/3
VLAN 100
VLAN 100 network
10.1.1.0
10.1.1.2
The VLAN ID of each VLAN subinterface must match the VLAN ID added by the IEEE
802.1Q-compliant router. The VLAN ID can be any number between 1 and 4096.
Each VLAN subinterface must also be configured with its own IP address and
netmask.
Note: A VLAN must not have the same name as a virtual domain or zone.
You add VLAN subinterfaces to the physical interface that receives VLAN-tagged
packets.
To add a VLAN subinterface in NAT/Route mode
1 Go to System > Network > Interface.
2 Select Create New to add a VLAN subinterface.
3 Enter a Name to identify the VLAN subinterface.
4 Select the physical interface that receives the VLAN packets intended for this VLAN
subinterface.
5 Enter the VLAN ID that matches the VLAN ID of the packets to be received by this
VLAN subinterface.
6 Select the virtual domain to which to add this VLAN subinterface.
See "System Virtual Domain" on page 141
7 Select the name of a zone if you want this VLAN subinterface to belong to a zone.
You can only select a zone that has been added to the virtual domain selected in the
previous step. See
8 Configure the VLAN subinterface settings as you would for any FortiGate interface.
See "Interface settings" on page
9 Select OK to save your changes.
The FortiGate unit adds the new VLAN subinterface to the interface that you selected
in step 4.
VLAN switch
Fa0/9
VLAN 200
VLAN 200 network
10.1.2.0
"Zone" on page 66 for information about zones.
56.
01-28008-0013-20050204
VLANs in NAT/Route mode
Fa0/24
802.1Q Trunk
10.1.2.2
for information about virtual domains.
FortiGate
Esc Enter
Internal External
192.168.110.126 172.16.21.2
Internet
