Log & Report
FortiGate-3000 Administration Guide

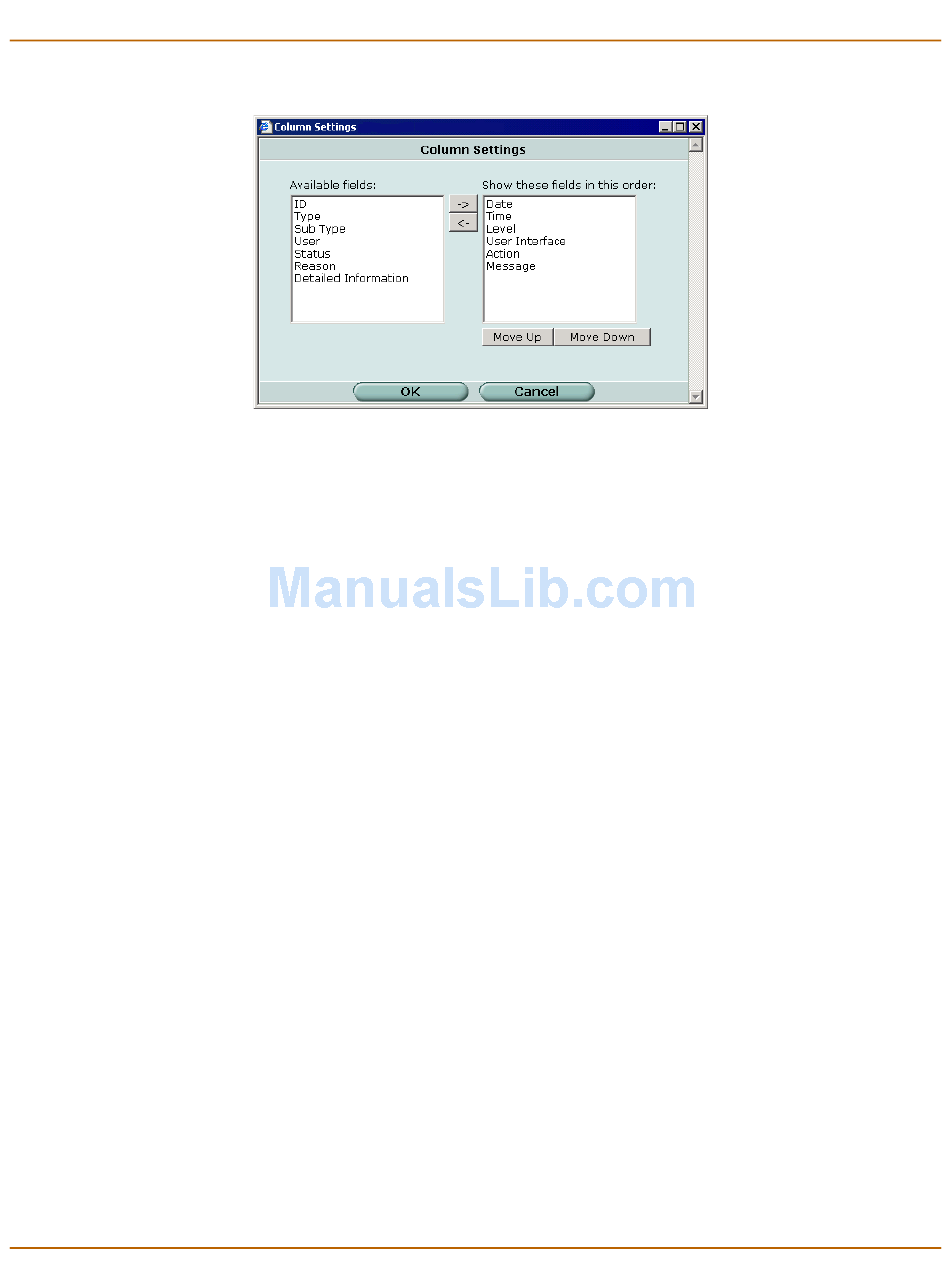

Figure 186:Column settings for viewing log messages
Available fields The fields that you can add to the log message display.
-> Right arrow button. Select to move selected fields from Available fields list to
Show these fields list.
<- Left arrow button. Select to move selected fields from the Show these fields
list to the Available fields list.
Show these The fields that are displayed as columns in the log messages list. The fields
are listed in order with the first column at the top of the list.
fields in this
order
Move up Move selected field up one position in the Show these fields list.
Move down Move selected field down one position in the Show these fields list.
The Detailed Information column provides the entire raw log entry and is not needed
unless the log contains information not available in any of the other, more specific
columns.

To change the columns in the log message display

1 While viewing log messages, select the Column Settings icon.
The Column Settings window opens.
2 To add fields, select them in the Available fields list and select the right arrow button.
3 To remove fields, select them in the Show these fields list and select the left arrow
button.
4 To change the position of a column, select the field in the Show these fields list and
then select Move Up or Move Down as necessary.
5 Select OK.
01-28006-0010-20041105
Log access
371
