Aiwa CR-AS16 Service Manual

Hide thumbs Also See for CR-AS16:
Table of Contents

Advertisement

Quick Links

Download this manual

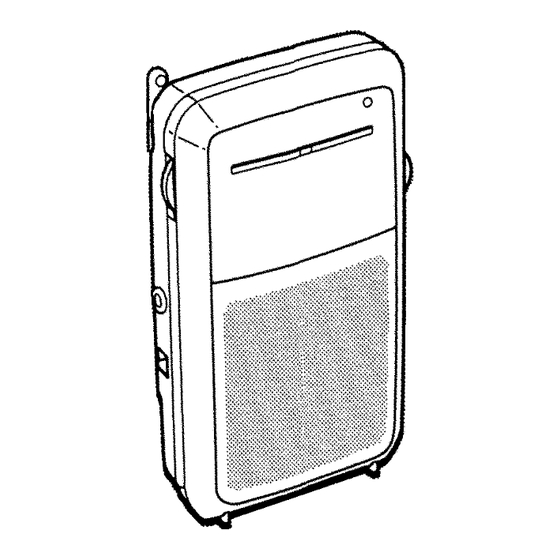

CR-AS16
YH(ST),YL(ST)
SERVICE MANUAL
RADIO RECEIVER
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
CR-AS16<YH(ST),YL(ST)>(S/M Code No.09-993-327-0T2).
S/M Code No. 09-993-327-0R2

Advertisement

Table of Contents
loading

Related Manuals for Aiwa CR-AS16

Summary of Contents for Aiwa CR-AS16

  • Page 1 CR-AS16 YH(ST),YL(ST) SERVICE MANUAL RADIO RECEIVER This Service Manual is the “Revision Publishing” and replaces “Simple Manual” CR-AS16<YH(ST),YL(ST)>(S/M Code No.09-993-327-0T2). S/M Code No. 09-993-327-0R2...

  • Page 2: Specifications

    SPECIFICATIONS • Design and specifications are subject to change without notice ACCESSORIES/PACKAGE LIST REF. NO PART NO. KANRI DESCRIPTION 1 S0-302-764-000 INSTRUC,BOOK(CRAS16YH)(EC)<YHST> 1 S0-302-765-000 INSTRUC,BOOK(CRAS16YL)<YLST> 2 S2-712-100-128 EARPHONE & PLUG 3.5MM MONO...

  • Page 3: Electrical Main Parts List

    ELECTRICAL MAIN PARTS LIST REF. NO PART NO. KANRI DESCRIPTION REF. NO PART NO. KANRI DESCRIPTION S2-310-011-700 CER,FILTER 10.7MHZ S1-210-011-500 JACK,HP ST S2-516-191-100 IC,CXA1619AM S1-110-100-121 BAR,ANT AM 10-50 S1-110-013-200 COIL,OSC AM 8441A 7ZO-93100 S3-010-011-900 IET,FM 7.5-7.5-12.5(GRN) DIODE LED1 S5-570-100-100 LED,3.0MM(RED) 82-135-799-010 DIODE,1N4148 PVC1...
  • Page 4 IC BLOCK DIAGRAM IC, CXA1619AM...

  • Page 5: Electrical Adjustment

    ELECTRICAL ADJUSTMENT PRACTICAL SERVICE FIGURE < AM SECTION > Sensitivity: Less than 49dB (at 600kHz) (S/N 10dB) Less than 47dB (at 1000kHz) Less than 46dB (at 1400kHz) Distortion: Less than 3% (at 1000kHz) Intermediate frequency: 450kHz < FM SECTION > Sensitivity: Less than 16dB (THD 3%)
  • Page 6 WIRING (FM ANT) MAIN C.B PVC1 TUNING LED1 TUNING PVC1 (POWER SWITCH) (VOLUME) FM/AM (SPEAKER) NOTE : BATTERY R6(AA) DC3V BATTERY R6(AA) DC3V...

  • Page 7: Schematic Diagram

    SCHEMATIC DIAGRAM...

  • Page 8: Mechanical Exploded View

    MECHANICAL EXPLODED VIEW 1/1 SPEAKER PVC SHEET...

  • Page 9: Mechanical Parts List

    MECHANICAL PARTS LIST 1/1 REF. NO PART NO. KANRI DESCRIPTION 1 S0-801-070-100 LENS,DIAL 2 S1-600-770-000 GRILLE,SPKR 3 S0-101-340-000 CAB,FRONT 4 S0-700-360-000 POINTER,DIAL 5 S0-502-360-001 KNOB,RTRY TUN 6 S1-000-150-001 HLDR JOIN 7 S0-502-370-000 KNOB,RTRY VOL 8 S1-009-011-000 BAR HOLDER 9 S0-400-940-000 KNOB,BAND SWITCH 10 S0-100-050-000 HAND STRAP(BLK)
  • Page 10 2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111 Printed in Singapore 931196...

This manual is also suitable for:

Cr-as16 yhCr-as16 yl
