Sony SRG-300H Technical Manual

Hd color video camera
Hide thumbs Also See for SRG-300H:
Table of Contents

Advertisement

Quick Links

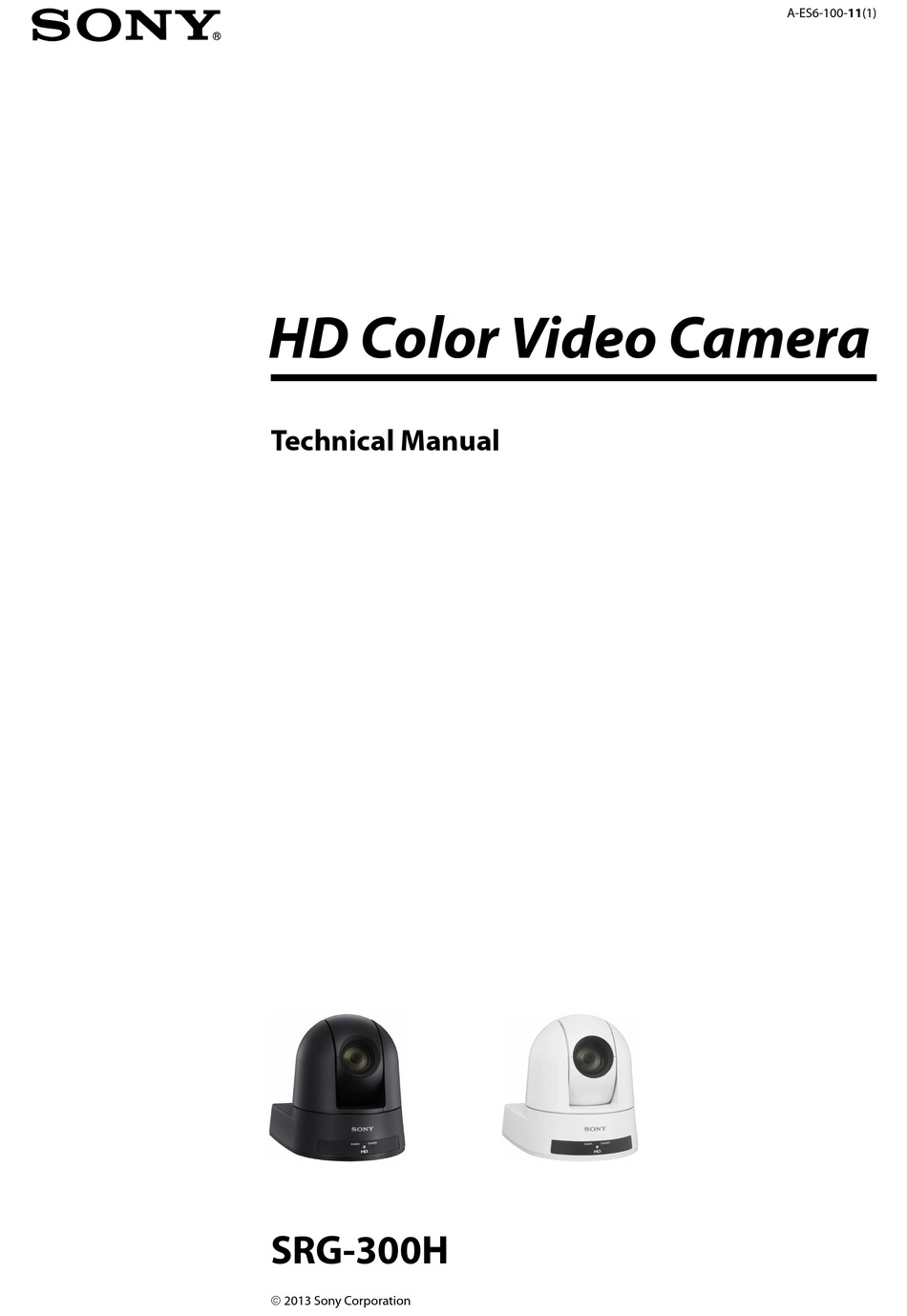

A-ES6-100-11(1)
HD Color Video Camera
Technical Manual
SRG-300H
 2013 Sony Corporation

Advertisement

Table of Contents
loading

Related Manuals for Sony SRG-300H

Summary of Contents for Sony SRG-300H

  • Page 1 A-ES6-100-11(1) HD Color Video Camera Technical Manual SRG-300H  2013 Sony Corporation...

  • Page 2: Table Of Contents

    Basic Functions ...............10 Overview of Functions ..............10 Initial Settings and Preset ............17 Mode Condition ................18 Command List ..............23 VISCA RS-232/RS-422 Commands ..........23 IP Related Setting Command ............. 33 SRG-300H Commands ..............35 Specifications ..............52 Precautions ..............58...

  • Page 3: Features

    Features  The 1/2.8 type Exmor CMOS camera (utilising approximately 2 million valid pixels) allows for high- definition shooting with superior picture quality.  Adopts 30 times optical magnification, F1.6 high power and luminous zoom lens.  By adopting its wide and dynamic range functions, you can see the optimised shooting image which incorporates bright and dark subjects at the same time.  Adopts the industry standard RS-232 interface of VISCA camera protocol in external communication. It is possible to operate from long distances by using both RS-232 and RS-422.  You can install the camera on ceilings due to the functions of high-speed and wide range pan/tilt action and vertical image flip.  You can use the infrared remote commander to set the camera and also to select panning, tilting and zooming from the setting menu.  You can store up to 16 kinds of camera direction and camera status into the camera. In the case of the infrared remote commander, 6 kinds can be stored.  You can use the LAN cable for external communication. This will make system construction easier.  The camera can be set for a variety of HD video formats and has an HDMI interface terminal. The HDMI video interface is in widespread use.

  • Page 4: Connection

    Connection HDMI cable (not supplied) to HDMI VIDEO to HDMI input VISCA cable (not supplied) to VISCA RS-232 IN to RS-232 to VISCA RS-232 OUT To VISCA IN of other SRG series (when connecting to more than one camera) LAN cable (not supplied) Computer with LAN or to LAN to LAN...

  • Page 5: System Configuration

    System Configuration The SRG-300H has various system configuration capabilities using optional products. This section describes three typical system examples with the required components and the main usage of each system. Operating a SRG-300H Using the Supplied Infrared Remote Commander This system allows you: To operate the camera readily from a short distance System configuration SRG-300H HD video monitor Video signal Infrared Remote Commander Signal flow (supplied)
  • Page 6 System configuration HD video monitor SRG-300H RM-IP10 IP Remote Controller Video signal Remote Control (VISCA or LAN) signal Signal flow When Operating Multiple SRG-300H Cameras Using Multiple RM-IP10 IP Remote Controllers System configuration • You can operate up to 112 cameras using five IP remote controllers. • The joystick of the IP remote controller allows comfortable pan/tilt and zoom operations. System configuration HD video monitor SRG-300H...

  • Page 7: Locations Of Controls

    Locations of Controls Camera Front Rear       Lens This is a 30-magnification optical zoom lens.  Infrared remote commander sensors These are sensors for the supplied infrared remote  Infrared remote commander sensors commander. These are sensors for the supplied infrared remote commander.  POWER lamp Lights in green when the camera is connected to an AC  IMAGE FLIP switch outlet using the supplied AC power adaptor and AC power Flips the image upside down. Normally set this to OFF when cord. you use the camera. When the camera is attached to the Flashes in green when the camera receives an operation ceiling, set this to ON. Turn off the unit before setting the command from the supplied infrared remote commander.
  • Page 8 10BASE-T/100BASE-TX using a LAN cable (category 5 or  Tripod screw hole higher, shielded twisted pair).  Fix-mounting screw holes When a link is established, the green indicator lights, and it flashes during communication. While connected with Setting of the SYSTEM SELECT switch 100BASE-TX, the yellow indicator also lights. This switch allows you to select the video format of the signal to be output from the HDMI video connector. Note For safety, when connecting the peripheral device, do not SRG-300H connect the connector that might have excessive voltage to this connector. Follow the Operating Instructions for the connection.  12 V connector Connect the supplied AC power adaptor.  Reset switch The reset switch is enabled only when the BOTTOM switch is set to the LAN connection. When you press down this switch with a pointed tip for about five seconds, the camera will reboot and only the setting relating to the IP will return to the factory setting.
  • Page 9 Locations of Controls Setting of the BOTTOM switches Switch position Video format To change the BOTTOM switch setting, select the 1920×1080p/59.94 59.94 Hz system BOTTOM switch with the power of this unit turned off No output (not including standby state), and then turn on the DC 1920×1080p/29.97 power. The setting cannot be changed after the power 1920×1080i/59.94 is turned on. 1280×720p/59.94 1280×720p/29.97 EDID — VISCA CONTROL — 1920×1080p/50 50 Hz system No output 1920×1080p/25 (Initial position) 1920×1080i/50 1280×720p/50 1280×720p/25  VISCA/LAN switch No output —...

  • Page 10: Basic Functions

    Basic Functions Basic Functions Overview of Functions Focus Focus has the following modes, all of which can be set using VISCA Commands. Zoom • Auto Focus Mode The SRG camera employs a 30× optical zoom lens The Auto Focus (AF) function automatically adjusts combined with a digital zoom function; this camera the focus position to maximise the high frequency allows you to zoom up to 360×. content of the picture in a center measurement area, taking into consideration the high luminance and • Optical 30×, f = 4.3 mm to 129 mm strong contrast components. (F 1.6 to F 4.7) The minimum focus distance is 10 mm at the optical wide end and 1200 mm at the optical tele end. Digital Zoom enlarges the center of the subject by - Normal AF Mode expanding each image in both the vertical and This is the normal mode for AF operations. horizontal directions. When the digital zoom is used, - Interval AF Mode the resolution deteriorates. The mode used for AF movements carried out at particular intervals. The time intervals for AF You can activate the zoom in the following modes, all movements and for the timing of the stops can be of which can be set using VISCA command. set in one-second increments using the Set Time Standard Mode Command. The initial value for both is set to five Variable Mode seconds.
  • Page 11 Basic Functions • Manual Focus Mode Automatic Exposure Mode Manual Focus has both a Standard Mode and a A variety of AE functions are available for optimal Variable Mode. Standard Mode focuses at a fixed rate output of subjects in lighting conditions that range of speed. Variable Mode has eight speed levels that from low to high. can be set using a VISCA Command. • Full Auto In these standard and variable modes, it is necessary to send Stop Iris, Gain and Shutter Speed can be set automatically. Command to stop the zoom operation. • Gain Limit Setting • One Push Trigger Mode The gain limit can be set at the Full Auto, Shutter When a Trigger Command is sent, the lens moves to Priority, Iris Priority, Bright and Manual in the AE adjust the focus for the subject. The focus lens then mode. Use this setting when image signal-to-noise holds that position until the next Trigger Command is ratio is particularly important.
  • Page 12 Basic Functions Parameter 59.94/29.97 50/25 mode Gain mode IRIS 1/10000 1/10000 OPEN 1/6000 1/6000 IRIS curve 1/4000 1/3500 1/3000 1/2500 1/2000 1/1750 Gain curve 1/1500 1/1250 1/1000 1/1000 1/725 1/600 CLOSE 1/500 1/425 1/350 1/300 Dark Bright 1/250 1/215 Controlled Controlled by IRIS 1/180 1/150...
  • Page 13 Basic Functions Wide Dynamic Range Mode (WD) Exposure Compensation The Wide Dynamic Range mode is a function for Exposure compensation is a function which offsets the dividing an image into several blocks and correcting internal reference brightness level used in the AE blocked-up shadows and blown-out highlights in mode, by steps of 1.5 dB. accordance with the intensity difference. It enables you The reference brightness is 0. to obtain images in which portions ranging from dark to light can be recognized, even when capturing a Parameter Step Setting value subject with a large intensity difference that is backlit +10.5 dB or includes extremely light portions. +9 dB Images with wide dynamic range are produced by +7.5 dB combining long-exposure signals (normal shutter) with +6 dB +4.5 dB the signals of the high-intensity portions obtained with +3 dB a short exposure (high-speed shutter). +1.5 dB • About WD Set Parameter 0 dB (Command: 8x 01 7E 04 00 0p FF) −1 −1.5 dB p: WIDE D (Wide dynamic range mode) −2...
  • Page 14 Basic Functions High Sensitivity Mode Low-Illumination Chroma Suppress Mode In this mode, higher sensitivity gain is applied as You can configure a chroma suppress mode for low- standard gain increases, reaching a gain level at MAX illumination conditions. This can be useful when color gain of up to 4x the standard gain. In such cases, noise is particularly noticeable in such conditions. however, there will be a high volume noise in the Four levels (disabled and three levels) are available for image. the low-illumination chroma suppress mode. Gamma Mode ICR (IR Cut-Removable) Mode In this mode, the gamma can be set to ON/OFF. The IR Cut-Filter can be disengaged, by which the 0: Standard sensitivity in the infrared range is increased, allowing 1: OFF the camera to capture the image in darker area. When the auto ICR mode is set to ON, the image becomes black and white. Image Stabilizer You can set this function to ON or OFF. When set to Color Gain ON, you can obtain steadier images if vibration is You can configure the color gain. Use this setting when present. This stabilizer is effective for vibration bright color is particularly important.
  • Page 15 Basic Functions Camera ID When Auto Slow Shutter is Off (initial setting) The ID can be set up to 65,536 (0000 to FFFF). As this Shutter 1/60 sec will be memorized in the nonvolatile memory inside, IRIS data will be saved. OPEN Picture Effect GAIN IRIS ICR ON SHUTTER It consists of the following functions. • Neg. Art: Negative/Positive Reversal • Black & White: Monochrome Image Dark Bright ICR OFF  ON Check for influence of installation When Auto Slow Shutter is On environment on infrared remote commander operation The supplied infrared remote commander may not operate, only occasionally, in the vicinity of the inverter...
  • Page 16 Basic Functions Address Set VISCA is a protocol, which supports a daisy chain of up to seven connected cameras via RS-232 interface. In such cases, the address set command can be used to assign addresses from 1 to 7 to each of the seven cameras, allowing you to control the seven cameras with the same personal computer. Be sure to use the address set command to set the address whenever a camera is connected for the first time. Memory (Preset) Using the preset function, 16 sets of camera shooting conditions can be stored and recalled. This function allows you to achieve the desired status instantly, even without adjusting the following items each time. • Pan/Tilt Position • Zoom Position • Digital Zoom On/Off • Focus Auto/Manual • Focus Position • AE Mode • Shutter control parameters • Bright Control • Iris control parameters • Gain control parameters • Exposure Compensation On/Off • Exposure Level • Backlight Compensation On/Off • Auto Slow Shutter On/Off • White Balance Mode • R/B Gain • Aperture Control • ICR On/Off • WD Parameter • Defog On/Off The settings stored using this function are recalled when the power is turned on. For setting items, see the “Initial Settings and Preset”...

  • Page 17: Initial Settings And Preset

    Basic Functions Initial Settings and Preset • The initial values are the factory settings. • When the power is turned on, this unit starts operation with the settings stored in POSITION1. • In “Preset 1 to 16”, the items that are preserved even after the power from the camera is turned off are indicated by a circle (), and the items that are not preserved are indicated by a cross (). • When you send the CAM Memory Reset command, or select and press one of POSITION1 to 6 while pressing the PRESET button using the infrared remote commander, the selected number is set as initial value. • The preset 1 is the CAM Memory number “0” in the VISCA command. The preset 2 to 16 are the CAM Memory number “1 to 15” in the VISCA command. Mode/Position setting Initial settings Preset 1 Preset 2 to 16 Pan/Tilt Position Home position   Pan/Tilt Limit Position Maximum range of movement   Zoom Position Wide end   D-Zoom On/Off   Focus Position —...

  • Page 18: Mode Condition

    Basic Functions...
  • Page 19 Basic Functions...
  • Page 20 Basic Functions...
  • Page 21 Basic Functions...
  • Page 22 Basic Functions...

  • Page 23: Command List

    In case that any device having different setting is connected in a daisy chain, the devices do not operate correctly. Overview of VISCA Fig. 1 VISCA daisy chain connection In VISCA, the device outputting the commands, for example, a computer, is called the controller, while the VISCA Controller VISCA Equipment device receiving the commands, such as this unit, is called the peripheral device. In VISCA, up to seven peripheral devices can be connected to one controller using communication conforming to the RS- 232/RS-422 standard. The parameters of RS-232/RS- 422 are as follows. • Communication speed: 9600 bps/38400 bps • Data bits : 8 • Start bit : 1 • Stop bit : 1 • Non parity Flow control using XON/XOFF and RTS/CTS, etc., is not supported. Peripheral devices are connected in a daisy chain. As shown in Fig. 1, the actual internal connection is a one- direction ring, so that messages return to the controller via the peripheral devices. The devices on the network are assigned addresses. The device address is assigned to each device on the network. The address of the controller is fixed at 0............................................... VISCA is a protocol developed by Sony for controlling a consumer’s camcorder. “VISCA” is a trademark of Sony Corporation.
  • Page 24 Command List VISCA Communication Specifications VISCA packet structure The basic unit of VISCA communication is called a packet (Fig. 2). The first byte of the packet is called the header and comprises the sender’s and receiver’s addresses. For example, the header of the packet sent to the SRG assigned address 1 from the controller (address 0) is 81h in hexadecimal. The packet sent to the SRG assigned address 2 is 82h. In the command list, as the header is 8X, input the address of the SRG to X. The header of the reply packet from the SRG assigned address 1 is 90h. The packet from the SRG assigned address 2 is A0h. Some of the setting commands for SRG can be sent to all devices at one time (broadcast)*. In the case of broadcast, the header should be 88h in hexadecimal. When the terminator is FFh, it signifies the end of the packet. * The broadcast function is not available for VISCA over IP. Packet (3 to 16 bytes) Terminator Message (1 to 14 bytes) Header Byte 1 Byte 2 Byte 3 Sender’s address Receiver’s address Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0...
  • Page 25 Command List Timing Chart Responses for commands and inquiries If two or more commands are to be sent successively, Acknowledge message  wait for a reply command (an Acknowledge or error A message returned by this unit when it receives a message for a general command, and an inquiry packet command. No Acknowledge message is returned for for an inquiry command) of the previous command to an inquiry, cancel, or device setting command. be received before sending the next command. Completion message  A message returned by this unit when the execution Controller Peripheral devices of command or inquiry is completed. In the case of Command1 inquiry commands, reply data for the inquiry is contained after the 3rd byte of the packet. If the Acknowledge of Acknowledge message is omitted, the socket number Command1 will contain 0. Completion of Command2 Command1 Reply Packet Note Acknowledge of Acknowledge...
  • Page 26 Command List VISCA Device Setting Command Socket number This unit has two sets of sockets (buffers) for Before starting control of this unit, be sure to send the commands, so that up to two commands including the Address command and the IF_Clear command using commands currently being executed can be received. the broadcast function. When this unit receives commands, it notifies the sender which socket was used, using the socket number of the Acknowledge message. As each of the For VISCA network administration completion message and error message also has a socket number, you can identify which command has Address*  ended. Sets an address of a peripheral device. Use when When sending the commands continuously, be sure to initializing the network, and receiving the following wait until an Acknowledge message or error message of network change message. the first command is returned, then send the next * Not available for VISCA over IP. command. (Otherwise, it is impossible to identify to Network Change* which command the socket number belongs.)  Even when two sockets are being used, the device Sent from the peripheral device to the controller setting commands and some inquiry messages can be when a device is removed from or added to the executed. The Acknowledge message is not returned network. The address must be re-set when this...
  • Page 27 Y0 50 GG GG HH HH JJ JJ KK FF GGGG = Vender ID (0001: Sony) HHHH = Model ID 0513: SRG-300H JJJJ = ROM revision KK = Maximum socket # (02) X = 1 to 7: Address of this unit in the daisy chain (For inquiry packet) Y = 9 to F: Address of this unit that issued the inquiry +8 (For reply packet) Locked to “X = 1” for VISCA over IP.
  • Page 28 Command List VISCA Camera-Issued Messages Acknowledge/Completion Messages Command Command Message Comments Acknowledge z0 4y FF Returned when the command is accepted. (y: Socket No.) Completion z0 5y FF Returned when the command has been executed. (y: Socket No.) z = Address of device that issued the message + 8 (Locked to “z = 9” for VISCA over IP.) Error Messages Command Command Message Comments Syntax Error z0 60 02 FF Returned when the format is different or when a command with illegal parameters is accepted. Command Buffer Full z0 60 03 FF Could not accept a command that is received while two commands are currently being executed (two sockets have been used). Command Canceled z0 6y 04 FF Returned when a command which is being executed in a socket (y: Socket No.) specified by the cancel command is canceled. The completion message for the command is not returned. No Socket z0 6y 05 FF Returned when no command is executed in a socket specified by the...
  • Page 29 Command List VISCA over IP VISCA Controller VISCA Equipment Overview of VISCA over IP VISCA over IP allows you to control this unit from the controller with the IP communication function via the LAN by using VISCA. You can connect up to 5 controllers simultaneously on one LAN segment. The communication specifications of VISCA over IP are as follows: • Interface RJ-45 10Base-T/100Base-TX (automatically discrimination) • Internet protocol IPv4 • Transport protocol • IP address Set by the IP card setting command RS232/RS422 connection • Port address 52381 VISCA Controller VISCA Equipment • Delivery confirmation/Retransmission control Depends on the application • Coverage Limited dedicated network in the same segment without going through a bridge connection VISCA Equipment...
  • Page 30 Command List While the IP communication connection, the address • Address of each device cannot be set in the VISCA message as it Sets the address of the peripheral device, and does not is because the controllers and peripheral devices that return a reply to the controller. While using VISCA are connected simultaneously are increased. In this over IP, the address command is not sent from the case, addresses of the controllers and peripheral devices controller because a Network Change command from that are set in the VISCA message are locked to 0 (for the peripheral device that triggers sending command is the controller) or 1 (for the peripheral device). not issued. • IF_Clear For details of the IP address setting procedure, see “IP Sends the reply message to the controller after clearing, Related Setting Command” (page 33). without using VISCA socket. • CAM_VersionInq Communication method of VISCA over IP Sends the reply message to the controller, without using Communication method VISCA socket. VISCA over IP can process the VISCA communication between the controllers and peripheral devices using Format the messages that can be identified on the LAN, and These are the specifications of the message header (8 sends/receives them. Because of this, VISCA over IP is bytes) and payload (1 to 16 bytes). not concerned about the contents of the communication between the controllers and peripheral Message (9 to 24 bytes) devices. However, the VISCA communication sequence...
  • Page 31 Command List Payload type Stores the value (Byte 0 and Byte 1) of the following table on the payload division. Name Value (Byte 0) Value (Byte 1) Description VISCA command Stores the VISCA command. VISCA inquiry Stores the VISCA inquiry. VISCA reply Stores the reply for the VISCA command and VISCA inquiry, or VISCA device setting command. VISCA device setting Stores the VISCA device setting command. command Control command Stores the control command. Control reply Stores the reply for the control command. • Control command Payload length Stores the number of bytes (1 to 16) of data is stored on The following are stored on the payload division of the payload. the control command. Name Value Description Example: When the payload length is 16 bytes. RESET Resets the sequence number to Byte 2: 00h 0. The value that was set as the Byte 3: 10h...
  • Page 32 Command List If time out occurs on the controller, you can infer the lost message and state of the peripheral device by retransmitting the message using the same sequence number. The following table shows the received message and status by retransmission of the lost message, and the reference of correspondence after retransmission for each case. (Except for the case that a time out occurs for reasons other than loss of message.) Lost message Received message for Status after retransmission Correspondence after retransmission retransmission Command Acknowledge message Command is performed by Continue processing. retransmission. Acknowledge message ERROR (Abnormality in the Command has been performed. If the result by the completion message is sequence number.) If only the Acknowledge needed, retransmit by updating the message is lost, the completion sequence number. message returns. Completion message for the ERROR (Abnormality in the Command has been performed. If the result by the completion message is command sequence number.) needed, retransmit by updating the sequence number.

  • Page 33: Ip Related Setting Command

    Command List IP Related Setting Timing chart Command Controller Peripheral device The following commands are provided for setting the IP address and name of this unit. Time out Name Description Setting Protocol: The controller inquires the Inquiry network setting for the camera. Setting Protocol: The camera replies according to Inquiry reply the inquiry from the controller. Setting Protocol: The controller sets the network Network setting setting of the camera. Setting Protocol: The camera replies according to Network setting reply the network setting of the controller. Timing chart (loss of command) The network setting of the IP card is performed as communication sequence in the following.
  • Page 34 Command List Command Data Inquiry ENQ:network Broadcast address (255.255.255.255) Specified port number (52380) Inquiry reply MAC:**-**-**-**-**-** Broadcast address MODEL:IPCARD (255.255.255.255) Specified port number SOFTVERSION:**.**.** (52380) IPADR:***.***.***.*** MASK:***.***.***.*** NAME:xxxxxxxx WRITE:on Network setting MAC:**-**-**-**-**-** Broadcast address IPADR:***.***.***.*** (255.255.255.255) Specified port number MASK:***.***.***.*** (52380) NAME:xxxxxxxx Network setting reply ACK:**-**-**-**-**-** “xxxx” Broadcast address (255.255.255.255) Specified port number (52380) Uses the ASCII code. Uses the ASCII code. When the network setting has failed, returns as ”NAK:**-**-**-**-**-**”.

  • Page 35: Srg-300H Commands

    Command List SRG-300H Commands Execution Command List (1/4) Command Set Command Command Packet Comments AddressSet Broardcast 88 30 01 FF Address setting IF_Clear Broardcast 88 01 00 01 FF I/F Clear CommandCancel — 8x 2p FF p: Socket No. (=1or2) CAM_Power 8x 01 04 00 02 FF Power ON/OFF 8x 01 04 00 03 FF CAM_Zoom Stop 8x 01 04 07 00 FF Zoom Control Tele (Standard) 8x 01 04 07 02 FF Wide (Standard) 8x 01 04 07 03 FF Tele (Variable) 8x 01 04 07 2p FF...
  • Page 36 Command List Execution Command List (2/4) Command Set Command Command Packet Comments CAM_AE Full Auto 8x 01 04 39 00 FF Automatic Exposure mode Manual 8x 01 04 39 03 FF Manual Control mode Shutter Priority 8x 01 04 39 0A FF Shutter priority Exposure mode Iris Priority 8x 01 04 39 0B FF Iris priority Exposure mode Bright 8x 01 04 39 0D FF Bright Mode(Manual control) CAM_SlowShutter Auto 8x 01 04 5A 02 FF Auto Slow Shutter ON/OFF Manual 8x 01 04 5A 03 FF CAM_Shutter Reset 8x 01 04 0A 00 FF Shutter Setting 8x 01 04 0A 02 FF Down 8x 01 04 0A 03 FF Direct 8x 01 04 4A 00 00 0p 0q FF...
  • Page 37 Command List Execution Command List (3/4) Command Set Command Command Packet Comments CAM_ICR 8x 01 04 01 02 FF Infrared Mode ON/OFF 8x 01 04 01 03 FF CAM_AutoICR 8x 01 04 51 02 FF Auto Infrared mode ON/OFF 8x 01 04 51 03 FF Threshold 8x 01 04 21 00 00 0p 0q FF pq: ICR ONOFF threshold level CAM_Stabilizer 8x 01 04 34 02 FF Stabilizer ON/OFF 8x 01 04 34 03 FF Hold 8x 01 04 34 00 FF Stabilizer HOLD CAM_Memory Reset 8x 01 04 3F 00 0p FF p: Memory number (=0 to F) 8x 01 04 3F 01 0p FF Recall 8x 01 04 3F 02 0p FF CAM_IDWrite — 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) CAM_ChromaSuppress —...
  • Page 38 Command List Execution Command List (4/4) Command Set Command Command Packet Comments IR_Receive 8x 01 06 08 02 FF Infrared remote commander reception ON/OFF 8x 01 06 08 03 FF On/Off 8x 01 06 08 10 FF IR_ReceiveReturn 8x 01 7D 01 03 00 00 FF For details of ON/OFF Reply of IR ReceiverReturn (a function to return Reply via VISCA communication 8x 01 7D 01 13 00 00 FF when a command is received from the remote commander), see page 41. Information Display 8x 01 7E 01 18 02 FF Operation status screen display ON/OFF of One Push Trigger for CAM_Memor and CAM_WB 8x 01 7E 01 18 03 FF Pan-tiltDrive 8x 01 06 01 VV WW 03 01 FF VV: Pan speed setting 0x01 (low speed) to 0x18 (high speed) Down 8x 01 06 01 VV WW 03 02 FF WW: Tilt speed setting 0x01 (low speed) to 0x17 Left 8x 01 06 01 VV WW 01 03 FF (high speed) Right 8x 01 06 01 VV WW 02 03 FF YYYY: Pan Position DE00 to 2200 (CENTER 0000)
  • Page 39 Command List Inquiry Command List (1/3) Inquiry Command Command Packet Inquiry Packet Comments CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF y0 50 03 FF CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position CAM_DZoomModeInq 8x 09 04 06 FF y0 50 02 FF D-Zoom On y0 50 03 FF D-Zoom Off CAM_FocusModeInq 8x 09 04 38 FF y0 50 02 FF Auto Focus y0 50 03 FF Manual Focus CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position CAM_FocusNearLimitInq 8x 09 04 28 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Near Limit Position CAM_AFSensitivityInq 8x 09 04 58 FF...
  • Page 40 Command List Inquiry Command List (2/3) Inquiry Command Command Packet Inquiry Packet Comments CAM_HighSensitivityInq 8x 09 04 5E FF y0 50 02 FF y0 50 03 FF CAM_PictureEffectModeInq 8x 09 04 63 FF y0 50 00 FF y0 50 02 FF Neg.Art y0 50 04 FF B&W CAM_ICRModeInq 8x 09 04 01 FF y0 50 02 FF y0 50 03 FF CAM_AutoICRModeInq 8x 09 04 51 FF y0 50 02 FF y0 50 03 FF CAM_AutoICRThresholdInq 8x 09 04 21 FF y0 50 00 00 0p 0q FF pq: ICR ONOFF Threshold level CAM_Stabilizer ModeInq 8x 09 04 34 FF y0 50 02 FF y0 50 03 FF y0 50 00 FF Hold CAM_IDInq...
  • Page 41 Command List Inquiry Command List (3/3) Inquiry Command Command Packet Inquiry Packet Comments IR_ReceiveReturn — y0 07 7D 01 04 00 FF Power ON/OFF y0 07 7D 01 04 07 FF Zoom tele/wide y0 07 7D 01 04 38 FF AF On/Off y0 07 7D 01 04 33 FF CAM_Backlight y0 07 7D 01 04 3F FF CAM_Memory y0 07 7D 01 06 01 FF Pan_tiltDrive IR_ConditionInq 8x 09 06 34 FF y0 50 00 FF Infrared remote commander stable reception enabled y0 50 01 FF Infrared remote commander reception unstable environment y0 50 02 FF Power ON by infrared remote commander (cannot be judged) Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF ww = Pan Max Speed zz = Tilt Max Speed Pan-tiltPosInq 8x 09 06 12 FF...
  • Page 42 Command List Block Inquiry Command List Lens Control System Inquiry Commands ....Command Packet 8x 09 7E 7E 00 FF Inquiry Packet Comments Comments Comments Byte Byte Byte Destination Address Source Address Focus Near Limit (H) 0 Completion Message (50h) AF Mode (0:Normal, 1:Interval, 2:Zoom Trigger) AF Sensitivity (1:Normal, 0:Low) Focus Near Limit (L) Digital Zoom (1:On, 0:Off) Focus Mode (1:Auto, 0:Manual) Low Contrast Detection (1:Yes, 0: Zoom Position (HH) Focus Position (HH) Camera Memory Recall (1: Executing, 0: Stopped)
  • Page 43 Command List Camera Control System Inquiry Commands ....Command Packet 8x 09 7E 7E 01 FF Inquiry Packet Comments Comments Comments Byte Byte Byte Destination Address Iris Position Source Address WB Mode 0 Completion Message (50h) Aperture Gain Gain Position Exposure Mode Bright Position R Gain (H) HighResolution (1:On, 0:Off) Wide D (1: Other than Off, 0: Off) R Gain (L) Exposure Comp. Position Back Light (1:On, 0:Off) Exposure Comp. (1:On, 1 Terminator (FFh)
  • Page 44 Command List Other Inquiry Commands .........Command Packet 8x 09 7E 7E 02 FF Inquiry Packet Comments Comments Comments Byte Byte Byte Destination Address Source Address System (1:1/50, 1/25, 0:1/59.94, 1/29.97) 0 Completion Message (50h) Auto ICR (1:On, 0:Off) Camera ID (HH) Power (1:On, 0:Off) 1 Terminator (FFh) Stabilizer (1:On, 0:Off) Stabilizer Hold (1:Hold, 0:Off) ICR (1:On, 0:Off) Camera ID (HL) Reserved Camera ID (LH) Picture Effect Mode Camera ID (LL)
  • Page 45 Command List Enlargement Function1 Query Command ....Command Packet 8x 09 7E 7E 03 FF Inquiry Packet Comments Comments Comments Byte Byte Byte Destination Address Source Address AF Interval Time (H) 0 Completion Message (50h) Gamma High Sensitivity mode (1: ON, 0: OFF) AF Interval Time (L) NR Level Chroma Suppress Digital Zoom Position (H) Gain Limit 1 Terminator (FFh) Digital Zoom Position (L) AF Activation Time (H) Color Gain (Master) AF Activation Time (L)
  • Page 46 Command List Enlargement Function2 Query Command ....Command Packet 8x 09 7E 7E 04 FF Inquiry Packet Comments Comments Comments Byte Byte Byte Destination Address Source Address Reserved Reserved 0 Completion Message (50h) defog mode 0:Off 1:On Reserved Reserved 1 Terminator (FFh) Reserved Reserved Reserved Reserved Reserved...
  • Page 47 Command List Enlargement Function3 Query Command ....Command Packet 8x 09 7E 7E 05 FF Inquiry Packet Comments Comments Comments Byte Byte Byte Destination Address Reserved Reserved Source Address 0 Completion Message (50h) Reserved Reserved Reserved Reserved Color Hue (Master) 1 Terminator (FFh) Reserved Reserved Reserved Reserved Reserved Reserved...
  • Page 48 Command List VISCA Command Setting Values Gain +43dB Exposure control (1/2) +39dB +36dB 60p/30p 50p/25p +33dB Shutter Speed 1/10000 1/10000 1/6000 1/6000 +30dB +27dB 1/4000 1/3500 +24dB 1/3000 1/2500 +21dB 1/2000 1/1750 +18dB 1/1500 1/1250 +15dB 1/1000 1/1000 +12dB 1/725 1/600 +9dB 1/500 1/425...
  • Page 49 Command List Exposure control (2/2) Optical Zoom Ratio and Zoom Position (for reference) IRIS GAIN Zoom Position: 0000 (Wide end) to 4000 (Tele end) Bright F1.6 +43dB F1.6 +39dB F1.6 +36dB Optical Zoom Optical Zoom F1.6 +33dB Ratio Position Data F1.6 +30dB ×1 0000 F1.6 +27dB ×2 16A1 F1.6 +24dB ×3...
  • Page 50 Command List Focus NEAR limit and focus distance Others Focus position: 1000 (Far end) to X000 (Near end) AF Active Time NEAR Limit Focus Distance AF Interval Time 1000 Over Inf R Gain 2000 B Gain 3000 Aperture Level 4000 AE Response 5000 4.2m 6000 3.1m AutoICR ON  7000 2.5m OFF Threshold Level 8000 Chroma Suppress setting level 9000 1.65m Color Gain setting level A000 1.4m Color Hue setting level B000 1.2m...
  • Page 51 Command List Pan/Tilt Status Code List – – – – 0 – – – – – – 1 A Pan movement all the way to the left – – – – – – – – 0 – – – – – 1 – A Pan movement all the way to the right – – – – – – – – 0 – – – – 1 – – A Tilt movement all the way up – – – – – – – – 0 – – – 1 – – – A Tilt movement all the way down – – – – – – – – – – 0 0 – – – – Pan movement is correct – – – – – – – – – – 0 1 – – – – Abnormal pan position detected – – – – – – 0 0 0 – – – – – – – The Tilt movement is correct – – – –...

  • Page 52: Specifications

    Specifications System Pan/tilt action Horizontal: ±170 degrees Video signal 1920 × 1080p/59.94 Maximum panning speed: 100 1920 × 1080p/29.97 degrees/sec. 1920 × 1080i/59.94 Vertical: +90, –20 degrees (IMAGE FLIP: OFF) 1280 × 720p/59.94 +20, –90 degrees (IMAGE FLIP: 1280 × 720p/29.97 1920 × 1080p/50 Maximum tilting speed: 90 1920 × 1080p/25 degrees/sec. 1920 × 1080i/50 1280 × 720p/50 1280 × 720p/25 EDID Input/output connectors VISCA CONTROL HDMI video Type A (19-pin) (switched with the SYSTEM Control input/output SELECT switch) VISCA IN: Mini DIN 8-pin type, RS-232 Synchronization VISCA OUT: Mini DIN 8-pin type, Internal synchronization RS-232 Image device 1/2.8 type Exmor CMOS VISCA RS-422: 9-pin Lens 30× (optical), 12× (digital) LAN connector: RJ-45 (8-pin),...
  • Page 53 Specifications Supplied accessories AC power adaptor (1) AC power cord (1) Infrared Remote Commander (1) Ceiling bracket (A) (1) Ceiling bracket (B) (1) Wire rope (1) Screw M3×8 (8) VISCA RS-422 connector plug (1) For safety (1) Operating Instructions (CD-ROM) (1) Design and specifications are subject to change without notice. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
  • Page 54 Specifications Dimensions Rear Front Side 72 (2 53/64) 157 (6 3/16) 163 (6 27/64) Bottom 1/4-20UNC, depth 7 42 (1 21/32) 42 (1 21/32) Tripod screw hole 29.5 (1 5/32) Ø5, depth 5 64 (2 33/64) 64 (2 33/64) 4-Ø8(A) 63.5 (2 1/2) 63.5 (2 1/2) (Leg)
  • Page 55 Specifications Dimensions with ceiling bracket Front Side Ceiling bracket (B) Retainer opening Ø107.3 (4 7/32) Width 4.5 (3/16) (x2) Retainer opening Ø88.9 (3 1/2) Width 4.5 (3/16) (x2) Retainer opening Ø4.5 (3/16) (x4) Retainer opening Ø121.2 (4 25/32) Width 4.5 (3/16) (x4) Retainer opening Ø83.5 (3 9/32) Unit: mm (inch)
  • Page 56 Specifications Using the VISCA RS-422 connector Pin assignments pin assignments VISCA IN connector (mini-DIN 8-pin, female) The VISCA RS-422 connector pin assignments 1 2 3 4 5 6 7 8 9 Pin No. Function DTR IN VISCA RS-422 DSR IN TXD IN Pin No. Function TXD IN+ RXD IN...
  • Page 57 Specifications License This software partially supports component uIP. Therefore the following license conditions apply. Copyright (c) 2001-2006, Adam Dunkels and the Swedish Institute of Computer Science All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE AUTHOR 'AS IS' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

  • Page 58: Precautions

    Precautions Software Other Use of the demonstration software developed by Sony Do not apply excessive voltage. (Use only the specified Corporation or use of the software with customer voltage.) Otherwise, you may get an electric shock or a developed application software may damage hardware, fire may occur. the application program or the camera. Sony Corporation is not liable for any damages under these In case of abnormal operation, contact your authorized conditions. Sony dealer or the store where you purchased the product. Operation Start the demonstration software on your computer after you turn on the camera and the image is displayed. Operation and storage locations Do not shoot images that are extremely bright (e.g., light sources, the sun, etc.) for long periods of time. Do not use or store the camera in the following extreme conditions:  E xtremely hot or cold places (operating temperature 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F))  C lose to generators of powerful electromagnetic radiation such as radio or TV transmitters  W here it is subject to fluorescent light reflections ...
