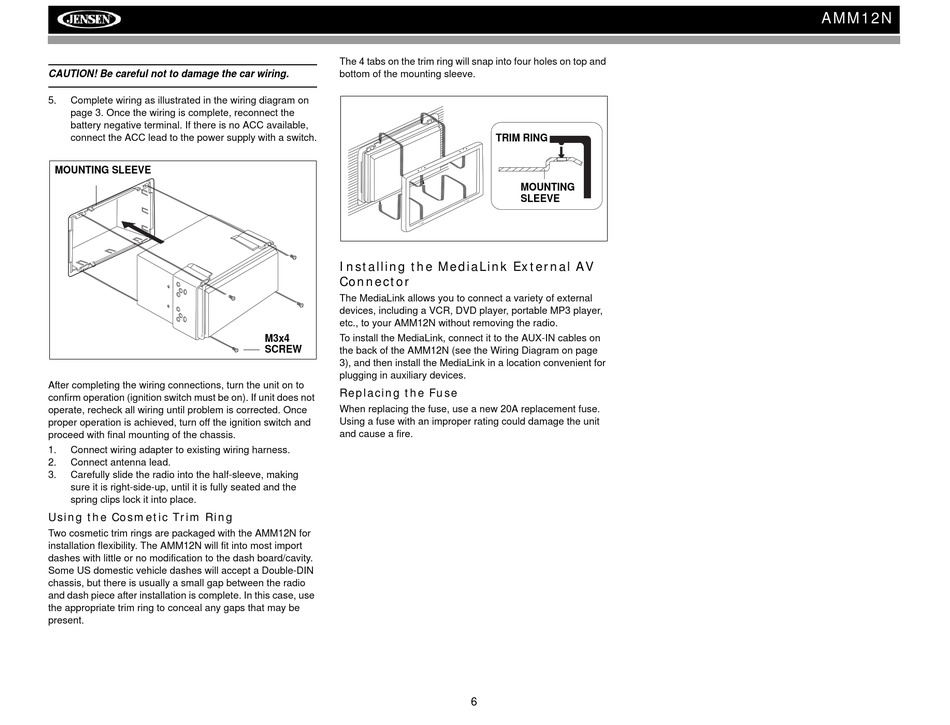

Advent AMM12N Installation And Operation Manual page 10

CAUTION! Be careful not to damage the car wiring.
5. Complete wiring as illustrated in the wiring diagram on
page 3. Once the wiring is complete, reconnect the
battery negative terminal. If there is no ACC available,
connect the ACC lead to the power supply with a switch.
MOUNTING SLEEVE
After completing the wiring connections, turn the unit on to
confirm operation (ignition switch must be on). If unit does not
operate, recheck all wiring until problem is corrected. Once
proper operation is achieved, turn off the ignition switch and
proceed with final mounting of the chassis.
1. Connect wiring adapter to existing wiring harness.
2. Connect antenna lead.
3. Carefully slide the radio into the half-sleeve, making
sure it is right-side-up, until it is fully seated and the
spring clips lock it into place.
Using the Cosmetic Trim Ring
Two cosmetic trim rings are packaged with the AMM12N for
installation flexibility. The AMM12N will fit into most import
dashes with little or no modification to the dash board/cavity.
Some US domestic vehicle dashes will accept a Double-DIN
chassis, but there is usually a small gap between the radio
and dash piece after installation is complete. In this case, use
the appropriate trim ring to conceal any gaps that may be
present.
The 4 tabs on the trim ring will snap into four holes on top and
bottom of the mounting sleeve.
Installing the MediaLink External AV
Connector
The MediaLink allows you to connect a variety of external
devices, including a VCR, DVD player, portable MP3 player,
etc., to your AMM12N without removing the radio.
To install the MediaLink, connect it to the AUX-IN cables on
M3x4
SCREW
the back of the AMM12N (see the Wiring Diagram on page
3), and then install the MediaLink in a location convenient for
plugging in auxiliary devices.
Replacing the Fuse
When replacing the fuse, use a new 20A replacement fuse.
Using a fuse with an improper rating could damage the unit
and cause a fire.
TRIM RING
OPTIONAL
MOUNTING
TRIM RING
SLEEVE
