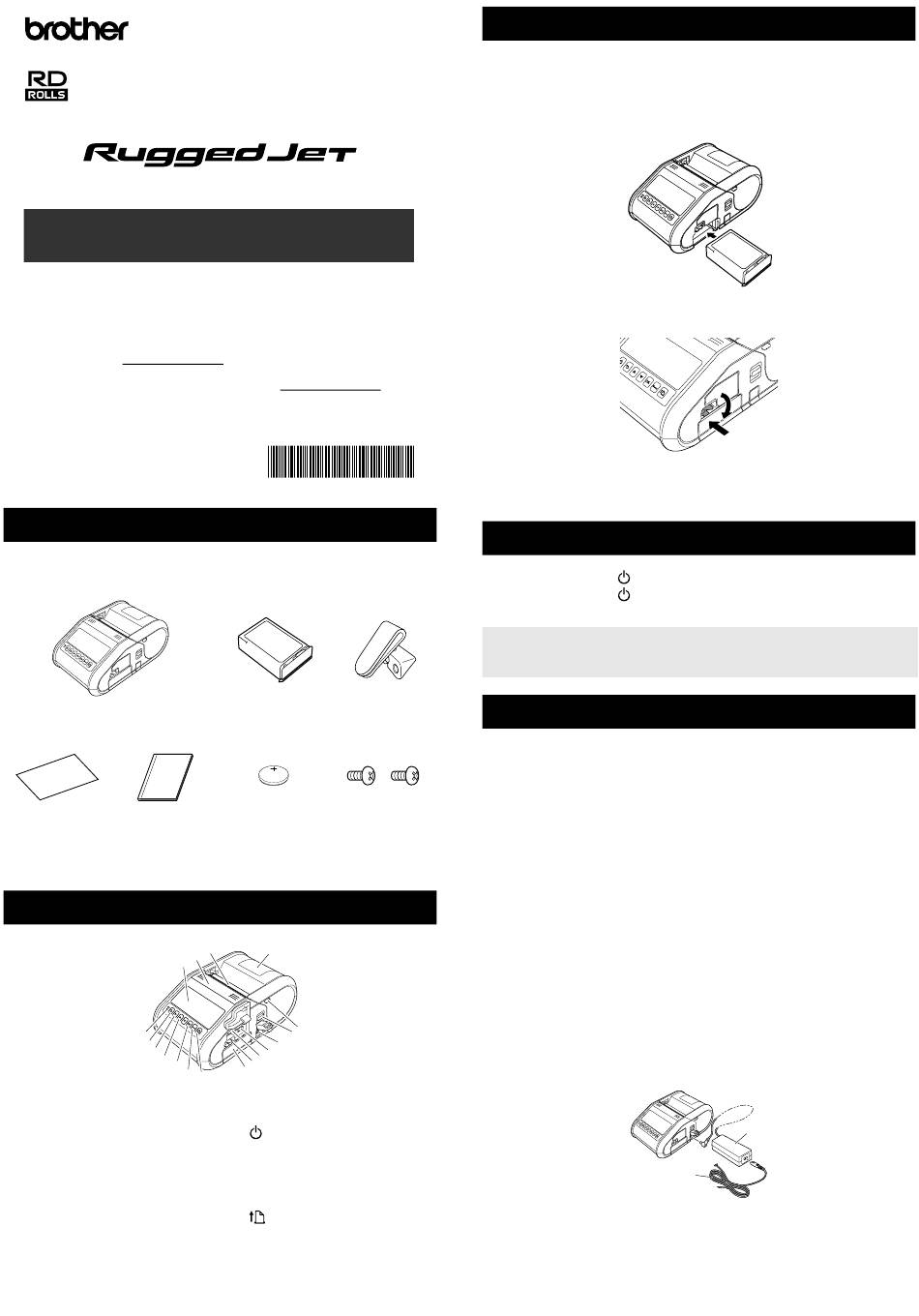

Brother Rugged Jet RJ-3150Ai User Manual

RJ-3150/3150Ai
User's Guide
Thank you for purchasing the Brother RuggedJet RJ-3150/3150Ai mobile printer.
Read the included User's Guide and Product Safety Guide, before using the
printer. For detailed operation instructions, see the Online User's Guide (Brother
Solutions Center at support.brother.com). We suggest that you keep these
documents in a handy place for future reference. To download the latest
manuals, please visit the Brother Solutions Center (support.brother.com),
where you can also download the latest drivers and utilities for your printer, read
FAQs and troubleshooting tips or learn about special printing solutions.
Printed in China
D00HXP001
Unpacking the RJ-3150/3150Ai
Check that the package contains the following before using the printer.
Printer
User's Guide Product Safety
Guide
General Description
11
12
13
14
15
16
1 Battery compartment
2 Battery latch
3 USB host port
4 Mini-USB port
5 DC connector
6 Cover open lever
7 Peeler latch
8 RD Roll compartment cover
9 Paper outlet
10 Label peeler
English
Español
Rechargeable Li-
ion Battery
Clock battery Phillips screw
9 8
10
7
6
5
4
3
2
1
17
18
11 LCD
12 BATT (Battery) indicator
13 (Power) button
(To turn the printer on/off)
14 CANCEL button
15 Cursor button (UP/DOWN)
16 OK button
17 Menu button
18 (Feed) button
(To feed the paper or print the
printer settings)
Using the Rechargeable Li-ion Battery
Installing the Rechargeable Li-ion Battery
1.
Make sure that the battery latch is lifted up, and then insert the battery
into the battery compartment with the battery cover attached to the
battery. Make sure that the terminal end of the battery is facing inward.
2.
With the battery inserted and while pushing the battery lightly into the
cavity, lower the battery latch until it clicks locking the battery in place.
Removing the Rechargeable Li-ion Battery
While pushing the battery lightly, lift the battery latch to unlock the battery, and
then remove the battery.
Turning the Printer On or Off
On: Press and hold the
Off: Press and hold the
displayed on the LCD display.
NOTE
Do NOT remove the battery or power to turn off the printer until the LCD
display turns off.
Recharging the Li-ion Battery
Belt clip
1.
Make sure that the rechargeable Li-ion battery is installed in the printer.
2.
Use the AC adapter and AC power cord to connect the printer to an AC
power outlet (see Connecting to an AC Power Outlet (Optional)), or use
the car adapter to connect the printer to a DC power outlet (see
Connecting to a DC Power Outlet (Optional)).
3.
The battery indicator light is orange when the battery is charging.
When the rechargeable Li-ion battery is fully charged, the battery
indicator light turns off. Disconnect the AC adapter or car adapter from
the battery's DC connector.
For details, see the Online User's Guide.
Connecting to an AC Power Outlet (Optional)
Connect the printer to a nearby AC power outlet to charge the rechargeable
battery.
1.
Connect the AC adapter to the printer.
2.
Connect the AC power cord to the AC adapter.
3.
Connect the AC power cord to a nearby AC power outlet (100 -
240 VAC, 50 - 60 Hz).
(Power) button until the LCD display turns on.
(Power) button until the message "System Off" is
1
2
1 AC adapter
2 AC power cord
