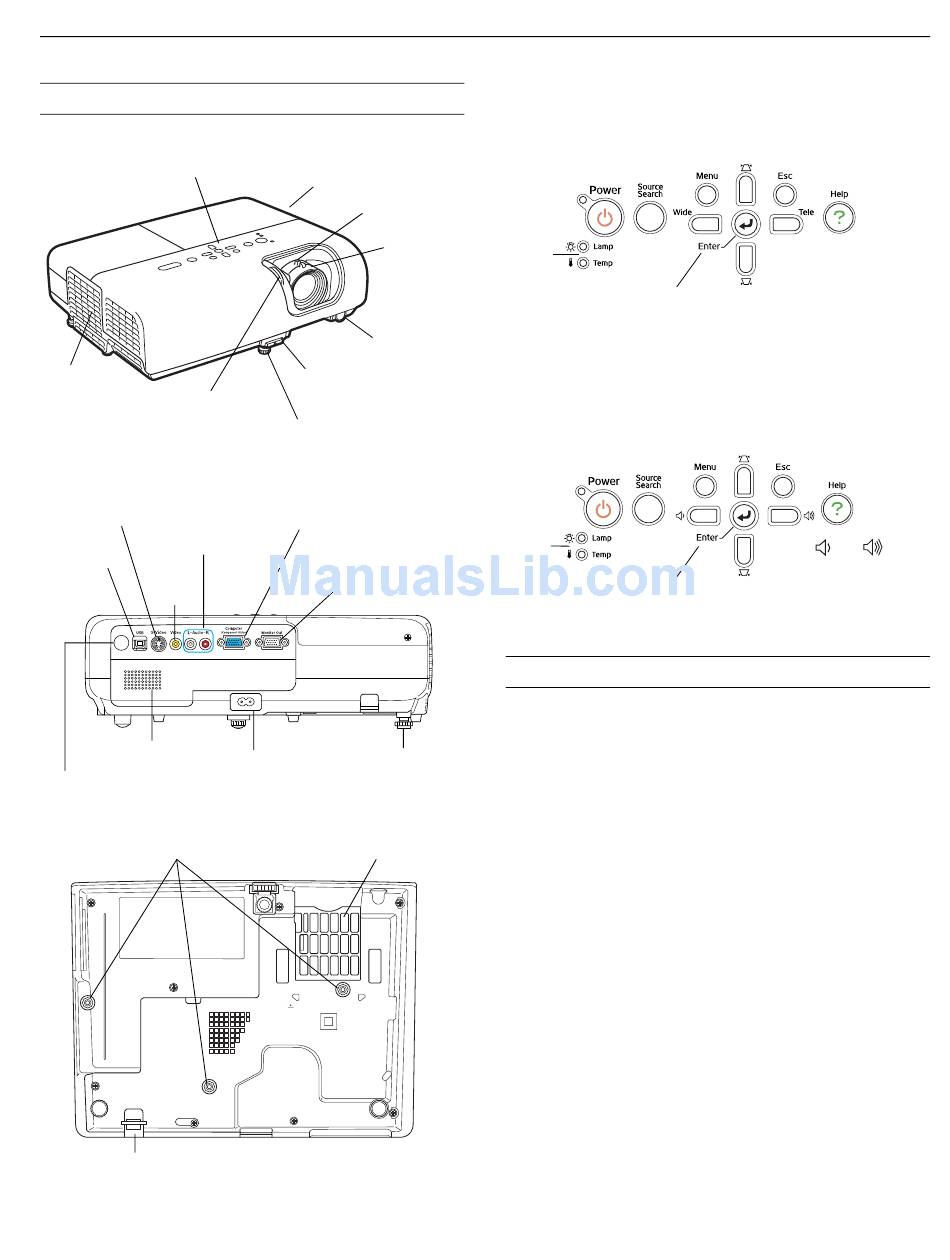

Epson PowerLite S5 Series / 77c Projector
Up and Down buttons correct
Up
keystone distortion and select
button
menu items
®
Kensington
lock port
Control panel
(on side of projector)
Lights
Zoom ring
indicate
projector
Focus ring
Wide and Tele
status
buttons adjust
image size and
Down
select menu items
Enter button automatically
Remote
button
adjusts computer image
control
sensor
PowerLite 77c Control Panel
Air exhaust
Foot release
vent
lever
A/V mute
Up and Down buttons correct
slide
Up
keystone distortion and select
Front adjustable foot
button
menu items
Lights
Computer (Component
S-Video port
indicate
Video) port
projector
Audio input ports
status
and
USB port
buttons adjust
Monitor Out port
Video
volume and select
Down
Enter button automatically
port
menu items
button
adjusts computer image
General
Speaker
Type of display
Poly-silicon TFT active matrix
Rear adjustable foot
Power inlet
Lens
Remote control sensor
PowerLite S5
F=1.44, focal length=16.6 mm
PowerLite 77c
F=1.6 to 1.74, focal length=18.4 to
22.12 mm
Holes for attaching ceiling mount bracket
Air filter
Resolution
PowerLite S5
800 × 600 pixels (SVGA)
PowerLite 77c
1024 × 768 pixels (XGA)
Color reproduction
Full color, 16.77 million colors
Brightness (ANSI)
PowerLite S5
2000 lumens (High brightness mode)
1600 lumens (Low brightness mode)
PowerLite 77
2200 lumens (High brightness mode)
1760 lumens (Low brightness mode)
Contrast ratio
400:1
Image size
30 to 300 inches
Security lock slot
5/07
Epson PowerLite S5 Series / 77c Projector
1
-

   Related Manuals for Epson PowerLite 77c

   Summary of Contents for Epson PowerLite 77c

  • Page 1: Powerlite S5 Series Control Panel, Projector Parts, Projector Specifications

    Speaker Power inlet Remote control sensor Holes for attaching ceiling mount bracket Security lock slot Epson PowerLite S5 Series / 77c Projector PowerLite S5 Series Control Panel Up and Down buttons correct keystone distortion and select menu items ®...

  • Page 2

    Epson PowerLite S5 Series / 77c Projector Projection distance PowerLite S5 2.9 to 39.8 feet (0.87 to 12.12 meters)* PowerLite 77c 2.8 to 34.2 feet (0.84 to 10.42 meters)* * Depending on tele and wide lens setting Projection methods Front, rear, front ceiling, rear ceiling...

  • Page 3: Compatible Computer Display Formats, Positioning The Projector

    Follow these guidelines to get the best results when projecting: ❏ Place the projector on a sturdy, level surface, between 3 and 34 feet (PowerLite 77c) or between 3 and 39 feet (PowerLite S5) from the screen. ❏ Make sure there is plenty of space for ventilation around and under the projector.

  • Page 4: Image Size And Projection Distance, Turning On The Projector

    PowerLite 77c For more help determining the size of your image or where to position the projector, try the Image Size Calculator on the Drivers and Downloads page for your projector on Epson’s website. Epson PowerLite S5 Series / 77c Projector...

  • Page 5: Selecting The Image Source, What To Do If You See A Blank Screen

    When you’re done with your presentation, shut down the projector as described on page 6. Epson PowerLite S5 Series / 77c Projector Selecting the Image Source Selecting the image source lets you switch between images input from different pieces of equipment connected to the projector Power button (such as a computer and DVD player).

  • Page 6: Turning Off The Projector

    (from 1 to 30), the projector automatically turns off the lamp and enters “sleep mode.” This conserves electricity, cools the projector, and extends the life of the lamp. If you are done using the projector, unplug the power cord. If you want to start projecting again, plug it in and press the P sleep mode on or off through the Extended menu.

  • Page 7

    If the projector is tilted up or down, the images that are displayed will be distorted. Note: The PowerLite 77c automatically corrects images that are distorted when the projector is tilted up to 11° and can be corrected manually up to a 30° tilt. The Keystone window appears on the screen while the projector makes the correction.

  • Page 8: Adjusting The Volume, Adjusting The Color Mode, Adjusting The Brightness, Correcting Computer Images

    PowerLite S5 Series PowerLite 77c ❏ On the PowerLite 77c, you may need to turn on Auto Keystone in the Settings menu. See your User’s Guide for instructions. You can also make keystone adjustments using the projector’s Settings menu, as described in the User’s Guide.

  • Page 9

    Blackboard Choose this fixed color mode when you need to project against a green chalkboard. You can also use the projector menu system to change the color mode in the Image menu. (See the User’s Guide for more information.) Turning Off the Picture and Sound...

  • Page 10: Changing Presentation Slides, Projector Status Lights

    Epson PowerLite S5 Series / 77c Projector Changing Presentation Slides You can use the remote control to click through slideshow-style ® presentations (such as PowerPoint ) from up to 20 feet away. This gives you more flexibility, since you don’t need to stand near your computer to change slides.

  • Page 11: Remote Control Buttons, Using The Remote Control, Replacing Remote Control Batteries

    ❏ If a button on the remote control has been held for more than 30 seconds, the remote enters sleep mode. Press another button for normal operation. Epson PowerLite S5 Series / 77c Projector Remote Control Buttons Selects another image source...

  • Page 12: Cleaning The Lens, Cleaning And Replacing The Air Filter, Cleaning The Projector Case

    (such as an artist’s brush). If the dirt is difficult to remove or if the filter is torn, replace it. Contact your dealer or call Epson at (800) 463-7766 to obtain a new one (part number V13H134A13). 5/07...

  • Page 13: Replacing The Lamp

    Note: You can check to see how many hours the lamp has been used through the Info menu. Contact your dealer or call Epson at (800) 463-7766 for a replacement lamp. Request part number V13H010L41. Warning: Let the lamp cool before replacing it. If the lamp breaks, handle the shards carefully to avoid injury.

  • Page 14: Transporting The Projector, Resetting The Lamp Timer

    ❏ When you are hand-carrying the projector, be sure to use the supplied carrying case. Note: Epson shall not be liable for any damages incurred during transportation. 5/07 button on the remote control or projector Menu menu.

  • Page 15: Optional Accessories

    Optional Accessories You can purchase the following optional accessories from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales). Product Replacement lamp Air filter set (includes 2 filters)
